spring在处理海量信息时丢失消息

Question

我使用spring，我的流如下所示，并在3个节点容器上运行测试，其中一个是以兔子为传输对象的管理节点。

aws-s3|processor1|http-client|processor2>queue:readyQueue

我在下面创建了tap。

tap1  aws-s3>s3Queue


tap2  processor1>processorQueue1

tap3  http-client>httpQueue

我在测试中运行以下场景：

Scenario1：200k的5个文件=100万条记录-客户端=70和processor2=30的并发性

我看到了900 K的消息s3Queue

我看到了889k消息processorQueue1

我看到了886 k消息httpQueue

我看到883 K消息processorQueue2消息到处都丢失了，而且它是随机的

Scenario2:

5个200k文件=100万条记录和所有模块concurrency=1

我看到了998800条消息s3Queue

我看到了998760条消息processorQueue1

我看到了997540条消息httpQueue

我看到了997530条消息processorQueue2

即使这个数字也是随机的，而且不一致。

Scenario3

我更改了以下的流和concurrency=1以及200k =100万记录的5个文件

aws-s3 >testQueue

我收到了我所有的消息，我运行了3次，没有问题，我收到了我所有的100万条信息

scenario4

我更改了以下流和concurrency=1 5文件(200 k=100万条记录)

aws-s3 |processor1 >testQueue2

我收到了我所有的消息，我运行了3次，没有问题，我收到了我所有的100万条信息

在scenario4和scenarion 3中，数据摄入速度更快，处理速度更快5分钟，在兔子传输队列中吞食速度更快，例如每秒5k味精。

在场景1中，数据摄入速度较慢，甚至s3模块也在以每秒300至1000 msg的速度将数据拖慢。

在场景2中，s3提取数据的速度更快，但http客户端的速度大约为每秒100 msg，而aws-s3则以每秒3-4k msg的速度快速提取数据。

我在想，就像看到xd线程正在引发问题一样，我正在失去messages.Please，您能帮我解决这个问题吗？

更新

Scenario 5

我在http客户机中将reply-timeout更改为-1，然后只丢失了37条msg。

现在，我再次运行第二次迭代，我丢失了25000毫希，当这发生时，我看到了咆哮的容器日志。

2016-03-04T03:42:04-0500 1.2.1.RELEASE ERROR task-scheduler-7 handler.LoggingHandler - org.springframework.messaging.MessageHandlingException: error occurred in message handler [org.springframework.integration.amqp.outbound.AmqpOutboundEndpoint@b6700b1]; nested exception is org.springframework.amqp.AmqpIOException: java.io.IOException
        at org.springframework.integration.handler.AbstractMessageHandler.handleMessage(AbstractMessageHandler.java:84)
        at org.springframework.xd.dirt.integration.rabbit.RabbitMessageBus$SendingHandler.handleMessageInternal(RabbitMessageBus.java:891)
        at org.springframework.integration.handler.AbstractMessageHandler.handleMessage(AbstractMessageHandler.java:78)
        at org.springframework.integration.dispatcher.AbstractDispatcher.tryOptimizedDispatch(AbstractDispatcher.java:116)
        at org.springframework.integration.dispatcher.UnicastingDispatcher.doDispatch(UnicastingDispatcher.java:101)
        at org.springframework.integration.dispatcher.UnicastingDispatcher.dispatch(UnicastingDispatcher.java:97)
        at org.springframework.integration.channel.AbstractSubscribableChannel.doSend(AbstractSubscribableChannel.java:77)
        at org.springframework.integration.channel.AbstractMessageChannel.send(AbstractMessageChannel.java:287)
        at org.springframework.integration.channel.interceptor.WireTap.preSend(WireTap.java:129)
        at org.springframework.integration.channel.AbstractMessageChannel$ChannelInterceptorList.preSend(AbstractMessageChannel.java:392)
        at org.springframework.integration.channel.AbstractMessageChannel.send(AbstractMessageChannel.java:282)
        at org.springframework.integration.channel.AbstractMessageChannel.send(AbstractMessageChannel.java:245)
        at sun.reflect.GeneratedMethodAccessor204.invoke(Unknown Source)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:497)
        at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:317)
        at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:190)
        at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:157)
        at org.springframework.integration.monitor.DirectChannelMetrics.monitorSend(DirectChannelMetrics.java:114)
        at org.springframework.integration.monitor.DirectChannelMetrics.doInvoke(DirectChannelMetrics.java:98)
        at org.springframework.integration.monitor.DirectChannelMetrics.invoke(DirectChannelMetrics.java:92)
        at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
        at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:207)
        at com.sun.proxy.$Proxy1537.send(Unknown Source)
        at org.springframework.messaging.core.GenericMessagingTemplate.doSend(GenericMessagingTemplate.java:115)
        at org.springframework.messaging.core.GenericMessagingTemplate.doSend(GenericMessagingTemplate.java:45)
        at org.springframework.messaging.core.AbstractMessageSendingTemplate.send(AbstractMessageSendingTemplate.java:95)
        at org.springframework.integration.handler.AbstractMessageProducingHandler.sendOutput(AbstractMessageProducingHandler.java:231)
        at org.springframework.integration.handler.AbstractMessageProducingHandler.produceOutput(AbstractMessageProducingHandler.java:154)
        at org.springframework.integration.splitter.AbstractMessageSplitter.produceOutput(AbstractMessageSplitter.java:157)
        at org.springframework.integration.handler.AbstractMessageProducingHandler.sendOutputs(AbstractMessageProducingHandler.java:102)
        at org.springframework.integration.handler.AbstractReplyProducingMessageHandler.handleMessageInternal(AbstractReplyProducingMessageHandler.java:105)

Caused by: org.springframework.amqp.AmqpIOException: java.io.IOException
        at org.springframework.amqp.rabbit.support.RabbitExceptionTranslator.convertRabbitAccessException(RabbitExceptionTranslator.java:63)
        at org.springframework.amqp.rabbit.connection.SimpleConnection.createChannel(SimpleConnection.java:51)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory$ChannelCachingConnectionProxy.createBareChannel(CachingConnectionFactory.java:758)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory$ChannelCachingConnectionProxy.access$300(CachingConnectionFactory.java:747)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory.doCreateBareChannel(CachingConnectionFactory.java:419)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory.createBareChannel(CachingConnectionFactory.java:395)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory.getCachedChannelProxy(CachingConnectionFactory.java:364)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory.getChannel(CachingConnectionFactory.java:357)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory.access$1100(CachingConnectionFactory.java:75)
        at org.springframework.amqp.rabbit.connection.CachingConnectionFactory$ChannelCachingConnectionProxy.createChannel(CachingConnectionFactory.java:763)
        at org.springframework.amqp.rabbit.connection.ConnectionFactoryUtils$1.createChannel(ConnectionFactoryUtils.java:85)
        at org.springframework.amqp.rabbit.connection.ConnectionFactoryUtils.doGetTransactionalResourceHolder(ConnectionFactoryUtils.java:134)
        at org.springframework.amqp.rabbit.connection.ConnectionFactoryUtils.getTransactionalResourceHolder(ConnectionFactoryUtils.java:67)
        at org.springframework.amqp.rabbit.core.RabbitTemplate.doExecute(RabbitTemplate.java:1035)
        at org.springframework.amqp.rabbit.core.RabbitTemplate.execute(RabbitTemplate.java:1028)
        at org.springframework.amqp.rabbit.core.RabbitTemplate.send(RabbitTemplate.java:540)
        at org.springframework.amqp.rabbit.core.RabbitTemplate.convertAndSend(RabbitTemplate.java:635)
        at org.springframework.integration.amqp.outbound.AmqpOutboundEndpoint.send(AmqpOutboundEndpoint.java:331)
        at org.springframework.integration.amqp.outbound.AmqpOutboundEndpoint.handleRequestMessage(AmqpOutboundEndpoint.java:323)
        at org.springframework.integration.handler.AbstractReplyProducingMessageHandler.handleMessageInternal(AbstractReplyProducingMessageHandler.java:99)
        at org.springframework.integration.handler.AbstractMessageHandler.handleMessage(AbstractMessageHandler.java:78)
        ... 93 more
Caused by: java.io.IOException
        at com.rabbitmq.client.impl.AMQChannel.wrap(AMQChannel.java:106)
        at com.rabbitmq.client.impl.AMQChannel.wrap(AMQChannel.java:102)
        at com.rabbitmq.client.impl.AMQChannel.exnWrappingRpc(AMQChannel.java:124)
        at com.rabbitmq.client.impl.ChannelN.open(ChannelN.java:125)
        at com.rabbitmq.client.impl.ChannelManager.createChannel(ChannelManager.java:134)
        at com.rabbitmq.client.impl.AMQConnection.createChannel(AMQConnection.java:499)
        at org.springframework.amqp.rabbit.connection.SimpleConnection.createChannel(SimpleConnection.java:44)
        ... 112 more
Caused by: com.rabbitmq.client.ShutdownSignalException: connection error
        at com.rabbitmq.utility.ValueOrException.getValue(ValueOrException.java:67)
        at com.rabbitmq.utility.BlockingValueOrException.uninterruptibleGetValue(BlockingValueOrException.java:33)
        at com.rabbitmq.client.impl.AMQChannel$BlockingRpcContinuation.getReply(AMQChannel.java:348)
        at com.rabbitmq.client.impl.AMQChannel.privateRpc(AMQChannel.java:221)
        at com.rabbitmq.client.impl.AMQChannel.exnWrappingRpc(AMQChannel.java:118)
        ... 116 more
Caused by: com.rabbitmq.client.impl.UnknownChannelException: Unknown channel number 23364
        at com.rabbitmq.client.impl.ChannelManager.getChannel(ChannelManager.java:80)
        at com.rabbitmq.client.impl.AMQConnection$MainLoop.run(AMQConnection.java:552)
        ... 1 more

2016-03-04T03:42:05-0500 1.2.1.RELEASE ERROR AMQP Connection xxx:5672 connection.CachingConnectionFactory - Channel shutdown: channel error; protocol method: #method<channel.close>(reply-code=404, reply-text=NOT_FOUND - no queue 'xdbus.tap-s3.tap:stream:stream.batch-aws-s3-source.0' in vhost '/', class-id=50, method-id=20)


2016-03-04T03:53:13-0500 1.2.1.RELEASE ERROR AMQP Connection xxx:5672 connection.CachingConnectionFactory - Channel shutdown: connection error
2016-03-04T03:53:13-0500 1.2.1.RELEASE ERROR AMQP Connection xxx:5672 connection.CachingConnectionFactory - Channel shutdown: channel error; protocol method: #method<channel.close>(reply-code=404, reply-text=NOT_FOUND - no queue 'xdbus.tap-s3.tap:stream:stream.batch-aws-s3-source.0' in vhost '/', class-id=50, method-id=20)
~


2016-03-04T02:57:54-0500 1.2.1.RELEASE ERROR AMQP Connection xxx:8080 connection.CachingConnectionFactory - Channel shutdown: connection error
2016-03-04T02:57:55-0500 1.2.1.RELEASE ERROR AMQP Connection xxx:8080 connection.CachingConnectionFactory - Channel shutdown: connection error
2016-03-04T03:42:04-0500 1.2.1.RELEASE ERROR AMQP Connection yyy:5672 connection.CachingConnectionFactory - Channel shutdown: connection error

已更新

当这个异常发生时，我发现了消息丢失的问题，我看到了很多msg lost.This模式，我测试了多个time.Everytime，这个异常发生了，我看到msg lost.Also出现并发，这使得这个问题经常发生。

2016-03-05T13:59:41-0500 1.2.1.RELEASE ERROR AMQP Connection host1:5672 connection.CachingConnectionFactory - Channel shutdown: connection error

兔形

spring:
  rabbitmq:
   addresses: host1:5672,host2:5672,host3:5672
   adminAddresses: http://host1:15672,http://host2:15672,http://host3:15672
   nodes: rabbit@host1.test.com,rabbit@host2.test.com,rabbit@host2.test.com
   username: test
   password: test
   virtual_host: /
   useSSL: false
   sslProperties:

随着缓存大小增加到200而更新

我添加了您提供的xml，并将缓存大小增加到200。这是在处理100万和80k messages.Only时发生的情况，我的http客户机并发性是100，其他的是1 .Slowly处理停止的msg仍然存在，在我指定的通道中的http-客户机队列和相同的count.But msg计数以每分钟10 msg的速度缓慢增长，但它的.Slowly非常慢。

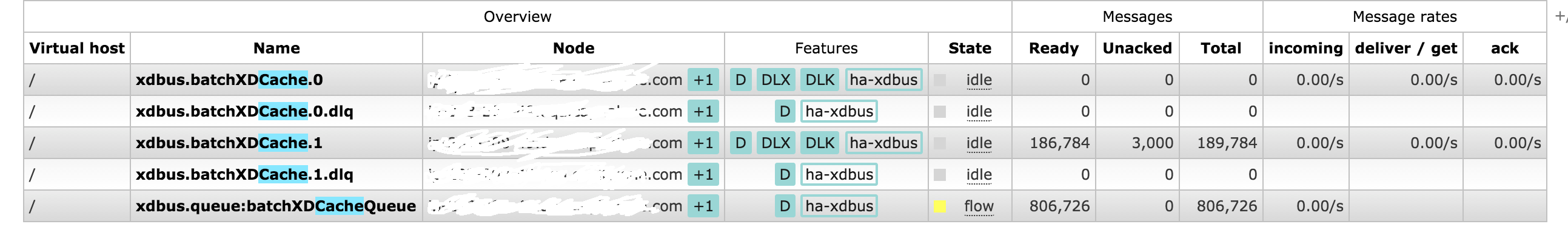

Msg在http 186174之前不会在队列中衰老，但是msg正在慢慢地进入batchCacheQueue。

​

​

模拟测试用例：

1)我使用了spring集成aws-s3源，其中包含一个复合模块的分配器，如xml解析、具有并发性的http-client、并发性100 >命名通道。

2)我认为文件源也可能会work.Create百万条记录的单个文件，并尝试从文件中提取这个文件。

3)在大约4到5次运行后，我们看到这个异常正在发生

Answer 1

原因: com.rabbitmq.client.impl.UnknownChannelException:未知信道编号23364

我们发现了一个问题:当通道经常被搅动时，您需要在兔子缓存连接工厂中增加通道缓存大小。

见这是一个解决问题的方法。

我打开了一个JIRA问题，这样下一个版本的Spring将在servers.yml中公开这个设置，这样您就不必覆盖总线配置文件。
