Swift中的艺术品绘图

Question

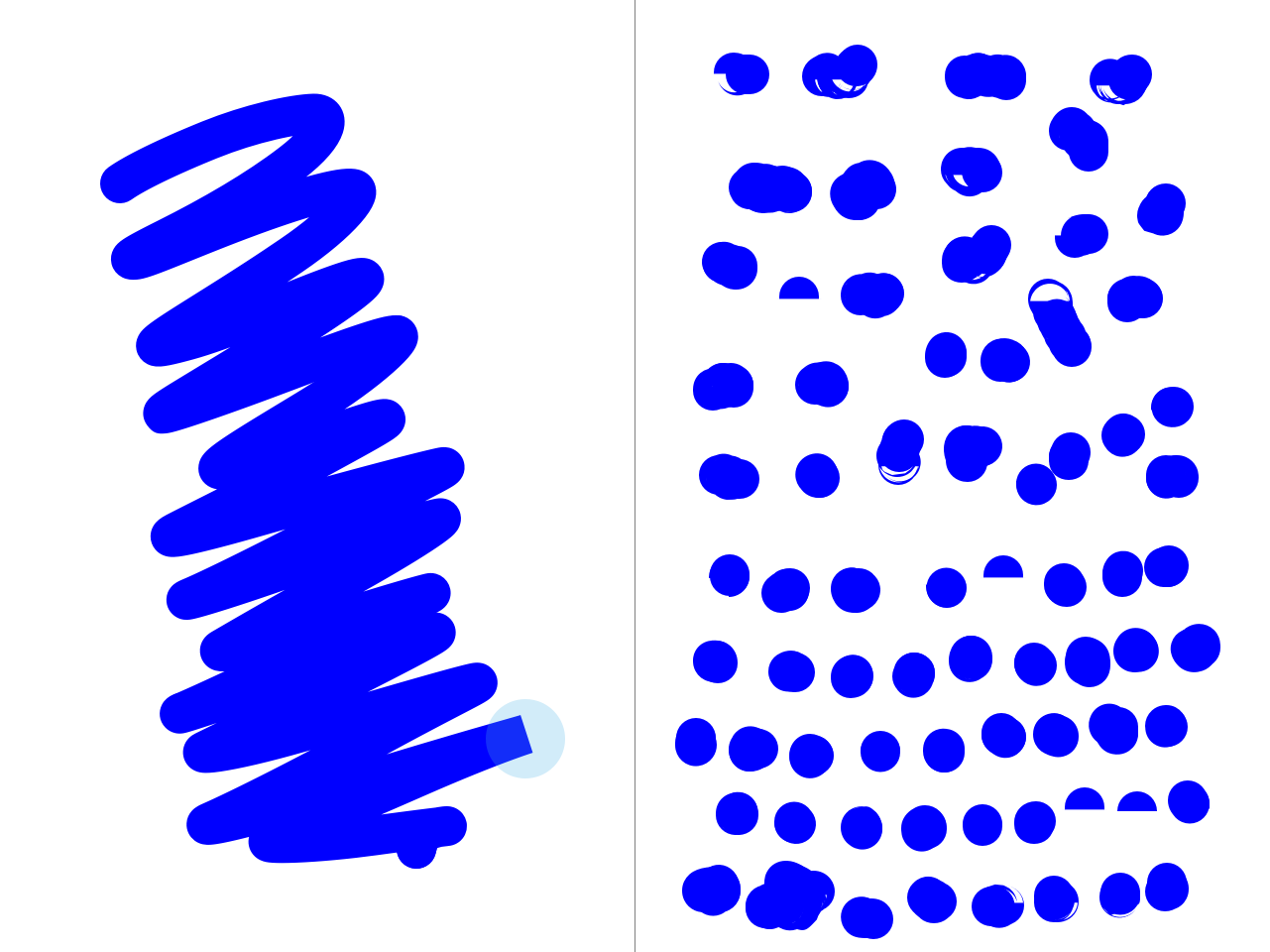

下面的代码通过覆盖触摸来绘制线条，但是在绘图时仍然存在一种假象，如下面的图像所示。

当在屏幕上来回画时，当改变方向时，这条线有时会变成一个平坦的直角，而不是剩下的圆形。手工艺品在小圆圈现场绘画时也会体验到，当手指离开屏幕时，绘图点会闪烁半圆，有时会留下半圆和部分圆圈残余物。

人工制品是断断续续的，并不是完全一致或可预测的模式，因此很难在代码中找到问题。它既存在于模拟器中，也存在于iOS7 - iOS9的设备上.

包含两个绘制点和行的视频屏幕截图以及Xcode项目的zip被上传到一个名为Archive.zip (23 of ) https://www.dropbox.com/s/hm39rdiuk0mf578/Archive.zip?dl=0的文件中。

问题：

在代码中，造成这个圆点/半圆伪像的原因是什么，如何纠正它？

​

​

class SmoothCurvedLinesView: UIView {
    var strokeColor = UIColor.blueColor()
    var lineWidth: CGFloat = 20
    var snapshotImage: UIImage?

    private var path: UIBezierPath?
    private var temporaryPath: UIBezierPath?
    private var points = [CGPoint]()
    private var totalPointCount = 0

    override func drawRect(rect: CGRect) {
        snapshotImage?.drawInRect(rect)

        strokeColor.setStroke()

        path?.stroke()
        temporaryPath?.stroke()
    }

    override func touchesBegan(touches: Set<UITouch>, withEvent event: UIEvent?) {
        let touch: AnyObject? = touches.first
        points = [touch!.locationInView(self)]
        totalPointCount = totalPointCount + 1
    }

    override func touchesMoved(touches: Set<UITouch>, withEvent event: UIEvent?) {
        let touch: AnyObject? = touches.first
        let point = touch!.locationInView(self)

        points.append(point)
        totalPointCount = totalPointCount + 1

        updatePaths()

        if totalPointCount > 50 {
            constructIncrementalImage(includeTemporaryPath: false)
            path = nil
            totalPointCount = 0
        }

        setNeedsDisplay()
    }

    private func updatePaths() {
        // update main path

        while points.count > 4 {
            points[3] = CGPointMake((points[2].x + points[4].x)/2.0, (points[2].y + points[4].y)/2.0)

            if path == nil {
                path = createPathStartingAtPoint(points[0])
            }

            path?.addCurveToPoint(points[3], controlPoint1: points[1], controlPoint2: points[2])

            points.removeFirst(3)
        }

        // build temporary path up to last touch point

        let pointCount = points.count

        if pointCount == 2 {
            temporaryPath = createPathStartingAtPoint(points[0])
            temporaryPath?.addLineToPoint(points[1])
        } else if pointCount == 3 {
            temporaryPath = createPathStartingAtPoint(points[0])
            temporaryPath?.addQuadCurveToPoint(points[2], controlPoint: points[1])
        } else if pointCount == 4 {
            temporaryPath = createPathStartingAtPoint(points[0])
            temporaryPath?.addCurveToPoint(points[3], controlPoint1: points[1], controlPoint2: points[2])
        }
    }

    override func touchesEnded(touches: Set<UITouch>, withEvent event: UIEvent?) {
        constructIncrementalImage()
        path = nil
        setNeedsDisplay()
    }

    override func touchesCancelled(touches: Set<UITouch>?, withEvent event: UIEvent?) {
        touchesEnded(touches!, withEvent: event)
    }

    private func createPathStartingAtPoint(point: CGPoint) -> UIBezierPath {
        let localPath = UIBezierPath()

        localPath.moveToPoint(point)

        localPath.lineWidth = lineWidth
        localPath.lineCapStyle = .Round
        localPath.lineJoinStyle = .Round

        return localPath
    }

    private func constructIncrementalImage(includeTemporaryPath includeTemporaryPath: Bool = true) {
        UIGraphicsBeginImageContextWithOptions(bounds.size, false, 0.0)
        strokeColor.setStroke()
        snapshotImage?.drawAtPoint(CGPointZero)
        path?.stroke()
        if (includeTemporaryPath) { temporaryPath?.stroke() }
        snapshotImage = UIGraphicsGetImageFromCurrentImageContext()
        UIGraphicsEndImageContext()
    }
}

Answer 1

在addQuadCurveToPoint和addCurveToPoint中，这似乎是一个很吸引人的错误，如果控制点与两个端点位于同一条线上，那么它就不尊重lineJoinStyle。因此，您可以对此进行测试(通过查看各个点的atan2并确保不相同)，如果是的话，只需执行addLineToPoint：

我发现修改后的代码删除了这些工件：

private func updatePaths() {
    // update main path

    while points.count > 4 {
        points[3] = CGPointMake((points[2].x + points[4].x)/2.0, (points[2].y + points[4].y)/2.0)

        if path == nil {
            path = createPathStartingAtPoint(points[0])
        }

        addCubicCurveToPath(path)

        points.removeFirst(3)
    }

    // build temporary path up to last touch point

    let pointCount = points.count

    if pointCount == 2 {
        temporaryPath = createPathStartingAtPoint(points[0])
        temporaryPath?.addLineToPoint(points[1])
    } else if pointCount == 3 {
        temporaryPath = createPathStartingAtPoint(points[0])
        addQuadCurveToPath(temporaryPath)
    } else if pointCount == 4 {
        temporaryPath = createPathStartingAtPoint(points[0])
        addCubicCurveToPath(temporaryPath)
    }
}

/// Add cubic curve to path
///
/// Because of bug with bezier curves that fold back on themselves do no honor `lineJoinStyle`,
/// check to see if this occurs, and if so, just add lines rather than cubic bezier path.

private func addCubicCurveToPath(somePath: UIBezierPath?) {
    let m01 = atan2(points[0].x - points[1].x, points[0].y - points[1].y)
    let m23 = atan2(points[2].x - points[3].x, points[2].y - points[3].y)
    let m03 = atan2(points[0].x - points[3].x, points[0].y - points[3].y)
    if m01 == m03 || m23 == m03 || points[0] == points[3] {
        somePath?.addLineToPoint(points[1])
        somePath?.addLineToPoint(points[2])
        somePath?.addLineToPoint(points[3])
    } else {
        somePath?.addCurveToPoint(points[3], controlPoint1: points[1], controlPoint2: points[2])
    }
}

/// Add quadratic curve to path
///
/// Because of bug with bezier curves that fold back on themselves do no honor `lineJoinStyle`,
/// check to see if this occurs, and if so, just add lines rather than quadratic bezier path.

private func addQuadCurveToPath(somePath: UIBezierPath?) {
    let m01 = atan2(points[0].x - points[1].x, points[0].y - points[1].y)
    let m12 = atan2(points[1].x - points[2].x, points[1].y - points[2].y)
    let m02 = atan2(points[0].x - points[2].x, points[0].y - points[2].y)
    if m01 == m02 || m12 == m02 || points[0] == points[2] {
        somePath?.addLineToPoint(points[1])
        somePath?.addLineToPoint(points[2])
    } else {
        somePath?.addQuadCurveToPoint(points[2], controlPoint: points[1])
    }
}

此外，这可能过于谨慎，但谨慎的做法可能是确保guard语句中的两个连续点永远不会相同：

override func touchesMoved(touches: Set<UITouch>, withEvent event: UIEvent?) {
    let touch: AnyObject? = touches.first
    let point = touch!.locationInView(self)

    guard point != points.last else { return }

    points.append(point)
    totalPointCount = totalPointCount + 1

    updatePaths()

    if totalPointCount > 50 {
        constructIncrementalImage(includeTemporaryPath: false)
        path = nil
        totalPointCount = 0
    }

    setNeedsDisplay()
}

如果您发现存在问题的其他情况，可以重复我刚才所做的调试练习。也就是说，在出现问题之前运行代码，但立即停止，查看points数组的日志，以查看导致问题的点，然后创建一个init?(coder:)，该init?(coder:) 100%地重复该问题，例如：

required init?(coder aDecoder: NSCoder) {
    super.init(coder: aDecoder)

    points.append(CGPoint(x: 239.33332824707, y: 419.0))
    points.append(CGPoint(x: 239.33332824707, y: 420.0))
    points.append(CGPoint(x: 239.33332824707, y: 419.3))

    updatePaths()
}

然后，有了一个持续重复的问题，调试就很容易了。因此，在诊断出问题后，我修改了updatePaths，直到问题解决为止。然后我对init?进行了评论，并重复了整个练习。
