R networkD3包: simpleNetwork()中的节点着色

Question

networkD3包(请参阅这里和这里)允许用户创建简单的交互式网络：

# Load package
library(networkD3)

# Create fake data
src <- c("A", "A", "A", "A",
        "B", "B", "C", "C", "D")
target <- c("B", "C", "D", "J",
            "E", "F", "G", "H", "I")
networkData <- data.frame(src, target)

# Plot
simpleNetwork(networkData)

是否有一种方法可以指定src向量中的所有元素都是特定的颜色，同时允许target向量中的所有元素都是不同的颜色？这将使我能够直观地区分网络中的src节点和target节点。

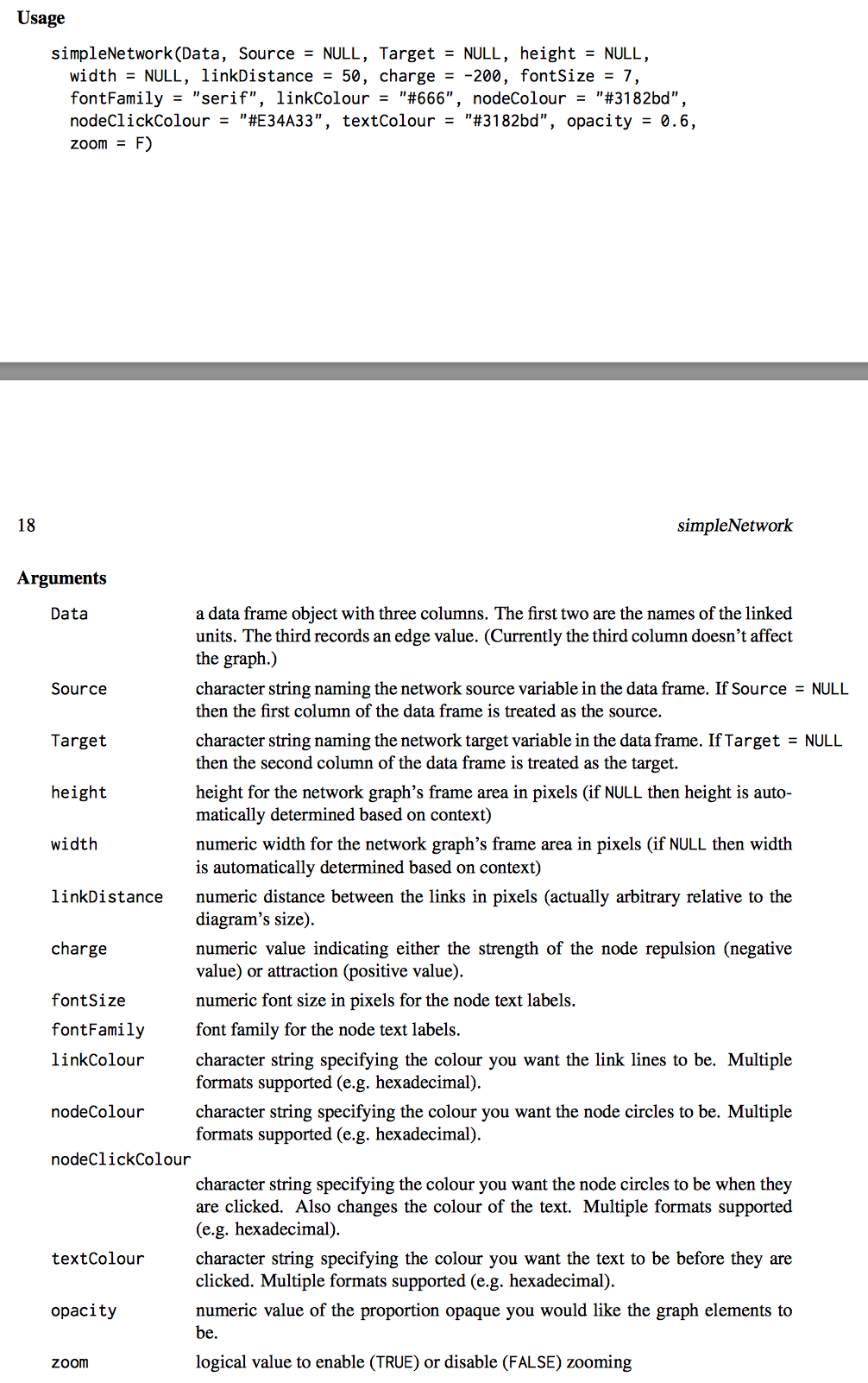

这个功能目前在simpleNetwork()中似乎不受支持(但我希望有人能帮助我编写一个自制脚本)：

​

一个类似但不相关的问题是问这里。

Answer 1

下面是如何用forceNetwork控制节点的颜色。注意，这仍然不能告诉您链接的方向，因为有些节点是某些链接的源，而另一些则是目标--因此您需要重新思考这种逻辑。但是无论如何，这是节点的控制颜色。

# Load package
library(networkD3)
library(dplyr) # to make the joins easier

# Create fake data
src <- c("A", "A", "A", "A",
         "B", "B", "C", "C", "D")
target <- c("B", "C", "D", "J",
            "E", "F", "G", "H", "I")
networkData <- data.frame(src, target, stringsAsFactors = FALSE)

nodes <- data.frame(name = unique(c(src, target)), stringsAsFactors = FALSE)
nodes$id <- 0:(nrow(nodes) - 1)


# create a data frame of the edges that uses id 0:9 instead of their names
edges <- networkData %>%
   left_join(nodes, by = c("src" = "name")) %>%
   select(-src) %>%
   rename(source = id) %>%
   left_join(nodes, by = c("target" = "name")) %>%
   select(-target) %>%
   rename(target = id)

edges$width <- 1

# make a grouping variable that will match to colours
nodes$group <- ifelse(nodes$name %in% src, "lions", "tigers")

# simple with default colours
forceNetwork(Links = edges, Nodes = nodes,
             Source = "source",
             Target = "target",
             NodeID ="name",
             Group = "group",
             Value = "width",
             opacity = 0.9,
             zoom = TRUE)

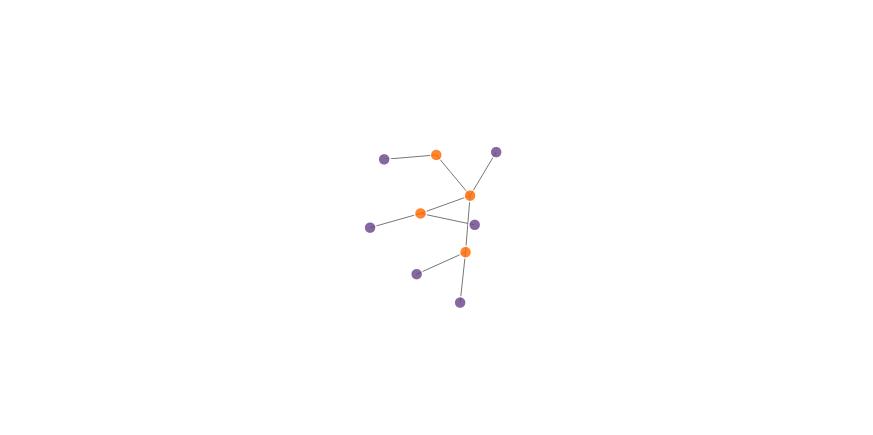

# control colours with a JS ordinal scale
# edited 20 May 2017 with updated code from Renal Chesak's answer:
ColourScale <- 'd3.scaleOrdinal()
            .domain(["lions", "tigers"])
           .range(["#FF6900", "#694489"]);'

forceNetwork(Links = edges, Nodes = nodes,
             Source = "source",
             Target = "target",
             NodeID ="name",
             Group = "group",
             Value = "width",
             opacity = 0.9,
             zoom = TRUE,
             colourScale = JS(ColourScale))

​

​

Answer 2

Peter上面的答案可能曾经起过作用，但是看起来代码已经在一个新版本中被更新了。而不是d3.scale.ordinal().range([])，您将不得不使用d3.scaleOrdinal().range([])

Answer 3

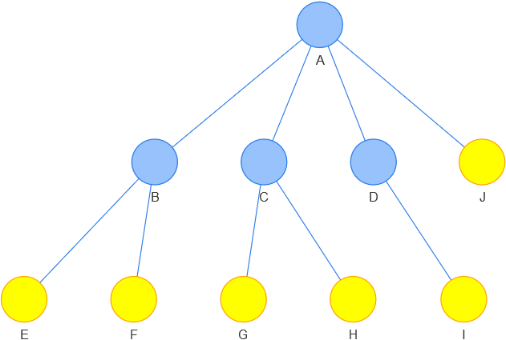

您可以在链接post中执行类似的操作，但是下面是一个使用visNetwork包的示例。这个包与vis.js接口，并制作了非常好的交互式图形。

library(visNetwork)
id <- unique(c(src, target))                                  # node ids
nodes <- data.frame(id, group=+(id %in% src),                 # add a grouping for src/target
  label=id, title=sprintf('<p>Node %s</p>', id))              # add some labels
g <- visNetwork(nodes=nodes, edges=networkData, width="75%")  # make graph
visExport(visHierarchicalLayout(g))                           # make it tree-like

​

​
