使用`c.trellis`时维护自定义的滴答标签

Question

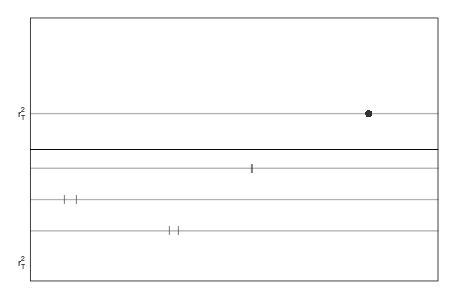

我有两个格子对象，我想使用c.trellis ( latticeExtra )组合它们(这两个数字可以下载这里)。如下面所示，生成的绘图从第一个图形继承滴答标签，而丢弃来自第二个图形的标签。在使用c.trellis时可以保留不同的y轴勾标吗？

library(latticeExtra)

rsq_plt <- readRDS("rsq.rds")
err_plt <- readRDS("err.rds")

latticeExtra:::c.trellis(rsq_plt, err_plt, layout = c(1, 2))

​

​

Answer 1

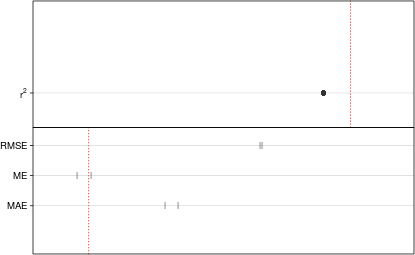

为了记录在案，我似乎终于想出了一个合适的解决方案，这要归功于网格图的全面定制选项。在执行scales之前(通过scales = list(draw = FALSE)；注意文件'rsq.rds‘已在线更改)在执行c.trellis之前禁用c.trellis，然后执行带有自定义y轴的组合情节update-ing解决了这个问题。

## combine plots and increase left padding
plt <- latticeExtra:::c.trellis(rsq_plt, err_plt, layout = c(1, 2))
plt <- update(plt,
              scales = list(draw = FALSE),
              par.settings = list(
                layout.widths = list(left.padding = 6, right.padding = 0),
                layout.heights = list(top.padding = 0, bottom.padding = 0)
              ))

## custom panel.axis
panel.fun <- function(...) {

  # allow to draw labels outside panel
  trellis.par.set("clip", list(panel = "off", strip = "off"))

  # add upper y-axis
  if (panel.number() == 1) {
    panel.axis("left", at = 1, tck = .5, outside = TRUE,
               labels = expression("r"^2))
    panel.abline(v = 1, lty = 3, lwd = 1, col = "red")
    panel.dotplot(lwd = .5, ...)
  }

  # add lower y-axis
  if (panel.number() == 2) {
    panel.axis("left", at = 2:4, outside = TRUE, tck = .5,
               labels = c("MAE", "ME", "RMSE"))
    panel.abline(v = 0, lty = 3, lwd = 1, col = "red")
    panel.dotplot(..., lwd = 0.5)
  }
}

## apply custom axes
update(plt, panel = panel.fun)

​

​
