qcc (质量控制图)图在R中的灰色背景

Question

我遇到了一个问题，我的图形总是在浅灰背景上，在LaTeX中看起来很糟糕。我试过用par(bg=NA)，par(bg="white") --这是每个人都建议的--但实际上什么也做不了.

下面是代码：

# install.packages('qcc')
library(qcc)
nonconforming <- c(3, 4, 6, 5, 2, 8, 9, 4, 2, 6, 4, 8, 0, 7, 20, 6, 1, 5, 7)
samplesize <- rep(50, 19)
control <- qcc(nonconforming, type = "p", samplesize, plot = "FALSE")
warn.limits <- limits.p(control$center, control$std.dev, control$sizes, 2)
par(mar = c(5, 3, 1, 3), bg = "blue")
plot(control, restore.par = FALSE, title = "P Chart for Medical Insurance Claims",
     xlab = "Day", ylab = "Proportion Defective")
abline(h = warn.limits, lty = 3, col = "blue")
v2 <- c("LWL", "UWL")  # the labels for warn.limits
mtext(side = 4, text = v2, at = warn.limits, col = "blue", las = 2)

Answer 1

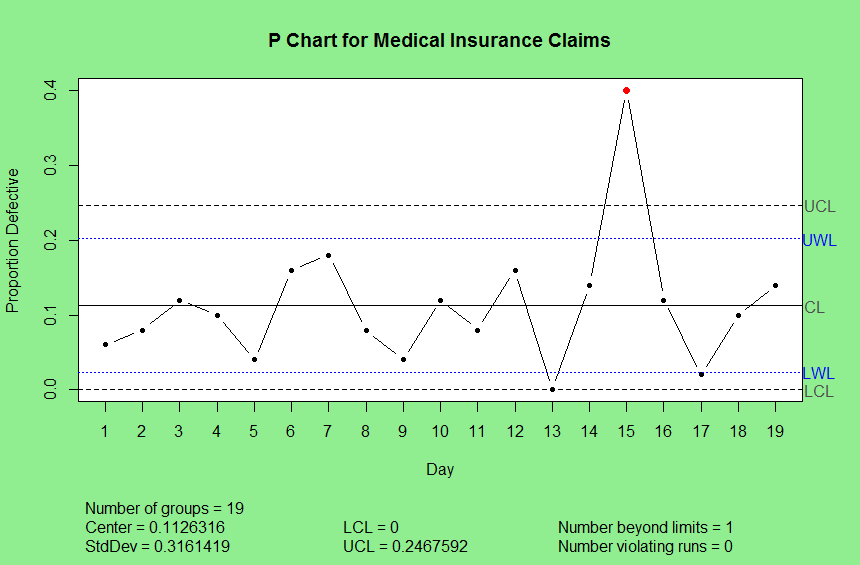

查看?qcc.options() --特别是bg.margin选项。下面将更改您的lightgreen背景(注意:对于LaTeX来说可能不是一个好的选择，但它说明了这一点)：

library(qcc)
nonconforming <- c(3, 4, 6, 5, 2, 8, 9, 4, 2, 6, 4, 8, 0, 7, 20, 6, 1, 5, 7)
samplesize <- rep(50, 19)

old <- qcc.options()  # save the original options
qcc.options(bg.margin = "lightgreen")
par(mar = c(5, 3, 1, 3))
control <- qcc(nonconforming, type = "p", samplesize, plot = "FALSE")
warn.limits <- limits.p(control$center, control$std.dev, control$sizes, 2)
plot(control, restore.par = FALSE, title = "P Chart for Medical Insurance Claims",
     xlab = "Day", ylab = "Proportion Defective")
abline(h = warn.limits, lty = 3, col = "blue")
v2 <- c("LWL", "UWL")  # the labels for warn.limits
mtext(side = 4, text = v2, at = warn.limits, col = "blue", las = 2)
qcc.options(old)  # reset the old options

​

​
