openTBS/PHP -如何创建堆叠条形图？

Question

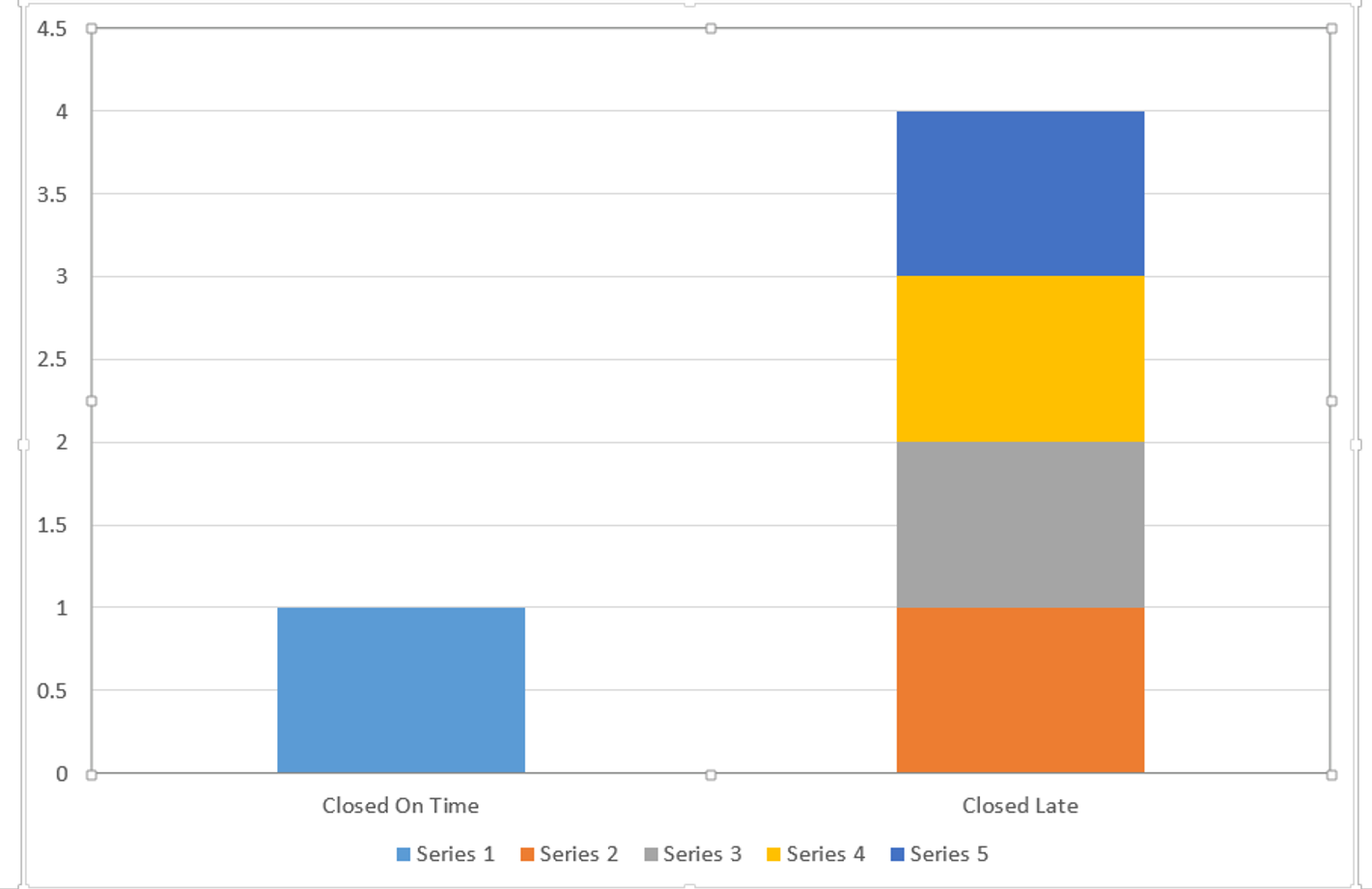

我正在尝试创建一个堆叠的条形图，如下所示，嵌入在PowerPoint模板的幻灯片上。当我在下面运行我的脚本时，我会得到一个错误。

TinyButStrong错误OpenTBS插件：(ChartChangeSeries) 'chart3‘：无法在图表’图表3‘中找到系列’3‘。进程正在结束，除非您将NoErr属性设置为true。

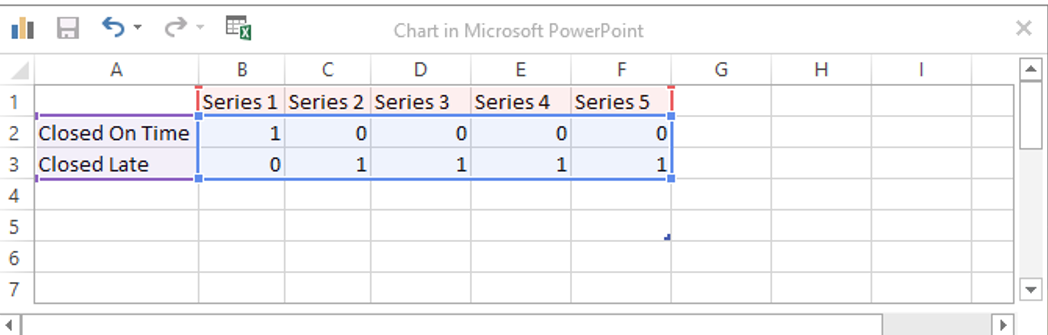

据我所见，我的系列与x轴的两个标签中的每一个都有明确的定义。

，我哪里出错了，如何解决这个错误？

​

​

​

​

$ecdClosureStatus = getClosureChartData('ECD');
    $ChartNameOrNum = 'chart3'; // Title of the shape that embeds the chart
    $ChartRef = 'chart3'; // Title of the shape that embeds the chart
    $SeriesNameOrNum = 'Series 1';
    $NewLegend = "Closed On Time";
    $NewValues =    array(


(int)$ecdClosureStatus['ClosedOnTime'],
                                    0
                                );
$TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

$SeriesNameOrNum = 'Series 2';
$NewLegend =    'Closed 1-30 Days Late';
$NewValues =    array(
                                    0,
                                    (int)$ecdClosureStatus['OneToThirtyDaysLate']
                                );
$TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

$SeriesNameOrNum = 'Series 3';
$NewLegend =        'Closed 31-60 Days Late';
$NewValues =    array(
                                    0,
                                    (int)$ecdClosureStatus['ThirtyOneToSixtyDaysLate']
                                );
$TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

$SeriesNameOrNum = 'Series 4';
$NewLegend =    'Closed 61-90 Days Late';
$NewValues =        array(
                                    0,
                                    (int)$ecdClosureStatus['SixtyOneToNinetyDaysLate']
                                );
$TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

$SeriesNameOrNum = 'Series 5';
$NewLegend = 'Closed >90 Days Late';
$NewValues =    array(
                                    0,
                                    (int)$ecdClosureStatus['ClosedMoreThanNinetyDaysLate']
                                );
$TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

Answer 1

我将每个系列的$NewValues数组修改为由两个元素组成的数组，第一个元素是x轴值，第二个元素是y轴值。X轴值是由两个值组成的数组(“按时关闭”、“关闭较晚”)，y轴是由两个元素组成的数组(一个元素为零，另一个为该x值的值(要么按时关闭，要么晚闭)。

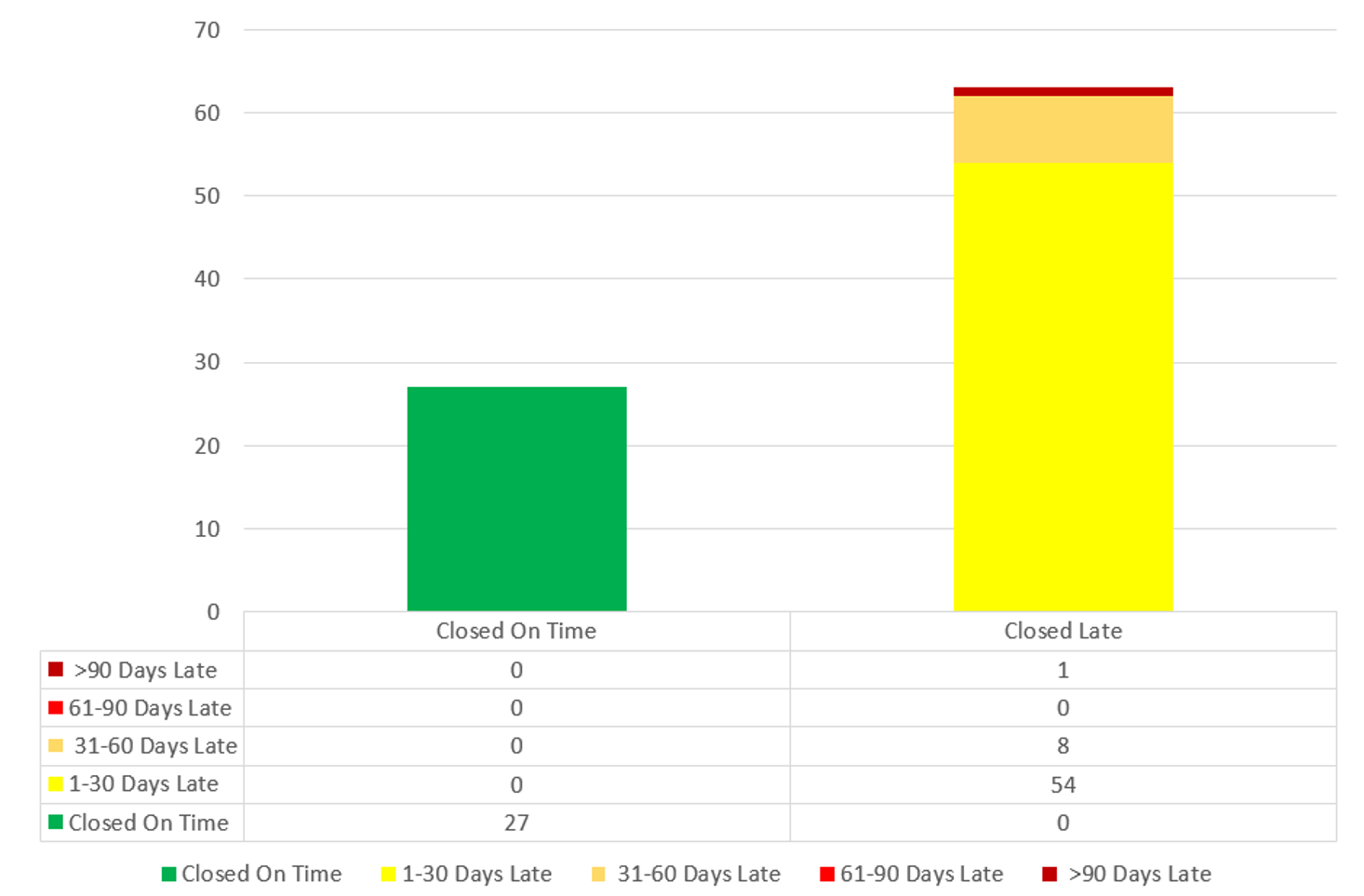

输出图

​

​

示例

 $NewValues =   array(array('Closed On Time', 'Closed Late'), array(
                                        (int)$ecdClosureStatus['ClosedOnTime'],
                                        0
                                    ));

解决方案代码

$ecdClosureStatus = getClosureChartData('ECD');
    $ChartNameOrNum = 'chart3'; // Title of the shape that embeds the chart
    $ChartRef = 'chart3'; // Title of the shape that embeds the chart
    $SeriesNameOrNum = 'Series 1';
    $NewLegend = "Closed On Time";
    $NewValues =    array(array('Closed On Time', 'Closed Late'), array(
                                        (int)$ecdClosureStatus['ClosedOnTime'],
                                        0
                                    ));
    $TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

    $SeriesNameOrNum = 'Series 2';
    $NewLegend =    '1-30 Days Late';
    $NewValues =        array(array('Closed On Time', 'Closed Late'), array(
                                        0,
                                        (int)$ecdClosureStatus['OneToThirtyDaysLate']
                                    ));
    $TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

    $SeriesNameOrNum = 'Series 3';
    $NewLegend =        ' 31-60 Days Late';
    $NewValues =        array(array('Closed On Time', 'Closed Late'), array(
                                        0,
                                        (int)$ecdClosureStatus['ThirtyOneToSixtyDaysLate']
                                    ));
    $TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

    $SeriesNameOrNum = 'Series 4';
    $NewLegend =    '61-90 Days Late';
    $NewValues =            array(array('Closed On Time', 'Closed Late'), array(
                                        0,
                                        (int)$ecdClosureStatus['SixtyOneToNinetyDaysLate']
                                    ));
    $TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

    $SeriesNameOrNum = 'Series 5';
    $NewLegend = ' >90 Days Late';
    $NewValues =        array(array('Closed On Time', 'Closed Late'), array(
                                        0,
                                        (int)$ecdClosureStatus['MoreThanNinetyDaysLate']
                                    ));
    $TBS->PlugIn(OPENTBS_CHART, $ChartNameOrNum, $SeriesNameOrNum, $NewValues, $NewLegend);

Answer 2

您的代码似乎ok.The问题可能来自于系列#3，它可能不会像您预期的那样在内部命名。重复检查电子表格查看器中的名称，最后必须没有空格。您还可以尝试使用Ms中的“修改数据”按钮。

不过，您可以使用新的OpenTBS命令来返回图表的数据。它是OpenTBS测试版1.9.5中的avaibale，但它是稳定的。

命令：

$data = $TBS->PlugIn(OPENTBS_CHART_INFO, 'chart3');
var_dump($data);
