DirectX11阴影映射问题

Question

我试图添加方向阴影映射到我的地形项目，但我遇到了一些问题。作为参考，我正在学习RasterTek阴影教程。

本教程本质上遵循了以下过程:创建光线>创建基于灯光视图的深度纹理>渲染模型并应用阴影着色器。

我正在努力解决的主要问题是本教程如何处理光线。它本质上模拟了一个位置，并创建了一个正交和视图矩阵。从灯光的设置方式看，这个问题似乎正在升级。对于一个简单的测试，我创建了一个平面，并将光的方向直接向下设置，因此所有的东西都应该被点燃，然而，发生了以下情况：

​

​

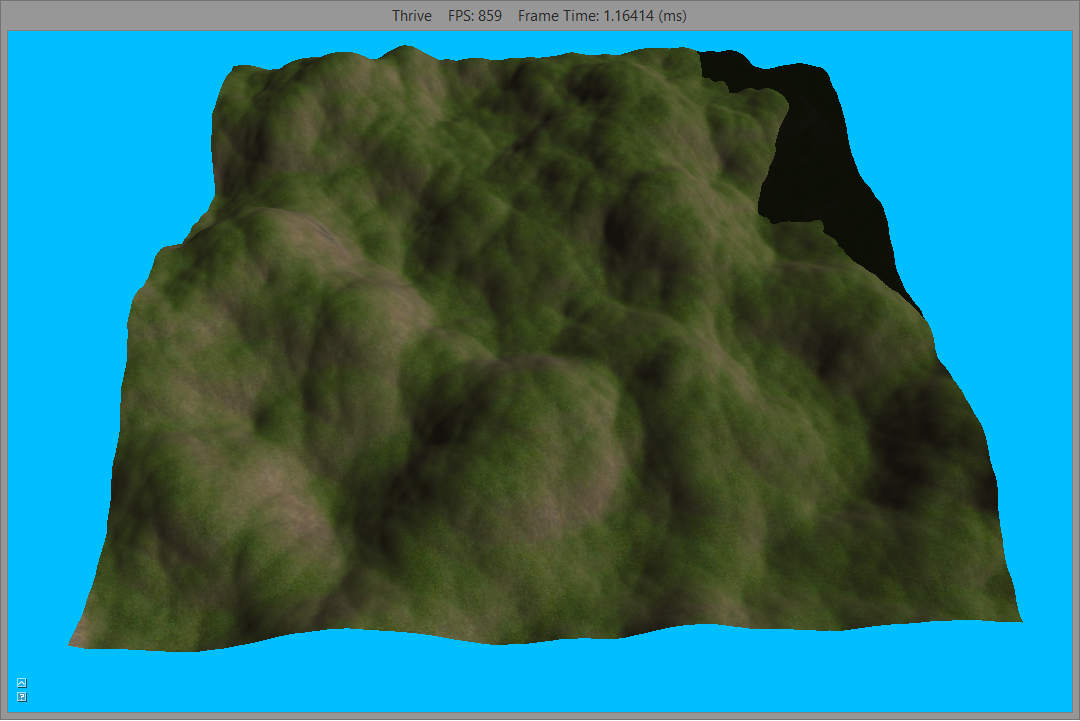

当地形产生时：

​

下面是一些我认为有用的领域的代码：

光设置

mLight->SetPosition(XMFLOAT3(10.0f, 30.0f, -0.1f));
mLight->SetLookAt(XMFLOAT3(-10.0f, 0.0f, 0.0f));
mLight->GenerateOthoMatrix(40.0f, 1.0f, 50.0f);

void GenerateOthoMatrix(float width, float nearClip, float farClip)
{
    mOrthoMatrix = XMMatrixOrthographicLH(width, width, nearClip, farClip);
}

XMVECTOR up = XMVectorSet(0.0f, 1.0f, 0.0f, 0.0f);
XMVECTOR pos = XMLoadFloat3(&mPosition);
XMVECTOR la = XMLoadFloat3(&mLookAt);

mViewMatrix = XMMatrixLookAtLH(pos, la, up);

深度渲染传递

mRenderTexture->SetRenderTarget(mGraphicsDevice->GetContext());
mRenderTexture->ClearRenderTarget(mGraphicsDevice->GetContext());

mLight->GenerateViewMatrix();

mDepthShader.Info.worldMatrix = mTerrain->GetWorldMatrix();
mDepthShader.Info.viewMatrix = mLight->GetViewMatrix();
mDepthShader.Info.projMatrix = mLight->GetOrthoMatrix();

mTerrain->Render(mGraphicsDevice->GetContext());
mDepthShader.Render(mGraphicsDevice->GetContext(), mTerrain->GetIndexCount());

mGraphicsDevice->ResetBackBuffer();
mGraphicsDevice->ResetViewport();

Shader呈现调用只需将“info”设置映射到常量缓冲区，然后调用它们的相对顶点/像素着色器。

地形渲染调用只是设置索引/顶点缓冲区和拓扑，为着色DrawIndexed做好准备。

RenderTexture本质上是第二个视图，用于呈现和获取深度纹理。

主渲染传递

mTerrain->Render(mGraphicsDevice->GetContext());
mLight->GenerateViewMatrix();

mShader.Info.lightProj = mLight->GetOrthoMatrix();
mShader.Info.lightView = mLight->GetViewMatrix();
mShader.Info.depthTex = mRenderTexture->GetSRV();
mShader.Render(mGraphicsDevice->GetContext(), mTerrain->GetIndexCount());

深度顶点着色器

cbuffer SPerFrameCB : register(b0)
{
    matrix worldMatrix;
    matrix viewMatrix;
    matrix projMatrix;
};

struct VertexIn
{
    float4 Pos    : POSITION;
};

struct VertexOut
{
    float4 Pos    : SV_POSITION;
    float4 DPos   : TEXTURE0;
};

VertexOut main(VertexIn vin)
{
    VertexOut vout;

    vin.Pos.w = 1.0f;

    vout.Pos = mul(vin.Pos, worldMatrix);
    vout.Pos = mul(vout.Pos, viewMatrix);
    vout.Pos = mul(vout.Pos, projMatrix);

    vout.DPos = vout.Pos;

    return vout;
}

深度象素着色器

struct PixelIn
{
    float4 Pos  : SV_POSITION;
    float4 DPos : TEXTURE0;
};

float4 main(PixelIn pin) : SV_Target

{
    float depthVal = pin.DPos.z / pin.DPos.w;
    float4 colour = float4(depthVal, depthVal, depthVal, 1.0f);

    return colour;
}

阴影顶点着色器

cbuffer SPerFrameCB : register(b0)
{
    matrix worldMatrix;
    matrix viewMatrix;
    matrix projMatrix;
    matrix lightViewMatrix;
    matrix lightProjMatrix;
};

struct VertexIn
{
    float4 Pos    : POSITION;
    float2 Tex    : TEXCOORD0;
    float3 Normal : NORMAL;
};

struct VertexOut
{
    float4 Pos    : SV_POSITION;
    float2 Tex    : TEXCOORD0;
    float3 Normal : NORMAL;
    float4 LightV : TEXCOORD1;
};

VertexOut main(VertexIn vin)
{
    VertexOut vout;

    vin.Pos.w = 1.0f;

    float4 worldPos = mul(vin.Pos, worldMatrix);

    vout.Pos = worldPos;
    vout.Pos = mul(vout.Pos, viewMatrix);
    vout.Pos = mul(vout.Pos, projMatrix);

    vout.LightV = worldPos;
    vout.LightV = mul(vout.LightV, lightViewMatrix);
    vout.LightV = mul(vout.LightV, lightProjMatrix);

    vout.Tex = vin.Tex;

    vout.Normal = mul(vin.Normal, (float3x3)worldMatrix);
    vout.Normal = normalize(vout.Normal);

    return vout;
}

阴影象素阴影

Texture2D shaderTexture;

Texture2D lowerTex  : register(t0);
Texture2D mediumTex : register(t1);
Texture2D higherTex : register(t2);
Texture2D depthTex : register(t3);

SamplerState SampleTypeClamp : register(s0);
SamplerState SampleTypeWrap  : register(s1);

cbuffer SPerLightCB : register(b0)
{
    float4 ambientColour;
    float4 diffuseColour;
    float3 lightDirection;
    float padding;
};

struct PixelIn
{
    float4 Pos    : SV_POSITION;
    float2 Tex    : TEXCOORD0;
    float3 Normal : NORMAL;
    float4 LightV : TEXCOORD1;
};

float4 main(PixelIn pin) : SV_Target
{
    float bias = 0.001f;
    float3 lightDir = -lightDirection;
    float4 colour = ambientColour;

    float2 projTexCoord;
    projTexCoord.x =  pin.LightV.x / pin.LightV.w / 2.0f + 0.5f;
    projTexCoord.y = -pin.LightV.y / pin.LightV.w / 2.0f + 0.5f;

    if ((saturate(projTexCoord.x) == projTexCoord.x) && (saturate(projTexCoord.y) == projTexCoord.y))
    {
        float depthVal = depthTex.Sample(SampleTypeClamp, projTexCoord).r;
        float lightDepthVal = pin.LightV.z / pin.LightV.w;
        lightDepthVal -= bias;

        if (lightDepthVal < depthVal)
        {
            float lightIntensity = saturate(dot(pin.Normal, lightDir));

            if (lightIntensity > 0.0f)
            {
                colour += diffuseColour * lightIntensity;
                colour = saturate(colour);
            }
        }
    }

    float4 lowerColour = lowerTex.Sample(SampleTypeWrap, pin.Tex);
    float4 mediumColour = mediumTex.Sample(SampleTypeWrap, pin.Tex);
    float4 higherColour = higherTex.Sample(SampleTypeWrap, pin.Tex);
    float4 texColour;
    float slope = 1.0f - pin.Normal.y, bVal;

    if (slope < 0.4f)
    {
        bVal = slope / 0.4f;
        texColour = lerp(lowerColour, mediumColour, bVal);
    }

    if (slope >= 0.4f && slope < 0.6f)
    {
        bVal = (slope - 0.4f) * (1.0f / (0.6f - 0.4f));
        texColour = lerp(mediumColour, higherColour, bVal);
    }

    if (slope >= 0.6f)
    {
        texColour = higherColour;
    }

    colour *= texColour;

    return colour;
}

对于大量的代码，我感到非常抱歉--我不确定哪些部分最有助于识别问题。如果有人能帮忙，或者提供影子映射资源，我将非常感激。似乎没有多少影子映射资源，或者至少我找不到很多。

Answer 1

看起来你的深度阴影看起来不错。我注意到了你的阴影着色器的不同之处。我已经通过和完全两个系列的DirectX 10和11通过光栅。我将向您展示我的阴影着色器是什么样子；但是，我不记得它们是否从一个教训改变到另一个教训。我会把它们贴在这里供你比较。

Shadow.vsh

/////////////////////////////////////////////////
// Filename: shadow.vsh
/////////////////////////////////////////////////

/////////////
// GLOBALS //
/////////////
cbuffer MatrixBuffer
{
    matrix worldMatrix;
    matrix viewMatrix;
    matrix projectionMatrix;
    matrix lightViewMatrix;
    matrix lightProjectionMatrix;
};

//////////////////////
// CONSTANT BUFFERS //
//////////////////////
cbuffer LightBuffer2
{
    float3  lightPosition;
    float   padding;
};

//////////////
// TYPEDFES //
struct VertexInputType
{
    float4 position : POSITION;
    float2 tex : TEXCOORD0;
    float3 normal : NORMAL;
};

struct PixelInputType
{
    float4 position : SV_POSITION;
    float2 tex : TEXCOORD0;
    float3 normal : NORMAL;
    float4 lightViewPosition : TEXCOORD1;
    float3 lightPos : TEXCOORD2;
};

/////////////////////////////////////////////////
// Vertex Shader
/////////////////////////////////////////////////
PixelInputType ShadowVertexShader( VertexInputType input )
{
    PixelInputType output;
    float4 worldPosition;

    // Change The Position Vector To Be 4 Units For Proper Matrix Calculations
    input.position.w = 1.0f;

    // Calculate The Position Of The Vertex Against The World, View And Projection Matrices
    output.position = mul( input.position, worldMatrix );
    output.position = mul( output.position, viewMatrix );
    output.position = mul( output.position, projectionMatrix );

    // Calculate The Position Of The Vertex As Viewed By The Light Source
    output.lightViewPosition = mul( input.position, worldMatrix );
    output.lightViewPosition = mul( output.lightViewPosition, lightViewMatrix );
    output.lightViewPosition = mul( output.lightViewPosition, lightProjectionMatrix );

    // Store The Texture Coordinate For The Pixel Shader
    output.tex = input.tex;

    // Calculate The Normal Vector Against The World Matrix Only
    output.normal = mul( input.normal, (float3x3)worldMatrix );

    // Normalize The Normal Vector
    output.normal = normalize( output.normal );

    // Calculate The Position Of The Vertex In The World
    worldPosition = mul( input.position, worldMatrix );

    // Determine The Light Position Based On The Position Of The Light And The Position Of The Vertex In The World
    output.lightPos = lightPosition.xyz - worldPosition.xyz;

    // Normalize The Light Position Vector
    output.lightPos = normalize( output.lightPos );

    return output;
} // ShadowVertexShader

Shadow.psh

/////////////////////////////////////////////////
// Filename: shadow.ps
/////////////////////////////////////////////////

//////////////
// TEXTURES //
Texture2D depthMapTexture : register(t0);

///////////////////
// SAMPLE STATES //
///////////////////
SamplerState SampleTypeClamp : register(s0);

//////////////
// TYPEDEFS //
//////////////
struct PixelInputType
{
    float4 position : SV_POSITION;
    float2 tex : TEXCOORD0;
    float3 normal : NORMAL;
    float4 lightViewPosition : TEXCOORD1;
    float3 lightPos : TEXCOORD2;
};

/////////////////////////////////////////////////
// Pixel Shader
/////////////////////////////////////////////////
float4 ShadowPixelShader( PixelInputType input ) : SV_TARGET
{
    float   bias;
    float4  color;
    float2  projectTexCoord;
    float   depthValue;
    float   lightDepthValue;
    float   lightIntensity;

    // Set The Bias Value For Fixing The Floating Point Precision Issues
    bias = 0.001f;

    // Set The Default Output Color To Be Black (Shadow)
    color = float4( 0.0f, 0.0f, 0.0f, 1.0f );

    // Calculate The Projected Texture Coordinates
    projectTexCoord.x =  input.lightViewPosition.x / input.lightViewPosition.w / 2.0f + 0.5f;
    projectTexCoord.y = -input.lightViewPosition.y / input.lightViewPosition.w / 2.0f + 0.5f;

    // Determine If The Projected Coordinates Are In The [0,1] Range. If So Then This Pixel Is In The View Of The Light
    if ( (saturate( projectTexCoord.x) == projectTexCoord.x) && (saturate(projectTexCoord.y) == projectTexCoord.y) )
    {
        // Sample The Shadow Map Depth Value From The Depth Texture Using The Sampler At The Projected Texture Coordinate Location
        depthValue = depthMapTexture.Sample( SampleTypeClamp, projectTexCoord).r;

        // Calculate The Depth Of The Light
        lightDepthValue = input.lightViewPosition.z / input.lightViewPosition.w;

        // Subtract The Bias From The LightDepthValue
        lightDepthValue = lightDepthValue - bias;

        // Compare The Depth Of The Shadow Map Value And The Depth Of The Light To Determine Whether To Shadow Or To Light This Pixel
        // If The Light Is In Front Of The Object Then Light The Pixel, If Not Then Shadow This Pixel Since An Object (Occluder) Is Casting A Shadow On It
        if ( lightDepthValue < depthValue )
        {
            // Calculate The Amount Of Light On This Pixel
            lightIntensity = saturate( dot( input.normal, input.lightPos ) );

            // If This Pixel Is Illuminated Then Set It To Pure White (Non-Shadow)
            if ( lightIntensity > 0.0f )
            {
                // Determine The Final Diffuse Color Based On The Diffuse Color And The Amount Of Light Intensity
                color = float4( 1.0f, 1.0f, 1.0f, 1.0f );
            }
        }
    }

    return color;
} // ShadowPixelShader

还要确保相应的.h & .cpp着色文件与您的着色器中正确的输入和输出结构相匹配。在计算象素着色器中的光强时，似乎使用的是光的方向，而不是光的位置。你确实有更多的纹理添加到你的版本的着色器比我，但我不认为这会造成不同的情况。我没有权限查看您的整个解决方案，因此很难知道错误可能来自何处。我只希望他能帮你当向导。

Answer 2

我很清楚这个问题..。我只是看了看图片，没有看你的长文。

我认为光并不能看到整个场景，只看到被照亮的部分。

有一些解决办法，但没有一个是很好的。这是一个典型的问题。

试着增加光视角的效果。XMMatrixOrthographicLH需要更大的宽度。增加光的观察结果减少了你的影子地图的细节。

没有perfekt的解决方案。您需要尝试哪些值适合您的问题。
