STM32F4 SPI发行

Question

使用STM32F407vg和我试图在SPI数据寄存器中写入数据，下面的代码显示了配置函数

void init_SPI1(void){

GPIO_InitTypeDef GPIO_InitStruct;
SPI_InitTypeDef SPI_InitStruct;

// enable clock for used IO pins
RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_GPIOA, ENABLE);

/* configure pins used by SPI1
     * PA4 = NSS
 * PA5 = SCK
 * PA6 = MISO
 * PA7 = MOSI
 */
GPIO_InitStruct.GPIO_Pin = GPIO_Pin_7 | GPIO_Pin_6 | GPIO_Pin_5|GPIO_Pin_4;
GPIO_InitStruct.GPIO_Mode = GPIO_Mode_AF;
GPIO_InitStruct.GPIO_OType = GPIO_OType_PP;
GPIO_InitStruct.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStruct.GPIO_PuPd = GPIO_PuPd_NOPULL;
GPIO_Init(GPIOA, &GPIO_InitStruct);

// connect SPI1 pins to SPI alternate function
GPIO_PinAFConfig(GPIOA, GPIO_PinSource4, GPIO_AF_SPI1);
GPIO_PinAFConfig(GPIOA, GPIO_PinSource5, GPIO_AF_SPI1);
GPIO_PinAFConfig(GPIOA, GPIO_PinSource6, GPIO_AF_SPI1);
GPIO_PinAFConfig(GPIOA, GPIO_PinSource7, GPIO_AF_SPI1);

//Set chip select high
GPIOA->BSRRL |= GPIO_Pin_4; // set PE4 high

// enable peripheral clock
RCC_APB2PeriphClockCmd(RCC_APB2Periph_SPI1, ENABLE);

/* configure SPI1 in Mode 0
 * CPOL = 0 --> clock is low when idle
 * CPHA = 0 --> data is sampled at the first edge
 */
SPI_StructInit(&SPI_InitStruct); // set default config
SPI_InitStruct.SPI_Direction = SPI_Direction_2Lines_FullDuplex; // set to full duplex mode, seperate MOSI and MISO lines
SPI_InitStruct.SPI_Mode = SPI_Mode_Master;     // transmit in master mode, NSS pin has to be always high
SPI_InitStruct.SPI_DataSize = SPI_DataSize_8b; // one packet of data is 8 bits wide
SPI_InitStruct.SPI_CPOL = SPI_CPOL_Low;        // clock is low when idle
SPI_InitStruct.SPI_CPHA = SPI_CPHA_1Edge;      // data sampled at first edge
SPI_InitStruct.SPI_NSS = SPI_NSS_Soft ; // set the NSS management to internal and pull internal NSS high
SPI_InitStruct.SPI_BaudRatePrescaler = SPI_BaudRatePrescaler_4; // SPI frequency is APB2 frequency / 4
SPI_InitStruct.SPI_FirstBit = SPI_FirstBit_MSB;// data is transmitted MSB first
SPI_Init(SPI1, &SPI_InitStruct);

SPI_Cmd(SPI1, ENABLE); // enable SPI1
}

这是发送数据的函数

 uint8_t SPI1_send(uint8_t data){

SPI1->DR = data; // write data to be transmitted to the SPI data register
while( !(SPI1->SR & SPI_I2S_FLAG_TXE) ); // wait until transmit complete
while( !(SPI1->SR & SPI_I2S_FLAG_RXNE) ); // wait until receive complete
while( SPI1->SR & SPI_I2S_FLAG_BSY ); // wait until SPI is not busy anymore
return SPI1->DR; // return received data from SPI data register
}

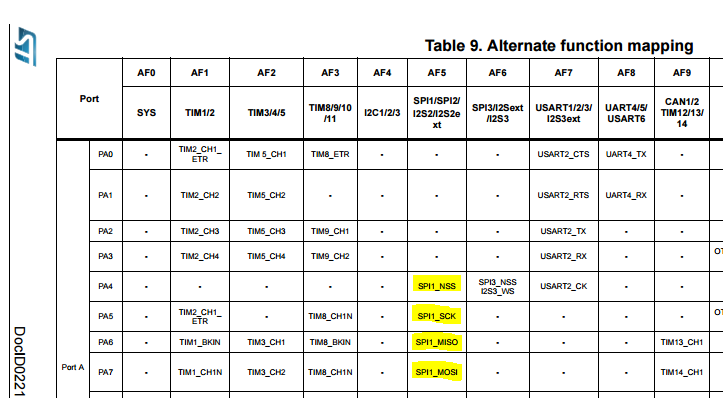

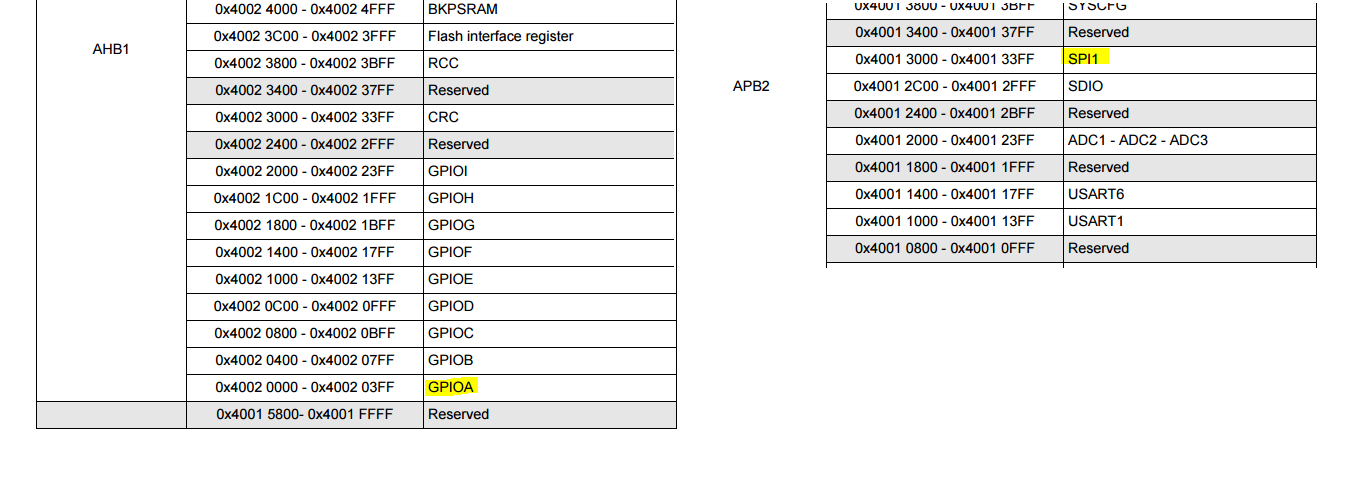

我认为我已经设置了良好的配置(在我看来，引脚的选择并没有错，所用总线的配置也是正确的)下面的图片是从STM32F407 DataSheet中提取出来的

​

问题在于DR注册表中的数据与作为参数传递的数据不同。

.I不知道为什么会这样

Answer 1

在阅读了这本书的SPI部分之后，我的问题解决了，我只需将SPI连接到SPI引脚(PA6和PA7)，然后使用以下函数：

int spiReadWrite(SPI_TypeDef* SPIx, uint8_t *rbuf,
const uint8_t *tbuf, int cnt, enum spiSpeed speed)
{
int i;
SPIx->CR1 = (SPIx->CR1 & ~SPI_BaudRatePrescaler_256) |
speeds[speed];
for (i = 0; i < cnt; i++){
  if (tbuf) {
  SPI_I2S_SendData(SPIx, *tbuf++);
  } else {
  SPI_I2S_SendData(SPIx, 0xff);
  }
while (SPI_I2S_GetFlagStatus(SPIx, SPI_I2S_FLAG_RXNE) == RESET);
  if (rbuf) {
  *rbuf++ = SPI_I2S_ReceiveData(SPIx);
  } else {
  SPI_I2S_ReceiveData(SPIx);
  }
}
return i;
}

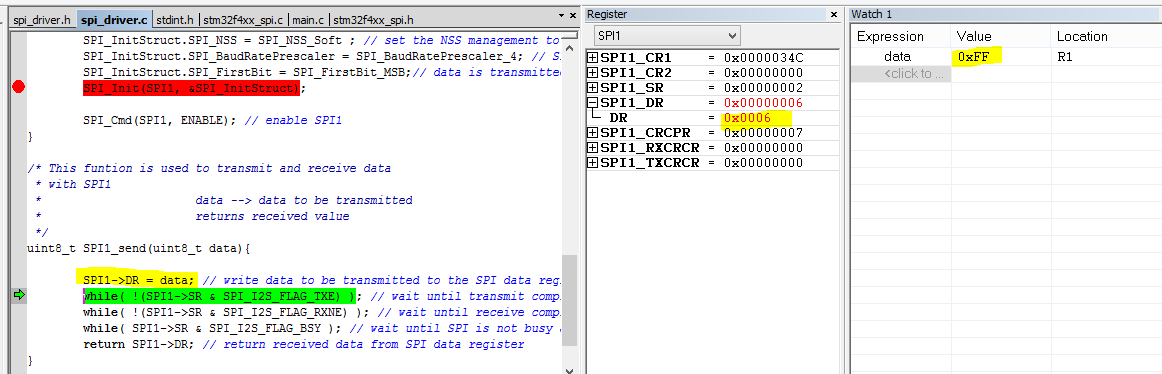

通过使用调试器，我可以看到(从tbuf)发送的数据是成功地接收到的(在rbuf中)。

Answer 2

SPI DR寄存器不是写入和读取相同存储器的正常内存位置。

相反，写入加载输出移位寄存器，同时读取接收到的输入。根据设备的详细信息，读取还可以“声明”输入，从寄存器中清除输入，直到收到另一个单词。

由于这些原因，尝试使用调试器监视SPI博士不仅不会给您提供所需的信息，甚至可能会对您本来会收到的数据造成损害。

Answer 3

注意，SCLK_freq = APB2_freq / (BaudRatePrescaler + 1)
