JPanel GridBagLayout

Question

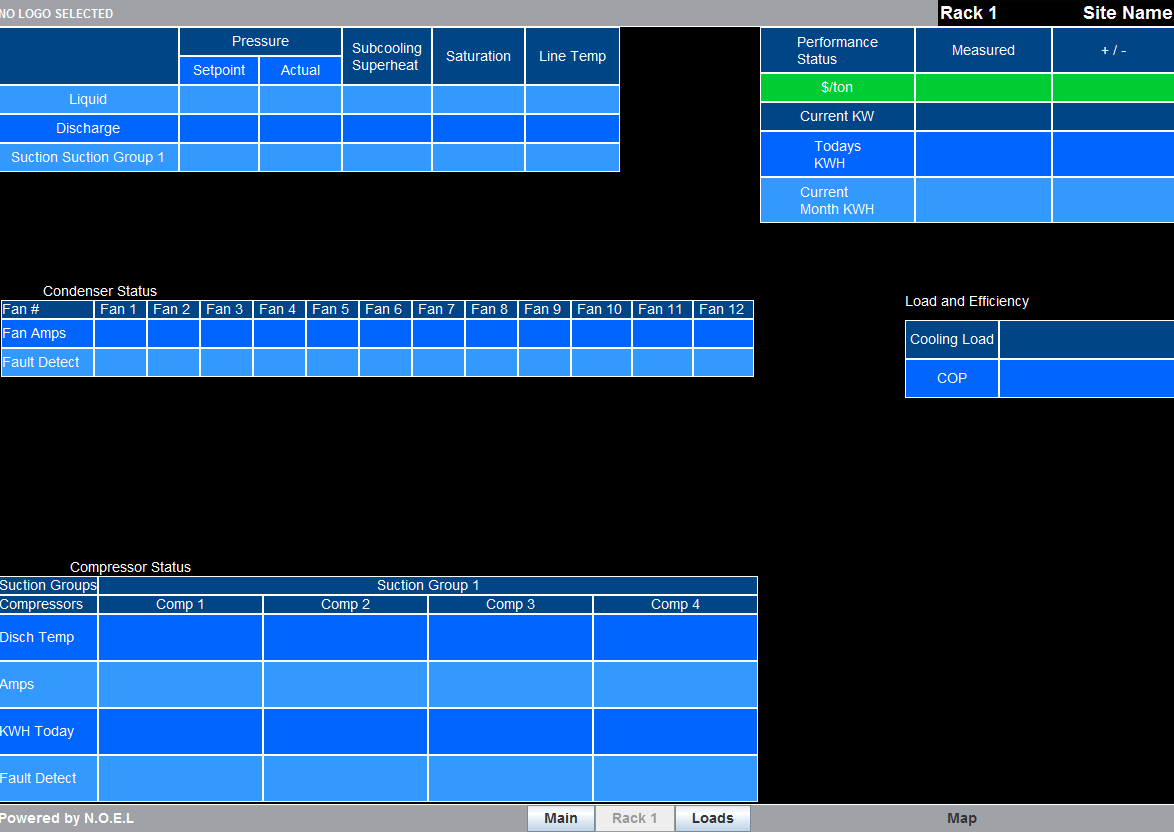

目前，我已经成功地实现了一个网格袋布局与jpanel，并增加了7个显示面板和一些“填充”面板，以获得我想要的布局。

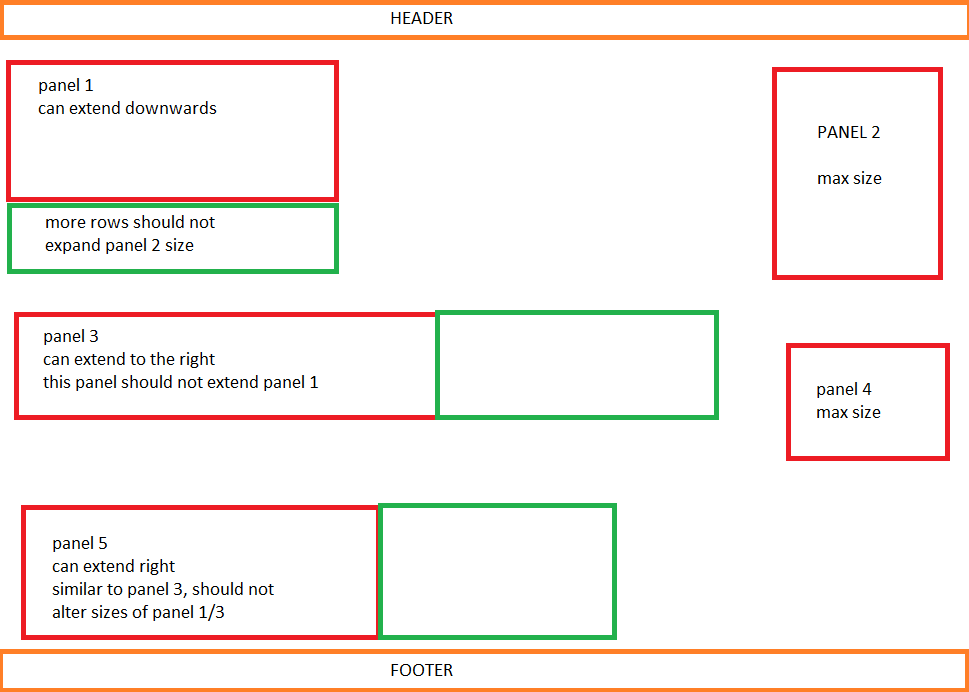

现在唯一的问题是，这些面板可以改变大小，当它们变得非常大时，它们会影响到面板的上/下或左/右，因为面板上/下、左/右共享相同的列/行索引，而当面板3(见图)超出其默认大小时，上面/下面的面板就会受到影响。

​

​

当只有几个元素可供面板显示时

​

​

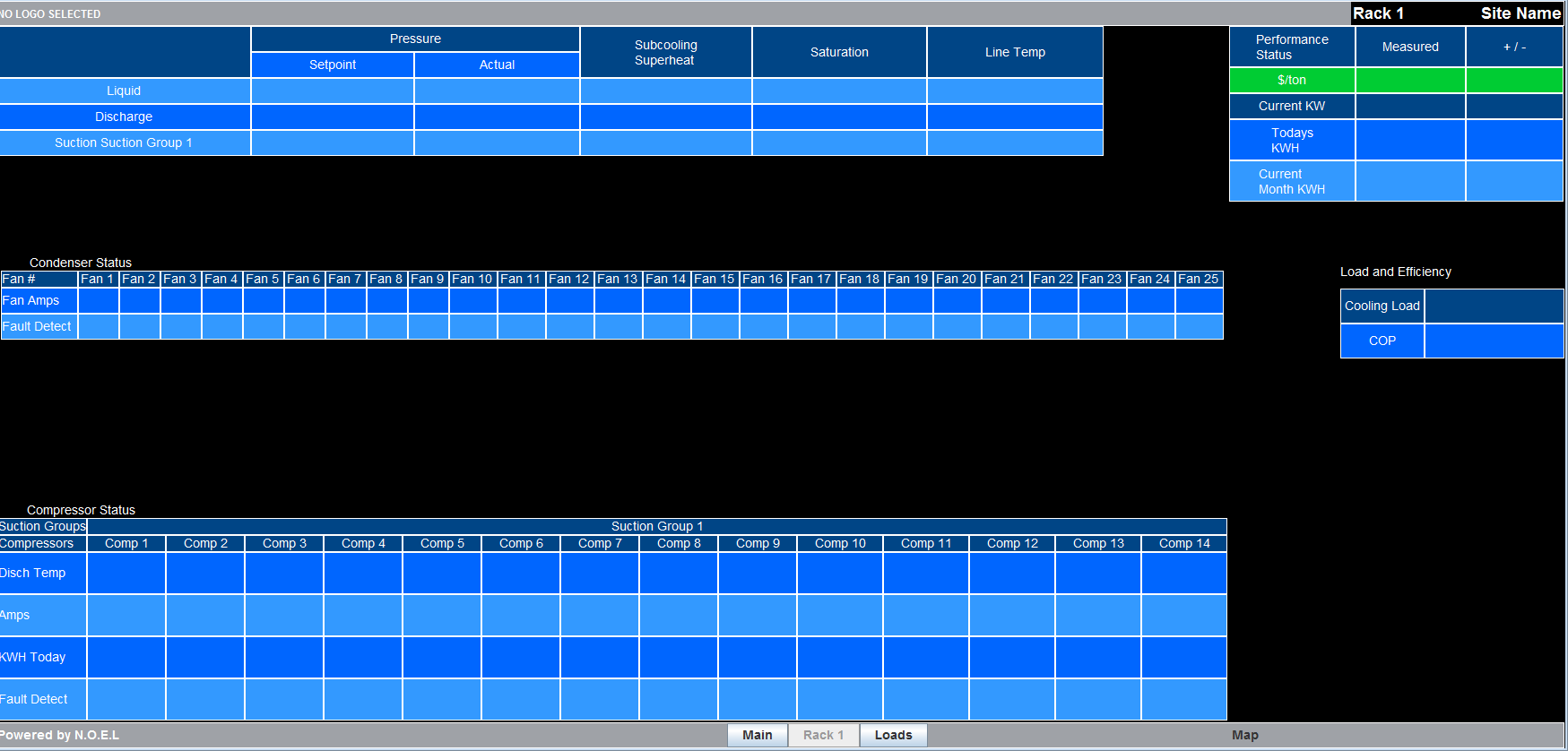

更有规律的设置

​

​

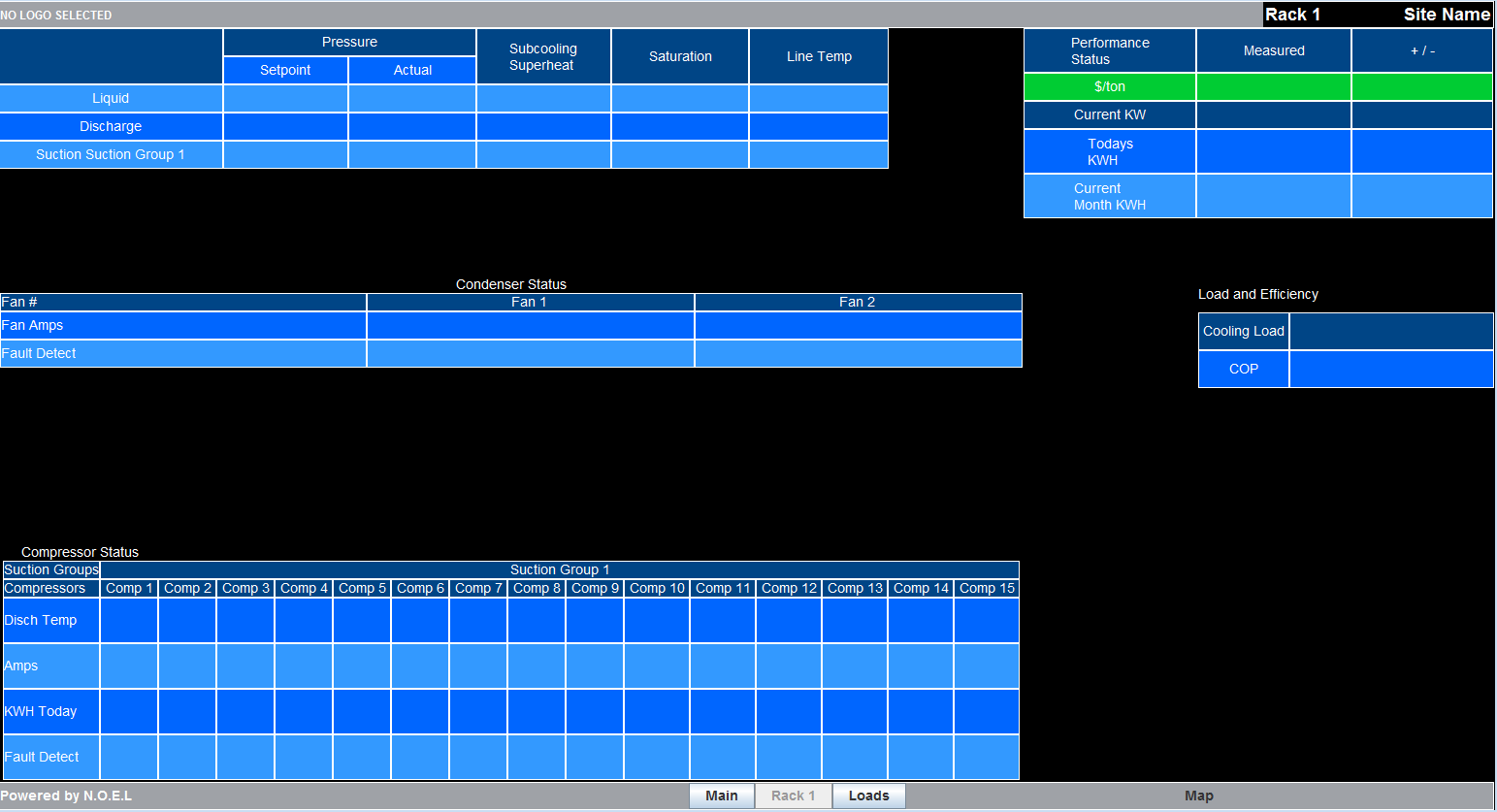

很多(不经常)的系统

​

​

​

​

​

​

下面是更新面板的方法。有许多带有网格约束的重复代码，我可能应该让一个函数接受这些参数，以使其更易读。

public void updateView() {

    int gridXPos, gridYPos, gridWidth, gridHeight;
    int maxGridWidth = 30;
    Rack r;
    SuctionGroup sg;
    JLabel label;
    JPanel panel;
    GridBagLayout gbl = new GridBagLayout();
    GridBagConstraints c = new GridBagConstraints();

    _Panel_MainPanel.setLayout(gbl);
    _Panel_MainPanel.removeAll();

    // Store panel info at top
    //===========================================================
    // Positioning
    gridXPos = 0;
    gridYPos = 0;
    gridWidth = maxGridWidth;
    gridHeight = 5;
    // Constraints
    c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================
    panel = panelTop(img, storeName);
    _Panel_MainPanel.add(panel, c);

    // Pressure/temp
    //===========================================================
    // Positioning
    gridXPos = 0;
    gridYPos += gridHeight;
    gridWidth = 15;
    gridHeight = 5;
    // Constraints
    c.fill = GridBagConstraints.BOTH;
    c.weightx = 0;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================

    panel = panelPressureTemps();
    _Panel_MainPanel.add(panel, c);

    // SEI blank
    //===========================================================
    // Positioning
    gridXPos += gridWidth;
    //gridYPos = gridHeight;
    gridWidth = 5;
    gridHeight = 5;
    // Constraints
    c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================
    label = new JLabel("                                              ");
    //label.setBorder(border);
    panel.add(label);

    // performance
    //===========================================================
    // Positioning
    gridXPos += gridWidth;
    //gridYPos += gridHeight;
    gridWidth = 10;
    gridHeight = 10;
    // Constraints
    //c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================

    panel = panelPerformance();
    _Panel_MainPanel.add(panel, c);

    //===========================================================
    // Filler area

    gridYPos += gridHeight;
    gridHeight = 10;
    c.gridx = 0;
    c.gridy = gridYPos;
    c.gridwidth = 20;
    c.gridheight = gridHeight;
    c.ipady = 50;
    JPanel p1 = new JPanel();
    p1.setPreferredSize(new Dimension(panel.getWidth(), 225));
    p1.setBackground(Color.black);
    //p1.setBorder(border);
    panel.add(p1, c);

    //===========================================================

    // Condenser
    //===========================================================
    // Positioning
    gridXPos = 0;
    gridYPos += gridHeight;
    gridWidth = 20;
    gridHeight = 5;
    c.ipady = 0;
    // Constraints
    //c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================
    panel = panelCondenser();
    _Panel_MainPanel.add(panel, c);

    // Fan images - blanks
    //===========================================================
    // Positioning
    gridXPos += gridWidth;
    //gridYPos = gridHeight;
    gridWidth = 2;
    gridHeight = 5;
    // Constraints
    //c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================
    label = new JLabel("");
    //label.setBorder(border);
    panel.add(label);

    _Panel_MainPanel.add(label, c);
    // Load and efficiency
    //===========================================================
    // Positioning
    gridXPos += gridWidth;
    //gridYPos = gridHeight;
    gridWidth = 8;
    gridHeight = 10;
    // Constraints
    //c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    //c.ipady = 100;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================
    panel = panelLE();
    _Panel_MainPanel.add(panel, c);


    //===========================================================
    // Filler area
    gridYPos += gridHeight;
    gridHeight = 10;
    c.gridx = 0;
    c.gridy = gridYPos;
    c.gridwidth = 20;
    c.gridheight = gridHeight;
    c.ipady = 150;
    JPanel p = new JPanel();
    p.setPreferredSize(new Dimension(panel.getWidth(), 225));
    p.setBackground(Color.black);
    //p.setBorder(border);
    panel.add(p, c);

    //===========================================================

    // Compressor status
    //===========================================================
    // Positioning
    gridXPos = 0;
    gridYPos += gridHeight;
    gridWidth = 15;
    gridHeight = 7;
    // Constraints
    //c.fill = GridBagConstraints.BOTH;
    c.weightx = 1;
    c.weighty = 1; // No space between bottom and below row?
    c.gridx = gridXPos;
    c.gridy = gridYPos;
    c.gridwidth = gridWidth;
    c.gridheight = gridHeight;
    c.ipady = 0;
    //c.ipady = 0;
    // End of Constraints
    //===========================================================
    panel = panelCompressor();
    _Panel_MainPanel.add(panel, c);

    //==============================================================
    // make labels white
    setLabels(_Panel_MainPanel, Colours.White.getCol());
    // do it before last panel

    // Bottom Panel
    //===========================================================
    // Constraints
    c.fill = GridBagConstraints.BOTH;
    //c.weightx = 1;
    c.weighty = 0; // No space between bottom and below row?
    gridXPos = 0;
    gridYPos += gridHeight;
    gridWidth = maxGridWidth;
    gridHeight = 5; // 5 per row for performance
    c.gridx = gridXPos;
    c.gridy = gridYPos;

    c.gridwidth = gridWidth;
    c.gridheight = 1;
    //c.ipady = 100;
    //c.ipady = 0;
    // We dont setup next position because we are adding suction groups still

    //gridYPos += gridHeight;
    // End of Constraints
    //===========================================================
    panel = panelBottom(this.numRacks);
    _Panel_MainPanel.add(panel, c);

    _Panel_MainPanel.revalidate();
    _Panel_MainPanel.repaint();

}

问:我如何在面板上设置约束，这样它们的大小就不会影响在相同的col/行索引中面板的大小。

Answer 1

目前，我已经成功地实现了一个网格袋布局与jpanel，并增加了7个显示面板和一些“填充”面板，以获得我想要的布局。

您从未被迫使用单一的布局管理器。因此，我建议您从一个使用BorderLayout的主面板开始。那么您的代码将是这样的：

add(header, BorderLayout.PAGE_START);
add(gridPanel, BorderLayout.CENTER);
add(footer, BorderLayout.PAGE_END);

不能解决您的问题，但是现在您只处理网格面板中的5个面板。

我如何在面板上设置约束，这样它们的大小就不会影响在相同的col/行索引中面板的大小。

别以为你能。GridBagLayout的要点是使用行/列中每个组件的信息来确定单元格的大小。我尝试设置组件的最大大小，但是GridBagLayout似乎并不尊重这一点。

因此，一个可能的解决方案是创建您自己的自定义布局管理器。应该有那么难。您可以从BorderLayout作为模板开始，因为它允许5个组件在特定位置定位。在您的情况下，您看起来也有5个组件在不同的位置。
