R- d3heatmap -工具中断

Question

我试图用d3heatmap包绘制一个热图。不幸的是，我还没有成功地使用选项breaks=...实现某些中断，就像在heatmap或heatmap.2中那样。这就产生了有趣的结果，我甚至不确定我是做错了什么，还是函数只是忽略了breaks。

例如，我试过：

breaks = c(seq(-10, -2), seq(-2, -1.65), seq(-1.65, 1.65), seq(1.65, 2), seq(2, 10)

和

breaks = c(-10, -2, -1.65, 1.65, 2, 10)

使用

colors = c("red", "yellow", "green", "yellow", "red")

但似乎一切正常。

有什么建议吗？

以下是我的数据的dput：

 > dput(mat)
 structure(c(-0.04, NA, 0.59, NA, 0.675, 0.96, 1.09, 0.445, NA,
 0.545, NA, NA, 0.09, -1.11, NA, 0.99, 0.13, 0.215, 1.425, 0,
 NA, 0.69, 0.805, NA, 0.69, 1.22, NA, 0.3, NA, 0.025, NA, 0.075,
 0.36, -0.94, NA, -0.31, 0.26, 1.02, -1.19, NA, NA, -0.77, NA,
 -1.48, 1.05, 0.48, NA, NA, NA, 1.49, -1.285, NA, 0.76, 1.14,
 -0.62, NA, NA, NA, 0.95, NA, NA, -0.12, 0.49, NA, 2.31, NA, -0.33,
 0.85, NA, -1.7, -1.63, NA, -1.12, 0.135, -0.18, NA, -0.245, NA,
 -0.2, -0.2, 0.23, -0.11, NA, 0.3, -0.81, 0.04, 0.18, -0.7, 0.53,
 0.44, -0.49, 0.28, 0.26, 0.06, 0.265, 0.21, 0.06, -0.175, 0.365,
 0.255, 1.25, -0.35, 0.16, 0.125, 0.825, 0.08, 0.02, -0.02, 0.99,
 0.79, -0.23, 0.06, NA, 0.36, -0.64, -0.195, 1.19, -0.29, 0.915,
 NA, NA, NA, NA, 0.2, 0.1, NA, 0.04, 0.33, NA, 1.46, 2.36, NA,
 -0.92, 1.295, NA, NA, 0.8, NA, 1.09, 1.45, 5.42, NA, NA, NA,
 1.69, 3.43, NA, 0.55), .Dim = c(37L, 4L), .Dimnames = list(c("AT",
 "BE", "BG", "CEE", "CH", "CN", "CZ", "DE", "DK", "EA", "EE",
 "EMU", "ES", "EU", "FI", "FR", "GB", "GR", "HR", "HU", "IE",
 "IT", "JP", "LU", "NL", "PL", "PT", "RO", "RS", "RU", "SE", "SI",
 "SK", "TR", "UA", "UK", "US"), c("Credit Risk", "Funding and liquidity Risk",
 "Macro Risk", "Market Risk")))

我正在运行的代码是：

d3heatmap(abs(mat),
          dendrogram = "none",
          breaks = c(0,1.65,2,10),
          col = c("green", "yellow", "red"),
          na.rm = TRUE)

不过，使用heatmap.2的同一个函数工作得很好。

Answer 1

函数d3heatmap根本没有“中断”参数。如果将其作为参数传入，则它将被忽略。(见d3heatmap)

另一方面，gplots包中的heatmap.2函数确实有一个“断开”参数。这就解释了行为上的差异。

幸运的是，仍然可以通过向d3heatmap传递适当的“颜色”函数来获得所需的行为。它的工作原理如下。

首先是示例数据：

mat <- structure(c(-0.04, NA, 0.59, NA, 0.675, 0.96, 1.09, 0.445, NA,
                   0.545, NA, NA, 0.09, -1.11, NA, 0.99, 0.13, 0.215, 1.425, 0,
                   NA, 0.69, 0.805, NA, 0.69, 1.22, NA, 0.3, NA, 0.025, NA, 0.075,
                   0.36, -0.94, NA, -0.31, 0.26, 1.02, -1.19, NA, NA, -0.77, NA,
                   -1.48, 1.05, 0.48, NA, NA, NA, 1.49, -1.285, NA, 0.76, 1.14,
                   -0.62, NA, NA, NA, 0.95, NA, NA, -0.12, 0.49, NA, 2.31, NA, -0.33,
                   0.85, NA, -1.7, -1.63, NA, -1.12, 0.135, -0.18, NA, -0.245, NA,
                   -0.2, -0.2, 0.23, -0.11, NA, 0.3, -0.81, 0.04, 0.18, -0.7, 0.53,
                   0.44, -0.49, 0.28, 0.26, 0.06, 0.265, 0.21, 0.06, -0.175, 0.365,
                   0.255, 1.25, -0.35, 0.16, 0.125, 0.825, 0.08, 0.02, -0.02, 0.99,
                   0.79, -0.23, 0.06, NA, 0.36, -0.64, -0.195, 1.19, -0.29, 0.915,
                   NA, NA, NA, NA, 0.2, 0.1, NA, 0.04, 0.33, NA, 1.46, 2.36, NA,
                   -0.92, 1.295, NA, NA, 0.8, NA, 1.09, 1.45, 5.42, NA, NA, NA,
                   1.69, 3.43, NA, 0.55), .Dim = c(37L, 4L),
                   .Dimnames = list(c("AT", "BE", "BG", "CEE", "CH", "CN", "CZ", "DE", "DK", "EA", "EE", "EMU", "ES", "EU", "FI", "FR", "GB", "GR", "HR", "HU", "IE", "IT", "JP", "LU", "NL", "PL", "PT", "RO", "RS", "RU", "SE", "SI", "SK", "TR", "UA", "UK", "US"), c("Credit Risk", "Funding and liquidity Risk", "Macro Risk", "Market Risk")))

假设我们想要以下三个颜色回收箱:蓝色表示值< 0，绿色表示值>= 0但值< 2，红色表示值>= 2，然后定义相应的颜色有序列表。

palette <- c("blue", "green", "red")

我们还定义了色箱的边界值。这些值必须包括域边界。

mi <- min(mat, na.rm = TRUE)
ma <- max(mat, na.rm = TRUE)
breaks <- c(mi, 0, 2, ma)

我们现在可以定义一个颜色插值函数，它将0,1中的一个值映射到一个颜色上，尊重我们的色箱。“天平”包是来帮忙的。

install.package('scales') # if needed
library(scales)
colorFunc <- col_bin(palette, bins = rescale(breaks))

最初在数据域中定义的中断需要重新标度为0,1。“scales”包中的“rescale”函数处理了这个问题。

小细节:垃圾箱的低边界包括在垃圾桶中，但高边界被排除在外。所以值0是绿色的，介于0到2之间的值也是绿色的，但是2是红色的。

我们现在可以绘制热量图了。

d3heatmap(mat, dendrogram = "none", colors = colorFunc, na.rm = TRUE)

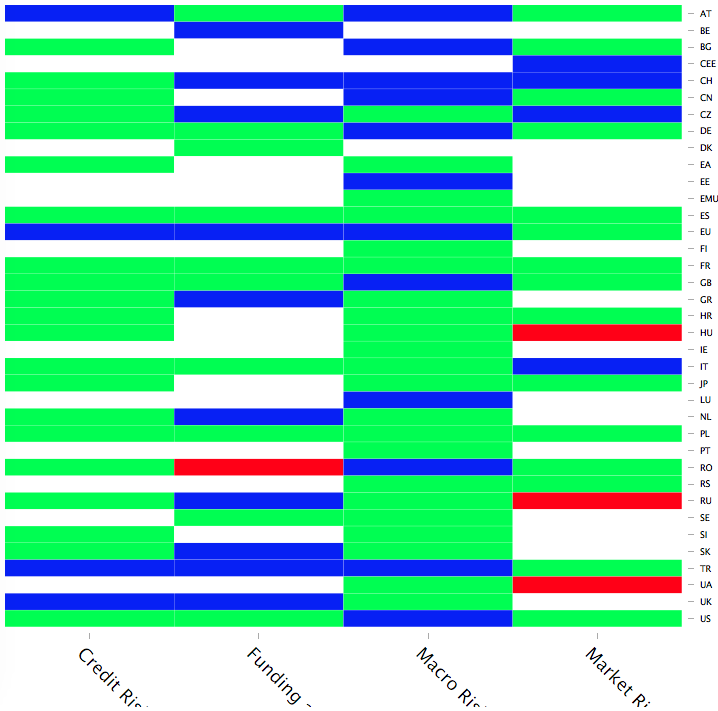

结果如下：

​

​
