图形中的图形

Question

我正在用matplotlib做实验，用数字绘制数字。因为正方形是画得最直的，所以我就从这些开始。最后，我想为一定宽度的多边形编写一个生成器。在给定的例子中，这将是一个直角和宽度为1的4角多边形.

我的当前代码绘制了以下代码，这与预期的大致相同。

​

​

注意，在2,2和2,3之间有一行，如果用正确的算法而不是当前的代码来完成，我认为可以删除。

上面的总结是一个方框在两个盒子中，振幅随着1的增加而增加，假设较大的盒子在其余的盒子‘后面’。

我编写的生成上述代码的方法实际上并不是一个函数。这是一个非常丑陋的点集合，恰巧类似于中空的方块。

import matplotlib.path as mpath
import matplotlib.patches as mpatches
import matplotlib.pyplot as plt

fig, ax = plt.subplots()

INNER_AMPLITUDE = 1.0
OUTER_AMPLITUDE = 3.0

Path_in = mpath.Path
path_in_data = [
    (Path_in.MOVETO, (INNER_AMPLITUDE, -INNER_AMPLITUDE)),
    (Path_in.LINETO, (-INNER_AMPLITUDE, -INNER_AMPLITUDE)),
    (Path_in.LINETO, (-INNER_AMPLITUDE, INNER_AMPLITUDE)),
    (Path_in.LINETO, (INNER_AMPLITUDE, INNER_AMPLITUDE)),
    (Path_in.CLOSEPOLY, (INNER_AMPLITUDE, -INNER_AMPLITUDE)),
    ]
codes, verts = zip(*path_in_data)
path_in = mpath.Path(verts, codes)
patch_in = mpatches.PathPatch(path_in, facecolor='g', alpha=0.3)
ax.add_patch(patch_in)

x, y = zip(*path_in.vertices)
line, = ax.plot(x, y, 'go-')

Path_out = mpath.Path
path_out_data = [
    (Path_out.MOVETO, (OUTER_AMPLITUDE, -OUTER_AMPLITUDE)),
    (Path_out.LINETO, (-OUTER_AMPLITUDE, -OUTER_AMPLITUDE)),
    (Path_out.LINETO, (-OUTER_AMPLITUDE, OUTER_AMPLITUDE)),
    (Path_out.LINETO, (OUTER_AMPLITUDE, OUTER_AMPLITUDE)),
    (Path_out.LINETO, (OUTER_AMPLITUDE, OUTER_AMPLITUDE-INNER_AMPLITUDE)),
    (Path_out.LINETO, (-(OUTER_AMPLITUDE-INNER_AMPLITUDE), OUTER_AMPLITUDE-INNER_AMPLITUDE)),
    (Path_out.LINETO, (-(OUTER_AMPLITUDE-INNER_AMPLITUDE), -(OUTER_AMPLITUDE-INNER_AMPLITUDE))),
    (Path_out.LINETO, (OUTER_AMPLITUDE-INNER_AMPLITUDE, -(OUTER_AMPLITUDE-INNER_AMPLITUDE))),
    (Path_out.LINETO, (OUTER_AMPLITUDE-INNER_AMPLITUDE, OUTER_AMPLITUDE-INNER_AMPLITUDE)),
    (Path_out.LINETO, (OUTER_AMPLITUDE, OUTER_AMPLITUDE-INNER_AMPLITUDE)),
    (Path_out.CLOSEPOLY, (OUTER_AMPLITUDE, OUTER_AMPLITUDE-INNER_AMPLITUDE)),
    ]
codes, verts = zip(*path_out_data)
path_out = mpath.Path(verts, codes)
patch_out = mpatches.PathPatch(path_out, facecolor='r', alpha=0.3)
ax.add_patch(patch_out)
plt.title('Square in a square in a square')

ax.grid()
ax.axis('equal')
plt.show()

请注意，我认为这是代码评审的非主题，因为我希望扩展我的功能，而不仅仅是重新编写，这取决于最佳实践。我觉得我这样做完全是错误的。首先要做的是。

如何使用matplotlib绘制具有一定宽度的多边形，假设多边形将在外部以相同的形状和至少相同的宽度被包围，并在内部完全填充？

Answer 1

纯粹在matplotlib中处理多边形可能非常繁琐。幸运的是，有一个非常好的库用于这类操作：修长。就您的目的而言，parallel_offset函数是可行的。您感兴趣的多边形的边界由ring1、ring2和ring3定义

import numpy as np
import matplotlib.pyplot as plt
import shapely.geometry as sg
from descartes.patch import PolygonPatch

# if I understood correctly you mainly need the difference d here
INNER_AMPLITUDE = 0.1
OUTER_AMPLITUDE = 0.2
d = OUTER_AMPLITUDE - INNER_AMPLITUDE

# fix seed, for reproducability
np.random.seed(11111)

# a function to produce a "random" polygon
def random_polygon():
    nr_p = np.random.randint(7,15)
    angle = np.sort(np.random.rand(nr_p)*2*np.pi)
    dist = 0.3*np.random.rand(nr_p) + 0.5
    return np.vstack((np.cos(angle)*dist, np.sin(angle)*dist)).T

# your input polygon
p = random_polygon()

# create a shapely ring object
ring1 = sg.LinearRing(p)
ring2 = ring1.parallel_offset(d, 'right', join_style=2, mitre_limit=10.)
ring3 = ring1.parallel_offset(2*d, 'right', join_style=2, mitre_limit=10.)

# revert the third ring. This is necessary to use it to procude a hole
ring3.coords = list(ring3.coords)[::-1]

# inner and outer polygon
inner_poly = sg.Polygon(ring1)
outer_poly = sg.Polygon(ring2, [ring3])

# create the figure
fig, ax = plt.subplots(1)

# convert them to matplotlib patches and add them to the axes
ax.add_patch(PolygonPatch(inner_poly, facecolor=(0,1,0,0.4),
    edgecolor=(0,1,0,1), linewidth=3))
ax.add_patch(PolygonPatch(outer_poly, facecolor=(1,0,0,0.4),
    edgecolor=(1,0,0,1), linewidth=3))

# cosmetics
ax.set_aspect(1)
plt.axis([-1.5, 1.5, -1.5, 1.5])
plt.grid()
plt.show()

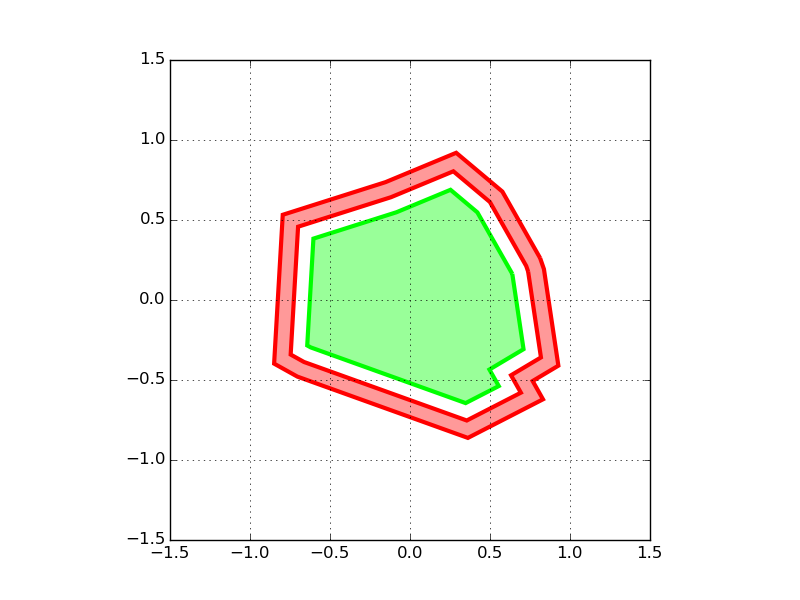

结果：

​

​
