As your button had no height and width...this may take a intrinsic size of image for button and you may get conflicting output...

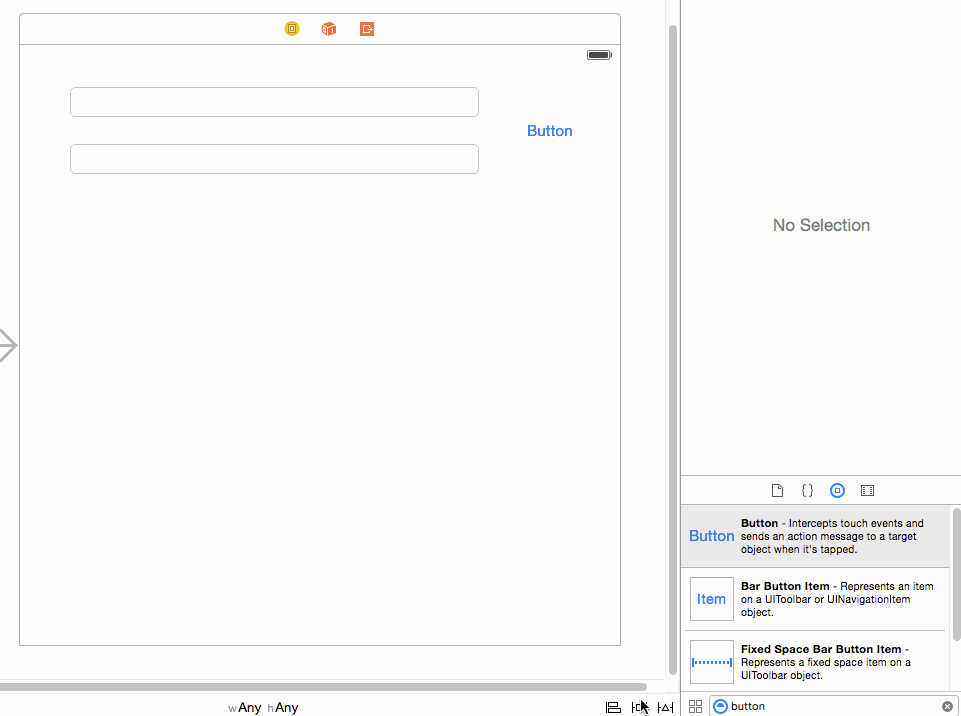

Here is the image and constraints...may be work for you...

<a href="https://i.stack.imgur.com/2jOYi.gif" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/2jOYi.gif" alt="enter image description here"></a>

blocks|key|4054785|text|在没有更多信息的情况下，我的第一个猜测是，图像的内在大小与您在右边按钮上设置的约束发生冲突。这很可能导致约束引擎移除指定的优先级，因为当运行时出现冲突时，它只是半随机地开始删除约束，直到没有更多的冲突。|type|unstyled|depth|inlineStyleRanges|entityRanges|data|4054786|对于superview，您有很多指定的内容。尽量不要使用superview相对约束，除非您确实是针对superview指定约束，而不是该视图中的其他组件。|4054787|始终要确保在运行时检查导致冲突被删除的约束冲突的日志消息，因为这几乎总是像这样奇怪的布局的原因。|4054788|entityMap^0|0|0|0^^$0|@$1|2|3|4|5|6|7|H|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|I|8|@]|9|@]|A|$]]|$1|D|3|E|5|6|7|J|8|@]|9|@]|A|$]]|$1|F|3|-4|5|6|7|K|8|@]|9|@]|A|$]]]|G|$]]

Without more information, my first guess is that the intrinsic size of the image is causing conflicts with the constraints you've set up on the button on the right. This is most likely causing the constraint engine to remove your specified priorities, as when there are conflicts at runtime, it just starts removing constraints semi-randomly until there are not more conflicts.

You have a lot of things specified against the superview. Try not to use superview relative constraints unless you're really specifying constraints against the superview, and not other components within that view.

Always be sure to check log messages at runtime about constraint conflicts that lead to conflicts being removed, as that's almost always the reason for bizarre layouts like this.

blocks|key|3717712|text|顶级TextField应该如下所示：|type|unstyled|depth|inlineStyleRanges|entityRanges|data|3717713|顶部空间到超级视图，引导空间到超级视图，宽度和高度|blockquote|3717714|按钮应如下所示：|3717715|顶部空间到超级视图，尾随空间到超级视图，宽度和高度|3717716|第二TextField应该有如下内容：|3717717|顶部空间到顶部TextField，引导空间到超级视图，与顶部TextField等宽等高|3717718|entityMap^0|0|0|0|0|0|0^^$0|@$1|2|3|4|5|6|7|O|8|@]|9|@]|A|$]]|$1|B|3|C|5|D|7|P|8|@]|9|@]|A|$]]|$1|E|3|F|5|6|7|Q|8|@]|9|@]|A|$]]|$1|G|3|H|5|D|7|R|8|@]|9|@]|A|$]]|$1|I|3|J|5|6|7|S|8|@]|9|@]|A|$]]|$1|K|3|L|5|D|7|T|8|@]|9|@]|A|$]]|$1|M|3|-4|5|6|7|U|8|@]|9|@]|A|$]]]|N|$]]

Top TextField should have as follows:

<blockquote>
 top space to superview, leading space to superview, width and height
</blockquote>

Button should have as follows:

<blockquote>
 top space to superview, trailing space to superview, width and height
</blockquote>

2nd TextField should have as follows:

<blockquote>
 top space to top TextField, leading space to superview, equal width and equal height with top TextField
</blockquote>

blocks|key|3717813|text|如果您单击|type|unstyled|depth|inlineStyleRanges|entityRanges|data|3717814|📷|atomic|offset|length|3717815|​|3717816|通过进入游戏视图控制器的属性检查器，您可以选择在界面构建器中模拟正在工作的设备。|3717817|在界面构建器中模拟您正在使用的设备，并且应该可以确定Ib与模拟器匹配(只要黄色错误指示器没有显示在“游戏视图”控制器标题旁边--错误会说“.在运行时可能不一样”之类的东西)。|3717818|在这种情况下，在底部的IB中使用的尺寸通过紧凑来确定所施加的约束所适用的设备和方向(景致或描绘)。正则性是普遍的约束。查看我之前的帖子，了解更多细节。|3717819|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://developer.qcloudimg.com/http-save/yehe-900000/2fd6534e0c7373dfa446111c2edaca7d.png|imageAlt^0|0|0|1|0|0|0|0|0|0^^$0|@$1|2|3|4|5|6|7|X|8|@]|9|@]|A|$]]|$1|B|3|C|5|D|7|Y|8|@]|9|@$E|Z|F|10|1|11]]|A|$]]|$1|G|3|H|5|6|7|12|8|@]|9|@]|A|$]]|$1|I|3|J|5|6|7|13|8|@]|9|@]|A|$]]|$1|K|3|L|5|6|7|14|8|@]|9|@]|A|$]]|$1|M|3|N|5|6|7|15|8|@]|9|@]|A|$]]|$1|O|3|-4|5|6|7|16|8|@]|9|@]|A|$]]]|P|$Q|$5|R|S|T|A|$U|V|W|-4]]]]

if you click on the <a href="https://i.stack.imgur.com/D5kXc.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/D5kXc.png" alt="items of note in interface builder"></a>

you have the option of simulating the device that you are working on while still in in interface builder by going into the attributes inspector of the game View Controller.

Simulate the device you are working on in interface builder and it should be certain that Ib matches the simulator(as long as a yellow error indicator is not showing next to the Game View controller title-- the error would say that ".... may be different at run time " or something like that).

The dimensions that are used in IB at the bottom in this case compact by compact determine the device and orientation(landscape or portraite) that the constraints made apply to. Regular by regular is universal constraints. Check my previous posts for more detail.

I am still in the learning process of learning constraints, so bear with me:

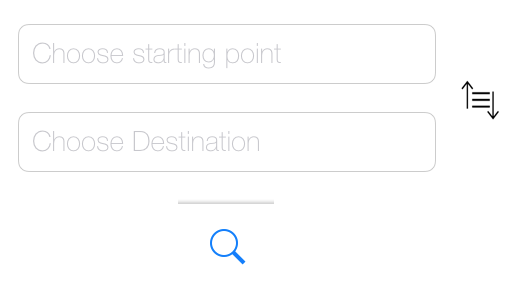

In xCode Interface Builder, my UI looks like the following:

<a href="https://i.stack.imgur.com/4LfQa.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/4LfQa.png" alt="enter image description here"></a>

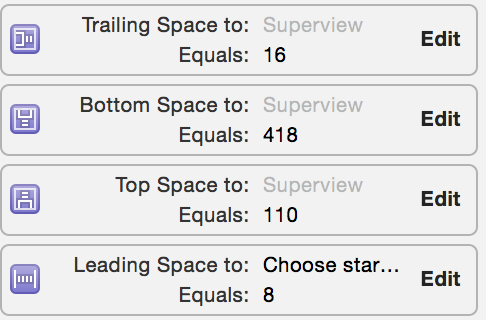

The top TextField has the following constraints set up:

<a href="https://i.stack.imgur.com/jn70B.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/jn70B.png" alt="enter image description here"></a>

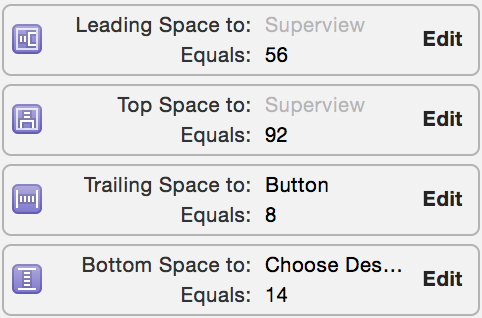

And the reverse button on the right has the following constraints:

<a href="https://i.stack.imgur.com/MsfV2.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/MsfV2.png" alt="enter image description here"></a>

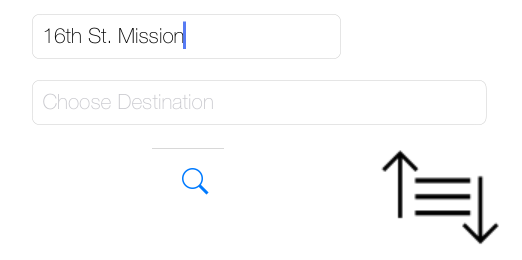

When I run it in the debugger, I get a misconfigured UI:

<a href="https://i.stack.imgur.com/FiRBT.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/FiRBT.png" alt="enter image description here"></a>

What exactly is happening here? Why is my reverse button increasing to a huge size and displacing to a weird position and why is the first TextField shrunk?

Ideally, I want my debugger UI to look like my Interface Builder in the first image. I am setting this all up through the interface builder and not programmatically.

Constraints of Textfield conflicting with UIButton
