用波浪动画制作CAShapeLayer动画

Question

下面我有附图，我想实现下面的动画。我试过水波动画，但不知道如何像上面那样控制动画。。

我有CAShapeLayer，我必须在其中实现这个动画。

​

​

Init代码

UIBezierPath *leftPath = [UIBezierPath bezierPath];
// Set the starting point of the shape.
[leftPath moveToPoint:CGPointMake(0,self.bounds.size.height/2)];
// Draw the lines.


[leftPath addLineToPoint:CGPointMake(0,self.bounds.size.height/2)];
[leftPath addLineToPoint:CGPointMake(self.bounds.size.width,self.bounds.size.height/2)];


leftLayer.path = leftPath.CGPath;
leftLayer.strokeColor = [[UIColor whiteColor] CGColor];
leftLayer.fillColor = nil;
leftLayer.borderWidth = 3.0f;
leftLayer.lineCap = kCALineCapRound;
leftLayer.lineJoin = kCALineJoinRound;

leftLayer.borderColor=[UIColor blackColor].CGColor;
[self.layer addSublayer:leftLayer];

动画代码

-(void)animateCureve{

CABasicAnimation *pathAnimation = [CABasicAnimation animationWithKeyPath:@"path"];
pathAnimation.duration = 3.5;
pathAnimation.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut];
pathAnimation.fromValue = (id)leftLayer.path;
pathAnimation.toValue = (id)[self wavePath].CGPath;
pathAnimation.removedOnCompletion=NO;
[leftLayer addAnimation:pathAnimation forKey:@"path"];
}

曲线路径

- (UIBezierPath *)wavePath {
//set start and end accordingly

UIBezierPath *startPath = [UIBezierPath bezierPath];
[startPath moveToPoint:CGPointMake(0, self.bounds.size.height/2)];
[startPath addCurveToPoint:CGPointMake(self.bounds.size.width, self.bounds.size.height/2) controlPoint1:CGPointMake(50, self.bounds.size.height/2+0)  controlPoint2:CGPointMake(self.bounds.size.width/2, 20) ];



return startPath;
}

Answer 1

仔细看一下框架，它看上去就像一条沿路径移动的浅二次曲线。您可以尝试的是为曲线的开始和结束定义一个范围，例如开始和结束，然后在中间添加控制点。然后把两端的直线加进去。我很快就写到：

CGFloat start;
CGFloat end;
CGFloat heightOfQuad;
CGFloat mid = (start + end)/2;

UIBezierPath *path = [UIBezierPath bezierPath];
[path moveToPoint:CGPointMake(start, 0)];
[path addQuadCurveToPoint:CGPointMake(end, 0) controlPoint:CGPointMake(mid, heightOfQuad)];

UIBezierPath *startPath = [UIBezierPath bezierPath];
[startPath moveToPoint:CGPointMake(0, 0)];
[startPath addLineToPoint:CGPointMake(start, 0)];

UIBezierPath *endPath = [UIBezierPath bezierPath];
[endPath moveToPoint:CGPointMake(end, 0)];
[endPath addLineToPoint:CGPointMake(lengthOfViewHere, 0)];

[startPath appendPath:path];
[startPath appendPath:endPath];

*我还没有测试过，但你可以试一试

更新：

- (UIBezierPath *)wavePath {

    CGFloat mid = (self.start + self.end)/2;
    CGFloat y = self.frame.size.height;

    UIBezierPath *curvePath = [UIBezierPath bezierPath];
    [curvePath moveToPoint:CGPointMake(self.start, y)];
    [curvePath addQuadCurveToPoint:CGPointMake(self.end, y) controlPoint:CGPointMake(mid, y - waveHeight)];

    UIBezierPath *startPath = [UIBezierPath bezierPath];
    [startPath moveToPoint:CGPointMake(0, y)];
    [startPath addLineToPoint:CGPointMake(self.start, y)];

    UIBezierPath *endPath = [UIBezierPath bezierPath];
    [endPath moveToPoint:CGPointMake(self.end, y)];
    [endPath addLineToPoint:CGPointMake(self.frame.size.width, y)];

    [startPath appendPath:curvePath];
    [startPath appendPath:endPath];

    return startPath;
}
- (void)setWavePosition:(CGFloat)wavePosition {

    //from 0.0 to 1.0
    _wavePosition = wavePosition;

    //set start and end accordingly
    CGFloat waveCoordinate = wavePosition * self.frame.size.width;
    self.start = waveCoordinate - waveWidth/2;
    self.end = waveCoordinate + waveWidth/2;

    self.path = [self wavePath].CGPath;
    [self setNeedsDisplay];
}

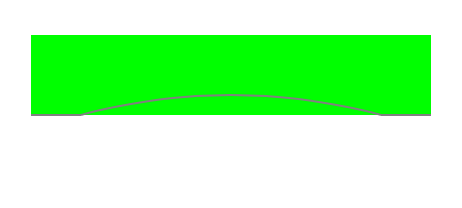

在播放了一些之后，上面的代码在视图宽度为200.0的情况下生成位置为0.5、waveHeight为5.0和waveWidth为150.0的代码：

​

您需要做的就是设置wavePosition，然后wavePath将返回新的路径。
