如何有效地从Swift中的图像数组创建多行照片拼贴

Question

问题

我正在建立一个拼贴的照片，从一个数组的图像，我要放在一个桌面视图。当图像数量达到tableview单元格宽度的边界时，我希望将图像包装起来(这将允许我在拼贴纸中显示图像行)。目前我只得到一排。如果需要更多的信息，请随时告知。我很可能不会以最有效的方式来处理这个问题，因为当数组中使用的图像数量开始增加时，就会出现延迟。(如对此有任何反馈，将不胜感激)。

Nota Bene

我正在创造一个拼贴的形象。它实际上是一幅图像。我希望通过在内存中创建列和行的有效矩阵来安排拼贴。然后我用图像填充这些区域。最后，我对结果图像进行快照，并在需要时使用它。该算法在编写时效率不高，只生成一行图像。我需要一个轻量级的替代算法下面使用的算法。在这种情况下，我不相信UICollectionView是一个有用的替代方案。

伪码

1. 给定图像数组和目标矩形(表示目标视图)
2. 获取数组中的图像数，与每行允许的最大数目相比。
3. 定义一个适当大小的小矩形来容纳图像(这样每一行都填充目标矩形，也就是说-如果有一幅图像，那就应该填充这一行；如果9幅图像，那就应该完全填充这一行；如果10幅图像的最大值为每行9幅图像，那么第10行就开始了第二行)
4. 遍历集合
5. 将每个矩形从左到右放置在正确的位置，直到最后一个图像或每一行的最大数字达到；在下一行继续，直到所有图像都适合目标矩形。
6. 当每行图像数达到最大时，将图像放置并设置下一个矩形以显示在连续行上。

使用:SWIFT2.0

class func collageImage (rect:CGRect, images:[UIImage]) -> UIImage {

        let maxSide = max(rect.width / CGFloat(images.count), rect.height / CGFloat(images.count))

        UIGraphicsBeginImageContextWithOptions(rect.size, false, UIScreen.mainScreen().scale)

        var xtransform:CGFloat = 0.0

        for img in images {
            let smallRect:CGRect = CGRectMake(xtransform, 0.0,maxSide, maxSide)
            let rnd = arc4random_uniform(270) + 15
            //draw in rect
            img.drawInRect(smallRect)
            //rotate img using random angle.
            UIImage.rotateImage(img, radian: CGFloat(rnd))
            xtransform += CGFloat(maxSide * 0.8)
        }

        let outputImage = UIGraphicsGetImageFromCurrentImageContext();

        UIGraphicsEndImageContext();

        return outputImage
    }

    class func rotateImage(src: UIImage, radian:CGFloat) -> UIImage
    {
        //  Calculate the size of the rotated view's containing box for our drawing space
        let rotatedViewBox = UIView(frame: CGRectMake(0,0, src.size.width, src.size.height))

        let t: CGAffineTransform  = CGAffineTransformMakeRotation(radian)

        rotatedViewBox.transform = t
        let rotatedSize = rotatedViewBox.frame.size

        //  Create the bitmap context
        UIGraphicsBeginImageContext(rotatedSize)

        let bitmap:CGContextRef = UIGraphicsGetCurrentContext()

        //  Move the origin to the middle of the image so we will rotate and scale around the center.
        CGContextTranslateCTM(bitmap, rotatedSize.width/2, rotatedSize.height/2);

        //  Rotate the image context
        CGContextRotateCTM(bitmap, radian);

        //  Now, draw the rotated/scaled image into the context
        CGContextScaleCTM(bitmap, 1.0, -1.0);
        CGContextDrawImage(bitmap, CGRectMake(-src.size.width / 2, -src.size.height / 2, src.size.width, src.size.height), src.CGImage)

        let newImage = UIGraphicsGetImageFromCurrentImageContext()
        UIGraphicsEndImageContext()

        return newImage
    }

备选方案1

我对这个问题的解决方案做了一些改进。但是，正如前面所述，这一项确实将图像堆叠在列和行中；我感兴趣的是尽可能提高效率。提出的是我的尝试，以生产最简单的，可能的东西，工作。

警告

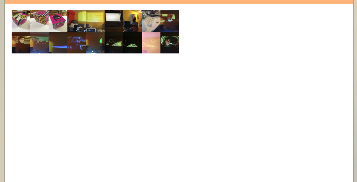

使用此方法生成的图像是倾斜的，而不是均匀分布在整个tableview单元格中的。跨tableview单元格的高效均匀分布将是最佳的。

​

​

class func collageImage (rect:CGRect, images:[UIImage]) -> UIImage {

        let maxSide = max(rect.width / CGFloat(images.count), rect.height / CGFloat(images.count)) //* 0.80
        //let rowHeight = rect.height / CGFloat(images.count) * 0.8
        let maxImagesPerRow = 9
        var index = 0
        var currentRow = 1
        var xtransform:CGFloat = 0.0
        var ytransform:CGFloat = 0.0
        var smallRect:CGRect = CGRectZero

        UIGraphicsBeginImageContextWithOptions(rect.size, false, UIScreen.mainScreen().scale)

        for img in images {

            let x = ++index % maxImagesPerRow //row should change when modulus is 0

            //row changes when modulus of counter returns zero @ maxImagesPerRow
            if x == 0 {
                //last column of current row
                //xtransform += CGFloat(maxSide)
                smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)

                //reset for new row
                ++currentRow
                xtransform = 0.0
                ytransform = (maxSide * CGFloat(currentRow - 1))

            } else {
                //not a new row
                if xtransform == 0 {
                    //this is first column
                    //draw rect at 0,ytransform
                    smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)
                    xtransform += CGFloat(maxSide)
                } else {
                    //not the first column so translate x, ytransform to be reset for new rows only
                    smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)
                    xtransform += CGFloat(maxSide)
                }

            }

            //draw in rect
            img.drawInRect(smallRect)

        }

        let outputImage = UIGraphicsGetImageFromCurrentImageContext();

        UIGraphicsEndImageContext();

        return outputImage
    }

备选方案2

下面显示的备选方案是缩放图像，以便它们总是填充矩形(在我的例子中是tableview单元格)。随着更多的图像被添加，它们被缩放以适应矩形的宽度。当图像满足每行图像的最大数量时，它们将被包装。这是在内存中发生的、相对较快的行为，包含在我在UIImage类上扩展的一个简单类函数中。我仍然感兴趣的任何算法，可以提供相同的功能，只是更快。

noted :我不认为添加更多的UI对于实现上述效果是有用的。因此，一个更有效的编码算法是我正在寻找的。

class func collageImage (rect:CGRect, images:[UIImage]) -> UIImage {

        let maxImagesPerRow = 9
        var maxSide : CGFloat = 0.0

        if images.count >= maxImagesPerRow {
            maxSide = max(rect.width / CGFloat(maxImagesPerRow), rect.height / CGFloat(maxImagesPerRow))
        } else {
            maxSide = max(rect.width / CGFloat(images.count), rect.height / CGFloat(images.count))
        }

        var index = 0
        var currentRow = 1
        var xtransform:CGFloat = 0.0
        var ytransform:CGFloat = 0.0
        var smallRect:CGRect = CGRectZero

        UIGraphicsBeginImageContextWithOptions(rect.size, false,  UIScreen.mainScreen().scale)

        for img in images {

            let x = ++index % maxImagesPerRow //row should change when modulus is 0

            //row changes when modulus of counter returns zero @ maxImagesPerRow
            if x == 0 {
                //last column of current row
                smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)

                //reset for new row
                ++currentRow
                xtransform = 0.0
                ytransform = (maxSide * CGFloat(currentRow - 1))

            } else {
                //not a new row
                smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)
                xtransform += CGFloat(maxSide)
            }

            //draw in rect
            img.drawInRect(smallRect)

        }

        let outputImage = UIGraphicsGetImageFromCurrentImageContext();

        UIGraphicsEndImageContext();

        return outputImage
    }

效率测试

Reda给出了一些关于如何在此博客帖子上测试仪器中的CG调用的过程性见解。他还指出了UIKit团队的Andy关于离屏渲染的一些特点的有趣的笔记。我可能仍然没有正确地利用CIImage解决方案，因为最初的结果显示，当试图强制使用GPU时，解决方案会变得越来越慢。

Answer 1

为了在内存中构建拼贴，并尽可能高效，我建议查看核心图像。您可以组合多个CIFilters来创建输出映像。

您可以将CIAffineTransform过滤器应用到每个映像中，以便将它们排列起来(如果需要，可以将它们裁剪为与CICrop的大小)，然后使用CISourceOverCompositing过滤器将它们组合起来。在要求输出之前，Core不会处理任何东西；而且由于所有这些都发生在GPU中，所以它速度快、效率高。

这里有一些代码。为了理解，我试着让它尽可能接近你的例子。如果我从零开始使用核心映像，这并不一定是我构造代码的方式。

class func collageImage (rect: CGRect, images: [UIImage]) -> UIImage {

    let maxImagesPerRow = 3
    var maxSide : CGFloat = 0.0

    if images.count >= maxImagesPerRow {
        maxSide = max(rect.width / CGFloat(maxImagesPerRow), rect.height / CGFloat(maxImagesPerRow))
    } else {
        maxSide = max(rect.width / CGFloat(images.count), rect.height / CGFloat(images.count))
    }

    var index = 0
    var currentRow = 1
    var xtransform:CGFloat = 0.0
    var ytransform:CGFloat = 0.0
    var smallRect:CGRect = CGRectZero

    var composite: CIImage? // used to hold the composite of the images

    for img in images {

        let x = ++index % maxImagesPerRow //row should change when modulus is 0

        //row changes when modulus of counter returns zero @ maxImagesPerRow
        if x == 0 {

            //last column of current row
            smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)

            //reset for new row
            ++currentRow
            xtransform = 0.0
            ytransform = (maxSide * CGFloat(currentRow - 1))

        } else {

            //not a new row
            smallRect = CGRectMake(xtransform, ytransform, maxSide, maxSide)
            xtransform += CGFloat(maxSide)
        }

        // Note, this section could be done with a single transform and perhaps increase the
        // efficiency a bit, but I wanted it to be explicit.
        //
        // It will also use the CI coordinate system which is bottom up, so you can translate
        // if the order of your collage matters.
        //
        // Also, note that this happens on the GPU, and these translation steps don't happen
        // as they are called... they happen at once when the image is rendered. CIImage can
        // be thought of as a recipe for the final image.
        //
        // Finally, you an use core image filters for this and perhaps make it more efficient.
        // This version relies on the convenience methods for applying transforms, etc, but
        // under the hood they use CIFilters
        var ci = CIImage(image: img)!

        ci = ci.imageByApplyingTransform(CGAffineTransformMakeScale(maxSide / img.size.width, maxSide / img.size.height))
        ci = ci.imageByApplyingTransform(CGAffineTransformMakeTranslation(smallRect.origin.x, smallRect.origin.y))!

        if composite == nil {

            composite = ci

        } else {

            composite = ci.imageByCompositingOverImage(composite!)
        }
    }

    let cgIntermediate = CIContext(options: nil).createCGImage(composite!, fromRect: composite!.extent())
    let finalRenderedComposite = UIImage(CGImage: cgIntermediate)!

    return finalRenderedComposite
}

您可能会发现您的CIImage旋转不正确。您可以使用如下代码对其进行更正：

var transform = CGAffineTransformIdentity

switch ci.imageOrientation {

case UIImageOrientation.Up:
    fallthrough
case UIImageOrientation.UpMirrored:
    println("no translation necessary. I am ignoring the mirrored cases because in my code that is ok.")
case UIImageOrientation.Down:
    fallthrough
case UIImageOrientation.DownMirrored:
    transform = CGAffineTransformTranslate(transform, ci.size.width, ci.size.height)
    transform = CGAffineTransformRotate(transform, CGFloat(M_PI))
case UIImageOrientation.Left:
    fallthrough
case UIImageOrientation.LeftMirrored:
    transform = CGAffineTransformTranslate(transform, ci.size.width, 0)
    transform = CGAffineTransformRotate(transform, CGFloat(M_PI_2))
case UIImageOrientation.Right:
    fallthrough
case UIImageOrientation.RightMirrored:
    transform = CGAffineTransformTranslate(transform, 0, ci.size.height)
    transform = CGAffineTransformRotate(transform, CGFloat(-M_PI_2))
}

ci = ci.imageByApplyingTransform(transform)

请注意，此代码忽略了修复几个镜像情况。我会把它作为练习留给你，但是它的要点就在这里。

如果您已经优化了您的核心图像处理，那么此时您所看到的任何减速都可能是由于将您的CIImage转换为UIImage；这是因为您的映像必须从GPU转换到CPU。如果要跳过此步骤以便向用户显示结果，则可以。只需直接将结果呈现给GLKView即可。在用户想要保存拼贴的时候，您总是可以转换到UIImage或CGImage。

// this would happen during setup
let eaglContext = EAGLContext(API: .OpenGLES2)
glView.context = eaglContext

let ciContext = CIContext(EAGLContext: glView.context)

// this would happen whenever you want to put your CIImage on screen
if glView.context != EAGLContext.currentContext() {
    EAGLContext.setCurrentContext(glView.context)
}

let result = ViewController.collageImage(glView.bounds, images: images)

glView.bindDrawable()
ciContext.drawImage(result, inRect: glView.bounds, fromRect: result.extent())
glView.display()

Answer 2

由于您使用的是SWIFT2.0：UIStackView完成了您要手动执行的任务，并且比UICollectionView要容易得多。假设您使用的是故事板，那么创建一个带有多个嵌套TableViewCell的原型UIStackViews应该完全符合您的要求。您只需要确保插入的UIImages是相同的纵横比，如果这是您想要的。

你的算法效率很低，因为它必须用多重核心动画变换重新绘制每一幅图像，无论何时你从数组中添加或删除一幅图像。UIStackView支持动态添加和删除对象。

如果出于某种原因，仍然需要将生成的拼贴器快照为UIImage，您仍然可以在UIStackView上这样做。。

Answer 3

基于上面Tommie C提供的备选方案2，我创建了一个函数

• 总是填充整个矩形，在拼贴图中没有空格。
• 自动确定行数和列数(最多比nrOfRows多1行)
• 为了防止上面提到的空格，所有单独的图片都用“方面填充”绘制(因此对于一些图片，这意味着部分将被裁剪)。

以下是功能：

func collageImage(rect: CGRect, images: [UIImage]) -> UIImage {
    if images.count == 1 {
        return images[0]
    }

    UIGraphicsBeginImageContextWithOptions(rect.size, false,  UIScreen.mainScreen().scale)

    let nrofColumns: Int = max(2, Int(sqrt(Double(images.count-1)))+1)
    let nrOfRows: Int = (images.count)/nrofColumns
    let remaindingPics: Int = (images.count) % nrofColumns
    print("columns: \(nrofColumns) rows: \(nrOfRows) first \(remaindingPics) columns will have 1 pic extra")

    let w: CGFloat = rect.width/CGFloat(nrofColumns)
    var hForColumn = [CGFloat]()
    for var c=1;c<=nrofColumns;++c {
        if remaindingPics >= c {
            hForColumn.append(rect.height/CGFloat(nrOfRows+1))
        }
        else {
            hForColumn.append(rect.height/CGFloat(nrOfRows))
        }
    }
    var colNr = 0
    var rowNr = 0
    for var i=1; i<images.count; ++i {
        images[i].drawInRectAspectFill(CGRectMake(CGFloat(colNr)*w,CGFloat(rowNr)*hForColumn[colNr],w,hForColumn[colNr]))
        if i == nrofColumns || ((i % nrofColumns) == 0 && i > nrofColumns) {
            ++rowNr
            colNr = 0
        }
        else {
            ++colNr
        }
    }

    let outputImage = UIGraphicsGetImageFromCurrentImageContext();
    UIGraphicsEndImageContext();
    return outputImage
}

这使用了UIImage扩展drawInRectAspectFill：

extension UIImage {
    func drawInRectAspectFill(rect: CGRect, opacity: CGFloat = 1.0) {
        let targetSize = rect.size
        let scaledImage: UIImage
        if targetSize == CGSizeZero {
            scaledImage = self
        } else {
            let scalingFactor = targetSize.width / self.size.width > targetSize.height / self.size.height ? targetSize.width / self.size.width : targetSize.height / self.size.height
            let newSize = CGSize(width: self.size.width * scalingFactor, height: self.size.height * scalingFactor)
            UIGraphicsBeginImageContext(targetSize)
            self.drawInRect(CGRect(origin: CGPoint(x: (targetSize.width - newSize.width) / 2, y: (targetSize.height - newSize.height) / 2), size: newSize), blendMode: CGBlendMode.Normal, alpha: opacity)
            scaledImage = UIGraphicsGetImageFromCurrentImageContext()
            UIGraphicsEndImageContext()
        }
        scaledImage.drawInRect(rect)
    }
}
