WPF Expander.Header水平拉伸

Question

我在Wpf有个扩张器。在标题，我有标签在左对齐，并希望有一个按钮在右边的网站。我使用以下XAML：

<Expander HorizontalAlignment="Stretch" IsExpanded="True">
    <Expander.Header >
        <Grid HorizontalAlignment="Stretch" Background="Aqua" Margin="0">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*"/>
                <ColumnDefinition Width="Auto" />
            </Grid.ColumnDefinitions>
            <Label Grid.Column="0" Content="Label on the left site"/>
            <Button Grid.Column="1" Content="Button on the right"/>
         </Grid>
    </Expander.Header>
    <Label Content="Some Content"/>
</Expander>

但这行不通。标题中的按钮与标签旁边的左边对齐。有人能解释我怎么做对吗？

Answer 1

我能够使用下面提供的xaml使标题中的内容伸缩工作。基本上，我将网格HorizontailAlignment绑定到内容演示者祖先。不幸的是，scher (数据绑定到ActualWidth)提供的解决方案可以使ui元素显示得更宽，然后在容器中显示，导致控件部分被切断。Bolu与文章"扩展头中的拉伸内容“的链接使用了后面的代码，如本例所示，这里使用的是纯xaml。

<ItemsControl x:Name="ItemGroups" Grid.Column="2" Grid.Row="0"   ItemsSource="{Binding Model.ItemGroups}" ScrollViewer.VerticalScrollBarVisibility="Auto" >
            <ItemsControl.ItemTemplate>
                <DataTemplate>
                    <Expander Margin="4,0"   Header="{Binding}">
                        <Expander.HeaderTemplate>
                            <DataTemplate>
                                <Grid  HorizontalAlignment="{Binding Path=HorizontalAlignment, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type ContentPresenter}}, Mode=OneWayToSource}" >
                                    <Grid.ColumnDefinitions>
                                        <ColumnDefinition   />
                                        <ColumnDefinition  Width="Auto"/>
                                        <ColumnDefinition  Width="64"/>
                                    </Grid.ColumnDefinitions>

                                    <TextBox Grid.Column="0"  Text="{Binding Name, Mode=TwoWay}" />
                                    <TextBlock Grid.Column="1" Text="{Binding TotalCostString}" Margin="4,0"/>
                                    <Button Grid.Column="2" Command="{Binding DataContext.RemoveItemGroup, ElementName=ItemGroups, Mode=OneWay}" CommandParameter="{Binding}" Content="Remove"/>
                                </Grid>
                            </DataTemplate>
                        </Expander.HeaderTemplate>
                        <Expander.Content>
                            <TextBlock Text="{Binding Summary}"></TextBlock>
                        </Expander.Content>
                    </Expander>
                </DataTemplate>
            </ItemsControl.ItemTemplate>
        </ItemsControl>

Answer 2

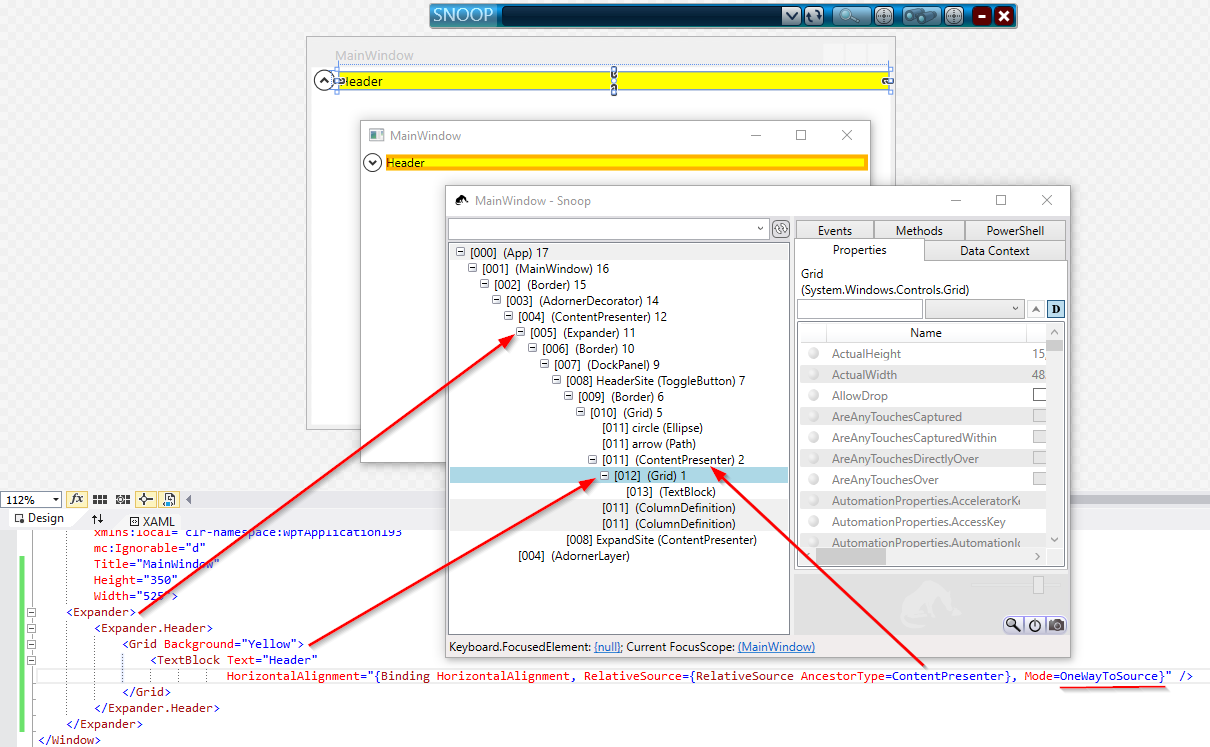

Expander标头内容演示程序将水平对齐设置为Left。

可以使用Stretch的OneWayToSource绑定将其更改为HorizontalAlignment (默认情况下为Grid的Stretch )，如下所示：

<Expander>
    <Expander.Header>
        <Grid Background="Yellow">
            <TextBlock Text="Header"
                       HorizontalAlignment="{Binding HorizontalAlignment, RelativeSource={RelativeSource AncestorType=ContentPresenter}, Mode=OneWayToSource}" />
        </Grid>
    </Expander.Header>
</Expander>

​

​

P.S.：我花了更多的时间去理解被接受的答案的解决方案，所以我决定为未来的读者节省时间。

Answer 3

我拿了博鲁联系的解决方案之一。其结果是：

    <Expander HorizontalAlignment="Stretch" IsExpanded="True">
        <Expander.Header >
            <!-- Width-Binding is needed, to fill the whole header horizontally-->
            <Grid HorizontalAlignment="Stretch" Background="Aqua" Margin="0" Width="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type Expander}}, Path=ActualWidth}">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*"/>
                    <ColumnDefinition Width="Auto" />
                </Grid.ColumnDefinitions>
                <Label Grid.Column="0" Content="Label on the left site"/>
                <!-- Margin is needed, to bring the Button into the view -->
                <Button Grid.Column="1" Content="Button on the right" Margin="0,0,40,0"/>
            </Grid>
        </Expander.Header>
        <Label Content="Some Content"/>
    </Expander>
