R-将特定列绘制为x，并以两行作为行。

Question

下面是我的数据的一个小样本：

    gene_name ctrl_lsm1_ratio_t0 ctrl_lsm1_ratio_t1 ctrl_lsm1_ratio_t2
22     ABP140          -0.262682          -0.303352          -0.223626
246      ARI1          -0.163952          -0.374765          -0.321876
454      BPH1          -0.517519          -0.524553          -0.747609
513      BUR6           0.645573           0.217433           0.390403
588     CDC20          -0.264072          -0.665268          -0.594191
    ctrl_lsm1_ratio_t3 ctrl_lsm1_stat_t0 ctrl_lsm1_stat_t1 ctrl_lsm1_stat_t2
22           -0.421704                no                no                no
246          -0.692391                no                no                no
454          -0.793595                no                no               yes
513           0.200799               yes                no                no
588          -0.523884                no               yes               yes
    ctrl_lsm1_stat_t3 systematic_name
22                yes         YOR239W
246               yes         YGL157W
454               yes         YCR032W
513                no         YER159C
588               yes         YGL116W

我想在x轴(如时间点0、1、2和3)上绘制2:5的列，y轴与比率列相匹配。

如果有一种方法在特定的时间点将点涂成“是”或“否”的颜色，我也希望能够这样做。(例如，ctrl_lsm1_ratio_t0列中的点将根据ctrl_lsm1_stat_t0列中的值着色)。

我还希望一次只绘制两行，这两行都是行(例如，第22行和第513行)。希望这有意义！我对R不熟悉，不知道该怎么做。我愿意下载任何必要的软件包。

Answer 1

data.csv：

    gene_name,ctrl_lsm1_ratio_t0,ctrl_lsm1_ratio_t1,ctrl_lsm1_ratio_t2,ctrl_lsm1_ratio_t3,ctrl_lsm1_stat_t0,ctrl_lsm1_stat_t1,ctrl_lsm1_stat_t2,ctrl_lsm1_stat_t3,systematic_name
    ABP140,-0.262682,-0.303352,-0.22362,-0.421704,no,no,no,yes,YOR239W6
    ARI1,-0.163952,-0.374765,-0.32187,-0.692391,no,no,no,yes,YGL157W6
    BPH1,-0.517519,-0.524553,-0.74760,-0.793595,no,no,yes,yes,YCR032W9
    BUR6,0.645573,0.217433,0.39040,0.200799,yes,no,no,no,YER159C3
    CDC20,-0.264072,-0.665268,-0.59419,-0.523884,no,yes,yes,yes,YGL116W1

代码：

    d<-read.csv("data.csv", header=T, stringsAsFactors=F)

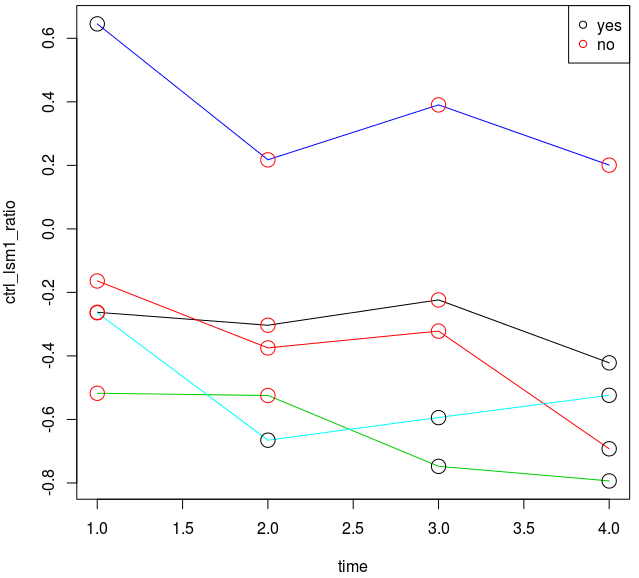

    matplot(t(d[,2:5]), type="l", pch=20, lty=1, xlab="time", ylab="ctrl_lsm1_ratio")
    d2<-reshape(d[,6:9],varying=list(names(d[,6:9])),direction="long",v.name="ctrl_lsm1_stat", ids=d$gene_name)
    points(d2$time, unlist(d[,2:5]), col=ifelse(d2$ctrl_lsm1_stat=="yes",1,2),cex=2.0)
    legend("topright",legend=c("yes","no"), col=c(1,2), pch=21)

​

​
