如何将散射图中的每一点垂直线降至(特征)矢量？

Question

我正在创建一个可视化来说明主成分分析是如何工作的，方法是为一些实际的数据绘制特征值(为了演示的目的，我把它插入到二维中)。

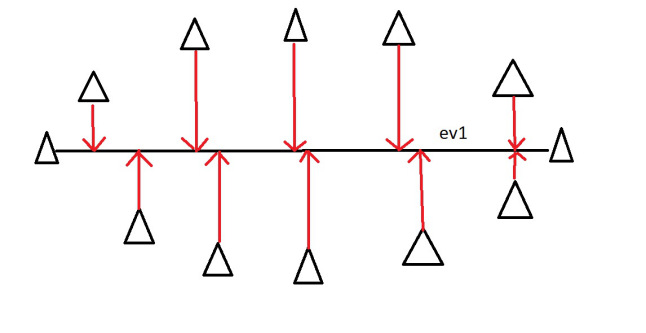

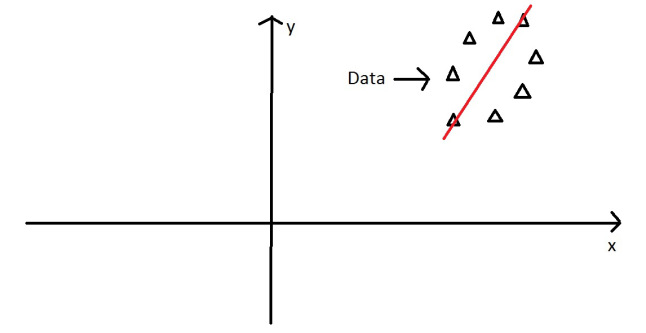

我希望将这个神奇的PCA教程的这两幅图结合起来，只用于我的真实数据。

​

​

​

​

我可以画出向量，一切都好：

Person1 <- c(-3,1,1,-3,0,-1,-1,0,-1,-1,3,4,5,-2,1,2,-2,-1,1,-2,1,-3,4,-6,1,-3,-4,3,3,-5,0,3,0,-3,1,-2,-1,0,-3,3,-4,-4,-7,-5,-2,-2,-1,1,1,2,0,0,2,-2,4,2,1,2,2,7,0,3,2,5,2,6,0,4,0,-2,-1,2,0,-1,-2,-4,-1)
Person2 <- c(-4,-3,4,-5,-1,-1,-2,2,1,0,3,2,3,-4,2,-1,2,-1,4,-2,6,-2,-1,-2,-1,-1,-3,5,2,-1,3,3,1,-3,1,3,-3,2,-2,4,-4,-6,-4,-7,0,-3,1,-2,0,2,-5,2,-2,-1,4,1,1,0,1,5,1,0,1,1,0,2,0,7,-2,3,-1,-2,-3,0,0,0,0)
df <- data.frame(cbind(Person1, Person2))
g <- ggplot(data = df, mapping = aes(x = Person1, y = Person2))
g <- g + geom_point(alpha = 1/3)  # alpha b/c of overplotting
g <- g + geom_smooth(method = "lm")  # just for comparsion
g <- g + coord_fixed()  # otherwise, the angles of vectors are off
corre <- cor(x = df$Person1, y = df$Person2, method = "spearman")  # calculate correlation, must be spearman b/c of measurement
matrix <- matrix(c(1, corre, corre, 1), nrow = 2)  # make this into a matrix
eigen <- eigen(matrix)  # calculate eigenvectors and values
eigen$vectors.scaled <- eigen$vectors %*% diag(sqrt(eigen$values))
  # scale eigenvectors to length = square-root
  # as per http://stats.stackexchange.com/questions/9898/how-to-plot-an-ellipse-from-eigenvalues-and-eigenvectors-in-r
g <- g + stat_ellipse(type = "norm")
g <- g + stat_ellipse(type = "t")
  # add ellipse, though I am not sure which is the adequate type
  # as per https://github.com/hadley/ggplot2/blob/master/R/stat-ellipse.R
g <- g + geom_abline(intercept = 0, slope = eigen$vectors.scaled[1,1], colour = "green")  # add slope for pc1
g <- g + geom_abline(intercept = 0, slope = eigen$vectors.scaled[1,2], colour = "red")  # add slope for pc2
g <- g + geom_segment(aes(x = 0, y = 0, xend = max(df), yend = eigen$vectors.scaled[1,1] * max(df)), colour = "green", arrow = arrow(length = unit(0.2, "cm")))  # add arrow for pc1
g <- g + geom_segment(aes(x = 0, y = 0, xend = max(df), yend = eigen$vectors.scaled[1,2] * max(df)), colour = "red", arrow = arrow(length = unit(0.2, "cm")))  # add arrow for pc1

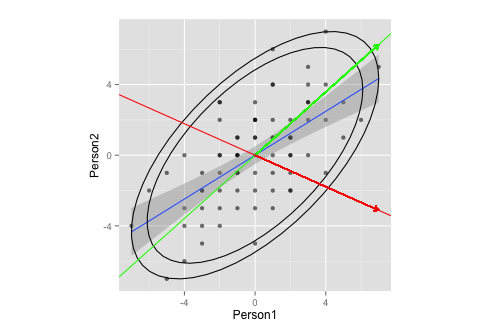

g

​

​

到目前为止(嗯)还不错。我如何知道如何使用geom_segment 从每个数据点到绿色 first 主组件？

Answer 1

调整先前的回答，您可以这样做

perp.segment.coord <- function(x0, y0, a=0,b=1){
 #finds endpoint for a perpendicular segment from the point (x0,y0) to the line
 # defined by lm.mod as y=a+b*x
  x1 <- (x0+b*y0-a*b)/(1+b^2)
  y1 <- a + b*x1
  list(x0=x0, y0=y0, x1=x1, y1=y1)
}


ss<-perp.segment.coord(df$Person1, df$Person2,0,eigen$vectors.scaled[1,1])

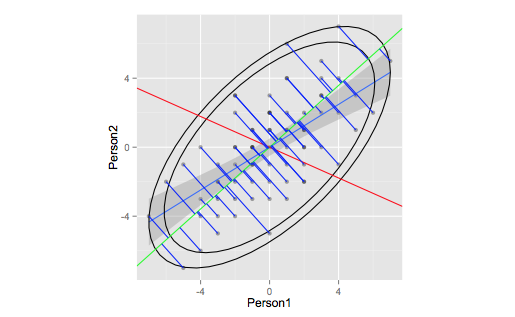

g + geom_segment(data=as.data.frame(ss), aes(x = x0, y = y0, xend = x1, yend = y1), colour = "blue")

​

​
