在Matlab中过滤包含NaNs的图像？

Question

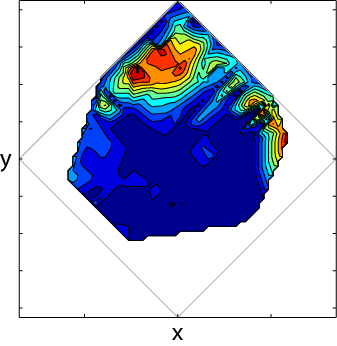

我有一个表示某些数据的2d数组(doubles)，其中包含一堆NaNs。数据的等高线图如下：

​

​

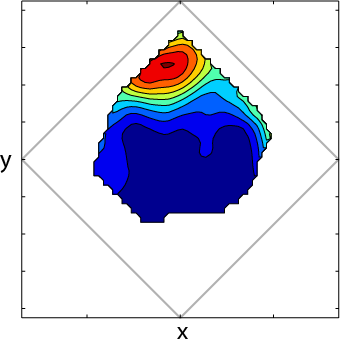

所有的空白都是NaNs，灰色菱形有参考，填充的轮廓显示了我的数据的形状。当我使用imfilt过滤数据时，NaNs会很大程度地咀嚼这些数据，因此我们最终得到的结果如下：

​

​

您可以看到，支持集是显著收缩的。我不能使用这个，因为它已经咀嚼了一些更有趣的变化在边缘(由于特定的原因，我的实验，这些边缘是重要的)。

在NaNs岛中是否有一个函数可以将边缘处理得类似于矩形过滤窗口的边缘，而不是仅仅删除边缘？有点像一个nanmean函数，除了卷积图像？

这是我的过滤代码：

filtWidth = 7;
imageFilter=fspecial('gaussian',filtWidth,filtSigma);
%convolve them
dataFiltered = imfilter(rfVals,imageFilter,'symmetric','conv');

以及绘制等高线图的代码：

figure
contourf(dataFiltered); hold on
plot([-850 0 850 0 -850], [0 850 0 -850 0], 'Color', [.7 .7 .7],'LineWidth', 1); %the square (limits are data-specific)
axis equal

在Mathworks文件交换(ndanfilter.m)中有一些代码接近我想要的，但我相信它只插值了分散在图像内部的NaNs，而不是显示这种岛型效果的数据。

注意:我刚刚找到了nanconv.m，它可以做我想做的事情，它的用法非常直观(将图像转换，忽略NaN，就像nanmean工作一样)。我已经做了我接受的答案的这一部分，并包括一个与其他答案的表现比较。

相关问题

用Python中的Nan对图像进行高斯滤波

Answer 1

我最后使用的技术是Matlab文件交换中的函数nanconv.m。它所做的正是我想要做的:它以一种忽略NaNs的方式运行过滤器，就像Matlab的内置函数nanmean那样。这很难从函数的文档中破译，这是一个有点神秘的问题。

下面是我使用它的方法：

filtWidth = 7;
filtSigma = 5;
imageFilter=fspecial('gaussian',filtWidth,filtSigma);
dataFiltered = nanconv(data,imageFilter, 'nanout');

我正在粘贴下面的nanconv函数(它由BSD许可证覆盖)。当我有机会的时候，我会发布图片等等，只是想发布我最后为那些对我所做的事情感兴趣的人所做的事情。

与其他答案的比较

使用格氏解，结果直观地看上去非常好，但在边缘有一些量化点，这是一个值得关注的问题。在实践中，外推图像的边缘导致许多伪造的高值在我的数据边缘。

使用用原始数据替换缺失位的克里斯德的建议，看起来也相当不错(特别是对于非常小的过滤器)，但是(从设计上说)您最终会在边缘得到未经过滤的数据，这对我的应用程序来说是个问题。

nanconv

function c = nanconv(a, k, varargin)
% NANCONV Convolution in 1D or 2D ignoring NaNs.
%   C = NANCONV(A, K) convolves A and K, correcting for any NaN values
%   in the input vector A. The result is the same size as A (as though you
%   called 'conv' or 'conv2' with the 'same' shape).
%
%   C = NANCONV(A, K, 'param1', 'param2', ...) specifies one or more of the following:
%     'edge'     - Apply edge correction to the output.
%     'noedge'   - Do not apply edge correction to the output (default).
%     'nanout'   - The result C should have NaNs in the same places as A.
%     'nonanout' - The result C should have ignored NaNs removed (default).
%                  Even with this option, C will have NaN values where the
%                  number of consecutive NaNs is too large to ignore.
%     '2d'       - Treat the input vectors as 2D matrices (default).
%     '1d'       - Treat the input vectors as 1D vectors.
%                  This option only matters if 'a' or 'k' is a row vector,
%                  and the other is a column vector. Otherwise, this
%                  option has no effect.
%
%   NANCONV works by running 'conv2' either two or three times. The first
%   time is run on the original input signals A and K, except all the
%   NaN values in A are replaced with zeros. The 'same' input argument is
%   used so the output is the same size as A. The second convolution is
%   done between a matrix the same size as A, except with zeros wherever
%   there is a NaN value in A, and ones everywhere else. The output from
%   the first convolution is normalized by the output from the second
%   convolution. This corrects for missing (NaN) values in A, but it has
%   the side effect of correcting for edge effects due to the assumption of
%   zero padding during convolution. When the optional 'noedge' parameter
%   is included, the convolution is run a third time, this time on a matrix
%   of all ones the same size as A. The output from this third convolution
%   is used to restore the edge effects. The 'noedge' parameter is enabled
%   by default so that the output from 'nanconv' is identical to the output
%   from 'conv2' when the input argument A has no NaN values.
%
% See also conv, conv2
%
% AUTHOR: Benjamin Kraus (bkraus@bu.edu, ben@benkraus.com)
% Copyright (c) 2013, Benjamin Kraus
% $Id: nanconv.m 4861 2013-05-27 03:16:22Z bkraus $

% Process input arguments
for arg = 1:nargin-2
    switch lower(varargin{arg})
        case 'edge'; edge = true; % Apply edge correction
        case 'noedge'; edge = false; % Do not apply edge correction
        case {'same','full','valid'}; shape = varargin{arg}; % Specify shape
        case 'nanout'; nanout = true; % Include original NaNs in the output.
        case 'nonanout'; nanout = false; % Do not include NaNs in the output.
        case {'2d','is2d'}; is1D = false; % Treat the input as 2D
        case {'1d','is1d'}; is1D = true; % Treat the input as 1D
    end
end

% Apply default options when necessary.
if(exist('edge','var')~=1); edge = false; end
if(exist('nanout','var')~=1); nanout = false; end
if(exist('is1D','var')~=1); is1D = false; end
if(exist('shape','var')~=1); shape = 'same';
elseif(~strcmp(shape,'same'))
    error([mfilename ':NotImplemented'],'Shape ''%s'' not implemented',shape);
end

% Get the size of 'a' for use later.
sza = size(a);

% If 1D, then convert them both to columns.
% This modification only matters if 'a' or 'k' is a row vector, and the
% other is a column vector. Otherwise, this argument has no effect.
if(is1D);
    if(~isvector(a) || ~isvector(k))
        error('MATLAB:conv:AorBNotVector','A and B must be vectors.');
    end
    a = a(:); k = k(:);
end

% Flat function for comparison.
o = ones(size(a));

% Flat function with NaNs for comparison.
on = ones(size(a));

% Find all the NaNs in the input.
n = isnan(a);

% Replace NaNs with zero, both in 'a' and 'on'.
a(n) = 0;
on(n) = 0;

% Check that the filter does not have NaNs.
if(any(isnan(k)));
    error([mfilename ':NaNinFilter'],'Filter (k) contains NaN values.');
end

% Calculate what a 'flat' function looks like after convolution.
if(any(n(:)) || edge)
    flat = conv2(on,k,shape);
else flat = o;
end

% The line above will automatically include a correction for edge effects,
% so remove that correction if the user does not want it.
if(any(n(:)) && ~edge); flat = flat./conv2(o,k,shape); end

% Do the actual convolution
c = conv2(a,k,shape)./flat;

% If requested, replace output values with NaNs corresponding to input.
if(nanout); c(n) = NaN; end

% If 1D, convert back to the original shape.
if(is1D && sza(1) == 1); c = c.'; end

end

Answer 2

一种方法是在执行过滤之前用最近邻插值替换NaN值(或者在较早的MATLAB版本中使用TriScatteredInterp )，然后再用NaN值替换这些点。这类似于使用'replicate'参数过滤完整的二维数组，而不是使用'symmetric'参数作为imfilter的边界选项(也就是说，您是在复制而不是在锯齿状的NaN边界上反映值)。

下面是代码的样子：

% Make your filter:
filtWidth = 7;
imageFilter = fspecial('gaussian', filtWidth, filtWidth);

% Interpolate new values for Nans:
nanMask = isnan(rfVals);
[r, c] = find(~nanMask);
[rNan, cNan] = find(nanMask);
F = scatteredInterpolant(c, r, rfVals(~nanMask), 'nearest');
interpVals = F(cNan, rNan);
data = rfVals;
data(nanMask) = interpVals;

% Filter the data, replacing Nans afterward:
dataFiltered = imfilter(data, imageFilter, 'replicate', 'conv');
dataFiltered(nanMask) = nan;

Answer 3

好吧不用你的情节函数我还是可以给你一个解决方案。你想要做的是找到所有新的NaN，用原始的未经过滤的数据(假设它是正确的)替换它。虽然它没有被过滤，但它比减少轮廓图像的域要好。

% Toy Example Data
rfVals= rand(100,100);
rfVals(1:2,:) = nan;
rfVals(:,1:2) = nan;

% Create and Apply Filter
filtWidth = 3;
imageFilter=fspecial('gaussian',filtWidth,filtWidth);
dataFiltered = imfilter(rfVals,imageFilter,'symmetric','conv');
sum(sum(isnan( dataFiltered ) ) )

% Replace New NaN with Unfiltered Data
newnan = ~isnan( rfVals) & isnan( dataFiltered );
dataFiltered( newnan ) = rfVals( newnan );
sum(sum(isnan( rfVals) ) )
sum(sum(isnan( dataFiltered ) ) )

使用以下代码检测新的NaN。您还可以使用xor函数。

newnan = ~isnan( rfVals) & isnan( dataFiltered );

然后，这一行将dataFiltered中的索引设置为rfVals中的值。

dataFiltered( newnan ) = rfVals( newnan );

结果

从控制台和我的代码中打印的行中可以看到，NaN在dataFiltered中的数量从688减少到396，就像rfVals中的NaN数量一样。

ans =
   688
ans =
   396
ans =
   396

交替解决方案1

您还可以在边缘附近使用一个较小的过滤器，方法是指定一个较小的内核，然后将其合并，但是如果您只想要使用最少代码的有效数据，那么我的主要解决方案就可以了。

交替解决方案2

另一种方法是用您想要的零或某个常量来填充/替换NaN值，以便它能够工作，然后截断它。但是，对于信号处理/滤波，您可能需要我的主要解决方案。
