将文本添加到ggplot中的轴标签中

Question

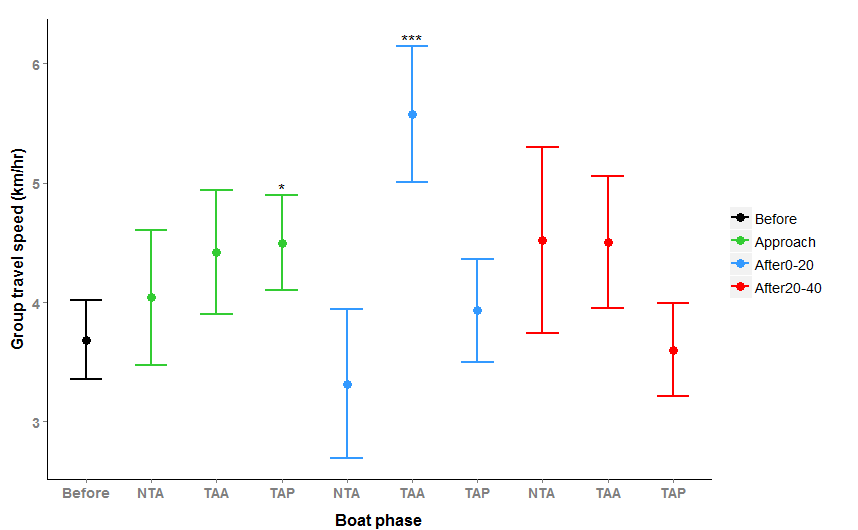

我已经从下表绘制了一张图表。

        BoatPhs      fit        se    lower    upper
1         Before 3.685875 0.3287521 3.038621 4.333130
2   After0-20NTA 3.317189 0.6254079 2.085872 4.548506
3   After0-20TAA 5.579384 0.5696270 4.457890 6.700878
4   After0-20TAP 3.932360 0.4304098 3.084960 4.779760
5  After20-40NTA 4.522714 0.7771793 2.992586 6.052842
6  After20-40TAA 4.505207 0.5500699 3.422217 5.588196
7  After20-40TAP 3.602183 0.3880538 2.838174 4.366192
8    ApproachNTA 4.039599 0.5688482 2.919638 5.159560
9    ApproachTAA 4.421112 0.5176408 3.401969 5.440255
10   ApproachTAP 4.497809 0.3978328 3.714547 5.281071

船的相位为x轴，并在y上绘制了fit图。目前，我有ApproachNTA、ApproachTAA、ApproachTAP、After0-20NTA等。

我最初把这些标签旋转了90度，这样它们看上去就更好了，但我不喜欢它的外观。目前，我已经重新命名了标签(使用下面的代码)，这样现在在轴上显示的是x轴上的“在NTA TAA之前，NTA TAA抽头NTA TAA抽头”。

我希望添加一些文字，以分组标签。比如NTA TAA第一组下的“方法”，第二组下的“0-20之后”和第三组下的“20-40之后”，但我不知道如何在情节之外进行。尝试使用注释函数，但它只允许在绘图区域内的文本。

任何帮助都将不胜感激。

干杯

# Speed plot
Spdplot <- ggplot(y, aes(x=BoatPhs, y=fit, colour=BP, ymax=max(fit)*1.05)) +
  geom_point(position = position_dodge(width = 0.5, height = 0), size = 4) +
  geom_errorbar(aes(ymin=fit-se, ymax=fit+se), position = position_dodge(width = 0.5, height = 0), width = 0.5, size = 0.75) +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
        panel.background = element_blank(), axis.line = element_line(colour = "black"))


  #run Spdplot
Spdplot




#sets x values in results order + relables x + y axes
Spdplot + scale_x_discrete(limits=c("Before","ApproachNTA","ApproachTAA","ApproachTAP","After0-20NTA","After0-20TAA","After0-20TAP", "After20-40NTA","After20-40TAA","After20-40TAP"),
                           labels=c("Before" = "Before" ,"ApproachNTA"  ="NTA","ApproachTAA" = "TAA","ApproachTAP" = "TAP",
                                    "After0-20NTA" = "NTA","After0-20TAA" = "TAA","After0-20TAP" = "TAP",
                                    "After20-40NTA" = "NTA","After20-40TAA" = "TAA","After20-40TAP" = "TAP")) +
  xlab("Boat phase") + ylab("Group travel speed (km/hr)") +
  annotate("text", x=6, y=6.2, label="***", size = 6) +
  annotate("text", x=4, y=4.95, label="*", size = 6) +
  theme(axis.title.x = element_text(face="bold", size = 16, vjust= -0.5), axis.title.y = element_text(face="bold", size = 16, vjust= 1),
        axis.text.x = element_text(size=14, face="bold"), axis.text.y = element_text(face="bold", size=14), legend.text=element_text(size=14)) +
  theme(legend.title = element_blank()) +
  scale_colour_manual(values=c("#3399FF","#FF0000","#33CC33","#000000"),
                      breaks=c("Before", "Approach", "After0-20", "After20-40"),
                      labels=c("Before", "Approach", "After0-20", "After20-40"))

​

​

Answer 1

你在annotate上做的很多麻烦，如果你给出它所需要的数据，可以避免在scale_x_discrete中使用手动标记。在这里，我重新创建您的数据集，然后添加您的绘图的基本信息片段。

# Recreate your data
y <- read.table(textConnection('BoatPhs      fit        se    lower    upper
1         Before 3.685875 0.3287521 3.038621 4.333130
2   After0-20NTA 3.317189 0.6254079 2.085872 4.548506
3   After0-20TAA 5.579384 0.5696270 4.457890 6.700878
4   After0-20TAP 3.932360 0.4304098 3.084960 4.779760
5  After20-40NTA 4.522714 0.7771793 2.992586 6.052842
6  After20-40TAA 4.505207 0.5500699 3.422217 5.588196
7  After20-40TAP 3.602183 0.3880538 2.838174 4.366192
8    ApproachNTA 4.039599 0.5688482 2.919638 5.159560
9    ApproachTAA 4.421112 0.5176408 3.401969 5.440255
10   ApproachTAP 4.497809 0.3978328 3.714547 5.281071'))

# Separate the boat phase from the time period
y$boat.phase <- gsub('.*(NTA|TAA|TAP)','\\1',y$BoatPhs)
y$period <- gsub('(.*)(NTA|TAA|TAP)','\\1',y$BoatPhs)

# Give the time period an ordering.
y$period <- factor(y$period,
                   levels = c("Before", "Approach", "After0-20", "After20-40"),
                   ordered=TRUE)

# Add the stars manually, but these could be calculated programatically.
y$stars <- c('', '', '***', '', '', '', '', '', '', '*')

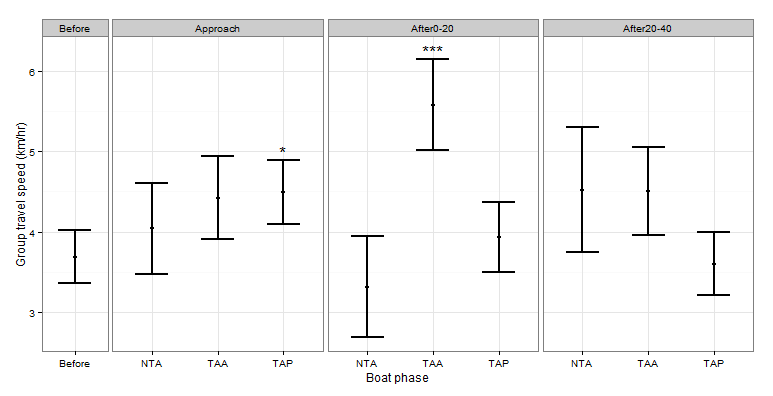

现在，当你使用ggplot，你可以传递星星作为美学，你将不需要手动标记任何东西。要对x轴标签进行“分组”，可以使用facet：

ggplot(y, aes(x=boat.phase, y=fit, ymax=fit+se, ymin=fit-se)) +
  geom_point() + geom_errorbar(width = 0.5, size = 0.75) +
  geom_text(aes(y=fit+se+0.1, label=stars), size=6) +
  facet_grid( ~ period, scales="free_x", space="free_x") +
  xlab("Boat phase") + ylab("Group travel speed (km/hr)") +
  theme_bw()

​

​

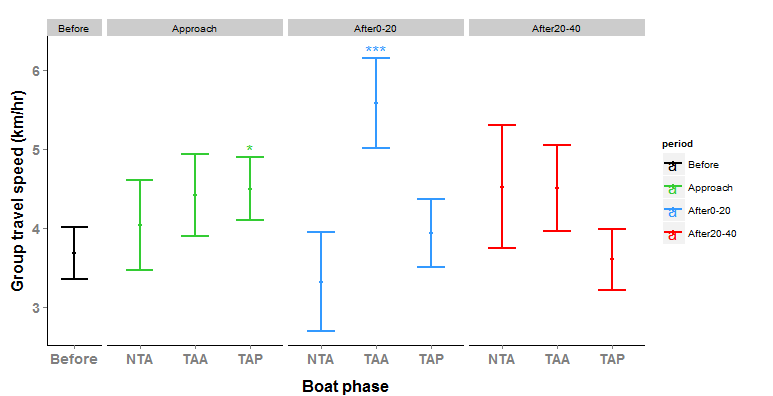

在这里着色是多余的，但是如果你喜欢的话，可以把它加进去。我还在下一个示例中添加了您的自定义主题。

ggplot(y, aes(x=boat.phase, y=fit, ymax=fit+se, ymin=fit-se, colour=period)) +
  geom_point() + geom_errorbar(width = 0.5, size = 0.75) +
  geom_text(aes(y=fit+se+0.1, label=stars), size=6) +
  facet_grid( ~ period, scales="free_x", space="free_x") +
  xlab("Boat phase") + ylab("Group travel speed (km/hr)") +
  scale_colour_manual(values=c("#000000", "#33CC33", "#3399FF","#FF0000")) +
  theme(axis.title = element_text(face="bold", size = 16),
        axis.title.x = element_text(vjust= -0.5),
        axis.title.y = element_text(vjust= 1),
        axis.text = element_text(size=14, face="bold"),
        panel.grid = element_blank(),
        panel.background = element_blank(),
        axis.line = element_line(colour = "black"))

​

​
