社区首页 >问答首页 >Java卡对长AID和短AID小程序的奇怪响应

问Java卡对长AID和短AID小程序的奇怪响应
EN

Stack Overflow用户
提问于 2015-02-14 06:03:02
回答 1查看 598关注 0票数 2

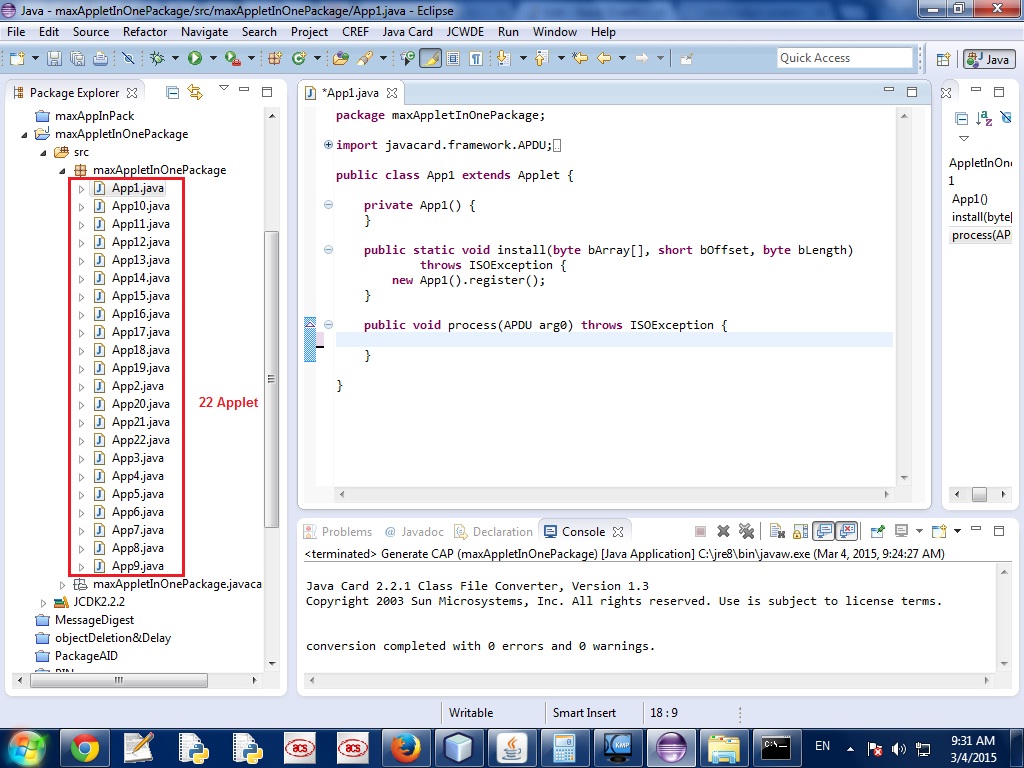

我创建了一个包含22个相同的applet的包。(applet在程序上是相等的，在AID中是不同的)。

​

​

当我将AID和applet's AIDs设置为下面的包时，一切正常。(我可以安装它，并且可以在gp -list命令的响应中看到它)

包装AID = 0102030405 App1 = 010203040501 App2 AID = 010203040502 App3 AID = 010203040503 App4 AID = 010203040504 App5 AID = 010203040505 App6 AID = 010203040506 App7 AID = 010203040507 App7 AID = 01020304050e App7 AID =01020304050e App9 AID =01020303040509 App10 AID = 01020304050a App11 AID = 01020304050b App12 AID =01020304050b App12 AID = 01020304050d App14 AID =01020304050d App14 AID =01020304050e App15 AID =01020304050e App15 AID = 01020304050f App16 AID = 010203040510 App16 AID =01020304050AID=01020304011 App15 AID =01020304011 App14 AID =01020304050d App15 AID =01020304050e App14 AID=01020304050e App14 AID=01020304050e App15 AID=01020304050e App14 AID=01020304050e App15 AID=01020304050e App15 AID=01020304050AID=010203040510 App11 AID=0102020304050b App12 AID=01020304050b App12 AID=0102030404050c

看：

代码语言：javascript
复制
gp: gp -list
AID: A000000151000000 (|....Q...|)
     ISD OP_READY: Security Domain, Card lock, Card terminate, Default selected,
 CVM (PIN) management

AID: A0000001515350 (|....QSP|)
     ExM LOADED: (none)
     A000000151535041 (|....QSPA|)


gp: gp -install e:\PackageWithShortAIDs.cap

gp: gp -list
AID: A000000151000000 (|....Q...|)
     ISD OP_READY: Security Domain, Card lock, Card terminate, Default selected,
 CVM (PIN) management

AID: 010203040507 (|......|)
     App SELECTABLE: (none)

AID: A0000001515350 (|....QSP|)
     ExM LOADED: (none)
     A000000151535041 (|....QSPA|)

AID: 0102030405 (|.....|)
     ExM LOADED: (none)
     010203040507 (|......|)
     010203040506 (|......|)
     010203040505 (|......|)
     010203040504 (|......|)
     010203040503 (|......|)
     010203040502 (|......|)
     010203040501 (|......|)
     010203040513 (|......|)
     010203040512 (|......|)
     010203040511 (|......|)
     010203040510 (|......|)
     01020304050F (|......|)
     01020304050E (|......|)
     01020304050D (|......|)
     01020304050C (|......|)
     01020304050B (|......|)
     01020304050A (|......|)
     010203040516 (|......|)
     010203040515 (|......|)
     010203040514 (|......|)
     010203040509 (|......|)
     010203040508 (|......|)
gp:

现在，我更改了Applets的AID，如下所示(其他内容与之前相同)：

包装AID = 0102030405 App1 AID = 0102030405060708090001 App2 AID = 0102030405060708090002 App3 AID = 0102030405060708090003 App4 AID = 0102030405060708090004 App5 AID = 0102030405060708090005 App6 AID = 0102030405060708090006 App7 AID = 0102030405060708090007 App8 AID = 0102030405060708090008 App9 AID = 0102030405060708090009 App10 AID = 010203040506070809000a App11 AID = 010203040506070809000b App12 AID = 010203040506070809000c App13 AID = 010203040506070809000d App14 AID = 010203040506070809000e App15 AID = 010203040506070809000f App16 AID = 0102030405060708090010 App17 AID = 0102030405060708090011 App18 AID = 0102030405060708090012 App19 AID = 0102030405060708090013 App20 AID = 0102030405060708090014 App21 AID = 0102030405060708090015 App22 AID = 0102030405060708090016

在这种情况下，我可以加载和安装它。但是我不能再列出我安装的小程序了！

代码语言：javascript
复制
gp: gp -list
AID: A000000151000000 (|....Q...|)
     ISD OP_READY: Security Domain, Card lock, Card terminate, Default selected,
 CVM (PIN) management

AID: A0000001515350 (|....QSP|)
     ExM LOADED: (none)
     A000000151535041 (|....QSPA|)


gp: gp -install e:\PackageWithLongAIDs.cap

gp: gp -list
javax.smartcardio.CardException: Get Status failed, SW: 6A88
        at pro.javacard.gp.GlobalPlatform.getConcatenatedStatus(GlobalPlatform.j
ava:1020)
        at pro.javacard.gp.GlobalPlatform.getStatus(GlobalPlatform.java:1070)
        at pro.javacard.gp.GlobalPlatform.getRegistry(GlobalPlatform.java:673)
        at pro.javacard.gp.GPTool.main(GPTool.java:499)
Exception in thread "main" javax.smartcardio.CardException: Get Status failed, S
W: 6A88
        at pro.javacard.gp.GlobalPlatform.getConcatenatedStatus(GlobalPlatform.j
ava:1020)
        at pro.javacard.gp.GlobalPlatform.getStatus(GlobalPlatform.java:1070)
        at pro.javacard.gp.GlobalPlatform.getRegistry(GlobalPlatform.java:673)
        at pro.javacard.gp.GPTool.main(GPTool.java:499)

gp:

为什么？!

更新:

调试模式-短时间艾滋病:

代码语言：javascript
复制
.
.
.
A>> T=1 (4+0008) 80500000 08 9F6EB47CB0E1F31F
A<< (0028+2) (70ms) 00004198001714974248FF0200BD548DC44808E7509B8AD3DEACC41F 900
0
Host challenge: 9F6EB47CB0E1F31F
Card challenge: 00BD548DC44808E7
Card reports SCP02 with version 255 keys
Master keys:
Version 0
ENC: Ver:0 ID:0 Type:DES3 Len:16 Value:404142434445464748494A4B4C4D4E4F
MAC: Ver:0 ID:0 Type:DES3 Len:16 Value:404142434445464748494A4B4C4D4E4F
KEK: Ver:0 ID:0 Type:DES3 Len:16 Value:404142434445464748494A4B4C4D4E4F
Sequnce counter: 00BD
Derived session keys:
Version 0
ENC: Ver:0 ID:0 Type:DES3 Len:16 Value:DAED14FD3E4D7E6DC2A87F618D5A9EAC
MAC: Ver:0 ID:0 Type:DES3 Len:16 Value:59AEDE4C2E3E891BB50AE82028E44BF0
KEK: Ver:0 ID:0 Type:DES3 Len:16 Value:4DD4DBE895A5CFC590D4B190BF0547AC
Verified card cryptogram: 509B8AD3DEACC41F
Calculated host cryptogram: 85D04425E8C0A4BA
A>> T=1 (4+0016) 84820100 10 85D04425E8C0A4BAB5F40665FC1D88EE
A<< (0000+2) (66ms) 9000
A>> T=1 (4+0010) 84F28000 0A 4F009E0E0DBD266DC260
A<< (0011+2) (46ms) 08A000000151000000019E 9000
A>> T=1 (4+0010) 84F24000 0A 4F0078DB90059DC6D376
A<< (0009+2) (44ms) 060102030405070700 9000
A>> T=1 (4+0010) 84F22000 0A 4F000EA20738A58D27B1
A<< (0018+2) (48ms) 07A000000151535001000501020304050100 9000
A>> T=1 (4+0010) 84F21000 0A 4F0006BC7C18D19E7BDB
A<< (0183+2) (101ms) 07A000000151535001000108A0000001515350410501020304050100160
60102030405070601020304050606010203040505060102030405040601020304050306010203040
50206010203040501060102030405130601020304051206010203040511060102030405100601020
304050F0601020304050E0601020304050D0601020304050C0601020304050B0601020304050A060
1020304051606010203040515060102030405140601020304050906010203040508 9000
AID: A000000151000000 (|....Q...|)
     ISD OP_READY: Security Domain, Card lock, Card terminate, Default selected,
 CVM (PIN) management

AID: 010203040507 (|......|)
     App SELECTABLE: (none)

AID: A0000001515350 (|....QSP|)
     ExM LOADED: (none)
     A000000151535041 (|....QSPA|)

AID: 0102030405 (|.....|)
     ExM LOADED: (none)
     010203040507 (|......|)
     010203040506 (|......|)
     010203040505 (|......|)
     010203040504 (|......|)
     010203040503 (|......|)
     010203040502 (|......|)
     010203040501 (|......|)
     010203040513 (|......|)
     010203040512 (|......|)
     010203040511 (|......|)
     010203040510 (|......|)
     01020304050F (|......|)
     01020304050E (|......|)
     01020304050D (|......|)
     01020304050C (|......|)
     01020304050B (|......|)
     01020304050A (|......|)
     010203040516 (|......|)
     010203040515 (|......|)
     010203040514 (|......|)
     010203040509 (|......|)
     010203040508 (|......|)

SCardEndTransaction()
SCardDisconnect("ACS CCID USB Reader 0", false)

gp:

调试模式-长时间艾滋病:

代码语言：javascript
复制
.
.
.
A>> T=1 (4+0008) 80500000 08 E81EAC2B833E5DCF
A<< (0028+2) (70ms) 00004198001714974248FF0200B93785186688F163331EF41FA02CB8 900
0
Host challenge: E81EAC2B833E5DCF
Card challenge: 00B93785186688F1
Card reports SCP02 with version 255 keys
Master keys:
Version 0
ENC: Ver:0 ID:0 Type:DES3 Len:16 Value:404142434445464748494A4B4C4D4E4F
MAC: Ver:0 ID:0 Type:DES3 Len:16 Value:404142434445464748494A4B4C4D4E4F
KEK: Ver:0 ID:0 Type:DES3 Len:16 Value:404142434445464748494A4B4C4D4E4F
Sequnce counter: 00B9
Derived session keys:
Version 0
ENC: Ver:0 ID:0 Type:DES3 Len:16 Value:1EC5FBCA9A5F21F727C14461A7D7E2C6
MAC: Ver:0 ID:0 Type:DES3 Len:16 Value:2688CFFD58CCF9EB52B5D5E786364C89
KEK: Ver:0 ID:0 Type:DES3 Len:16 Value:C181FE8094950965495E0D5023AFD65D
Verified card cryptogram: 63331EF41FA02CB8
Calculated host cryptogram: A269860A0E584230
A>> T=1 (4+0016) 84820100 10 A269860A0E5842301E0CBE71E485EA79
A<< (0000+2) (66ms) 9000
A>> T=1 (4+0010) 84F28000 0A 4F00DF01359AC330E966
A<< (0011+2) (46ms) 08A000000151000000019E 9000
A>> T=1 (4+0010) 84F24000 0A 4F003E447E78BC4DE5CC
A<< (0014+2) (45ms) 0B01020304050607080900070700 9000
A>> T=1 (4+0010) 84F22000 0A 4F00D20EAEA9E44363C1
A<< (0018+2) (48ms) 07A000000151535001000501020304050100 9000
A>> T=1 (4+0010) 84F21000 0A 4F003EA1383F26463052
A<< (0020+2) (54ms) 07A000000151535001000108A000000151535041 6310
A>> T=1 (4+0010) 84F21001 0A 4F002196E82C3A537F62
A<< (0000+2) (50ms) 6A88
javax.smartcardio.CardException: Get Status failed, SW: 6A88
        at pro.javacard.gp.GlobalPlatform.getConcatenatedStatus(GlobalPlatform.j
ava:1020)
        at pro.javacard.gp.GlobalPlatform.getStatus(GlobalPlatform.java:1070)
        at pro.javacard.gp.GlobalPlatform.getRegistry(GlobalPlatform.java:673)
        at pro.javacard.gp.GPTool.main(GPTool.java:499)
SCardEndTransaction()
SCardDisconnect("ACS CCID USB Reader 0", false)
Exception in thread "main" javax.smartcardio.CardException: Get Status failed, S
W: 6A88
        at pro.javacard.gp.GlobalPlatform.getConcatenatedStatus(GlobalPlatform.j
ava:1020)
        at pro.javacard.gp.GlobalPlatform.getStatus(GlobalPlatform.java:1070)
        at pro.javacard.gp.GlobalPlatform.getRegistry(GlobalPlatform.java:673)
        at pro.javacard.gp.GPTool.main(GPTool.java:499)

gp:

用另一张卡进行测试:

我上传这个包在另一张卡(另一种类型)，但它是好的！

代码语言：javascript
复制
gp: gp -list
AID: A000000003000000 (|........|)
     ISD OP_READY: Security Domain, Card lock, Card terminate, Default selected,
 CVM (PIN) management


gp: gp -install e:\PackageWithLongAIDs.cap

gp: gp -list
AID: A000000003000000 (|........|)
     ISD OP_READY: Security Domain, Card lock, Card terminate, Default selected,
 CVM (PIN) management

AID: 0102030405060708090007 (|...........|)
     App SELECTABLE: (none)

AID: 0102030405 (|.....|)
     Exe LOADED: (none)

gp:

正如您在上面看到的，我的包的小程序列表没有出现在输出中(我认为这是我的卡的SD特性)，但是我已经输出了，没有任何错误。

我认为这张卡是错误的根源！不是吗？

请注意，只有在包包含的20小程序更多的情况下，才会出现此问题。

javacard
globalplatform
EN

回答 1

Stack Overflow用户

发布于 2015-02-14 08:12:37

如果您对特定的软件有问题，请按照软件的文档来获得帮助(这包括在正确的地方投递，并提供足够的信息，比如-d -v for GlobalPlatformPro的日志，如果您认为您发现了bug，请打开github问题)。

如果您有关于JavaCard或GlobalPlatform的问题，在询问规范中所解释的问题(比如不同的VM限制)之前，请阅读规范。

票数 -1
