提问于 2014-12-30 00:23:10
基本上，我们有一个按钮"rt50Btn“，每次按下都应该将div "scrollDiv”滚动到50 by的右边，但是它不能工作，我还试着复制/粘贴演示中的元素，但是我可能做错了什么，我需要一些帮助来找出问题所在。
- 我正在开发的网站：http://animevid-main.webflow.com/
- 应该如何：http://www.scripterlative.com/files/vectordiv.htm
- 我们所说的js：
/**** VectorDiv (C)Scripterlative.com
Description
~~~~~~~~~~~
Provides user-controls for incremental scrolling of div content.
Info: http://scripterlative.com?vectordiv
Installation
~~~~~~~~~~~~
Save this text/file as 'vectordiv.js', and place it in a folder associated with your web pages.
Insert the following tags in the <head> section of the document to be scrolled:
<script type='text/javascript' src='vectordiv.js'></script>
(If vectordiv.js resides in a different folder, include the relative path).js', and place it in a
folder associated with your web pages.
Notes: This script does not generate, position or style user controls, that being an HTML/CSS
discipline and the sole responsibility of the developer.
WE CANNOT PROVIDE SUPPORT FOR LAYOUT ISSUES.
Examples of recommended controls are <a> <area> <input type='button'> <img> <span>.
For accessibility reasons, control elements not normally keyboard-selectable like <img> and <span>, must
be enclosed within an <a> tag with an href parameter set, e.g.:
<a href='#'><span id='upButton'> Scroll up </span></a>
When clicked, links that are used as this script's controls will not navigate.
Configuration
~~~~~~~~~~~~~
Apply a unique ID attribute to the scrollable div to be controlled.
Apply a unique ID attribute to each controlling element.
Each control is configured individually, simply by calling the vectorDiv function with the
required parameters. Usage examples are shown below.
Meaning of Parameters
---------------------
First Parameter: The ID (in quotes) of the control element.
Second Parameter: The ID (in quotes) of the scrollable div.
Third Parameter: The direction(s) to scroll in quotes.
Allowed values: UP DOWN LEFT RIGHT. The last three can be abbreviated DN LT RT repectively.
For diagonal scrolling, specify a horizontal and a vertical direction within the same quotes.
Fourth Parameter (Optional): The amount to scroll each time the control is clicked. This can be specified as:
An integer representing pixels.
A quoted percentage between 1 and 100, e.g. "40%". The latter specifies 40
of the div's full scrollable distance.
When % is used, the "V" modifier can be used to specify percentage of visible content height/width, i.e. "40%V".
If 'page' is specified, the content scrolls to the next 'page' boundary, where the content is treated as a series of pages, each of height or width as applicable, matching the containing div.
If the fourth parameter is omitted, the script will scroll the maximum possible distance in the specified direction(s).
Usage Examples
--------------
All examples configure a button with ID 'scrollBtn' to scroll a div with ID 'scrollDiv'.
Action: Scroll down to end of div's content:
<script type='text/javascript'> // Must be placed BELOW all involved elements //
vectorDiv( 'scrollBtn', 'scrollDiv', "down" );
// Configure any further controls here
</script>
Action: Scroll up 100 pixels:
<script type='text/javascript'> // Must be placed BELOW all involved elements //
vectorDiv( 'scrollBtn', 'scrollDiv', "up", "100" );
// Configure any further controls here
</script>
Action: Scroll down and to the right 20% of respective scroll distance:
<script type='text/javascript'> // Must be placed BELOW all involved elements //
vectorDiv( 'scrollBtn', 'scrollDiv', "dn rt", "20%" );
// Configure any further controls here
</script>
Action: Scroll down 25% of visible content height:
<script type='text/javascript'> // Must be placed BELOW all involved elements //
vectorDiv( 'scrollBtn', 'scrollDiv', "down", "25%V" );
// Configure any further controls here
</script>
Action: Scroll down to the next content page boundary:
<script type='text/javascript'> // Must be placed BELOW all involved elements //
vectorDiv( 'scrollBtn', 'scrollDiv', "down", "PAGE" );
// Configure any further controls here
</script>
** DO NOT EDIT BELOW THIS LINE **/
function vectorDiv( ctrlId, divId, vects, disp )
{
new VectorDivObj( ctrlId, divId, vects, disp );
}
/*** Script and instructions available at scripterlative.com?vectordiv ***/
var VectorDivObj = function( ctrlId, divId, vects, disp ) /*12/APR/14*/
{
this.ctrl = null;
this.elem = null;
this.xVect = 0;
this.yVect = 0;
this.displacement = 0;
this.percent = 0;
this.endPoint = null;
this.useViewPercent = false;
this.pageJump = false;
this.useXPage = false;
this.useYPage = false;
this.init = function()
{
var inst = this, node;
if( ( this.ctrl = this.$( ctrlId ) ) && ( this.elem = this.$( divId )) && this.getVectors() && this.getDisp() )
{
node = this.ctrl;
while( node && node.nodeName !== 'A' )
node = node.parentNode;
if( node )
this.ctrl = node;
if( this.pageJump )
{
this.useXPage = !!this.xVect;
this.useYPage = !!this.yVect;
}
this.ih( this.ctrl, 'click', function( evt ){ inst.go.apply( inst, arguments ); } );
}
}
this.getYTravel = function(){ return this.elem.scrollHeight + ( this.elem.scrollWidth > this.elem.offsetWidth ? 17 : 0 ) - this.elem.offsetHeight ; }
this.getXTravel = function(){ return this.elem.scrollWidth + ( this.elem.scrollWidth > this.elem.offsetWidth ? 17 : 0 ) - this.elem.offsetWidth; }
this.go = function( evt ) /** VISIBLE SOURCE DOES NOT MEAN OPEN SOURCE **/
{
var inst = this,
div = this.elem,
xTravel = this.getXTravel(),
yTravel = this.getYTravel(),
xPercent = this.useViewPercent
? ( this.percent * ( this.elem.offsetWidth / xTravel ) )
: this.percent,
yPercent = this.useViewPercent
? ( this.percent * ( this.elem.offsetHeight / yTravel ) )
: this.percent;
clearInterval( this.elem.divScrollTimer );
if( this.useXPage )
{
this.xTarget = this.xVect < 0
? Math.max( 0, Math.floor( (div.scrollLeft - 1) / div.offsetWidth ) * div.offsetWidth )
: Math.min( ( Math.floor( div.scrollLeft / div.offsetWidth ) + 1 ) * div.offsetWidth, xTravel );
}
else
this.xTarget = ( this.xVect > 0
? this.displacement
? Math.min( div.scrollLeft + this.displacement, xTravel )
: Math.min( div.scrollLeft + xTravel * xPercent, xTravel)
: this.xVect < 0
? this.displacement
? Math.max( 0, div.scrollLeft - this.displacement )
: Math.max( 0, div.scrollLeft - Math.floor( xTravel * xPercent ) )
: div.scrollLeft ) << 0 ;
if( this.useYPage )
{
this.yTarget = this.yVect < 0
? Math.max( 0, Math.floor( (div.scrollTop - 1) / div.offsetHeight ) * div.offsetHeight )
: Math.min( ( Math.floor( div.scrollTop / div.offsetHeight ) + 1 ) * div.offsetHeight, yTravel );
}
else
this.yTarget = ( this.yVect > 0
? this.displacement
? Math.min( div.scrollTop + this.displacement, yTravel )
: Math.min( div.scrollTop + yTravel * yPercent, yTravel)
: this.yVect < 0
? this.displacement
? Math.max( 0, div.scrollTop - this.displacement )
: Math.max( 0, div.scrollTop - Math.floor( yTravel * yPercent ) )
: div.scrollTop ) << 0 ;
this.elem.divScrollTimer = setInterval( function(){ inst.scroll.call( inst ); }, 40 );
evt.preventDefault ? evt.preventDefault() : evt.returnValue = false;
}
this.scroll = function( /*284329323031322053637269707465726C61746976652E636F6D*/ )
{
var div = this.elem,
xAvailTravel = div.scrollWidth - div.scrollLeft - div.offsetWidth,
yAvailTravel = div.scrollHeight - div.scrollTop - div.offsetHeight,
xDone = false,
yDone = false;
if( this.yTarget !== div.scrollTop )
div.scrollTop += this.yVect * Math.max( 1, Math.abs( div.scrollTop - this.yTarget ) / 2 );
else
yDone = true;
if( this.xTarget !== div.scrollLeft )
div.scrollLeft += this.xVect * Math.max( 1, Math.abs( div.scrollLeft - this.xTarget ) / 2 );
else
xDone = true;
if( xDone && yDone )
clearInterval( div.divScrollTimer );
}
this.getVectors = function()
{
var vectVals = [ 'up', 'left', 'lt', 'down', 'dn', 'right', 'rt' ],
tempStr = new String( vects ),
result = true;
this.yVect = /\bup\b/i.test( vects ) ? -1 : /\b(down|dn)\b/i.test( vects ) ? 1 : 0;
this.xVect = /\b(left|lt)\b/i.test( vects ) ? -1 : /\b(right|rt)\b/i.test( vects ) ? 1 : 0;
for( var i = 0, m; ( m = vectVals[ i ] ) ; i++ )
tempStr = tempStr.replace( new RegExp( "\\b" + m + "\\b", "ig" ), "" );
if( ( m = tempStr.match( /\S+/ ) ) )
{
alert( 'Don\'t understand "' + m + '" as applied to vectors of control "' + ctrlId + '"' );
result = false;
}
return result;
}
this.getDisp = function()
{
var result = true,
re = /(\d+)\s*(%?)\s*(V?)/i,
m = ( typeof disp !== 'undefined' ? disp.toString().match( re ) : [ "100%", "100", '%' ] );
if( m )
{
if( m[ 2 ] == '%' )
{
this.percent = Number( m[ 1 ] ) / 100;
this.useViewPercent = !!m[ 3 ];
if( this.percent > 1 || this.percent < 0.01 )
{
alert( 'Percentage value out of range\n\nMust be 1-100' );
result = false;
}
}
else
this.displacement = Number( m[ 1 ] );
}
else
if( /^\s*page\s*$/i.test( disp ) )
this.pageJump = true;
else
this.percent = 1;
if( disp && ( m = disp.toString().replace( /[0-9%V]|page/ig, "").match( /\S+/ ) ) )
{
alert( 'Don\'t understand "' + m + '" in displacement parameter for control ' + ctrlId );
result = false;
}
return result;
}
this.ih = function( obj, evt, func )
{
obj.attachEvent ? obj.attachEvent( 'on'+evt, func ):obj.addEventListener( evt, func, false );
return func;
}
this.$ = function( id )
{
var elem = document.getElementById( id );
if( !elem || elem.id !== id )
{
elem = null;
alert( 'Element with ID "' + id + '" not found.\n\nScript must be configured at a point BELOW all involved elements.' );
}
return elem;
}
this.init();
}
/** End of listing **/
回答 1
Stack Overflow用户
回答已采纳
发布于 2014-12-30 01:40:12
你创建的小提琴里面没有任何javascript。您有一个试图导入vectordiv.js的脚本标记，但仅此而已。您必须调用将vectorDiv代码应用于您的div的函数。据我所知，您也从未在实际页面上调用此函数。简单地包含库(vectorDiv.js)不会自动将效果应用于所需的元素。
在页面底部，就在</body>之前，添加以下代码
<script>
vectorDiv( 'rt50Btn', 'scrollDiv', "right", "50" );
</script>这是一个工作小提琴
编辑下面的注释：如果您希望div在用户悬停时滚动，vectorDiv.js的制造者也有一个名为slidescroll.js的文件，它在S上可用，您需要导入该文件
下面是摇摆不定展示了它是如何工作的，这个例子是全方位的，通过一些小的调整，您可以限制滚动的方向
如前所述，在页面底部，就在</body>之前，添加以下代码
<script>
new SlideScroll('omniButton','scrollDiv','all');
//change all to 'left right' to limit to left or right scrolling, 'up down' to limit to up and down, etc...

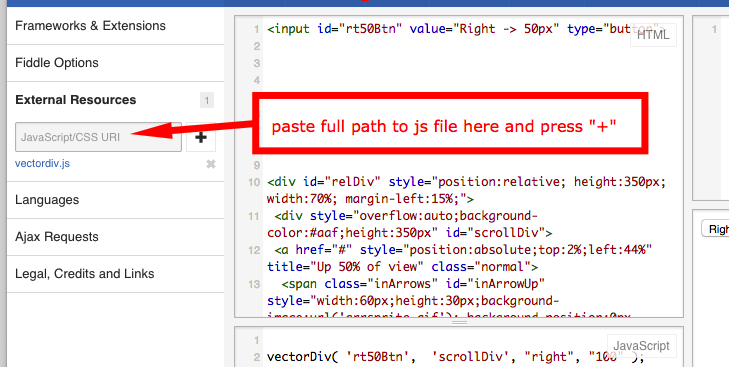

</script> 顺便说一句，在创建jsFiddle时，您不能以您尝试的方式链接到外部文件。使用jsfiddle时，如果要链接到外部js文件，必须使用左侧的“外部参考资料”面板进行链接，请参见下面的图像：
vectorDiv.js 注意，在实际页面上导入的方式很好，只不过在jsfiddle中有所不同。
