图R中的约束函数

Question

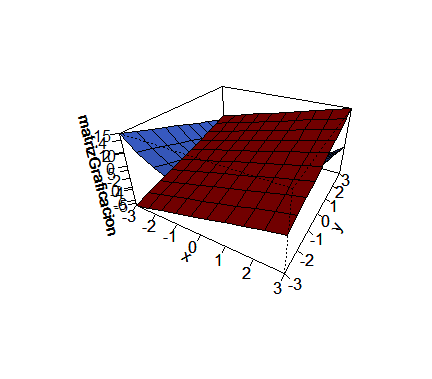

我想画一个函数: f(x，y)=x^2-2*y，有一个约束: x+y=1在我的图函数中重叠，很好地没有看到限制函数f(x，y)。如果x+y-1=0是透明的，会更好。R中的Mi代码：

x <- seq(-5, 5, length= 10)
y <- x
fun1<-function(x,y){x^2-2*y}
m <- outer(x, y, fun1)
m[is.na(m)] <- 1
persp(x, y, m, theta = 30, phi = 30,
      expand = 0.5, col = "royalblue", ltheta = 120,
      shade = 0.75, ticktype = "detailed")
par(new=TRUE)
fun1<-function(x,y){x+y-1}
m <- outer(x, y, fun2)
m[is.na(m)] <- 1
persp(x, y, m, theta = 30, phi = 30,
      expand = 0.5, col = "red", ltheta = 120,
      shade = 0.75, ticktype = "detailed")

​

​

Answer 1

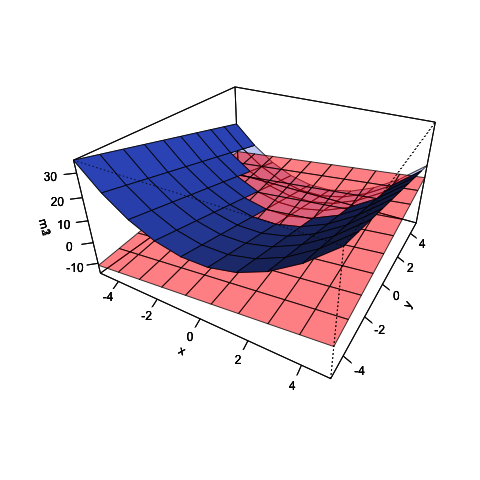

一些过高的计划可能会有帮助。上面评论中建议的第一个情节。然后，通过赋值NA来取消选择违反约束的段，即不使用颜色较重的绘图和过度绘制。(我发现，除非我冻结他们在最后一步“移动”的z限制。您可能需要抑制z轴标签，因为它们仍然相互重叠。)

 png(); x <- seq(-5, 5, length= 10)
y <- x
fun1<-function(x,y){x^2-2*y}
m1 <- outer(x, y, fun1)
m1[is.na(m)] <- 1
persp(x, y, m1, theta = 30, phi = 30,
      expand = 0.5, col = "#4169E155", ltheta = 120,
      shade = 0.75, ticktype = "detailed",zlim=c(-15,35))
par(new=TRUE)

fun2<-function(x,y){x+y-1}
m2 <- outer(x, y, fun2)
m2[is.na(m)] <- 1
persp(x, y, m2, theta = 30, phi = 30,
      expand = 0.5, col = adjustcolor("red", alpha.f=0.5), ltheta = 120,
      shade = 0.75, ticktype = "detailed",zlim=c(-15,35))
par(new=TRUE)

fun3<-function(x,y){x^2-2*y}
m3 <- outer(x, y, fun3)
m3[ m3 < m2 ] <- NA   #     <--- logical indexing; this is the key step
persp(x, y, m3, theta = 30, phi = 30,
      expand = 0.5, col = "#4169E1", ltheta = 120,  # solid-blue
      shade = 0.75, ticktype = "detailed",zlim=c(-15,35));dev.off()

​

​
