两个关节的DrawEllipse (点，更确切地说是X和Y坐标)

Question

我想用椭圆而不是线来显示骨骼。我有两个点，与X和Y的坐标。当我想画一个椭圆时，我需要

public abstract void DrawEllipse(
Brush brush,
Pen pen,
Point center,
double radiusX,
double radiusY

)

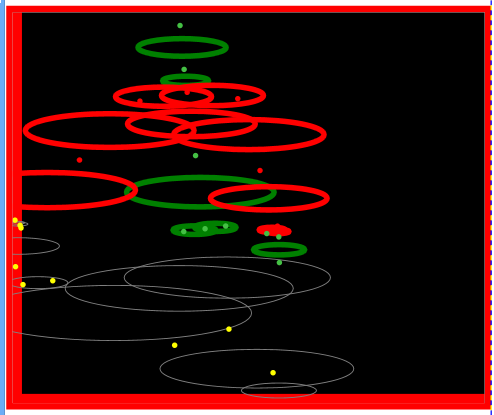

因此，我尝试了这段代码，但是有一些错误(不知道radiusY)：

 double centerX = (jointPoints[jointType0].X + jointPoints[jointType1].X) / 2;
        double centerY = (jointPoints[jointType0].Y + jointPoints[jointType1].Y) / 2;
        double radiusX =Math.Sqrt( (Math.Pow((jointPoints[jointType1].X - jointPoints[jointType0].X), 2)) + (Math.Pow((jointPoints[jointType1].Y - jointPoints[jointType0].Y), 2)));
        drawingContext.DrawEllipse(null, drawPen, new Point(centerX, centerY), radiusX, radiusX/5);

有谁可以帮我？

​

​

private void DrawBone(IReadOnlyDictionary<JointType, Joint> joints, IDictionary<JointType, Point> jointPoints, JointType jointType0, JointType jointType1, DrawingContext drawingContext, Pen drawingPen,List<JointType> badJoint)
    {
        Joint joint0 = joints[jointType0];
        Joint joint1 = joints[jointType1];

        // If we can't find either of these joints, exit
        if (joint0.TrackingState == TrackingState.NotTracked ||
            joint1.TrackingState == TrackingState.NotTracked)
        {
            return;
        }



        // We assume all drawn bones are inferred unless BOTH joints are tracked
        Pen drawPen = this.inferredBonePen;

        if ((joint0.TrackingState == TrackingState.Tracked) && (joint1.TrackingState == TrackingState.Tracked))
        {
            drawPen = drawingPen;
        }
        //If a bone makes parts of an one bad angle respect reference angle
        if (badJoint.Contains(jointType0) && badJoint.Contains(jointType0))
            drawPen = new Pen(Brushes.Red, 6);
        drawingContext.DrawLine(drawPen, jointPoints[jointType0], jointPoints[jointType1]);

Answer 1

您不能(仅仅)使用DrawEllipse方法，因为这将始终绘制水平或垂直的省略。

使用此代码实现旋转：https://stackoverflow.com/a/5298921/1974021，并编写接受以下输入参数的方法：

1. Focalpoint1
2. FocalPoint2
3. 半径

椭圆既可以用焦点来描述，也可以用(组合)半径来描述。如果你使用的焦点，省略将重叠在关节，以创建一个圆形的模式在每个关节。是因为你想要什么吗？(如果你只想让它们在关节处触碰，就更容易了)

好吧，其实这不是焦点，而是交汇圈的中心。试试这个方法：

private static void DrawEllipse(Pen pen, Graphics g, PointF pointA, PointF pointB, float radius)
{
    var center = new PointF((pointA.X + pointB.X) / 2, (pointA.Y + pointB.Y) / 2);
    var distance = GetDistance(pointA, pointB);

    // The axis are calculated so that the center of the osculating circles are conincident with the points and has the given radius.
    var a = radius + distance / 2; // Semi-major axis
    var b = (float)Math.Sqrt(radius * a); // Semi-minor axis


    // Angle in degrees
    float angle = (float)(Math.Atan2(pointA.Y - pointB.Y, pointA.X - pointB.X) * 180 / Math.PI);
    using (Matrix rotate = new Matrix())
    {
        GraphicsContainer container = g.BeginContainer();
        rotate.RotateAt(angle, center);
        g.Transform = rotate;
        g.DrawEllipse(pen, center.X-a, center.Y-b, 2 * a, 2 * b);
        g.EndContainer(container);
    }
}

private static float GetDistance(PointF a, PointF b)
{
    var dx = a.X - b.X;
    var dy = a.Y - b.Y;
    return (float)Math.Sqrt(dx * dx + dy * dy);
}
