如何向森林地块添加箭头？

Question

我会在一片森林中加两支箭，作为一份去日记的论文。下面是metafor::forest的演示图

require(metafor)
data(dat.bcg)
res <- rma(measure="RR", ai=tpos, bi=tneg, ci=cpos, di=cneg, data=dat.bcg,
           slab=paste(author, year, sep=", "))
forest(res, cex=.8, order=order(dat.bcg$ablat), addfit=F)

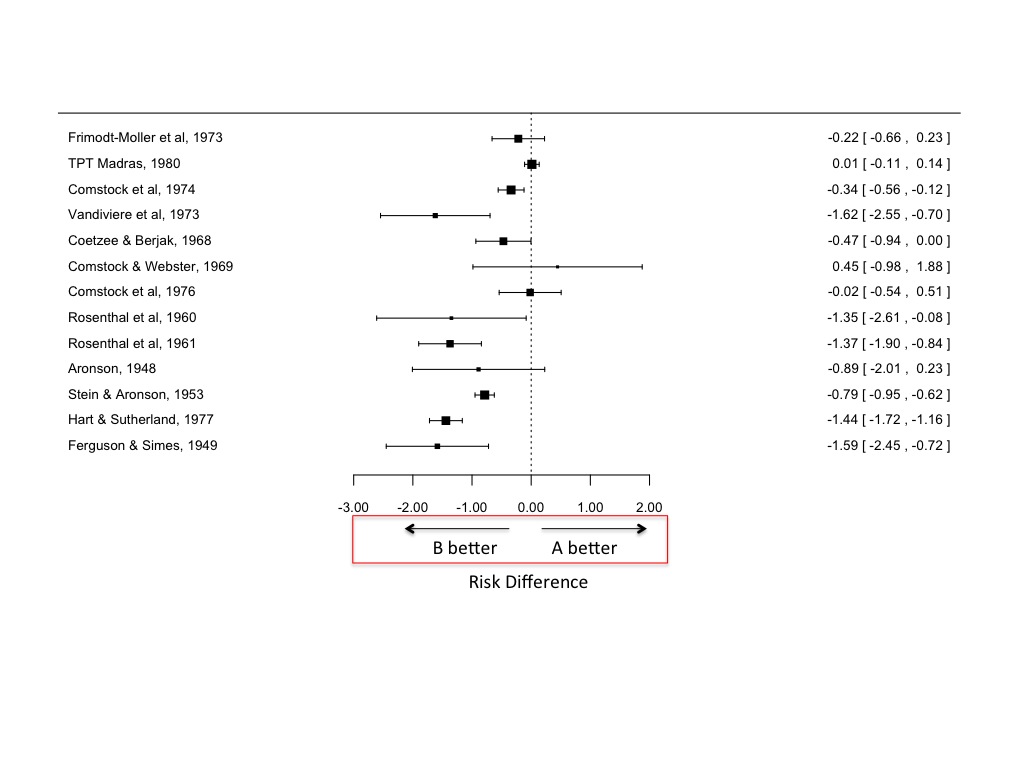

我想要的是沿着x轴添加两个箭头，比如(在红色方框中)：

​

有人知道怎么做吗？

Answer 1

一种方法是使用layout将绘图分成2部分，并将x轴标签替换为新的绘图。

​

​

## define the layout matrix
## 2 rows and 3 columns , the rectangle will be in the cell(2,2)
layout(matrix(c(1,1,1,0,2,0), 2, 3, byrow = TRUE),
       heights=c(3,1),widths=c(1,2,1))
## define the margin since the default ones are usually not enough
par(mar = rep(2, 4))

## your plot here
data(dat.bcg)
res <- rma(measure="RR", ai=tpos, bi=tneg, ci=cpos, di=cneg, data=dat.bcg,
           slab=paste(author, year, sep=", "))
forest(res, cex=.8, order=order(dat.bcg$ablat), addfit=F,xlab='')

## here all the job
x <- y <- 2:8
## dummy plot to define scales
plot(x,y,type='n',axes=F,xlab='',ylab='')
## rectangle
rect(2,4,8,8,border='red')
## arrows
arrows(5.5,6,7,6)
arrows(4.5,6,3,6)
text(6,6,'A better',adj=c(0,1.5),col='blue')
text(3.5,6,'B better',adj=c(0,1.5),col='green')
## x label
text(5,3,'Risk Difference',cex=2)
