根据where子句，为什么相同的查询要花费1000倍的时间？

Question

我有一个相当大的查询，它使用联接在几个表中收集大量信息。该数据库是一个来自城市公共交通系统的GTFS交通信息。

我使用不同的WHERE子句运行相同的查询，所需时间从200 to到200 to不等。

如果你不需要解释，直接向下滚动到问题。

数据库

这些表格是：

• routes
• trips：使用route_id连接到routes
• stop_times: connected totripsusingtrip_id`
• stops：使用stop_id连接到stop_times
• stop_connections：连接两个stop_id

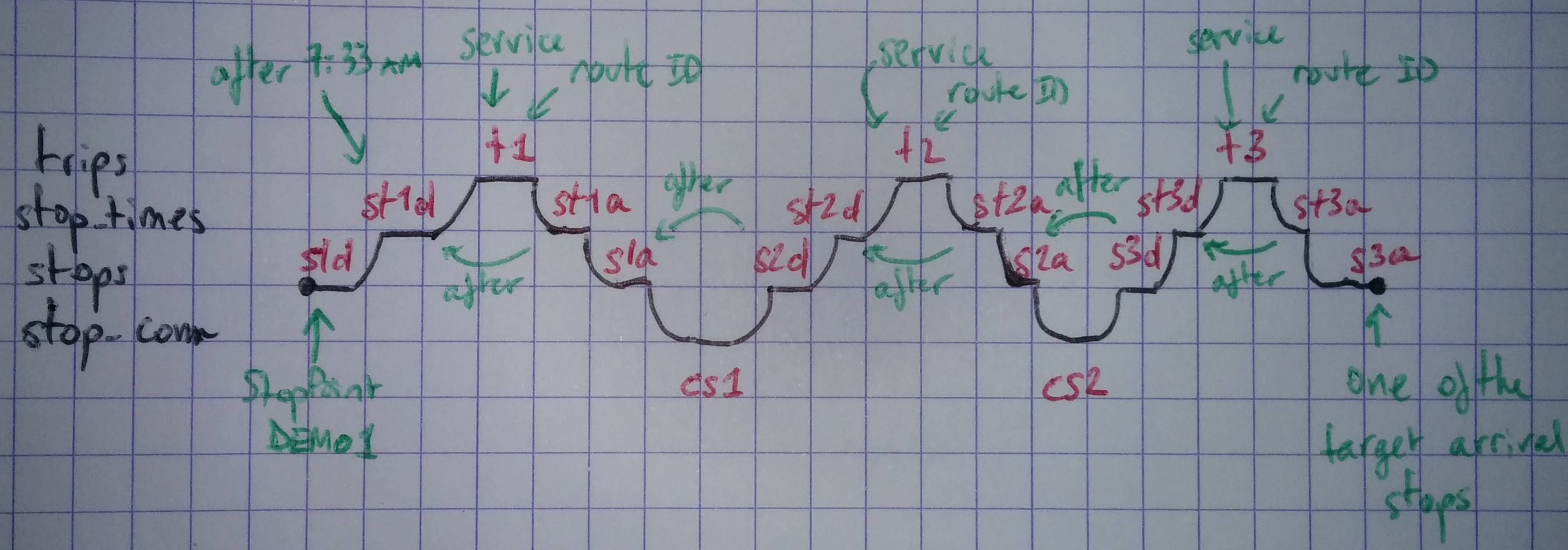

我的目标是使用两个连接来选择旅程。下面是我的查询在纸上的外观：

​

​

解释：

• 黑色的信息是表格，每行只有一种表格类型。第一行是trips表)。
• 红色信息是我查询中的别名(s是stops，st是stop_times，t是trips，a是到达，d是离开，1/2/3是出行索引)
• 绿色信息是每个表的条件列表。

基本上是：

1. [s1d ]从给定的stop_id开始
2. [st1d]从那个车站出发的时间
3. [t1 ]将那些旅行限制在我们想要的route_id集合上
4. [st1a]获得到达站的时间
5. [s1a ]获取停止信息(停止名称)
6. [cs1 ]将此站连接到步行距离内的所有其他站点

重复这个操作3次，得到3次行程(2次连接)，并将到达停止过滤到我想要的。

查询

select

    s1d.stop_id as s1d_id, s1d.stop_name as s1d_name, s1d.stop_lat as s1d_lat, s1d.stop_lon as s1d_lon,
    st1d.departure_time as st1d_dep,
    t1.trip_id as t1_id, t1.trip_headsign as t1_headsign, t1.route_id as t1_route, t1.direction_id as t1_dir,
    st1a.departure_time as st1a_dep,
    s1a.stop_id as s1a_id, s1a.stop_name as s1a_name, s1a.stop_lat as s1a_lat, s1a.stop_lon as s1a_lon,
    cs1.from_stop_id, cs1.to_stop_id,
    s2d.stop_id as s2d_id, s2d.stop_name as s2d_name, s2d.stop_lat as s2d_lat, s2d.stop_lon as s2d_lon,
    st2d.departure_time as st2d_dep,
    t2.trip_id as t2_id, t2.trip_headsign as t2_headsign, t2.route_id as t2_route, t2.direction_id as t2_dir,
    st2a.departure_time as st2a_dep,
    s2a.stop_id as s2a_id, s2a.stop_name as s2a_name, s2a.stop_lat as s2a_lat, s2a.stop_lon as s2a_lon,
    cs2.from_stop_id, cs2.to_stop_id,
    s3d.stop_id as s3d_id, s3d.stop_name as s3d_name, s3d.stop_lat as s3d_lat, s3d.stop_lon as s3d_lon,
    st3d.departure_time as st3d_dep,
    t3.trip_id as t3_id, t3.trip_headsign as t3_headsign, t3.route_id as t3_route, t3.direction_id as t3_dir,
    st3a.departure_time as st3a_dep,
    s3a.stop_id as s3a_id, s3a.stop_name as s3a_name, s3a.stop_lat as s3a_lat, s3a.stop_lon as s3a_lon

from stops s1d

left join stop_times st1d on st1d.stop_id = s1d.stop_id
    and st1d.departure_time > '07:33:00' and st1d.departure_time < '08:33:00'

left join trips t1 on t1.trip_id = st1d.trip_id
    and t1.service_id in (select service_id from calendar where start_date <= 20141020 and end_date >= 20141020 and monday = 1)
    and t1.route_id in ('11-0')

left join stop_times st1a on st1a.trip_id = t1.trip_id
    and st1a.departure_time > st1d.departure_time

left join stops s1a on s1a.stop_id = st1a.stop_id

left join stop_connections cs1 on cs1.from_stop_id = st1a.stop_id

left join stops s2d on s2d.stop_id = cs1.to_stop_id

left join stop_times st2d on st2d.stop_id = s2d.stop_id
    and st2d.departure_time > addtime(st1a.departure_time, '00:03:00')
    and st2d.departure_time < addtime(st1a.departure_time, '01:03:00')

left join trips t2 on t2.trip_id = st2d.trip_id
    and t2.service_id in (select service_id from calendar where start_date <= 20141020 and end_date >= 20141020 and monday = 1)
    and t2.route_id in ('3-0', 'NA-0', '4-0', '2-0')

left join stop_times st2a on st2a.trip_id = t2.trip_id and st2a.departure_time > st2d.departure_time

left join stops s2a on s2a.stop_id = st2a.stop_id

left join stop_connections cs2 on cs2.from_stop_id = st2a.stop_id

left join stops s3d on s3d.stop_id = cs2.to_stop_id

left join stop_times st3d on st3d.stop_id = s3d.stop_id
    and st3d.departure_time > addtime(st2a.departure_time, '00:03:00')
    and st3d.departure_time < addtime(st2a.departure_time, '01:03:00')

left join trips t3 on t3.trip_id = st3d.trip_id
    and t3.service_id in (select service_id from calendar where start_date <= 20141020 and end_date >= 20141020 and monday = 1)
    and t3.route_id in ('36-0', '30-0', '97-0')
    left join stop_times st3a on st3a.trip_id = t3.trip_id

    and st3a.departure_time > st3d.departure_time

    and st3a.stop_id in ('StopPoint:CLBO2',
     'StopArea:CLBO',
     'StopPoint:CLBO1',
     'StopPoint:PLTI2',
     'StopPoint:LCBU2',
     'StopArea:LCBU',
     'StopPoint:LCBU1',
     'StopPoint:MHDI2',
     'StopPoint:BILE2',
     'StopArea:MHDI',
     'StopPoint:MHDI1',
     'StopPoint:MREZ2',
     'StopArea:MRDI',
     'StopPoint:MRDI1',
     'StopArea:SORI',
     'StopPoint:SORI1',
     'StopArea:MREZ',
     'StopPoint:MREZ1',
     'StopPoint:SORI2',
     'StopArea:BILE',
     'StopPoint:BILE1',
     'StopPoint:MRDI2',
     'StopArea:PLTI',
     'StopPoint:PLTI1',
     'StopPoint:SEIL3',
     'StopPoint:SEIL2',
     'StopArea:SEIL',
     'StopPoint:SEIL1')
    left join stops s3a on s3a.stop_id = st3a.stop_id

where s1d.stop_id = 'StopPoint:DEMO1'

group by s1d_id, s3a_id
having s3a_id is not null
order by s1d_id asc, st1d_dep asc, st1a_dep asc, s1a_id asc, s2d_id asc, st2d_dep asc, st2a_dep asc, s2a_id asc, s3d_id asc, st3d_dep asc, st3a_dep asc, s3a_id asc

问题所在

我两次运行这个查询，唯一的区别是在where子句的末尾：

• where s1d.stop_id = 'StopPoint:DEMO1'：13行设置(2分58.81秒)
• where s1d.stop_id = 'StopPoint:ECTE2'：空集(0.25秒)

这对我来说很奇怪。以下是对这两个查询的解释：

偏离DEMO1 (13个结果，缓慢)

使用EXPLAIN SELECT…

+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+-------------+
| id | select_type | table    | type   | possible_keys                             | key              | key_len | ref                              | rows | Extra       |
+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+-------------+
|  1 | SIMPLE      | s1d      | ALL    | NULL                                      | NULL             | NULL    | NULL                             | 3411 | NULL        |
|  1 | SIMPLE      | st1d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s1d.stop_id    |  163 | Using where |
|  1 | SIMPLE      | t1       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st1d.trip_id   |    1 | Using where |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t1.service_id  |    1 | Using where |
|  1 | SIMPLE      | st1a     | ref    | st_trip_id_idx                            | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t1.trip_id     |   14 | Using where |
|  1 | SIMPLE      | s1a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st1a.stop_id   |    1 | NULL        |
|  1 | SIMPLE      | cs1      | ref    | from_to_stop_ids                          | from_to_stop_ids | 302     | bicou_gtfs_nantes.st1a.stop_id   |    1 | Using index |
|  1 | SIMPLE      | s2d      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.cs1.to_stop_id |    1 | NULL        |
|  1 | SIMPLE      | st2d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s2d.stop_id    |  163 | Using where |
|  1 | SIMPLE      | t2       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st2d.trip_id   |    1 | Using where |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t2.service_id  |    1 | Using where |
|  1 | SIMPLE      | st2a     | ref    | st_trip_id_idx                            | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t2.trip_id     |   14 | Using where |
|  1 | SIMPLE      | s2a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st2a.stop_id   |    1 | NULL        |
|  1 | SIMPLE      | cs2      | ref    | from_to_stop_ids                          | from_to_stop_ids | 302     | bicou_gtfs_nantes.st2a.stop_id   |    1 | Using index |
|  1 | SIMPLE      | s3d      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.cs2.to_stop_id |    1 | NULL        |
|  1 | SIMPLE      | st3d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s3d.stop_id    |  163 | Using where |
|  1 | SIMPLE      | t3       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st3d.trip_id   |    1 | Using where |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t3.service_id  |    1 | Using where |
|  1 | SIMPLE      | st3a     | ref    | st_stop_id_idx,st_trip_id_idx             | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t3.trip_id     |   14 | Using where |
|  1 | SIMPLE      | s3a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st3a.stop_id   |    1 | NULL        |
+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+-------------+

使用EXPLAIN EXTENDED…

+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+----------+---------------------------------+
| id | select_type | table    | type   | possible_keys                             | key              | key_len | ref                              | rows | filtered | Extra                           |
+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+----------+---------------------------------+
|  1 | SIMPLE      | s1d      | const  | PRIMARY                                   | PRIMARY          | 302     | const                            |    1 |   100.00 | Using temporary; Using filesort |
|  1 | SIMPLE      | st1d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | const                            |  234 |   100.00 | Using where                     |
|  1 | SIMPLE      | t1       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st1d.trip_id   |    1 |   100.00 | Using where                     |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t1.service_id  |    1 |   100.00 | Using where                     |
|  1 | SIMPLE      | st1a     | ref    | st_trip_id_idx                            | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t1.trip_id     |   14 |   100.00 | Using where                     |
|  1 | SIMPLE      | s1a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st1a.stop_id   |    1 |   100.00 | NULL                            |
|  1 | SIMPLE      | cs1      | ref    | from_to_stop_ids                          | from_to_stop_ids | 302     | bicou_gtfs_nantes.st1a.stop_id   |    1 |   100.00 | Using index                     |
|  1 | SIMPLE      | s2d      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.cs1.to_stop_id |    1 |   100.00 | NULL                            |
|  1 | SIMPLE      | st2d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s2d.stop_id    |  163 |   100.00 | Using where                     |
|  1 | SIMPLE      | t2       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st2d.trip_id   |    1 |   100.00 | Using where                     |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t2.service_id  |    1 |   100.00 | Using where                     |
|  1 | SIMPLE      | st2a     | ref    | st_trip_id_idx                            | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t2.trip_id     |   14 |   100.00 | Using where                     |
|  1 | SIMPLE      | s2a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st2a.stop_id   |    1 |   100.00 | NULL                            |
|  1 | SIMPLE      | cs2      | ref    | from_to_stop_ids                          | from_to_stop_ids | 302     | bicou_gtfs_nantes.st2a.stop_id   |    1 |   100.00 | Using index                     |
|  1 | SIMPLE      | s3d      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.cs2.to_stop_id |    1 |   100.00 | NULL                            |
|  1 | SIMPLE      | st3d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s3d.stop_id    |  163 |   100.00 | Using where                     |
|  1 | SIMPLE      | t3       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st3d.trip_id   |    1 |   100.00 | Using where                     |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t3.service_id  |    1 |   100.00 | Using where                     |
|  1 | SIMPLE      | st3a     | ref    | st_stop_id_idx,st_trip_id_idx             | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t3.trip_id     |   14 |   100.00 | Using where                     |
|  1 | SIMPLE      | s3a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st3a.stop_id   |    1 |   100.00 | NULL                            |
+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+----------+---------------------------------+

偏离ECTE2 (0结果，快速)

+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+---------------------------------+
| id | select_type | table    | type   | possible_keys                             | key              | key_len | ref                              | rows | Extra                           |
+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+---------------------------------+
|  1 | SIMPLE      | s1d      | const  | PRIMARY                                   | PRIMARY          | 302     | const                            |    1 | Using temporary; Using filesort |
|  1 | SIMPLE      | st1d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | const                            |  234 | Using where                     |
|  1 | SIMPLE      | t1       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st1d.trip_id   |    1 | Using where                     |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t1.service_id  |    1 | Using where                     |
|  1 | SIMPLE      | st1a     | ref    | st_trip_id_idx                            | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t1.trip_id     |   14 | Using where                     |
|  1 | SIMPLE      | s1a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st1a.stop_id   |    1 | NULL                            |
|  1 | SIMPLE      | cs1      | ref    | from_to_stop_ids                          | from_to_stop_ids | 302     | bicou_gtfs_nantes.st1a.stop_id   |    1 | Using index                     |
|  1 | SIMPLE      | s2d      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.cs1.to_stop_id |    1 | NULL                            |
|  1 | SIMPLE      | st2d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s2d.stop_id    |  163 | Using where                     |
|  1 | SIMPLE      | t2       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st2d.trip_id   |    1 | Using where                     |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t2.service_id  |    1 | Using where                     |
|  1 | SIMPLE      | st2a     | ref    | st_trip_id_idx                            | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t2.trip_id     |   14 | Using where                     |
|  1 | SIMPLE      | s2a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st2a.stop_id   |    1 | NULL                            |
|  1 | SIMPLE      | cs2      | ref    | from_to_stop_ids                          | from_to_stop_ids | 302     | bicou_gtfs_nantes.st2a.stop_id   |    1 | Using index                     |
|  1 | SIMPLE      | s3d      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.cs2.to_stop_id |    1 | NULL                            |
|  1 | SIMPLE      | st3d     | ref    | st_stop_id_idx                            | st_stop_id_idx   | 302     | bicou_gtfs_nantes.s3d.stop_id    |  163 | Using where                     |
|  1 | SIMPLE      | t3       | eq_ref | PRIMARY,trip_service_id,trip_route_id_idx | PRIMARY          | 302     | bicou_gtfs_nantes.st3d.trip_id   |    1 | Using where                     |
|  1 | SIMPLE      | calendar | eq_ref | PRIMARY,service_id                        | PRIMARY          | 302     | bicou_gtfs_nantes.t3.service_id  |    1 | Using where                     |
|  1 | SIMPLE      | st3a     | ref    | st_stop_id_idx,st_trip_id_idx             | st_trip_id_idx   | 302     | bicou_gtfs_nantes.t3.trip_id     |   14 | Using where                     |
|  1 | SIMPLE      | s3a      | eq_ref | PRIMARY                                   | PRIMARY          | 302     | bicou_gtfs_nantes.st3a.stop_id   |    1 | NULL                            |
+----+-------------+----------+--------+-------------------------------------------+------------------+---------+----------------------------------+------+---------------------------------+

显然，引擎对这两个查询的处理方式不同。为什么会有不同的问题。

s1d对象来自表stops

CREATE TABLE IF NOT EXISTS `stops` (
  `stop_id` VARCHAR(100) NOT NULL,
  `stop_code` VARCHAR(50) NULL DEFAULT NULL,
  `stop_name` VARCHAR(255) NOT NULL,
  `stop_desc` VARCHAR(255) NULL DEFAULT NULL,
  `stop_lat` DECIMAL(10,6) NOT NULL,
  `stop_lon` DECIMAL(10,6) NOT NULL,
  `zone_id` VARCHAR(255) NULL DEFAULT NULL,
  `stop_url` VARCHAR(255) NULL DEFAULT NULL,
  `location_type` VARCHAR(2) NULL DEFAULT NULL,
  `parent_station` VARCHAR(100) NOT NULL,
  `stop_timezone` VARCHAR(50) NULL DEFAULT NULL,
  `wheelchair_boarding` TINYINT(1) NULL DEFAULT NULL,
  PRIMARY KEY (`stop_id`),
  INDEX `zone_id` (`zone_id` ASC),
  INDEX `stop_lat` (`stop_lat` ASC),
  INDEX `stop_lon` (`stop_lon` ASC),
  INDEX `location_type` (`location_type` ASC),
  INDEX `parent_station` (`parent_station` ASC),
  CONSTRAINT `stop_parent_station`
    FOREIGN KEY (`parent_station`)
    REFERENCES `stops` (`stop_id`)
    ON DELETE NO ACTION
    ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8

我不明白为什么当没有数据时，引擎正确地使用索引和键；当有数据(13行)时，引擎不使用索引和键，而是浏览3000行。

我有没有办法强迫引擎在特定的表上使用键？

还有，为什么引擎会像这样？

环境：

• 操作系统: Mac 10.10
• SQL : mysql 14.14远端5.6.17，用于osx10.6 (i386)，使用EditLine包装器
• server: 5.6.21 MySQL社区服务器(GPL)
• 硬件: MacBook Air，Intel Core i7，8GB RAM，256 8GB(应该是快速的)

表号：

+-------------------+------------+
| table_name        | TABLE_ROWS |
+-------------------+------------+
| agency            |          0 |
| calendar          |         28 |
| calendar_dates    |       1005 |
| fare_attributes   |          0 |
| fare_rules        |          0 |
| feed_info         |          0 |
| frequencies       |          0 |
| route_connections |      20919 |
| routes            |         60 |
| shapes            |          0 |
| stop_connections  |      11617 |
| stop_times        |     768682 |
| stops             |       3411 |
| stops_routes      |      16652 |
| transfers         |          0 |
| trips             |      31913 |
+-------------------+------------+

每个联接表之后的行计数：

+---------+-------------+------------+
| Table   |  DEMO1      |   ECTE2    |
+---------+-------------+------------+
| s1d     |           1 |          1 |
| st1d    |          16 |         18 |
| t1      |          16 |         18 |
| st1a    |         271 |        117 |
| s1a     |         271 |        117 |
| cs1     |        1286 |        495 |
| s1d     |        1286 |        495 |
| st2d    |       32958 |       5973 |
| t2      |       32958 |       5973 |
| st2a    |       65891 |       5973 |
| s2a     |       65891 |       5973 |
| cs2     |      206455 |       5973 |
| s3d     |      206455 |       5973 |
| st3d    |     4284871 |       5973 |
| t3      |     4284871 |       5973 |
| st3a    |     4351249 |       5973 |
| s3a     |     4351249 |       5973 |
| +having |          13 |          0 |
+---------+-------------+------------+

Answer 1

我想到了两个想法：

1)将部分指标转换为BTEE指数。默认的是HASH，它适合于相等/不平等的比较，而不是IN(...)。请参阅这里

2)查看优化器如何处理查询。做，做

EXPLAIN EXTENDED SELECT ...

在这两个问题上。THis将为您提供一个包含查询优化器输出的警告。你应该看看这里的不同之处。
