SOAPUI没有将漂亮的打印格式应用于响应。

Question

如何以漂亮的打印xml格式获得响应？

在编码没有问题，得到所有的响应，然而，响应作为一个单行与不漂亮的打印格式应用。

请求Xml

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:v1="http://ctsnis.att.com/ticket/v1" xmlns:v3="http://cio.att.com/commonheader/v3">
   <soapenv:Header>
      <wsse:Security xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
         <wsse:UsernameToken>
            <wsse:Username>Test_User</wsse:Username>
            <wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">!TestInterface!</wsse:Password>
         </wsse:UsernameToken>
      </wsse:Security>
      <wsh:WSHeader xmlns:wsh="http://cio.att.com/commonheader/v3">
         <wsh:WSContext>
            <wsh:FromAppId>Test_User</wsh:FromAppId>
            <wsh:SourceIPAddress>test</wsh:SourceIPAddress>
         </wsh:WSContext>
      </wsh:WSHeader>
   </soapenv:Header>
   <soapenv:Body>
      <v1:ListNotificationDetailsRequest>
         <v3:WSHeader>
            <!--Optional:-->
            <v3:WSEndUserToken>
               <!--Optional:-->
               <v3:Token>?</v3:Token>
               <!--Optional:-->
               <v3:TokenType>?</v3:TokenType>
               <!--Zero or more repetitions:-->
               <v3:WSNameValue>
                  <v3:Name>?</v3:Name>
                  <v3:Value>?</v3:Value>
               </v3:WSNameValue>
            </v3:WSEndUserToken>
            <!--Optional:-->
            <v3:WSContext>
               <!--Optional:-->
               <v3:FromAppId>?</v3:FromAppId>
               <!--Optional:-->
               <v3:ToAppId>?</v3:ToAppId>
               <!--Optional:-->
               <v3:Version>
                  <v3:major>?</v3:major>
                  <v3:minor>?</v3:minor>
               </v3:Version>
               <!--Optional:-->
               <v3:SourceIPAddress>?</v3:SourceIPAddress>
               <!--Zero or more repetitions:-->
               <v3:WSNameValue>
                  <v3:Name>?</v3:Name>
                  <v3:Value>?</v3:Value>
               </v3:WSNameValue>
            </v3:WSContext>
            <!--Optional:-->
            <v3:WSCallback>
               <!--Optional:-->
               <v3:URL>?</v3:URL>
               <!--Optional:-->
               <v3:WSCorrelationId>?</v3:WSCorrelationId>
               <!--Optional:-->
               <v3:FaultURL>?</v3:FaultURL>
            </v3:WSCallback>
            <!--Optional:-->
            <v3:WSConversationId>?</v3:WSConversationId>
            <!--Optional:-->
            <v3:WSMessageData>
               <!--Optional:-->
               <v3:MessageId>?</v3:MessageId>
               <!--Optional:-->
               <v3:RefToMessageId>?</v3:RefToMessageId>
               <!--Optional:-->
               <v3:Timestamp>?</v3:Timestamp>
            </v3:WSMessageData>
            <!--Optional:-->
            <v3:WSResponseMessageExpiration>?</v3:WSResponseMessageExpiration>
            <!--Optional:-->
            <v3:WSEnterpriseLogging>
               <!--Optional:-->
               <v3:ApplicationID>?</v3:ApplicationID>
               <!--Optional:-->
               <v3:LoggingKey>?</v3:LoggingKey>
            </v3:WSEnterpriseLogging>
         </v3:WSHeader>
         <v1:TicketNumber>5671671618722</v1:TicketNumber>
      </v1:ListNotificationDetailsRequest>
   </soapenv:Body>
</soapenv:Envelope>

响应XML

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"><soapenv:Body><ns2:ListNotificationDetailsResponse xmlns="http://cio.att.com/commonheader/v3" xmlns:ns2="http://ctsnis.att.com/ticket/v1"><ns2:ListNotificationDetails><ns2:NotificationDetailsList><ns2:NotificationID>NTMW00127101576</ns2:NotificationID><ns2:SourceID>8888999999</ns2:SourceID><ns2:CUID>zz8000</ns2:CUID><ns2:When>1410053628</ns2:When><ns2:Message>Ticket found in corresponding table. we can use this ticket for further purpose</ns2:Message><ns2:SourceSchemaName>FMS-TroubleTicket</ns2:SourceSchemaName><ns2:Region>SOUTHEAST</ns2:Region><ns2:Market>JACKSONVILLE-PANHANDLE</ns2:Market><ns2:District>ALL</ns2:District><ns2:Zone>ALL</ns2:Zone><ns2:CreateDate>2014-09-07T01:34:05.000Z</ns2:CreateDate><ns2:LastModifiedBy>AR_ESCALATOR</ns2:LastModifiedBy><ns2:ModifiedDate>2014-09-07T01:34:05.000Z</ns2:ModifiedDate><ns2:MethodList/><ns2:Status>Fail</ns2:Status><ns2:NotificationType><ns2:Individual>INDIVIDUAL</ns2:Individual></ns2:NotificationType><ns2:Log>1410053645AR_ESCALATORNo notification sent. No notification method selected.</ns2:Log><ns2:SubmittedBy>AR_ESCALATOR</ns2:SubmittedBy></ns2:NotificationDetailsList></ns2:ListNotificationDetails></ns2:ListNotificationDetailsResponse></soapenv:Body></soapenv:Envelope>

Answer 1

您的问题并不十分明确，我想当您说您的xml是“未格式化的”时，您的意思是您希望您的xml与pretty-print应用(http://en.wikipedia.org/wiki/Prettyprint)一起使用。

要对SOAPUI中的响应执行此操作，您有以下两个选项：

• 右键单击响应面板并选择Format XML

​

​

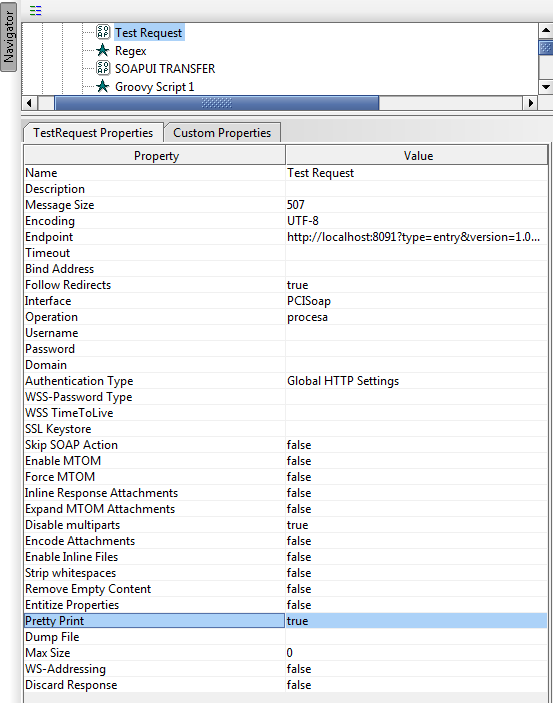

• 其他选项是设置TestRequest Properties的TestRequest Properties属性，该属性自动将Pretty print格式设置为响应：

​

​

请注意，只有当pretty-print格式良好时，SOAPUI才能工作，如果它不是(一些缺少的标记，没有很好的关闭等等)，SOAPUI不能pretty-print它。

希望这能帮上忙

Answer 2

只是为了强调验证.。

On SoapUI 5.3.0

Right click on the xml --> Format XML

如果它仍然不起作用，即使是一个空白也可能是个问题(我的例子)。

Right click on the xml --> Validate

控制台中显示的正确错误。示例：

line -1: error: Whitespace missing after attribute value

(意思是-> attribute="values"<space needed here>attribute="value")

然后再尝试格式化：

Right click on the xml --> Format XML
