为什么这个三角形重排算法会导致随机连接？

Question

因此，我发现了这个索引重新排序/优化算法，它可以对构成任意三维网格的三角形进行排序，以提高空间局部性，希望在实时渲染应用中提高性能。

https://github.com/bkaradzic/bgfx/blob/master/3rdparty/forsyth-too/forsythtriangleorderoptimizer.cpp

我在测试它时遇到了问题。

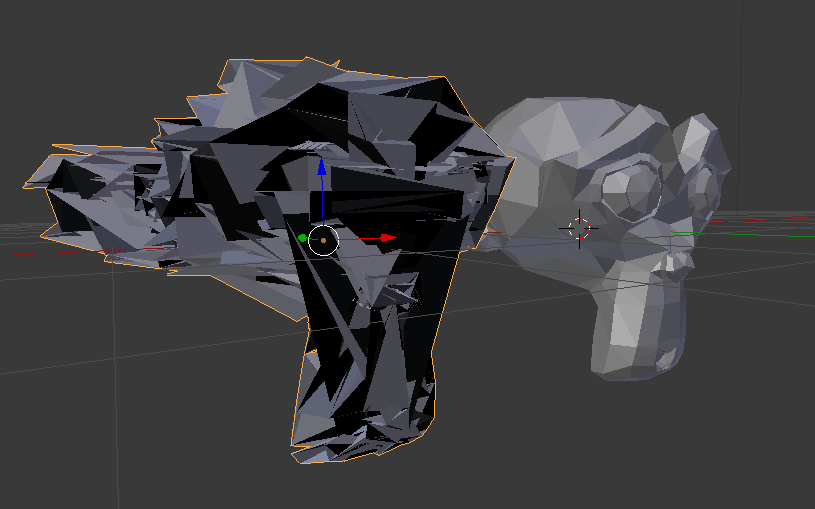

我将Blender的Suzanne猴子网格导出到一个ply文件中，并编写了一个可怕的测试程序，它读取ply文件，提取索引数据，用上述算法对它们进行排序，并组成重新排序的ply文件，准备在Blender中导入，以直观地检查结果.一点也不乐观：

​

​

有源代码和测试层文件的包可以在这里获得：

http://www.mediafire.com/download/4nckwq8dezndsbo/forsyth.zip

我对原始算法的唯一修改是将"uint16“的所有实例替换为"uint"，因为我的amigdala得出结论，16位索引列表是一个不必要的限制。

我在这里张贴消息来源：

test2.cpp：

#include <stdio.h>
#include "forsythtriangleorderoptimizer.h"
#include <malloc.h>

typedef struct {
float coords[3];
float normals[3];
unsigned char color[3];
//char uv[2];
} vert;

typedef unsigned int uint;
//typedef unsigned short uint16;
typedef unsigned char byte;


int main() {

    FILE *in_ply, *face_dump, *reordered;

    vert buffv2;

    in_ply=fopen("suzanne.ply","r"); // x y z nx ny nz r g b
    face_dump=fopen("suzanne_reordered.txt","w");

    int vertices, faces, gg, line=0, tt, startpos;

    //extract vertices/faces totals.

    line=0;
    while (1) {
        gg=getc(in_ply);
        if (gg=='\n') line++;
        if (line==3) fscanf(in_ply, "element vertex %d", &vertices);
        if (line==13) fscanf(in_ply, "element face %d", &faces);
        if (line==16) break;
    }
    printf("vertices: %d ", vertices);
    printf("faces: %d\n", faces);

    //pass-through loop to reach indices data

    for (tt=0; tt<vertices; tt++) {
        fscanf(in_ply, "%f %f %f %f %f %f %d %d %d\n",
            &buffv2.coords[0], &buffv2.coords[1], &buffv2.coords[2],
            &buffv2.normals[0], &buffv2.normals[1], &buffv2.normals[2],
            &buffv2.color[0], &buffv2.color[1], &buffv2.color[2] );
    }

    startpos = ftell(in_ply);

    uint* indices=(uint*)calloc(faces, 3*sizeof(int));
    uint* newIndexList=(uint*)calloc(faces, 3*sizeof(int));

    for (tt=0; tt<faces; tt++) {
        fscanf(in_ply, "3 %d %d %d\n", &indices[tt], &indices[tt+1], &indices[tt+2]);
    }

    //call the reorder function

    Forsyth::OptimizeFaces(indices, (uint)faces*3, (uint)vertices, newIndexList, (uint)16);

    //dump the reordered indices in a separate file

    for (tt=0; tt<faces; tt++) {
        fprintf(face_dump, "3 %d %d %d\n", newIndexList[tt], newIndexList[tt+1], newIndexList[tt+2]);
    }

    //build new ply file with ordered indices

    reordered=fopen("suzanne_reordered.ply","wb");
    rewind(in_ply);

    while(1) {
        gg=getc(in_ply);
        putc(gg, reordered);
        if (ftell(in_ply)==startpos) break;
    }

    for (tt=0; tt<faces; tt++) {
        fprintf(reordered, "3 %d %d %d\n", newIndexList[tt], newIndexList[tt+1], newIndexList[tt+2]);
    }


    free(indices);
    free(newIndexList);

    fclose(in_ply);
    fclose(face_dump);
    fclose(reordered);

    return 0;
}

连翘：

//-----------------------------------------------------------------------------
//  This is an implementation of Tom Forsyth's "Linear-Speed Vertex Cache
//  Optimization" algorithm as described here:
//  http://home.comcast.net/~tom_forsyth/papers/fast_vert_cache_opt.html
//
//  This code was authored and released into the public domain by
//  Adrian Stone (stone@gameangst.com).
//
//  THIS SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
//  IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
//  FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT
//  SHALL ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE FOR ANY DAMAGES OR OTHER
//  LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR
//  IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
//-----------------------------------------------------------------------------

#include <assert.h>
#include <math.h>
#include <vector>
#include <limits>
#include <algorithm>

namespace Forsyth
{
    typedef unsigned int uint;
    //typedef unsigned short uint16;
    typedef unsigned char byte;

    //-----------------------------------------------------------------------------
    //  OptimizeFaces
    //-----------------------------------------------------------------------------
    //  Parameters:
    //      indexList
    //          input index list
    //      indexCount
    //          the number of indices in the list
    //      vertexCount
    //          the largest index value in indexList
    //      newIndexList
    //          a pointer to a preallocated buffer the same size as indexList to
    //          hold the optimized index list
    //      lruCacheSize
    //          the size of the simulated post-transform cache (max:64)
    //-----------------------------------------------------------------------------
    void OptimizeFaces(const uint* indexList, uint indexCount, uint vertexCount, uint* newIndexList, uint lruCacheSize);

    namespace
    {
        // code for computing vertex score was taken, as much as possible
        // directly from the original publication.
        float ComputeVertexCacheScore(int cachePosition, uint vertexCacheSize)
        {
            const float FindVertexScore_CacheDecayPower = 1.5f;
            const float FindVertexScore_LastTriScore = 0.75f;

            float score = 0.0f;
            if ( cachePosition < 0 )
            {
                // Vertex is not in FIFO cache - no score.
            }
            else
            {
                if ( cachePosition < 3 )
                {
                    // This vertex was used in the last triangle,
                    // so it has a fixed score, whichever of the three
                    // it's in. Otherwise, you can get very different
                    // answers depending on whether you add
                    // the triangle 1,2,3 or 3,1,2 - which is silly.
                    score = FindVertexScore_LastTriScore;
                }
                else
                {
                    assert ( cachePosition < vertexCacheSize );
                    // Points for being high in the cache.
                    const float scaler = 1.0f / ( vertexCacheSize - 3 );
                    score = 1.0f - ( cachePosition - 3 ) * scaler;
                    score = powf ( score, FindVertexScore_CacheDecayPower );
                }
            }

            return score;
        }

        float ComputeVertexValenceScore(uint numActiveFaces)
        {
            const float FindVertexScore_ValenceBoostScale = 2.0f;
            const float FindVertexScore_ValenceBoostPower = 0.5f;

            float score = 0.f;

            // Bonus points for having a low number of tris still to
            // use the vert, so we get rid of lone verts quickly.
            float valenceBoost = powf ( static_cast<float>(numActiveFaces),
                -FindVertexScore_ValenceBoostPower );
            score += FindVertexScore_ValenceBoostScale * valenceBoost;

            return score;
        }


        const uint kMaxVertexCacheSize = 64;
        const uint kMaxPrecomputedVertexValenceScores = 64;
        float s_vertexCacheScores[kMaxVertexCacheSize+1][kMaxVertexCacheSize];
        float s_vertexValenceScores[kMaxPrecomputedVertexValenceScores];

        bool ComputeVertexScores()
        {
            for (uint cacheSize=0; cacheSize<=kMaxVertexCacheSize; ++cacheSize)
            {
                for (uint cachePos=0; cachePos<cacheSize; ++cachePos)
                {
                    s_vertexCacheScores[cacheSize][cachePos] = ComputeVertexCacheScore(cachePos, cacheSize);
                }
            }

            for (uint valence=0; valence<kMaxPrecomputedVertexValenceScores; ++valence)
            {
                s_vertexValenceScores[valence] = ComputeVertexValenceScore(valence);
            }

            return true;
        }
        bool s_vertexScoresComputed = ComputeVertexScores();

        inline float FindVertexCacheScore(uint cachePosition, uint maxSizeVertexCache)
        {
            return s_vertexCacheScores[maxSizeVertexCache][cachePosition];
        }

        inline float FindVertexValenceScore(uint numActiveTris)
        {
            return s_vertexValenceScores[numActiveTris];
        }

        float FindVertexScore(uint numActiveFaces, uint cachePosition, uint vertexCacheSize)
        {
            assert(s_vertexScoresComputed);

            if ( numActiveFaces == 0 )
            {
                // No tri needs this vertex!
                return -1.0f;
            }

            float score = 0.f;
            if (cachePosition < vertexCacheSize)
            {
                score += s_vertexCacheScores[vertexCacheSize][cachePosition];
            }

            if (numActiveFaces < kMaxPrecomputedVertexValenceScores)
            {
                score += s_vertexValenceScores[numActiveFaces];
            }
            else
            {
                score += ComputeVertexValenceScore(numActiveFaces);
            }

            return score;
        }

        struct OptimizeVertexData
        {
            float   score;
            uint    activeFaceListStart;
            uint    activeFaceListSize;
            uint  cachePos0;
            uint  cachePos1;
            OptimizeVertexData() : score(0.f), activeFaceListStart(0), activeFaceListSize(0), cachePos0(0), cachePos1(0) { }
        };
    }

    void OptimizeFaces(const uint* indexList, uint indexCount, uint vertexCount, uint* newIndexList, uint lruCacheSize)
    {
        std::vector<OptimizeVertexData> vertexDataList;
        vertexDataList.resize(vertexCount);

        // compute face count per vertex
        for (uint i=0; i<indexCount; ++i)
        {
            uint index = indexList[i];
            assert(index < vertexCount);
            OptimizeVertexData& vertexData = vertexDataList[index];
            vertexData.activeFaceListSize++;
        }

        std::vector<uint> activeFaceList;

        const uint kEvictedCacheIndex = std::numeric_limits<uint>::max();

        {
            // allocate face list per vertex
            uint curActiveFaceListPos = 0;
            for (uint i=0; i<vertexCount; ++i)
            {
                OptimizeVertexData& vertexData = vertexDataList[i];
                vertexData.cachePos0 = kEvictedCacheIndex;
                vertexData.cachePos1 = kEvictedCacheIndex;
                vertexData.activeFaceListStart = curActiveFaceListPos;
                curActiveFaceListPos += vertexData.activeFaceListSize;
                vertexData.score = FindVertexScore(vertexData.activeFaceListSize, vertexData.cachePos0, lruCacheSize);
                vertexData.activeFaceListSize = 0;
            }
            activeFaceList.resize(curActiveFaceListPos);
        }

        // fill out face list per vertex
        for (uint i=0; i<indexCount; i+=3)
        {
            for (uint j=0; j<3; ++j)
            {
                uint index = indexList[i+j];
                OptimizeVertexData& vertexData = vertexDataList[index];
                activeFaceList[vertexData.activeFaceListStart + vertexData.activeFaceListSize] = i;
                vertexData.activeFaceListSize++;
            }
        }

        std::vector<byte> processedFaceList;
        processedFaceList.resize(indexCount);

        uint vertexCacheBuffer[(kMaxVertexCacheSize+3)*2];
        uint* cache0 = vertexCacheBuffer;
        uint* cache1 = vertexCacheBuffer+(kMaxVertexCacheSize+3);
        uint entriesInCache0 = 0;

        uint bestFace = 0;
        float bestScore = -1.f;

        const float maxValenceScore = FindVertexScore(1, kEvictedCacheIndex, lruCacheSize) * 3.f;

        for (uint i = 0; i < indexCount; i += 3)
        {
            if (bestScore < 0.f)
            {
                // no verts in the cache are used by any unprocessed faces so
                // search all unprocessed faces for a new starting point
                for (uint j = 0; j < indexCount; j += 3)
                {
                    if (processedFaceList[j] == 0)
                    {
                        uint face = j;
                        float faceScore = 0.f;
                        for (uint k=0; k<3; ++k)
                        {
                            uint index = indexList[face+k];
                            OptimizeVertexData& vertexData = vertexDataList[index];
                            assert(vertexData.activeFaceListSize > 0);
                            assert(vertexData.cachePos0 >= lruCacheSize);
                            faceScore += vertexData.score;
                        }

                        if (faceScore > bestScore)
                        {
                            bestScore = faceScore;
                            bestFace = face;

                            assert(bestScore <= maxValenceScore);
                            if (bestScore >= maxValenceScore)
                            {
                                break;
                            }
                        }
                    }
                }
                assert(bestScore >= 0.f);
            }

            processedFaceList[bestFace] = 1;
            uint entriesInCache1 = 0;

            // add bestFace to LRU cache and to newIndexList
            for (uint v = 0; v < 3; ++v)
            {
                uint index = indexList[bestFace+v];
                newIndexList[i+v] = index;

                OptimizeVertexData& vertexData = vertexDataList[index];

                if (vertexData.cachePos1 >= entriesInCache1)
                {
                    vertexData.cachePos1 = entriesInCache1;
                    cache1[entriesInCache1++] = index;

                    if (vertexData.activeFaceListSize == 1)
                    {
                        --vertexData.activeFaceListSize;
                        continue;
                    }
                }

                assert(vertexData.activeFaceListSize > 0);
                uint* begin = &activeFaceList[vertexData.activeFaceListStart];
                uint* end = &activeFaceList[vertexData.activeFaceListStart + vertexData.activeFaceListSize];
                uint* it = std::find(begin, end, bestFace);
                assert(it != end);
                std::swap(*it, *(end-1));
                --vertexData.activeFaceListSize;
                vertexData.score = FindVertexScore(vertexData.activeFaceListSize, vertexData.cachePos1, lruCacheSize);

            }

            // move the rest of the old verts in the cache down and compute their new scores
            for (uint c0 = 0; c0 < entriesInCache0; ++c0)
            {
                uint index = cache0[c0];
                OptimizeVertexData& vertexData = vertexDataList[index];

                if (vertexData.cachePos1 >= entriesInCache1)
                {
                    vertexData.cachePos1 = entriesInCache1;
                    cache1[entriesInCache1++] = index;
                    vertexData.score = FindVertexScore(vertexData.activeFaceListSize, vertexData.cachePos1, lruCacheSize);
                }
            }

            // find the best scoring triangle in the current cache (including up to 3 that were just evicted)
            bestScore = -1.f;
            for (uint c1 = 0; c1 < entriesInCache1; ++c1)
            {
                uint index = cache1[c1];
                OptimizeVertexData& vertexData = vertexDataList[index];
                vertexData.cachePos0 = vertexData.cachePos1;
                vertexData.cachePos1 = kEvictedCacheIndex;
                for (uint j=0; j<vertexData.activeFaceListSize; ++j)
                {
                    uint face = activeFaceList[vertexData.activeFaceListStart+j];
                    float faceScore = 0.f;
                    for (uint v=0; v<3; v++)
                    {
                        uint faceIndex = indexList[face+v];
                        OptimizeVertexData& faceVertexData = vertexDataList[faceIndex];
                        faceScore += faceVertexData.score;
                    }
                    if (faceScore > bestScore)
                    {
                        bestScore = faceScore;
                        bestFace = face;
                    }
                }
            }

            std::swap(cache0, cache1);
            entriesInCache0 = std::min(entriesInCache1, lruCacheSize);
        }
    }

} // namespace Forsyth

Answer 1

你不是在覆盖索引吗？

for (tt=0; tt<faces; tt++) {
    fscanf(in_ply, "3 %d %d %d\n", &indices[tt], &indices[tt+1], &indices[tt+2]);
}

对于tt==0，你会得到指数0，1，2，2。对于tt==1，你会写出指数1,2,3，我认为应该是3,4,5 (tt*3，tt*3+1，tt*3+2)。
