Java ScrolledComposite内部组

Question

我对把ScrolledComposite放在Group中有问题--它不会显示在Group中。ScrolledComposite必须滚动Label。

final private static Group group_netpbmOutput = new Group(shell, SWT.NONE);
final private static ScrolledComposite scroll_netpbmOutput = new ScrolledComposite(group_netpbmOutput, SWT.V_SCROLL | SWT.H_SCROLL);
final private static Label labelImage_netpbmOutput = new Label(scroll_netpbmOutput, SWT.BORDER);

//init Group
group_netpbmOutput.setLayout(new FillLayout());
formData = new FormData(((FormData)group_options.getLayoutData()).width, 200);
formData.top = new FormAttachment(group_options, 50, SWT.BOTTOM);
formData.left = new FormAttachment(group_options, 0, SWT.LEFT);
group_netpbmOutput.setLayoutData(formData);
group_netpbmOutput.setFont(font_group);
group_netpbmOutput.setText("Netpbm output");

//init Label
labelImage_netpbmOutput.setBackgroundImage(new Image(...));

//init ScrollComposite
scroll_netpbmOutput.setLayout(new FillLayout());
scroll_netpbmOutput.setContent(labelImage_netpbmOutput);

编辑:对Baz答案的反应

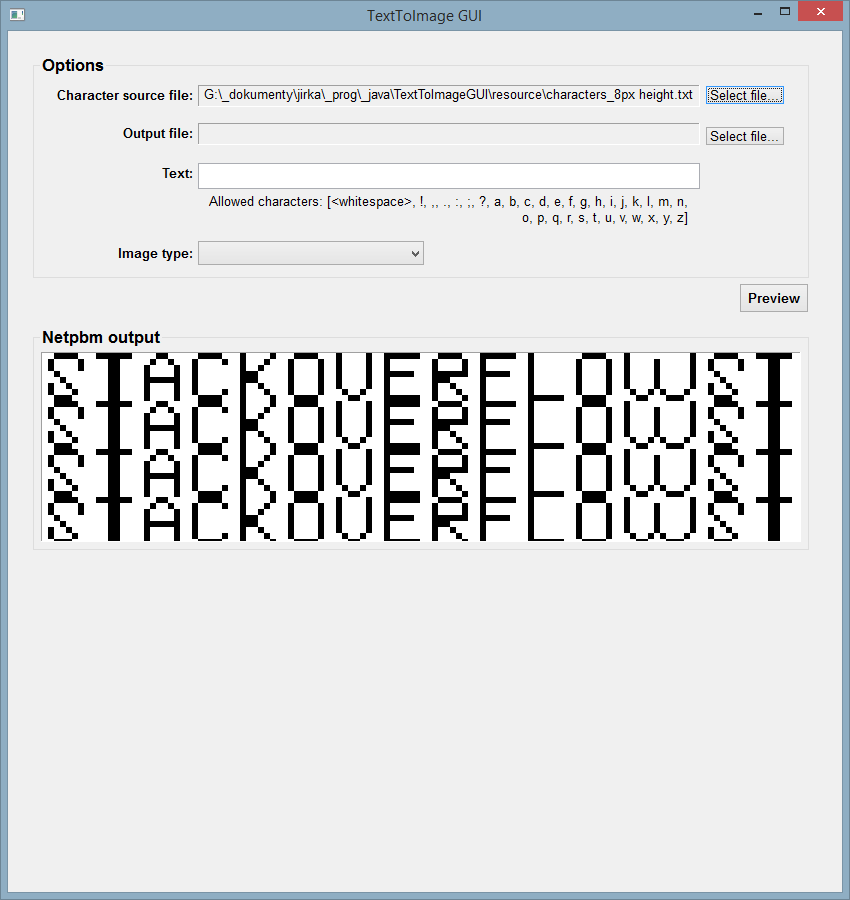

这是可行的，but...the图片是这样显示的(应该只有一个‘堆栈溢出’)：

​

​

final private static Group group_netpbmOutput = new Group(shell, SWT.NONE);
final private static ScrolledComposite scroll_netpbmOutput = new ScrolledComposite(group_netpbmOutput, SWT.V_SCROLL | SWT.H_SCROLL);
final private static Label labelImage_netpbmOutput = new Label(scroll_netpbmOutput, SWT.BORDER);

group_netpbmOutput.setLayout(new GridLayout());
formData = new FormData(((FormData)group_options.getLayoutData()).width, 200);
formData.top = new FormAttachment(group_options, 50, SWT.BOTTOM);
formData.left = new FormAttachment(group_options, 0, SWT.LEFT);
group_netpbmOutput.setLayoutData(formData);
group_netpbmOutput.setFont(font_group);
group_netpbmOutput.setText("Netpbm output");

labelImage_netpbmOutput.setBackgroundImage(new Image(...));

scroll_netpbmOutput.setLayout(new GridLayout(1, false));
scroll_netpbmOutput.setLayoutData(new GridData(SWT.FILL, SWT.FILL, true, true));

scroll_netpbmOutput.setContent(labelImage_netpbmOutput);
scroll_netpbmOutput.setExpandHorizontal(true);
scroll_netpbmOutput.setExpandVertical(true);
scroll_netpbmOutput.setMinSize(labelImage_netpbmOutput.computeSize(SWT.DEFAULT, SWT.DEFAULT));

Answer 1

不太清楚为什么您的代码不能工作。这可能是因为您没有通过ScrolledComposite通过ScrolledComposite#setMinSize(Point)设置最小大小。

不过，这确实工作得很好：

public static void main(String[] args)
{
    Display display = new Display();
    Shell shell = new Shell();
    shell.setText("StackOverflow");
    shell.setLayout(new GridLayout(1, false));

    Group group = new Group(shell, SWT.NONE);
    group.setText("Group");
    group.setLayout(new GridLayout(1, false));
    group.setLayoutData(new GridData(SWT.FILL, SWT.FILL, true, true));

    ScrolledComposite scroll = new ScrolledComposite(group, SWT.V_SCROLL | SWT.H_SCROLL);
    scroll.setLayout(new GridLayout(1, false));
    scroll.setLayoutData(new GridData(SWT.FILL, SWT.FILL, true, true));

    Image image = new Image(display, "stackoverflow.png");

    Label label = new Label(scroll, SWT.NONE);
    label.setImage(image);

    scroll.setContent(label);
    scroll.setExpandHorizontal(true);
    scroll.setExpandVertical(true);
    scroll.setMinSize(label.computeSize(SWT.DEFAULT, SWT.DEFAULT));

    shell.pack();
    shell.setSize(200, 200);
    shell.open();

    while (!shell.isDisposed())
    {
        if (!display.readAndDispatch())
        {
            display.sleep();
        }
    }
    display.dispose();

    image.dispose();
}

看起来是这样的：

​

​
