Question

<sparrow:SparrowChart Height="400" Width="400">
<sparrow:SparrowChart.XAxis>
    <sparrow:LinearXAxis/>
</sparrow:SparrowChart.XAxis>
<sparrow:SparrowChart.YAxis>
    <sparrow:LinearYAxis/>
</sparrow:SparrowChart.YAxis>
<sparrow:AreaSeries Fill="Red" Stroke="White">
    <sparrow:AreaSeries.Points>
        <sparrow:DoublePoint Data="0" Value="1"/>
        <sparrow:DoublePoint Data="1" Value="2"/>
        <sparrow:DoublePoint Data="2" Value="1"/>
        <sparrow:DoublePoint Data="3" Value="4"/>
        <sparrow:DoublePoint Data="4" Value="0"/>
    </sparrow:AreaSeries.Points>
</sparrow:AreaSeries>

​

​

​

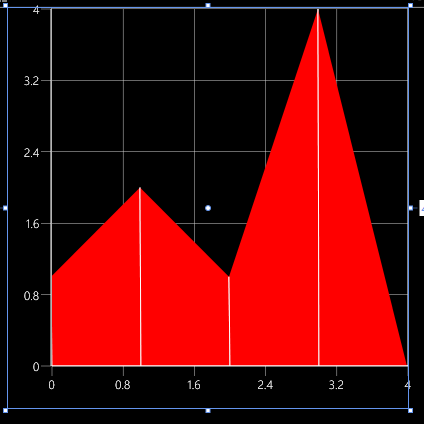

我怎么擦去0.8，1.6的平行线.从x轴到y轴？

Answer 1

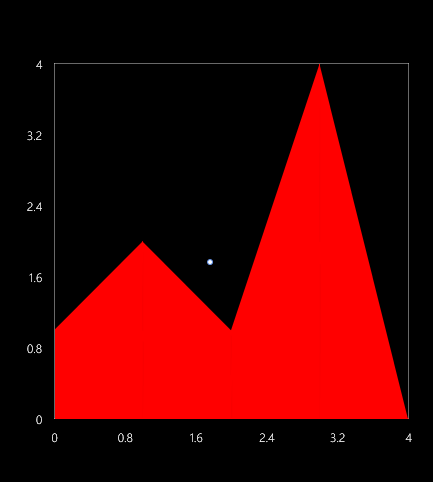

呵呵，这是我的代码和你从Sparrow Chart得到的照片

要擦除填充中的垂直线，只需将笔画设置为与填充相同的颜色。要摆脱网格线，您需要设置一些样式。

<Application.Resources>
    <Style TargetType="Line" x:Key="crossLineStyle">
        <Setter Property="Stroke" Value="#00000000"/>
        <Setter Property="StrokeThickness" Value="1"/>
    </Style>
    <Style TargetType="Line" x:Key="axisLineStyle">
        <Setter Property="Stroke" Value="#00000000"/>
        <Setter Property="StrokeThickness" Value="0"/>
    </Style>
    <Style TargetType="Line" x:Key="minorcrossLineStyle">
        <Setter Property="Stroke" Value="#00000000"/>
        <Setter Property="StrokeThickness" Value="0.25"/>
    </Style>
</Application.Resources>



<sparrow:SparrowChart Height="400" Width="400">
    <sparrow:SparrowChart.XAxis>

        <sparrow:LinearXAxis CrossLineStyle="{StaticResource crossLineStyle}" MinorLineStyle="{StaticResource minorcrossLineStyle}" MajorLineStyle="{StaticResource crossLineStyle}" AxisLineStyle="{StaticResource axisLineStyle}"/>
    </sparrow:SparrowChart.XAxis>
    <sparrow:SparrowChart.YAxis>
        <sparrow:LinearYAxis CrossLineStyle="{StaticResource crossLineStyle}" MinorLineStyle="{StaticResource minorcrossLineStyle}" MajorLineStyle="{StaticResource crossLineStyle}" AxisLineStyle="{StaticResource axisLineStyle}"/>
    </sparrow:SparrowChart.YAxis>
    <sparrow:AreaSeries Fill="Red" Stroke="Red">
        <sparrow:AreaSeries.Points>
            <sparrow:DoublePoint Data="0" Value="1"/>
            <sparrow:DoublePoint Data="1" Value="2"/>
            <sparrow:DoublePoint Data="2" Value="1"/>
            <sparrow:DoublePoint Data="3" Value="4"/>
            <sparrow:DoublePoint Data="4" Value="0"/>
        </sparrow:AreaSeries.Points>
    </sparrow:AreaSeries>
</sparrow:SparrowChart>

​

​
