#DocuSignAPI:使用SOAP登录DocuSign

Question

我在SOAP中使用了DocuSign API WSDL，并试图调用一个方法，但是得到了错误User_Authentication_Failed缺失的身份验证头。

在一些帖子中，看到安全令牌需要使用，但没有在DocuS传中获得安全令牌，我们有Integrator键值。

如果有人能在这里提供指导，请见谅。

我的SOAP请求是：

<soapenv:Envelope xmlns:ns="http://www.docusign.net/API/3.0" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
<soapenv:Header>
  <wsse:Security soapenv:mustUnderstand="1" xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
     <wsse:UsernameToken wsu:Id="UsernameToken-2" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
        <wsse:Username>haider@abcd.com</wsse:Username>
        <wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">HR123456</wsse:Password>
        <wsse:Nonce EncodingType="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-soap-message-security-1.0#Base64Binary">iJwabpA/2j2ooh7deCAVcg==</wsse:Nonce>
        <wsu:Created>2014-07-24T17:46:39.991Z</wsu:Created>
     </wsse:UsernameToken>
     <wsu:Timestamp wsu:Id="Timestamp-1" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
        <wsu:Created>2014-07-24T17:46:19.730Z</wsu:Created>
        <wsu:Expires>2014-07-24T17:56:19.730Z</wsu:Expires>
     </wsu:Timestamp>
  </wsse:Security>
</soapenv:Header>
<soapenv:Body>
<ns:RequestPDF>
<!--Optional:-->
<ns:EnvelopeID>01f90b51-7cf4 -48a1-8946-2795fc970b77</ns:EnvelopeID>
</ns:RequestPDF>
</soapenv:Body>
</soapenv:Envelope>

获得响应as:

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing" xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
<soap:Header>
  <wsa:Action>http://schemas.xmlsoap.org/ws/2004/08/addressing/fault</wsa:Action>
  <wsa:MessageID>urn:uuid:6e9fbf02-7c18-4d65-bbfc-f828cf51bb57</wsa:MessageID>
  <wsa:RelatesTo>urn:uuid:7e7b4a69-834f-4906-9b92-a16cc8f6d32b</wsa:RelatesTo>
  <wsa:To>http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous</wsa:To>
  <wsse:Security>
     <wsu:Timestamp wsu:Id="Timestamp-659010d2-c16b-479a-ae43-169846a7898c">
        <wsu:Created>2014-07-24T17:47:54Z</wsu:Created>
        <wsu:Expires>2014-07-24T17:52:54Z</wsu:Expires>
     </wsu:Timestamp>
  </wsse:Security>
</soap:Header>
<soap:Body>
<soap:Fault>
     <faultcode>soap:Server</faultcode>
     <faultstring>User_Authentication_Failed - Missing authentication header</faultstring>
     <detail/>
  </soap:Fault>
</soap:Body>
</soap:Envelope>

Answer 1

下面的文档可能是使用身份验证头和端点URL的更好的大纲：

0

下文还概述了以上内容，并代表以下各方发送：

代表Functionality.htm%3FTocPath%3DAuthentication%7C_____2的https://www.docusign.com/p/APIGuide/APIGuide.htm#Introduction+Changes/Send

由于您选择的标头类型也决定了您应该使用哪个端点URL，下面是演示环境的示例：

HTTP = https://demo.docusign.net/api/3.0/dsapi.asmx

SOAP = https://demo.docusign.net/api/3.0/api.asmx

因为您正在使用SOAP，所以正确的端点应该是api.asmx。

在SOAP中，您可以：

• 从顶部选择下降的端点
• 编辑当前
• 填充以下URL：https://demo.docusign.net/api/3.0/api.asmx

您还需要在身份验证中添加Integrator密钥。如下面的well.My示例所示，积分器键应该始终放在括号“”中：

<soap:Header>
    <wsse:Security xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd" soap:mustUnderstand="1">
        <wsse:UsernameToken wsu:Id="UsernameToken-1">
            <wsse:Username>[INTEGRATOR KEY]DS USERNAME</wsse:Username>
            <wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">[PASSWORD]</wsse:Password>
        </wsse:UsernameToken>
    </wsse:Security>
</soap:Header>

Answer 2

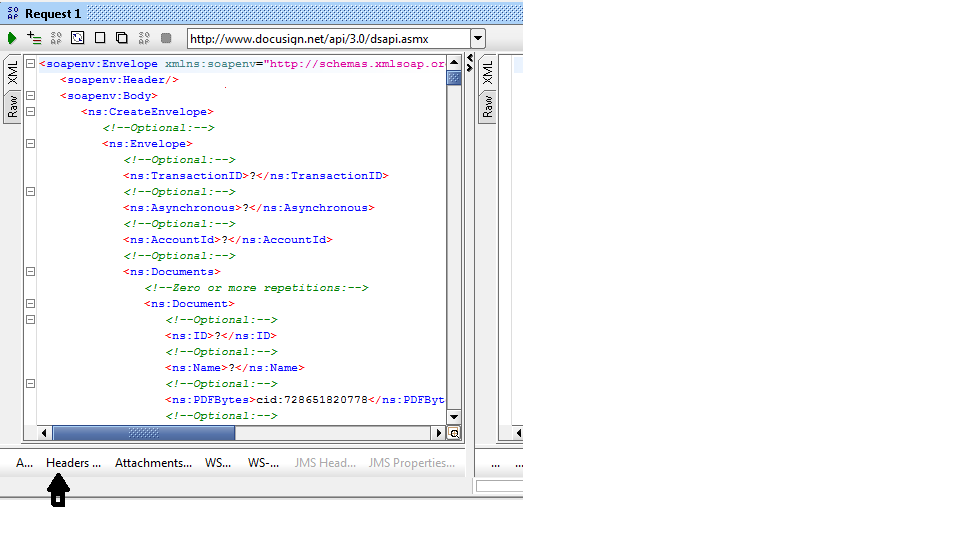

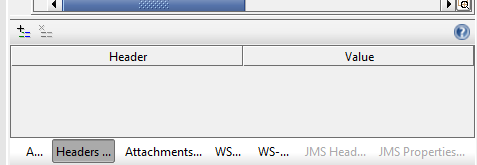

在SOAP中，您将为请求添加标题和值。选择页脚处的页眉按钮并选择add。您将在这里添加身份验证头。

​

​

​

​
