问用Java绘制程序。JPanel刷新得很糟糕
EN

Stack Overflow用户

提问于 2014-06-07 11:19:07

回答 1查看 365关注 0票数 0

大家好，我有几个关于程序的问题:首先，我制作了两个JPanels，并将它们添加到BorderLayout中心和东方的主窗口中。

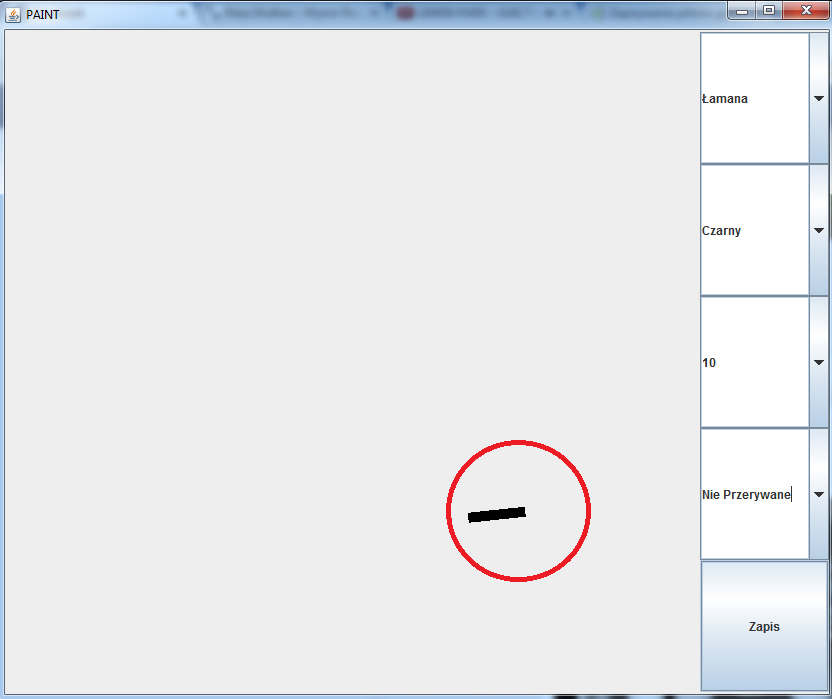

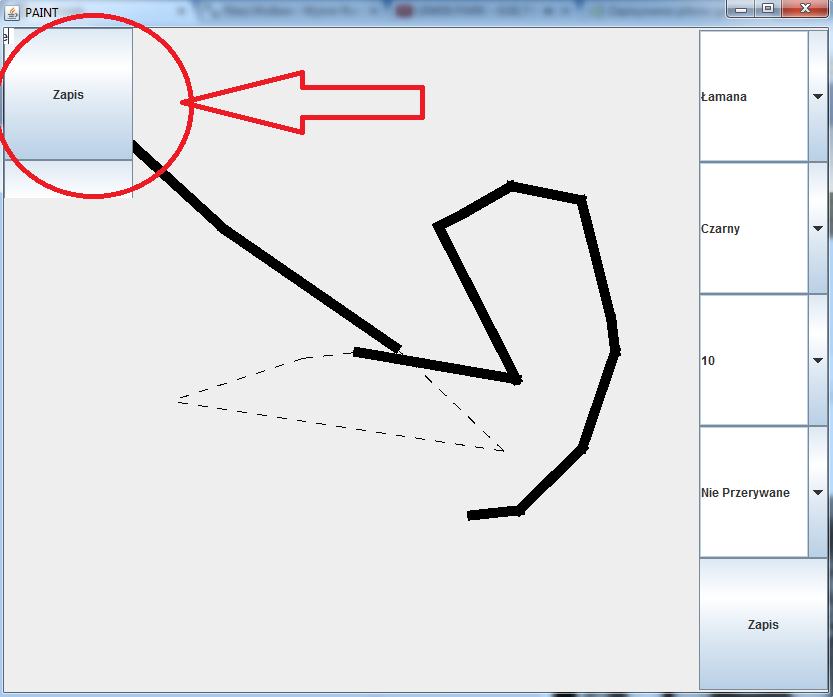

程序看起来是这样的，但是当我开始画一些东西时，我的菜单出现在中央边框布局上，不知道为什么。

另外，当我最小化或更改窗口大小时，图形显示: /。

第三件事，我只能画一条多边形线(“Ł天哪”)，我也不知道如何画一条简单的线("Prosta")。与Łamana相同。

另外，有时它会画一些形状("Koło") --例如圆圈。

我的代码：

Main

import java.awt.BasicStroke;
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.GridLayout;
import java.awt.HeadlessException;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.JButton;
import javax.swing.JComboBox;
import javax.swing.JFrame;
import javax.swing.JPanel;

public class edytor extends JFrame {

/**
 *
 */
private static final long serialVersionUID = 1L;

public static String jaki, co = null;
public static int jak, jak1;

final static float dash1[] = { 10.0f };
final static BasicStroke dashed = new BasicStroke(1.0f,
        BasicStroke.CAP_BUTT, BasicStroke.JOIN_MITER, 10.0f, dash1, 0.0f);

public edytor() throws HeadlessException {
    super("PAINT");
    setLayout(new BorderLayout());
    setSize(840, 702);
    setDefaultCloseOperation(DISPOSE_ON_CLOSE);
    jak = 10;
    co = "Łamana";
    jaki = "Czarny";

    JButton zapis = new JButton("Zapis");

    zapis.addActionListener(new ActionListener() {

        @Override
        public void actionPerformed(ActionEvent e) {

        }
    });

    JPanel prawyPanel = new JPanel(new GridLayout(5, 0));
    JPanel lewyPanel = new rysowanie();
    lewyPanel.setVisible(true);
    prawyPanel.setVisible(true);

    final JComboBox<String> coRysujemy = new JComboBox<String>();
    coRysujemy.setEditable(true);
    coRysujemy.addItem("Łamana");
    coRysujemy.addItem("Kwadrat");
    coRysujemy.addItem("Koło");
    coRysujemy.addItem("Prosta");

    prawyPanel.add(coRysujemy);

    coRysujemy.addActionListener(new ActionListener() {

        @Override
        public void actionPerformed(ActionEvent e) {

            co = (String) coRysujemy.getSelectedItem();
        }
    });

    final JComboBox<String> jakiKolor = new JComboBox<String>();
    jakiKolor.setEditable(true);
    jakiKolor.addItem("Czarny");
    jakiKolor.addItem("Niebieski");
    jakiKolor.addItem("Zielony");
    prawyPanel.add(jakiKolor);

    jakiKolor.addActionListener(new ActionListener() {

        @Override
        public void actionPerformed(ActionEvent e) {

            jaki = (String) jakiKolor.getSelectedItem();
        }
    });

    final JComboBox<String> jakGrube = new JComboBox<String>();
    jakGrube.setEditable(true);
    jakGrube.addItem("10");
    jakGrube.addItem("20");
    jakGrube.addItem("30");
    prawyPanel.add(jakGrube);

    jakGrube.addActionListener(new ActionListener() {

        @Override
        public void actionPerformed(ActionEvent e) {
            jak = jakGrube.getSelectedIndex();
        }
    });

    final JComboBox<String> jakRysowane = new JComboBox<String>();
    jakRysowane.setEditable(true);
    jakRysowane.addItem("Nie Przerywane");
    jakRysowane.addItem("Przerywane");
    prawyPanel.add(jakRysowane);
    prawyPanel.add(zapis);
    lewyPanel.setBackground(Color.WHITE);
    add(lewyPanel, BorderLayout.CENTER);
    add(prawyPanel, BorderLayout.EAST);

    jakRysowane.addActionListener(new ActionListener() {

        @Override
        public void actionPerformed(ActionEvent e) {
            jak1 = jakRysowane.getSelectedIndex();
        }
    });

}

public static void main(String[] args) {
    edytor ramka = new edytor();
    ramka.setVisible(true);

}

}

绘图窗面板

import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.JPanel;

public class rysowanie extends JPanel {

/**
 *
 */
private static final long serialVersionUID = 636480153152364773L;
private int squareX;
private int squareY;
private int squareW;
private int squareH;
private int xstart, ystart, xend, yend;

public rysowanie() {
    // TODO Auto-generated constructor stub

}

public void paint(Graphics g) {
    Graphics2D g2 = (Graphics2D) g;

    if (edytor.jak == 1) {
        edytor.jak = 10;
    }
    if (edytor.jak == 2) {
        edytor.jak = 20;
    }

    if (edytor.jak == 3) {
        edytor.jak = 30;
    }

    addMouseListener(new MouseAdapter() {
        public void mousePressed(MouseEvent e) {
            squareX = e.getX();
            squareY = e.getY();
            repaint();

        }

        public void mouseReleased(MouseEvent e) {
            if (e.getX() > squareX)
                squareW = e.getX() - squareX;
            else {
                squareW = squareX - e.getX();
                squareX = e.getX();
            }
            if (e.getY() > squareY)
                squareH = e.getY() - squareY;
            else {
                squareH = squareY - e.getY();
                squareY = e.getY();
            }
            repaint();
        }

    });

    addMouseListener(new MouseAdapter() {
        public void mousePressed(MouseEvent e) {
            xstart = e.getX();
            ystart = e.getY();
            repaint();

        }

        public void mouseReleased(MouseEvent e) {
            xend = e.getX();
            yend = e.getY();
            repaint();

        }

    });

    if (edytor.co == "Kwadrat") {
        if (edytor.jaki == "Niebieski") {
            g.setColor(Color.BLUE);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawRect(squareX, squareY, squareW, squareH);
        }
        if (edytor.co == "Czarny") {
            g.setColor(Color.BLACK);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawRect(squareX, squareY, squareW, squareH);
        }
        if (edytor.jaki == "Zielony") {
            g.setColor(Color.GREEN);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawRect(squareX, squareY, squareW, squareH);
        }
    }

    if (edytor.co == "Łamana") {
        if (edytor.jaki == "Niebieski") {
            g.setColor(Color.BLUE);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g2.drawLine(xstart, ystart, xend, yend);
        }
        if (edytor.jaki == "Czarny") {
            g.setColor(Color.BLACK);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawLine(xstart, ystart, xend, yend);
        }
        if (edytor.jaki == "Zielony") {
            g.setColor(Color.GREEN);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawLine(xstart, ystart, xend, yend);
        }
    }

    if (edytor.co == "Koło") {
        if (edytor.jaki == "Niebieski") {
            g.setColor(Color.BLUE);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawOval(squareX, squareY, squareW, squareH);
        }
        if (edytor.jaki == "Czarny") {
            g.setColor(Color.BLACK);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawOval(squareX, squareY, squareW, squareH);
        }
        if (edytor.jaki == "Zielony") {
            g2.setColor(Color.GREEN);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g2.drawOval(squareX, squareY, squareW, squareH);
        }
    }

    if (edytor.co == "Prosta") {

        if (edytor.jaki == "Niebieski") {
            g.setColor(Color.BLUE);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g2.drawLine(xstart, ystart, xend, yend);
        }
        if (edytor.jaki == "Czarny") {
            g.setColor(Color.BLACK);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawLine(xstart, ystart, xend, yend);
        }
        if (edytor.jaki == "Zielony") {
            g.setColor(Color.GREEN);
            g2.setStroke(new BasicStroke(edytor.jak));
            if (edytor.jak1 == 1) {
                g2.setStroke(edytor.dashed);
            }
            g.drawLine(xstart, ystart, xend, yend);
        }
    }

}

}

会喜欢任何暗示的。

paint

java

swing

graphics

jpanel

回答 1

Stack Overflow用户

回答已采纳

发布于 2014-06-07 11:40:37

当您没有在super.paint()方法中调用paint来破坏油漆链时，就会发生这种情况。您所看到的是由于未清除油漆区域而遗留下来的奇怪的油漆工件(通过调用super.paint())。

与其覆盖paint()，不如重写paintComponent。

@Override
protected void paintComponent(Graphics g) {
    super.paintComponent(g);
}

注意:当您调用super.paint[Component]时，这也将清除前面绘制的行，这可能不是您想要的功能。关于这一点，你有几个选择：

您可以创建一个List of Point2D对象，将点添加到列表中，并在paintComponent方法中的列表中迭代以逐点绘制线条。
您可以将每一行绘制为BufferedImage，并在paintComponent方法中绘制图像。

也不要将字符串与==进行比较。使用eqauls()。Google How do I compare Strings in Java

对于将来的参考，这个站点不是一个帮助台，您不应该期望用户/回答者帮助您调试一系列不同的问题。你应该问一个关于一个具体问题的具体问题。如果你有多个问题，那就把问题分给不同的帖子。

票数 3
