JXTreeTable、行条纹和适当的重绘

Question

默认情况下，我使用的是表行条带的外观和感觉。当我输入一个JXTreeTable时，我注意到由于某种原因，它没有自动得到行条。

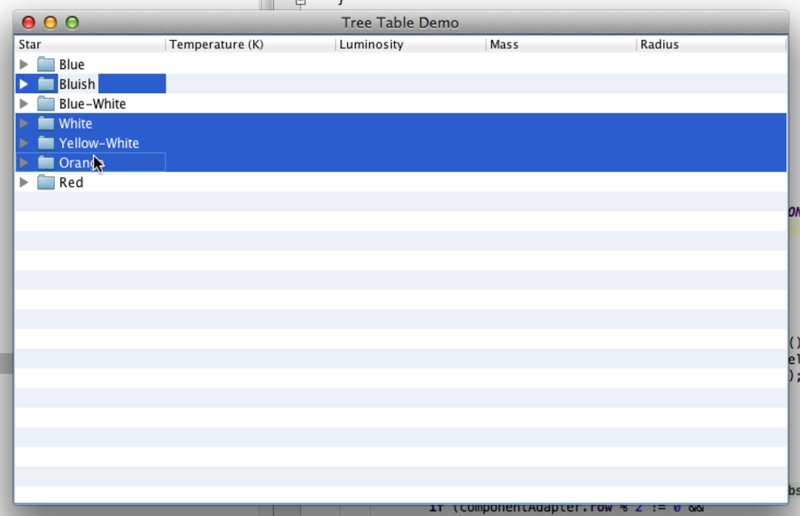

所以我用荧光笔解决了这个问题，但是看起来我又出现了一个小故障：

​

​

似乎JXTreeTable只是在重新绘制文本的边界，而不是整个单元格。我一直试图在调试器中找到原因，但是每次我在程序之间切换时，整个窗口都会重新绘制，所以几乎不可能捕捉到这类事情。

JTable和JTree都表现得很正常。这种外观和感觉描绘了JTree的整个行(比如Quaqua和Synth)，所以这可能也与它有关。也许JXTreeTable有某种假设，即外观和感觉不会画出树的行？如果是的话，有没有办法解决这个问题？不仅仅是这种外观和感觉才是问题所在。

守则：

import org.jdesktop.swingx.JXTreeTable;
import org.jdesktop.swingx.decorator.AbstractHighlighter;
import org.jdesktop.swingx.decorator.ComponentAdapter;
import org.jdesktop.swingx.decorator.Highlighter;
import org.jdesktop.swingx.treetable.DefaultMutableTreeTableNode;
import org.jdesktop.swingx.treetable.DefaultTreeTableModel;
import org.jdesktop.swingx.treetable.TreeTableModel;
import org.trypticon.haqua.HaquaLookAndFeel;

import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.SwingUtilities;
import javax.swing.UIManager;
import javax.swing.WindowConstants;
import java.awt.BorderLayout;
import java.awt.Component;
import java.util.Arrays;

public class TreeTableDemo2 implements Runnable {
    public static void main(String[] args) {
        SwingUtilities.invokeLater(new TreeTableDemo2());
    }

    @Override
    public void run() {
        try {
            UIManager.setLookAndFeel(new HaquaLookAndFeel());
        } catch (Exception e) {
            throw new RuntimeException(e);
        }

        JFrame frame = new JFrame("Tree Table Demo");
        frame.setLayout(new BorderLayout());
        frame.add(createPanel(), BorderLayout.CENTER);
        frame.setDefaultCloseOperation(WindowConstants.DISPOSE_ON_CLOSE);
        frame.pack();
        frame.setVisible(true);
    }

    public JPanel createPanel() {
        JPanel panel = new JPanel(new BorderLayout());

        TreeTableModel treeTableModel = new DummyTreeTableModel();
        JXTreeTable treeTable = new FixedTreeTable(treeTableModel);
        JScrollPane treeTableScroll = new JScrollPane(treeTable);

        panel.add(treeTableScroll, BorderLayout.CENTER);
        return panel;
    }

    private static class FixedTreeTable extends JXTreeTable {
        private static final Highlighter oddRowHighlighter = new AbstractHighlighter() {
            @Override
            protected Component doHighlight(Component component, ComponentAdapter componentAdapter) {
                if (componentAdapter.row % 2 != 0 &&
                        !componentAdapter.isSelected()) {
                    component.setBackground(UIManager.getColor("Table.alternateRowColor"));
                }
                return component;
            }
        };

        public FixedTreeTable(TreeTableModel treeModel) {
            super(treeModel);

            // This hack makes it paint correctly after releasing the mouse, which is not quite good enough.
//            getSelectionModel().addListSelectionListener(new ListSelectionListener() {
//                @Override
//                public void valueChanged(ListSelectionEvent e) {
//                    Rectangle repaintRange = getCellRect(e.getFirstIndex(), 0, true);
//                    repaintRange.add(getCellRect(e.getLastIndex(), 0, true));
//                    repaint(repaintRange);
//                }
//            });
        }

        @Override
        public void updateUI() {
            removeHighlighter(oddRowHighlighter);

            super.updateUI();

            // JTable does this striping automatically but JXTable's default renderer
            // seems to ignore it, so JXTreeTable inherits this broken behaviour.
            if (UIManager.get("Table.alternateRowColor") != null) {
                addHighlighter(oddRowHighlighter);
            }
        }
    }

    private static class DummyTreeTableNode extends DefaultMutableTreeTableNode {
        private final Object[] values;

        private DummyTreeTableNode(String name) {
            super(name);
            values = new Object[5];
            values[0] = name;
        }

        private DummyTreeTableNode(Object... values) {
            super(values[0]);
            this.values = values;
        }

        @Override
        public Object getValueAt(int column) {
            return values[column];
        }
    }

    private static class DummyTreeTableModel extends DefaultTreeTableModel {
        private static DefaultMutableTreeTableNode rootNode = new DefaultMutableTreeTableNode();
        static {
            DefaultMutableTreeTableNode blue = new DefaultMutableTreeTableNode("Blue");
            blue.add(new DummyTreeTableNode("Orionis C",          33000,  30000.0,    18.0,   5.90));
            rootNode.add(blue);

            DefaultMutableTreeTableNode bluish = new DefaultMutableTreeTableNode("Bluish");
            bluish.add(new DummyTreeTableNode("Becrux",             30000,  16000.0,    16.0,   5.70));
            bluish.add(new DummyTreeTableNode("Spica",              22000,  8300.0,     10.5,   5.10));
            bluish.add(new DummyTreeTableNode("Achernar",           15000,  750.0,      5.40,   3.70));
            bluish.add(new DummyTreeTableNode("Rigel",              12500,  130.0,      3.50,   2.70));
            rootNode.add(bluish);

            DefaultMutableTreeTableNode blueWhite = new DefaultMutableTreeTableNode("Blue-White");
            blueWhite.add(new DummyTreeTableNode("Sirius A",           9500,   63.0,       2.60,   2.30));
            blueWhite.add(new DummyTreeTableNode("Fomalhaut",          9000,   40.0,       2.20,   2.00));
            blueWhite.add(new DummyTreeTableNode("Altair",             8700,   24.0,       1.90,   1.80));
            rootNode.add(blueWhite);

            DefaultMutableTreeTableNode white = new DefaultMutableTreeTableNode("White");
            white.add(new DummyTreeTableNode("Polaris A",          7400,   9.0,        1.60,   1.50));
            white.add(new DummyTreeTableNode("Eta Scorpii",        7100,   6.3,        1.50,   1.30));
            white.add(new DummyTreeTableNode("Procyon A",          6400,   4.0,        1.35,   1.20));
            rootNode.add(white);

            DefaultMutableTreeTableNode yellowWhite = new DefaultMutableTreeTableNode("Yellow-White");
            yellowWhite.add(new DummyTreeTableNode("Alpha Centauri A",   5900,   1.45,       1.08,   1.05));
            yellowWhite.add(new DummyTreeTableNode("The Sun",            5800,   100.0,      1.00,   1.00));
            yellowWhite.add(new DummyTreeTableNode("Mu Cassiopeiae",     5600,   0.70,       0.95,   0.91));
            yellowWhite.add(new DummyTreeTableNode("Tau Ceti",           5300,   0.44,       0.85,   0.87));
            rootNode.add(yellowWhite);

            DefaultMutableTreeTableNode orange = new DefaultMutableTreeTableNode("Orange");
            orange.add(new DummyTreeTableNode("Pollux",             5100,   0.36,       0.83,   0.83));
            orange.add(new DummyTreeTableNode("Epsilon Eridani",    4830,   0.28,       0.78,   0.79));
            orange.add(new DummyTreeTableNode("Alpha Centauri B",   4370,   0.18,       0.68,   0.74));
            rootNode.add(orange);

            DefaultMutableTreeTableNode red = new DefaultMutableTreeTableNode("Red");
            red.add(new DummyTreeTableNode("Lalande 21185",      3400,   0.03,       0.33,   0.36));
            red.add(new DummyTreeTableNode("Ross 128",           3200,   0.0005,     0.20,   0.21));
            red.add(new DummyTreeTableNode("Wolf 359",           3000,   0.0002,     0.10,   0.12));
            rootNode.add(red);
        }

        private static final Object[] columnNames = {
                "Star", "Temperature (K)", "Luminosity", "Mass", "Radius"
        };

        public DummyTreeTableModel() {
            super(rootNode, Arrays.asList(columnNames));
        }

        @Override
        public Class<?> getColumnClass(int columnIndex) {
            if (columnIndex == 0) {
                return String.class;
            } else {
                return Double.class;
            }
        }

        @Override
        public boolean isCellEditable(Object node, int column) {
            return false;
        }
    }
}

进一步调查第1轮：

最后，我通过在JXTreeTable中查看paint方法，成功地捕获了调试器中的条件。我看到的是，它有一种叫做ClippedTreeCellRenderer的东西，它有一些看起来与可疑行为相对应的字段：

iconRect = {java.awt.Rectangle@2946}"java.awt.Rectangle[x=20,y=92,width=16,height=16]"
textRect = {java.awt.Rectangle@2947}"java.awt.Rectangle[x=20,y=-17,width=62,height=15]"
itemRect = {java.awt.Rectangle@2948}"java.awt.Rectangle[x=20,y=36,width=103,height=18]"

我还没有确认它确实使用这个值来绘制矩形，但是textRect正好是它重新绘制的小窗口的大小。所以现在的问题是，JXTreeTable到底是从哪里提取这些值的，为什么要使用它们呢？

我的直觉告诉我，JXTreeTable的渲染器在某种程度上使用树状细胞渲染器来直接渲染单元格，而不仅仅是让树自己绘制。绘制行背景和展开/折叠图标的逻辑是在树中，而不是在单元格中，所以如果它这样做，那么它没有一贯地绘制树就有意义了。

进一步调查第2轮：

我想我走错路了。看起来整行都正在绘制，但是tree.isPathSelected(路径)返回新选定的蓝色行的false，并为刚刚被选中的行返回true。

我可以通过DefaultTreeSelectionModel中的断点来确认，只有在释放鼠标之后才更新树选择，这就是为什么它最终返回到正确呈现的原因。

我将深入研究JXTreeTable，看看它是如何保持这些同步的。

Answer 1

我找到窃听器了。它看起来像是JXTreeTable.java中一些善意的代码，它试图减少更新：

    /**
     * Class responsible for calling updateSelectedPathsFromSelectedRows
     * when the selection of the list changse.
     */
    class ListSelectionHandler implements ListSelectionListener {
        @Override
        public void valueChanged(ListSelectionEvent e) {
            if (!e.getValueIsAdjusting()) {
                updateSelectedPathsFromSelectedRows();
            }
        }
    }

如果删除该if检查，一切都会正常工作。我想我只需要对SwingX做一些本地更改，因为这个项目基本上已经死了。:(
