材料库-2问题。普通色条/标签未出现

Question

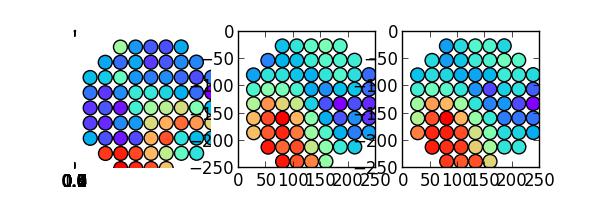

最后，我把我想要的3幅图和3 subplots...now放在一起，我需要添加一个普通的颜色条，最好是面向水平的。而且，现在我已经将它们作为子图，我丢失了在前一次迭代中的标签。

这些例子似乎表明我是加一个轴，但我不太明白参数中的数字是什么。

def plot_that_2(x_vals, y_vals, z_1_vals, z_2_vals, z_3_vals, figname, units, efficiency_or_not):
    global letter_pic_width
    plt.close()    #I moved this up from the end of the file because it solved my QTagg problem
    UI = [uniformity_calc(z_1_vals), uniformity_calc(z_2_vals), uniformity_calc(z_3_vals)]
    ranges = [ str(int(np.max(z_1_vals) - np.min(z_1_vals))), str(int(np.max(z_2_vals) - np.min(z_2_vals))), str(int(np.max(z_3_vals) - np.min(z_3_vals)))]
    z_vals = [z_1_vals, z_2_vals, z_3_vals]

    fig = plt.figure(figsize = (letter_pic_width, letter_pic_width/3 ))
    ax0 = fig.add_subplot(1,3,1, aspect = 1)
    ax1 = fig.add_subplot(1,3,2, aspect = 1)
    ax2 = fig.add_subplot(1,3,3, aspect = 1)

    axenames = [ax0, ax1, ax2]

    for z_val, unif, rangenum, ax in zip(z_vals, UI, ranges, axenames):
        ax.scatter(x_vals, y_vals, c = z_val, s = 100, cmap = 'rainbow')
        if efficiency_or_not:
            ax.vmin = 0
            ax.vmax = 1
            ax.xlabel = 'Uniformity: ' + unif
        else:
            ax.xlabel = 'Uniformity: ' + unif + '   ' + rangenum + ' ppm'

    plt.savefig('./'+ figname + '.jpg', dpi = 100)

​

​

Answer 1

要设置xlabel，请使用ax.set_xlabel('Uniformity: ' + unif)查看有关轴的文档中的更多信息( 这里 )。

链接到的示例使用图形的add_axes方法作为add_subplot的替代方法。数字文件解释了add_axes中的数字：“在左、下、宽、高的位置添加一个轴，其中所有的量都是以图形宽度和高度的分数表示的。”

rect = l,b,w,h
fig.add_axes(rect)

Answer 2

要回答关于颜色条轴的问题，数字表示

[bottom_left_x_coord, bottom_left_y_coord, width, height]

合适的颜色条可能是

# x    y    w     h
[0.2, 0.1, 0.6, 0.05]

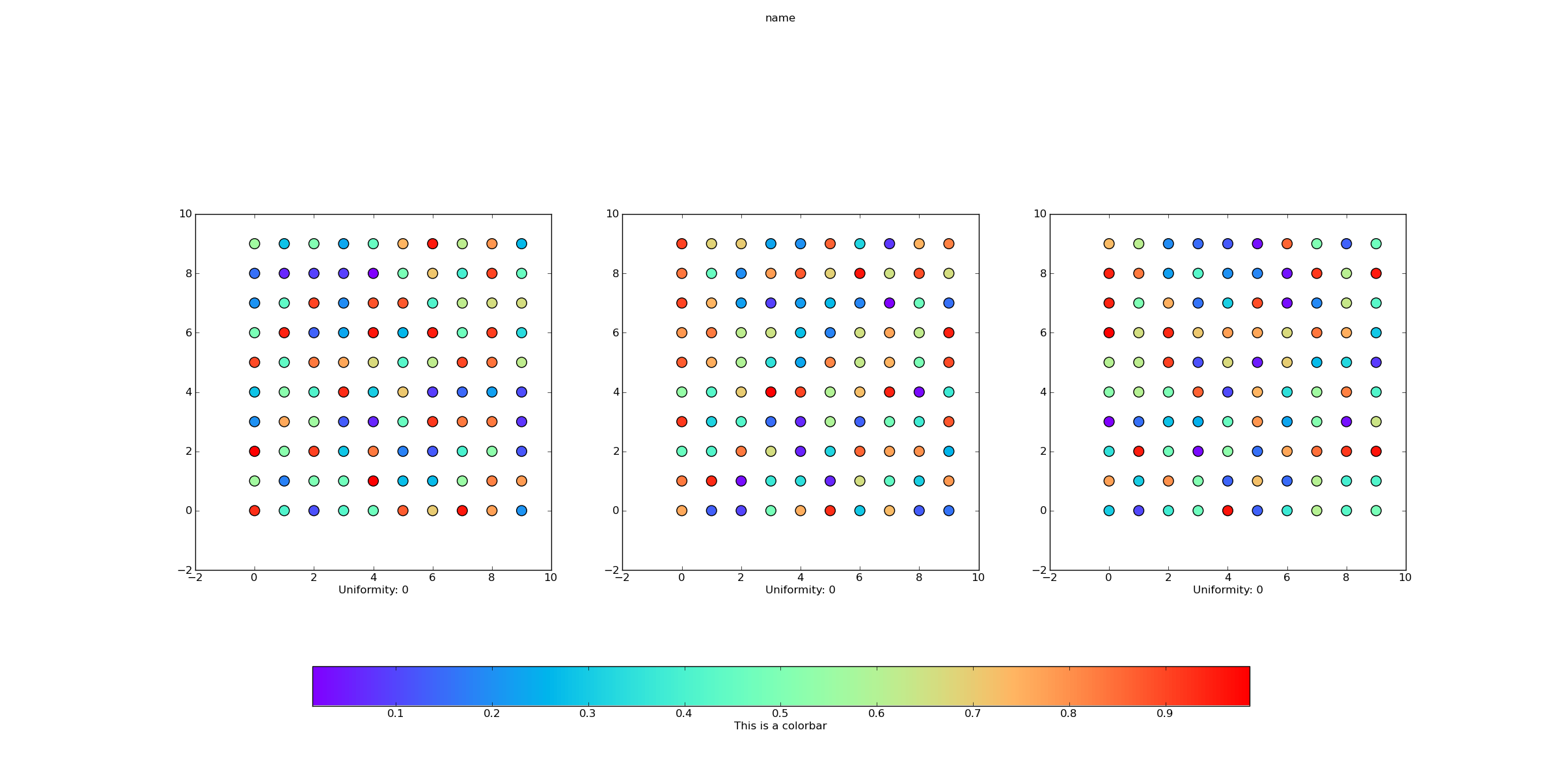

下面是您的代码，有些是重新处理的，它添加了一个色条：

import numpy as np
import matplotlib.pyplot as plt

WIDTH = 9

def uniformity_calc(x):
    return x.mean()

def plotter(x, y, zs, name, units, efficiency=True):
    fig, axarr = plt.subplots(1, 3, figsize=(WIDTH, WIDTH/3),
                              subplot_kw={'aspect':1})
    fig.suptitle(name)

    UI = map(uniformity_calc, zs)
    ranges = map(lambda x: int(np.max(x)-np.min(x)), zs)

    for ax, z, unif, rangenum in zip(axarr, zs, UI, ranges):
        scat = ax.scatter(x, y, c=z, s=100, cmap='rainbow')
        label = 'Uniformity: %i'%unif
        if not efficiency:
            label += '    %i ppm'%rangenum
        ax.set_xlabel(label)

    # Colorbar [left, bottom, width, height
    cax = fig.add_axes([0.2, 0.1, 0.6, 0.05])
    cbar = fig.colorbar(scat, cax, orientation='horizontal')
    cbar.set_label('This is a colorbar')
    plt.show()


def main():
    x, y = np.meshgrid(np.arange(10), np.arange(10))
    zs = [np.random.rand(*y.shape) for _ in range(3)]
    plotter(x.flatten(), y.flatten(), zs, 'name', None)

if __name__ == "__main__":
    main()

​

​
