使用python opencv跟踪白色

Question

我想跟踪白色使用摄像头和。我已经有追踪蓝色的密码了。

_, frame = cap.read()
hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)

# define range of blue color in HSV
lower_blue = np.array([110,100,100])
upper_blue = np.array([130,255,255])

#How to define this range for white color


# Threshold the HSV image to get only blue colors
mask = cv2.inRange(hsv, lower_blue, upper_blue)
# Bitwise-AND mask and original image
res = cv2.bitwise_and(frame,frame, mask= mask)

cv2.imshow('frame',frame)
cv2.imshow('mask',mask)
cv2.imshow('res',res)

我应该给出哪些值作为下限和上限来跟踪白色！？我试着改变价值，我得到了其他颜色，但没有运气的白色！

是HSV值还是BGR值指定为下界和上界？

PS :我必须得到作为二值图像的最后一个结果，以便进一步处理！！

请帮帮我！

Answer 1

我写这个是为了追踪白色：

import cv2
import numpy as np

cap = cv2.VideoCapture(0)

while(1):

    _, frame = cap.read()
    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)

    # define range of white color in HSV
    # change it according to your need !
    lower_white = np.array([0,0,0], dtype=np.uint8)
    upper_white = np.array([0,0,255], dtype=np.uint8)

    # Threshold the HSV image to get only white colors
    mask = cv2.inRange(hsv, lower_white, upper_white)
    # Bitwise-AND mask and original image
    res = cv2.bitwise_and(frame,frame, mask= mask)

    cv2.imshow('frame',frame)
    cv2.imshow('mask',mask)
    cv2.imshow('res',res)

    k = cv2.waitKey(5) & 0xFF
    if k == 27:
        break

cv2.destroyAllWindows()

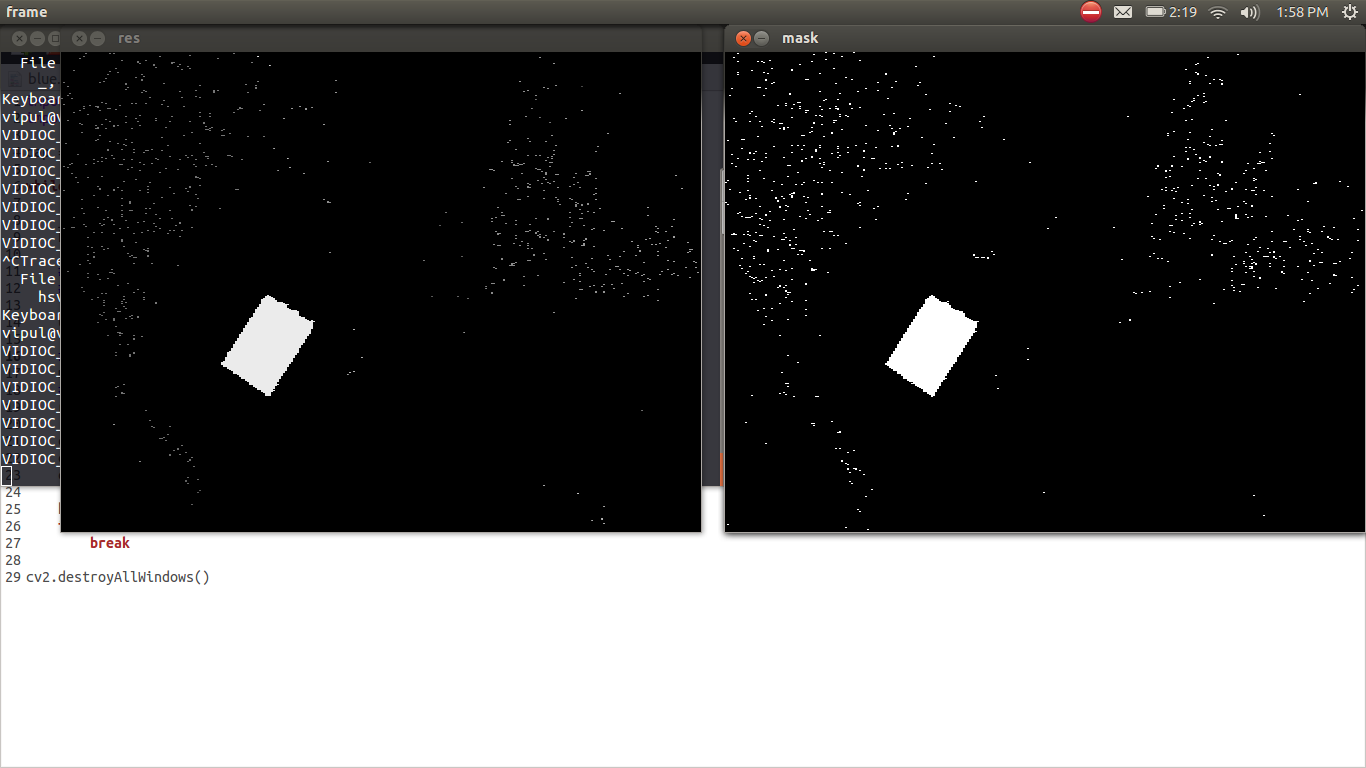

我试图追踪我手机的白屏幕，得到了这样的信息：

​

​

您可以尝试更改HSV值，您也可以尝试使用HSL颜色空间，就像Legat说的那样，这样会更准确。

Answer 2

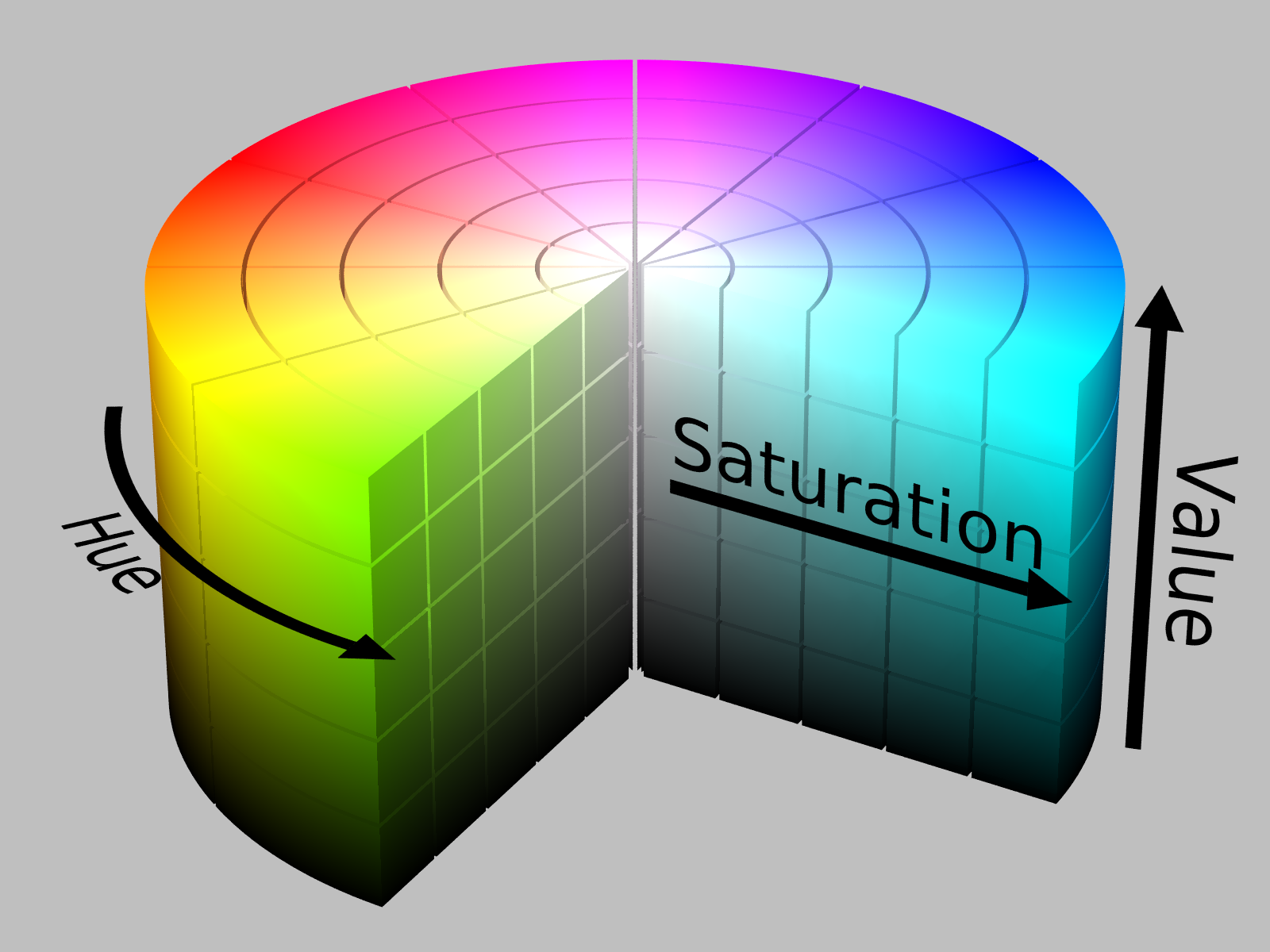

让我们来看看HSV的颜色空间：

​

​

你需要白色，这是接近中心和相当高。开始于

sensitivity = 15
lower_white = np.array([0,0,255-sensitivity])
upper_white = np.array([255,sensitivity,255])

然后根据你的需要调整门槛。

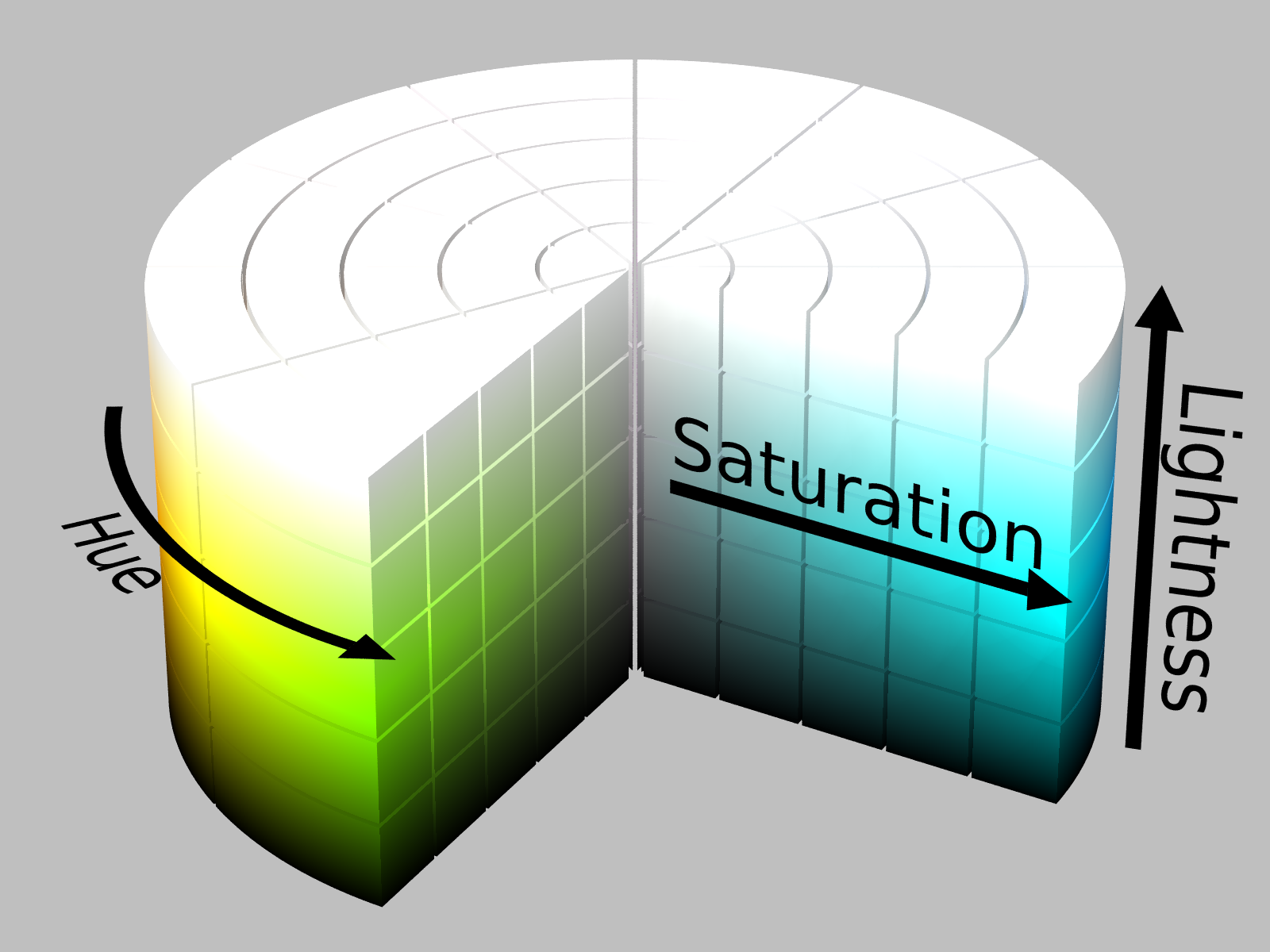

您还可以考虑使用HSL颜色空间，它表示色调、饱和度、轻盈。然后，你只需要看亮度，以检测白色和识别其他颜色将保持容易。HSV和HSL都保持相近的颜色。此外，HSL可能会更准确地检测白色--原因如下：

​

​

Answer 3

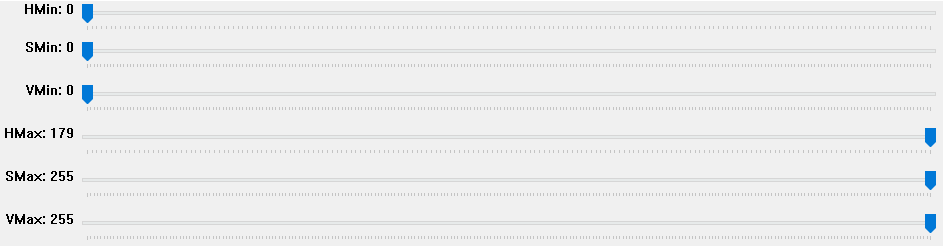

这里有一个HSV彩色阈值脚本，它使用滑块确定上下界

​

​

结果

使用此示例图像

​

​

具有这些较低/较高的阈值

lower_white = np.array([0,0,168])
upper_white = np.array([172,111,255])

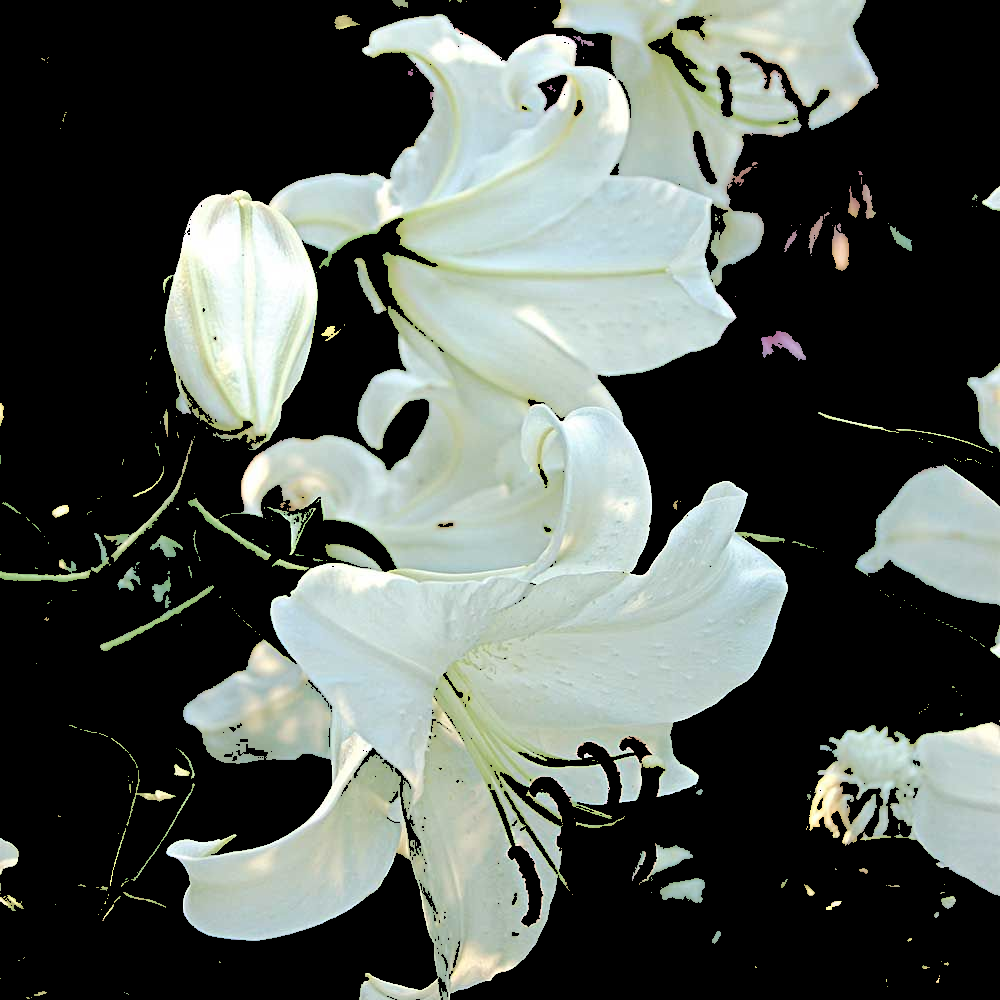

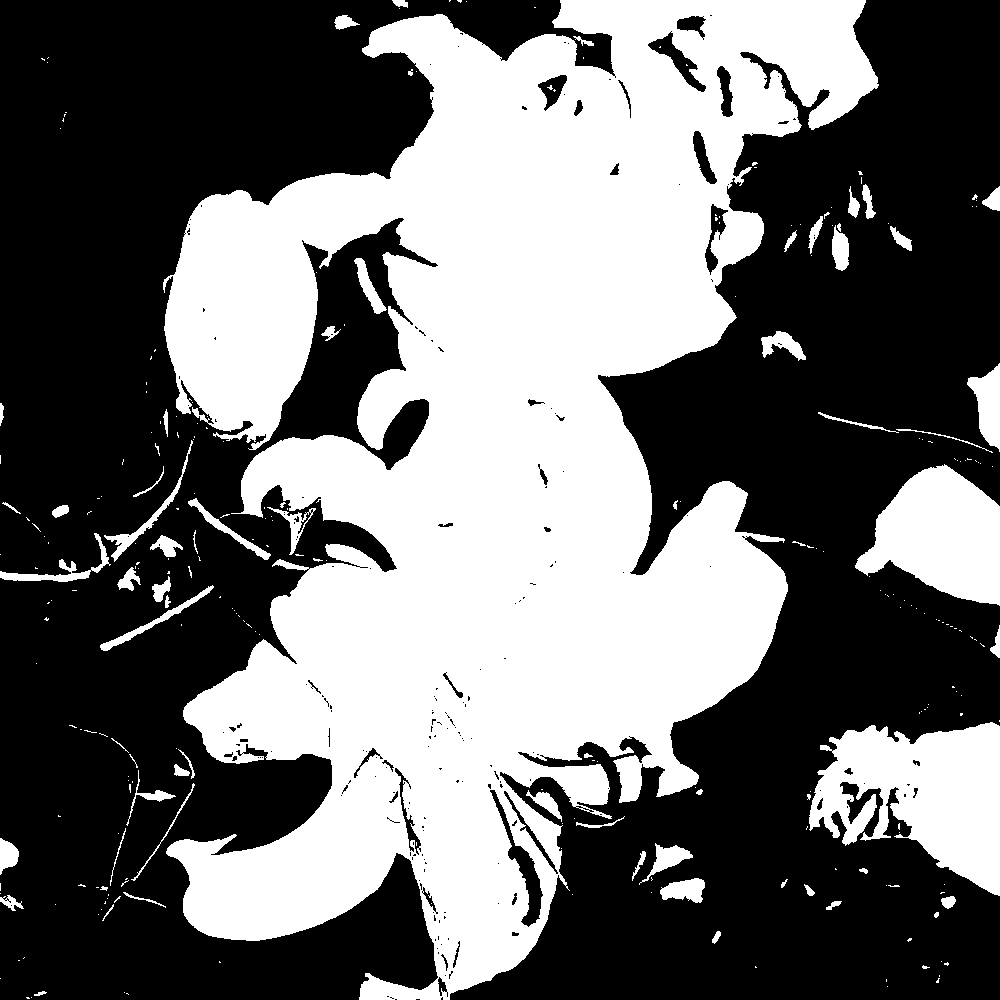

我们得到孤立的白色像素(左)和二进制掩码(右)。

​

​

下面是脚本，请记住更改输入图像路径

import cv2
import sys
import numpy as np

def nothing(x):
    pass

# Load in image
image = cv2.imread('1.jpg')

# Create a window
cv2.namedWindow('image')

# create trackbars for color change
cv2.createTrackbar('HMin','image',0,179,nothing) # Hue is from 0-179 for Opencv
cv2.createTrackbar('SMin','image',0,255,nothing)
cv2.createTrackbar('VMin','image',0,255,nothing)
cv2.createTrackbar('HMax','image',0,179,nothing)
cv2.createTrackbar('SMax','image',0,255,nothing)
cv2.createTrackbar('VMax','image',0,255,nothing)

# Set default value for MAX HSV trackbars.
cv2.setTrackbarPos('HMax', 'image', 179)
cv2.setTrackbarPos('SMax', 'image', 255)
cv2.setTrackbarPos('VMax', 'image', 255)

# Initialize to check if HSV min/max value changes
hMin = sMin = vMin = hMax = sMax = vMax = 0
phMin = psMin = pvMin = phMax = psMax = pvMax = 0

output = image
wait_time = 33

while(1):

    # get current positions of all trackbars
    hMin = cv2.getTrackbarPos('HMin','image')
    sMin = cv2.getTrackbarPos('SMin','image')
    vMin = cv2.getTrackbarPos('VMin','image')

    hMax = cv2.getTrackbarPos('HMax','image')
    sMax = cv2.getTrackbarPos('SMax','image')
    vMax = cv2.getTrackbarPos('VMax','image')

    # Set minimum and max HSV values to display
    lower = np.array([hMin, sMin, vMin])
    upper = np.array([hMax, sMax, vMax])

    # Create HSV Image and threshold into a range.
    hsv = cv2.cvtColor(image, cv2.COLOR_BGR2HSV)
    mask = cv2.inRange(hsv, lower, upper)
    output = cv2.bitwise_and(image,image, mask= mask)

    # Print if there is a change in HSV value
    if( (phMin != hMin) | (psMin != sMin) | (pvMin != vMin) | (phMax != hMax) | (psMax != sMax) | (pvMax != vMax) ):
        print("(hMin = %d , sMin = %d, vMin = %d), (hMax = %d , sMax = %d, vMax = %d)" % (hMin , sMin , vMin, hMax, sMax , vMax))
        phMin = hMin
        psMin = sMin
        pvMin = vMin
        phMax = hMax
        psMax = sMax
        pvMax = vMax

    # Display output image
    cv2.imshow('image',output)

    # Wait longer to prevent freeze for videos.
    if cv2.waitKey(wait_time) & 0xFF == ord('q'):
        break

cv2.destroyAllWindows()
