图>8的Python问题(股票和图例)是截止的。

Question

首先，让我说，Python的great是一些伟大的东西的开始，对于开发人员投入工作来说是值得称赞的。目前，我在同一情节上有两个主要问题。如果我绘制8只股票或更少的股票，图像看起来很好，除了图例从图形区域运行(问题1)。如果我绘制了8个以上的股票，那么这个图就会触发一些明显不代表数据的不稳定的行。此外，图例不会调整大小，而是去掉额外的股票代码(问题2)。任何帮助都是非常感谢的。谢谢!

“体面地块法典”：

import datetime
from ggplot import *
import pandas.io.data as web
import pandas as pd
import numpy as np

start = datetime.datetime(2014,1,1)
end = datetime.datetime(2014, 3,19)

stocks = ['APO','AVG','FI','ANIK','CELG','PACW','CBOE','BIIB']

stockData = {}
for ticker in stocks:
    stockData[ticker] = web.get_data_yahoo(ticker, start, end)

price = pd.DataFrame({tic: data['Adj Close'] for tic, data in stockData.iteritems()})

returns = price.pct_change()
returns = returns.apply(cumsum)

rt = returns.index
returns['Date'] = rt


# plotting the cum performance for each security

ret = pd.melt(returns, id_vars='Date')
plot = ggplot(aes(x='Date', y='value', color='variable'),data=ret) +geom_line()

# plotting the equity curve of the theoretical portfolio

zt = returns
del zt['Date']
zt = zt.apply(np.sum, axis=1)
z = pd.DataFrame(zt, index=zt.index)
z['Date'] = rt
z.columns = ['equity curve', 'Date']


ret2 = pd.melt(z, id_vars='Date')
plot2 = ggplot(aes(x='Date', y='value'),data=ret2) +geom_line()

print plot
print plot2

不良情节代码：

import datetime
from ggplot import *
import pandas.io.data as web
import pandas as pd
import numpy as np

start = datetime.datetime(2014,1,1)
end = datetime.datetime(2014, 3,19)

stocks = ['APO','AVG','FI','ANIK','CELG','PACW','CBOE','BIIB','ISIS', 'SDRL'] # <-- notice two additional tickers

stockData = {}
for ticker in stocks:
    stockData[ticker] = web.get_data_yahoo(ticker, start, end)

price = pd.DataFrame({tic: data['Adj Close'] for tic, data in stockData.iteritems()})

returns = price.pct_change()
returns = returns.apply(cumsum)

rt = returns.index
returns['Date'] = rt


# plotting the cum performance for each security

ret = pd.melt(returns, id_vars='Date')
plot = ggplot(aes(x='Date', y='value', color='variable'),data=ret) +geom_line()

# plotting the equity curve of the theoretical portfolio

zt = returns
del zt['Date']
zt = zt.apply(np.sum, axis=1)
z = pd.DataFrame(zt, index=zt.index)
z['Date'] = rt
z.columns = ['equity curve', 'Date']


ret2 = pd.melt(z, id_vars='Date')
plot2 = ggplot(aes(x='Date', y='value'),data=ret2) +geom_line()

print plot
print plot2

Answer 1

对于问题2，这是因为ggplot没有颜色，您可以添加更多颜色来解决问题，只需将以下代码添加到代码的开头：

import ggplot as gg
gg.colors.COLORS.extend(["#ff0000", "#00ff00", "#0000ff"])

对于问题1，我们似乎需要在创建图形之后放置图例：

ret = pd.melt(returns, id_vars='Date').dropna()
plot = ggplot(aes(x='Date', y='value', color='variable'), data=ret) +geom_line()
fig = plot.draw()
ax = fig.axes[0]
offbox = ax.artists[0]
offbox.set_bbox_to_anchor((1, 0.5), ax.transAxes)

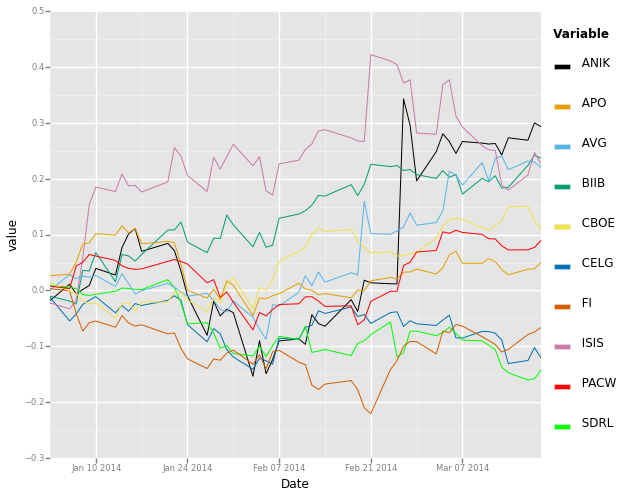

结果如下：

​

​
