问将文本和条形图定位在图像下
EN

Stack Overflow用户
提问于 2014-03-18 07:36:46
回答 1查看 239关注 0票数 1

我的html页面顶部是水平滚动输入图像。我使用了属性空白:nowrap；

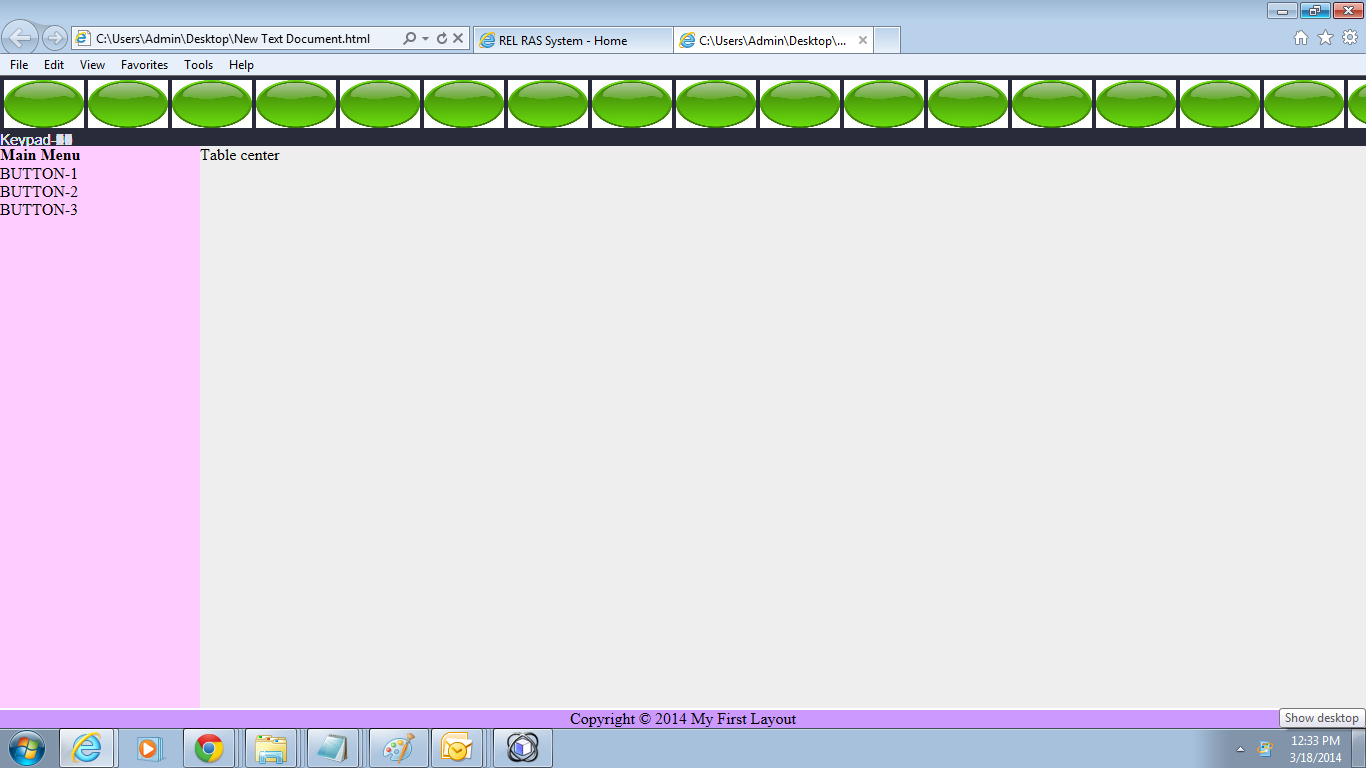

我正试着在我的每一张图片下放一段文字。但面临一些问题：

1>所有的文本开始在第一个图像下&被覆盖他们的。(即使我使用属性位置:绝对值；)

2>我无法滚动到右边的图像。在添加图片下的文本之后，甚至滚动条在GUI上也是不可见的。

实际上我想实现的是：

每个图像将有一个文本在它和文字下面，他们将是一个水平条。我应该能够滚动到屏幕右边的图像。每当按钮被按下，我将辉光栏下的图像指示按钮图像被选择。这里的条形表示一条水平线(有一定的宽度)，我可以为它改变颜色，以表示图像输入被选中。

代码语言：javascript
复制
===============================
IMAGE | IMAGE | IMAGE | IMAGE |
TEXT  | TEXT  | TEXT  | TEXT  |
BAR   | BAR   | BAR   | BAR   |
===============================

目前，我张贴的代码不包含在文本下添加条形条的逻辑。请建议一下。

代码语言：javascript
复制
<!DOCTYPE html>
<html style="height: 100%;">

<head>
<style>
body, html {
    width:100%;
    height:100%;
    margin:0;
    padding:0;
    position:relative;
}

#imgtxt{
   position: absolute;
   top: 40px;
   left: 0;
   width: 100%;
   font-family:arial;
   color:#DDDFED;
   font-size:15px;
}

#images {
    background-color:#292B3B;
    white-space:nowrap;
}
div.scrollable {
    width: 100%;
    margin: 0;
    padding: 0;
    overflow: auto;
    padding-left: 4px;
    padding-top: 4px;
    padding-bottom: 20px;
    box-sizing:border-box;
}
#Menu {
    background-color:#FFCCFF;
    position:absolute;
    top:70px;
    bottom:20px;
    left:0;
    width:200px;
}
#center {
    background-color:#eeeeee;
    position:absolute;
    top:70px;
    left:200px;
    right:0px;
    bottom:20px;
}
#fotter {
    background-color:#CC99FF;
    text-align:center;
    position:absolute;
    left:0;
    bottom:0;
    width:100%;
}

</style>
</head>

<body >


<div id="images" class="scrollable">
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" title="Room one" alt="Bulb pop up" width="80" height="48" />
 <p id="imgtxt">Keypad</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-2</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-3</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-4</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-5</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-6</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-7</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-8</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-9</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-10</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-11</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-12</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-13</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-14</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-15</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-16</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-17</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-18</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-19</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-20</p>
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS6QBsJ91Xp2YoqjiDe4qbYAGSf8deoyI0c1TutLDPrxwuQb34-" onclick="alert('clicked')" alt="Bulb pop up" width="80" height="48" />
<p id="imgtxt" >Keypad-21</p>
</div>
<div id="Menu"> <b>Main Menu</b>

    <br />BUTTON-1
    <br />BUTTON-2
    <br />BUTTON-3</div>
<div id="center">Table center</div>
<div id="fotter">Copyright © 2014 My First Layout</div>
</body>
</html>

JSFiddle：http://jsfiddle.net/B7Njx/

​

​

html
css
EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2014-03-18 07:51:21

您可以在包含输入图像和文本的div上使用display: inline-block。

看这个演示。

jsFiddle

HTML

代码语言：javascript
复制
<div class="input">
    <input type="image" src="https://encrypted-tbn0.gstatic.com/images..." onclick="alert('clicked')" title="Room one" alt="Bulb pop up" width="80" height="48" />
    <p class="imgtxt">Keypad</p>
</div>

CSS

代码语言：javascript
复制
.input {
    display: inline-block;
    padding: 0 2px;
}
.input input {
    display: block;
}
.imgtxt {
    margin: 0;
    font-family:arial;
    color:#DDDFED;
    font-size:15px;
}

当您使用position: absolute时，元素将相对于其指定位置的最接近的父元素定位。在您的示例中，所有<p>标记的位置都是相同的。

票数 0
