打印图像、文本和页边距？

Question

我花了几天的时间来寻找Vb.net脚本，它可以将三者结合在一起(打印图像+打印文本+不断变化的边距)，但没有运气；

我想：

• 在PictureBox1中打印图像；
• 从RichTextBox1打印文本(图片下方或上方)；
• 调整页面边距；

另外，如果我能在打印前得到Print-Preview的帮助，我会很感激的；

下面是我的启动脚本，它只会操作文本：

Public Class Form1

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
    printDocument1.Print()
End Sub

Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
    printPreviewDialog1.Document = printDocument1
    printPreviewDialog1.ShowDialog()
End Sub

Private Sub printDocument1_PrintPage(ByVal sender As System.Object, ByVal e As System.Drawing.Printing.PrintPageEventArgs) Handles printDocument1.PrintPage
    Dim fnt_t As Font
    fnt_t = RichTextBox1.Font
    e.Graphics.DrawString(RichTextBox1.Text, fnt_t, New SolidBrush(Color.Black), 10, 10)
End Sub

端级

Answer 1

这个答案是基于你的评论想要在你的图像上画文字。

当您将项目绘制到PrintDocument时，首先绘制的项目将位于稍后绘制的任何项下，如果它们在图形表面上占据相同的位置。这是一个关于如何在图像中对文本进行居中的示例。

Private Sub printDocument1_PrintPage(ByVal sender As System.Object, ByVal e As System.Drawing.Printing.PrintPageEventArgs) Handles PrintDocument1.PrintPage
    Dim fnt_t As Font = RichTextBox1.Font 'Set your font
    Dim rect As Rectangle = New Rectangle(New Point(0, 0), PictureBox1.Image.Size) ' used to give a common reference
    Dim fmt As StringFormat = New StringFormat()
    fmt.Alignment = StringAlignment.Center 'Horizontal Centering
    fmt.LineAlignment = StringAlignment.Center 'Vertical Centering
    e.Graphics.DrawImage(PictureBox1.Image, rect) 'Draw Image
    e.Graphics.DrawString(RichTextBox1.Text, fnt_t, New SolidBrush(Color.White), rect, fmt) 'Draw Text
End Sub

​

​

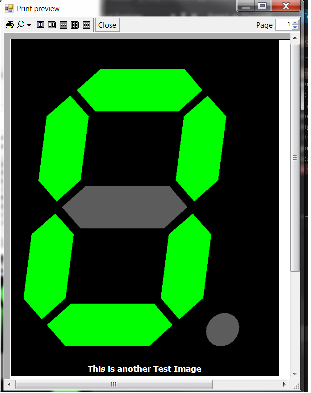

这个例子是如何将文本添加到图像的底部。

Private Sub printDocument1_PrintPage(ByVal sender As System.Object, ByVal e As System.Drawing.Printing.PrintPageEventArgs) Handles PrintDocument1.PrintPage
    Dim fnt_t As Font = RichTextBox1.Font 'Set your font
    Dim rect As Rectangle = New Rectangle(New Point(0, 0), PictureBox1.Image.Size) ' get the size of the image
    Dim lineheight As Integer = TextRenderer.MeasureText(RichTextBox1.Text, fnt_t).Height ' Measure to find height of text
    Dim stringRect As Rectangle = New Rectangle(0, rect.Bottom - lineheight, rect.Width, lineheight) 'Determine rectangle for Text
    Dim fmt As StringFormat = New StringFormat() 'Tell it to center Text in its rectangle
    fmt.Alignment = StringAlignment.Center 'Center it
    e.Graphics.DrawImage(PictureBox1.Image, rect) 'Draw Image
    e.Graphics.DrawString(RichTextBox1.Text, fnt_t, New SolidBrush(Color.White), stringRect, fmt) 'Draw Text
End Sub

​

​
