重叠标签ggmap

Question

我有谷歌地图和一个带有文字标签的坐标列表。当我预览这一点时，标签会重叠，因此变得不可读：

library(ggmap)
WPmap <- qmap(c(lon=4.80324, lat=52.40738), zoom = 12,  source = "google")

表kaart_rtw：

              Naam      lat     lon
1 Nieuw-Zeelandweg 52.40466 4.80214
2      Portsmuiden 52.39014 4.78554
3     Westhavenweg 52.41602 4.82282
4     Westhavenweg 52.41702 4.82282
5     Westhavenweg 52.41802 4.82282
6         Deccaweg 52.40196 4.83910
7     Coenhavenweg 52.40364 4.86195

AmsterdamMap + geom_text(data = kaart_rtw, aes(label = kaart_rtw$Naam, x = X, y = Y))

有什么办法阻止这种重叠吗？

Answer 1

调整坐标可能是一个简单的解决办法，但只有当你几乎没有观察到的时候。举个例子：

df <- read.table(text="Naam lat lon
Nieuw-Zeelandweg 52.40466 4.80214
Portsmuiden 52.39014 4.78554
Westhavenweg 52.41602 4.82282
Westhavenweg 52.41702 4.82282
Westhavenweg 52.41802 4.82282
Deccaweg 52.40196 4.83910
Coenhavenweg 52.40364 4.86195", header = TRUE, strip.white = TRUE)

require(ggmap)
require(ggplot2)

roads <- get_map(location = c(lon = 4.82824, lat = 52.40738), zoom = 13,
                 maptype = "roadmap", scale = 2)

ggmap(roads) +
  geom_point(data = df, aes(x=lon, y=lat, fill="red", alpha=0.5, label = df$Naam),
             size=4, shape=21) +
  geom_text(data = df, aes(x = lon, y = lat, label = Naam),
            size = 3, vjust = 0, hjust = -0.1) +
  guides(fill = FALSE, alpha = FALSE)

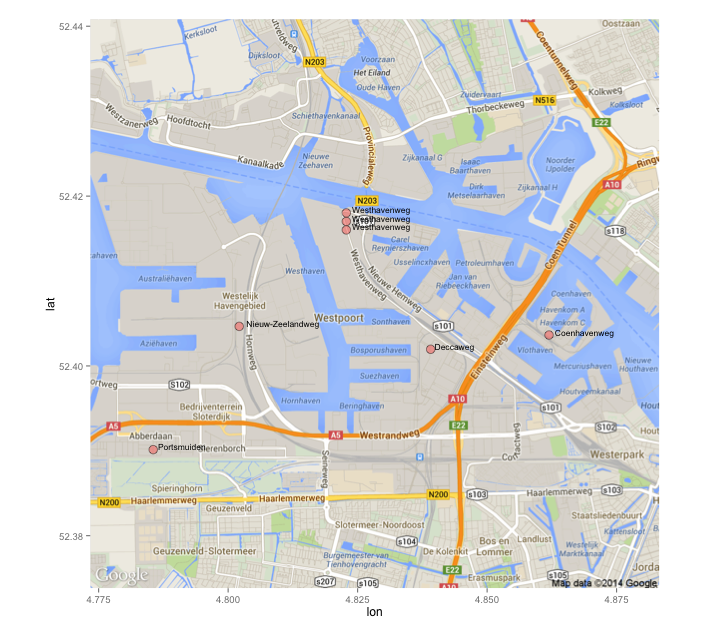

结果：

​

Answer 2

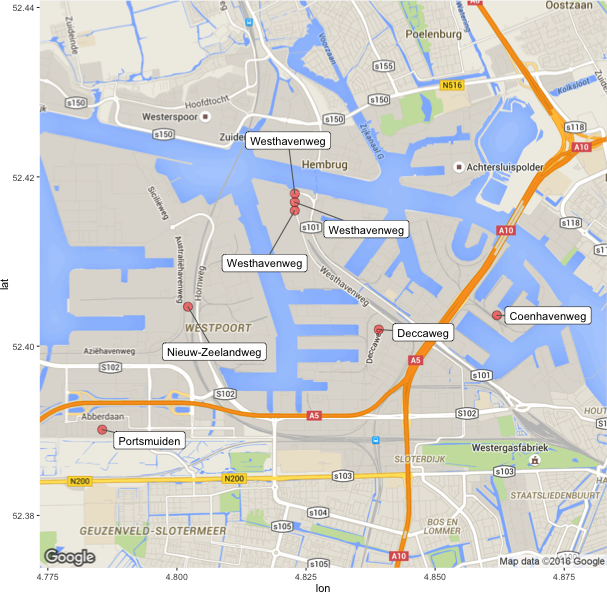

您可能会考虑尝试格列佩尔将标签放置在没有重叠的位置：

library(ggmap)
install.packages("devtools")
devtools::install_github("slowkow/ggrepel")
library(ggrepel)

df <- read.table(text="Naam lat lon
Nieuw-Zeelandweg 52.40466 4.80214
Portsmuiden 52.39014 4.78554
Westhavenweg 52.41602 4.82282
Westhavenweg 52.41702 4.82282
Westhavenweg 52.41802 4.82282
Deccaweg 52.40196 4.83910
Coenhavenweg 52.40364 4.86195", header = TRUE, strip.white = TRUE)

roads <- get_map(location = c(lon = 4.82824, lat = 52.40738), zoom = 13,
                 maptype = "roadmap", scale = 2)

ggmap(roads) +
  geom_point(
    data = df,
    aes(x = lon, y = lat),
    alpha = 0.5, fill = "red", size = 4, shape = 21
  ) +
  geom_label_repel(
    data = df,
    aes(x = lon, y = lat, label = df$Naam),
    box.padding = unit(2, "lines")
  ) +
  guides(fill = FALSE, alpha = FALSE)

​

​
