Android雷达图

Question

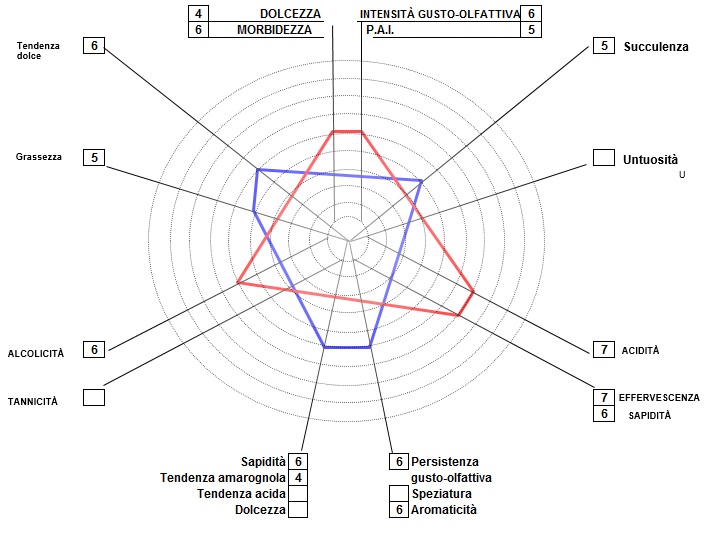

我想知道是否有可能在Android中复制这种图形。

​

数据并不重要，直接从图像中输入，将被输入到先前的屏幕上。

如果不可能重新创建一个类似的图表(我认为实际上很难)，那么可以使用一个简单的蜘蛛图，但重要的是可以插入两个不同的系列，并且它们有自己的标签。

事实上，请注意，大写的标签形成了一个表面，而用小写写的标签则形成了另一个。你说你能做这样的事？

我找到了这个库(https://code.google.com/p/charts4j/)谁也做图形蜘蛛图，但我不能进入另一个系列与他的“传奇”！

Answer 1

我已经部分解决了图表的设计！现在我可以绘制完全相同的表单，并正确地输入数据。特别是，我创建了一个自定义视图，扩展了ImageView，并在onDraw (画布)上添加了以下代码：(代码根本没有优化，我知道，它只是为了快速运行测试)

    @Override
    public void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        Paint paint = new Paint();
        Paint paint_cibo = new Paint();
        Paint paint_vino = new Paint();
        Paint paint_text = new Paint();

        final float x = getWidth() * 1.5f;
        final float y = getHeight() * 1.5f;

        final int[] valori_cibo = new int[]{2, 5, 4, 8, 3, 5};
        final int[] valori_vino = new int[]{6, 7, 7, 6, 6, 6};

        canvas.drawColor(Color.WHITE);

        paint.setAntiAlias(true);
        paint.setColor(Color.BLACK);
        paint.setStyle(Paint.Style.STROKE);
        paint.setStrokeWidth(2f);

        paint_cibo.setAntiAlias(true);
        paint_cibo.setColor(Color.BLUE);
        paint_cibo.setStyle(Paint.Style.STROKE);
        paint_cibo.setStrokeWidth(2f);

        paint_vino.setAntiAlias(true);
        paint_vino.setColor(Color.RED);
        paint_vino.setStyle(Paint.Style.STROKE);
        paint_vino.setStrokeWidth(2f);

        paint_text.setAntiAlias(true);
        paint_text.setColor(Color.BLACK);
        paint_text.setStyle(Paint.Style.FILL);
        paint_text.setTextSize(10);

        // Draw the circles
        for(int i = 1; i <= 110; i += 10)
            canvas.drawCircle(x, y, i, paint);

        // Draw the intersection lines
        canvas.drawLine(x + 10, y - 2.5f, (float)(x + 10 + 110 * Math.cos(returnGradi(90))), (float)(y - 2.5f - 110 * Math.sin(returnGradi(90))), paint);

        canvas.drawLine(x, y, (float)(x + 110 * Math.cos(returnGradi(45))), (float)(y - 110 * Math.sin(returnGradi(45))), paint);
        canvas.drawLine(x, y, (float)(x + 110 * Math.cos(returnGradi(30))), (float)(y - 110 * Math.sin(returnGradi(30))), paint);

        canvas.drawLine(x + 10, y - 5, (float)(x + 10 + 110 * Math.cos(returnGradi(315))), (float)(y - 5 - 110 * Math.sin(returnGradi(315))), paint);
        canvas.drawLine(x, y + 8, (float)(x + 110 * Math.cos(returnGradi(315))), (float)(y + 8 - 110 * Math.sin(returnGradi(315))), paint);

        canvas.drawLine(x, y, (float)(x + 110 * Math.cos(returnGradi(280))), (float)(y - 110 * Math.sin(returnGradi(280))), paint);
        canvas.drawLine(x, y, (float)(x + 110 * Math.cos(returnGradi(260))), (float)(y - 110 * Math.sin(returnGradi(260))), paint);

        canvas.drawLine(x - 10, y - 5, (float)(x - 10 + 110 * Math.cos(returnGradi(225))), (float)(y - 5 - 110 * Math.sin(returnGradi(225))), paint);
        canvas.drawLine(x, y + 8, (float)(x + 110 * Math.cos(returnGradi(225))), (float)(y + 8 - 110 * Math.sin(returnGradi(225))), paint);

        canvas.drawLine(x - 10, y - 2.5f, (float)(x - 10 + 110 * Math.cos(returnGradi(90))), (float)(y - 2.5f - 110 * Math.sin(returnGradi(90))), paint);
        canvas.drawLine(x, y, (float)(x + 110 * Math.cos(returnGradi(135))), (float)(y - 110 * Math.sin(returnGradi(135))), paint);
        canvas.drawLine(x, y, (float)(x + 110 * Math.cos(returnGradi(150))), (float)(y - 110 * Math.sin(returnGradi(150))), paint);

        // Draw the numbers
        for(int i = 1; i <= 10; i++)
            canvas.drawText(String.valueOf(i), x - 2.5f, y - i * 10, paint_text);


        //Start drawing food
        canvas.drawLine((float)(x + valori_cibo[0] * 10 * Math.cos(returnGradi(45))), (float)(y - valori_cibo[0] * 10 * Math.sin(returnGradi(45))), (float)(x + valori_cibo[1] * 10 * Math.cos(returnGradi(30))), (float)(y - valori_cibo[1] * 10 * Math.sin(returnGradi(30))), paint_cibo);
        canvas.drawLine((float)(x + valori_cibo[1] * 10 * Math.cos(returnGradi(30))), (float)(y - valori_cibo[1] * 10 * Math.sin(returnGradi(30))), (float)(x + valori_cibo[2] * 10 * Math.cos(returnGradi(280))), (float)(y - valori_cibo[2] * 10 * Math.sin(returnGradi(280))), paint_cibo);
        canvas.drawLine((float)(x + valori_cibo[2] * 10 * Math.cos(returnGradi(280))), (float)(y - valori_cibo[2] * 10 * Math.sin(returnGradi(280))), (float)(x + valori_cibo[3] * 10 * Math.cos(returnGradi(260))), (float)(y - valori_cibo[3] * 10 * Math.sin(returnGradi(260))), paint_cibo);
        canvas.drawLine((float)(x + valori_cibo[3] * 10 * Math.cos(returnGradi(260))), (float)(y - valori_cibo[3] * 10 * Math.sin(returnGradi(260))), (float)(x + valori_cibo[4] * 10 * Math.cos(returnGradi(150))), (float)(y - valori_cibo[4] * 10 * Math.sin(returnGradi(150))), paint_cibo);
        canvas.drawLine((float)(x + valori_cibo[4] * 10 * Math.cos(returnGradi(150))), (float)(y - valori_cibo[4] * 10 * Math.sin(returnGradi(150))), (float)(x + valori_cibo[5] * 10 * Math.cos(returnGradi(135))), (float)(y - valori_cibo[5] * 10 * Math.sin(returnGradi(135))), paint_cibo);
        canvas.drawLine((float)(x + valori_cibo[5] * 10 * Math.cos(returnGradi(135))), (float)(y - valori_cibo[5] * 10 * Math.sin(returnGradi(135))), (float)(x + valori_cibo[0] * 10 * Math.cos(returnGradi(45))), (float)(y - valori_cibo[0] * 10 * Math.sin(returnGradi(45))), paint_cibo);

        //Start drawing Wine
        canvas.drawLine((float)(x + 10 + valori_vino[0] * 10 * Math.cos(returnGradi(90))), (float)(y - valori_vino[0] * 10 * Math.sin(returnGradi(90))), (float)(x + 10 + valori_vino[1] * 10 * Math.cos(returnGradi(315))), (float)(y - 5 - valori_vino[1] * 10 * Math.sin(returnGradi(315))), paint_vino);
        canvas.drawLine((float)(x + 10 + valori_vino[1] * 10 * Math.cos(returnGradi(315))), (float)(y - 5 - valori_vino[1] * 10 * Math.sin(returnGradi(315))), (float)(x + 5 + valori_vino[3] * 10 * Math.cos(returnGradi(315))), (float)(y + 10 - valori_vino[3] * 10 * Math.sin(returnGradi(315))), paint_vino);
        canvas.drawLine((float)(x + 5 + valori_vino[3] * 10 * Math.cos(returnGradi(315))), (float)(y + 10 - valori_vino[3] * 10 * Math.sin(returnGradi(315))), (float)(x + 5 + valori_vino[3] * 10 * Math.cos(returnGradi(225))), (float)(y + 5 - valori_vino[3] * 10 * Math.sin(returnGradi(225))), paint_vino);
        canvas.drawLine((float)(x + 5 + valori_vino[3] * 10 * Math.cos(returnGradi(225))), (float)(y + 5 - valori_vino[3] * 10 * Math.sin(returnGradi(225))), (float)(x - 5 + valori_vino[4] * 10 * Math.cos(returnGradi(225))), (float)(y - 8 - valori_vino[4] * 10 * Math.sin(returnGradi(225))), paint_vino);
        canvas.drawLine((float)(x - 5 + valori_vino[4] * 10 * Math.cos(returnGradi(225))), (float)(y - 8 - valori_vino[4] * 10 * Math.sin(returnGradi(225))), (float)(x - 10 + valori_vino[5] * 10 * Math.cos(returnGradi(90))), (float)(y - valori_vino[5] * 10 * Math.sin(returnGradi(90))), paint_vino);
        canvas.drawLine((float)(x - 10 + valori_vino[5] * 10 * Math.cos(returnGradi(90))), (float)(y - valori_vino[5] * 10 * Math.sin(returnGradi(90))), (float)(x + 10 + valori_vino[0] * 10 * Math.cos(returnGradi(90))), (float)(y - valori_vino[0] * 10 * Math.sin(returnGradi(90))), paint_vino);
}

我重复一遍，没有考虑那些糟糕的优化代码.可以实现某种缩放来保持焦点缩放在圆圈中心的中心？
