EPG时序控制

Question

我想创建一个显示EPG的应用程序，如下图所示：http://gonedigital.net/wp-content/uploads/SonyEPG.jpg

我需要一个控件来显示时间线。我考虑使用datagridview，但我认为这不合适，因为不能为每一行设置列大小。有可以使用的自定义控制吗？如果没有，是否有建议如何开始？谢谢

编辑：

我已经使用了TableLayoutPanel，它可以正确地处理少量的数据。对于更大的数据，它变得太小了。我搜索并找到了SourceGrid，它非常快速和灵活。

Answer 1

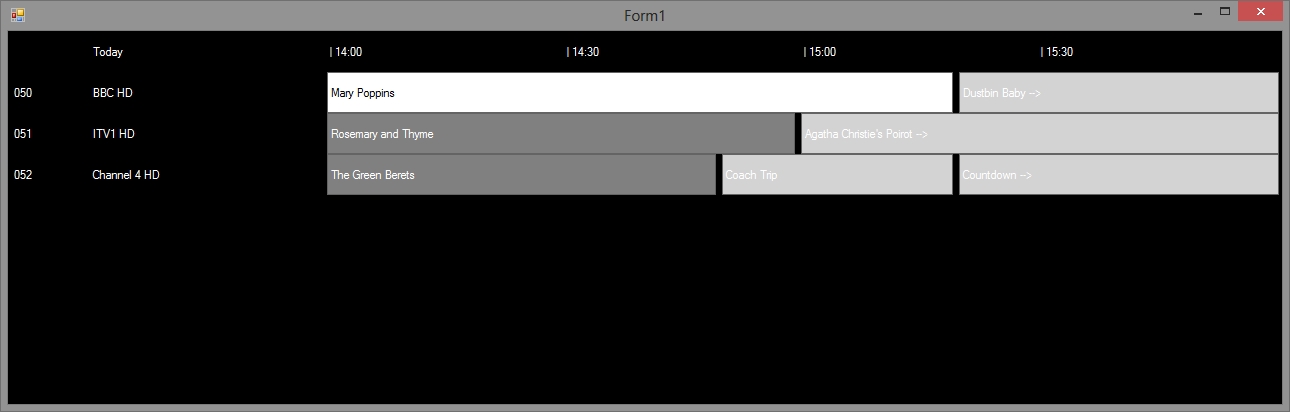

Sure...try这个TableLayoutPanel示例使用一个新的表单。忽略颜色，因为它们是讨厌的；相反，关注网格布局和标签如何跨越列。这只是头加上前三行。调整窗体的宽度并注意如何保持比例：

​

public partial class Form1 : Form
{

    private TableLayoutPanel grid = new TableLayoutPanel();

    public Form1()
    {
        InitializeComponent();

        grid.RowCount = 9;
        for (int i = 1; i <= grid.RowCount; i++)
        {
            grid.RowStyles.Add(new RowStyle(SizeType.Percent, 42)); // all the same percent, the value doesn't matter
        }
        grid.ColumnCount = 16;
        for (int i = 1; i <= grid.ColumnCount; i++)
        {
            grid.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 42)); // all the same percent, the value doesn't matter
        }
        grid.Dock = DockStyle.Fill;
        this.Controls.Add(grid);

        this.BackColor = Color.Black;
        ExampleGrid();
    }

    private void ExampleGrid()
    {
        grid.Controls.Clear();

        AddEntry("Today", 0, 1, 3, Color.White, Color.Black, false);
        AddEntry("| 14:00", 0, 4, 3, Color.White, Color.Black, false);
        AddEntry("| 14:30", 0, 7, 3, Color.White, Color.Black, false);
        AddEntry("| 15:00", 0, 10, 3, Color.White, Color.Black, false);
        AddEntry("| 15:30", 0, 13, 3, Color.White, Color.Black, false);

        AddEntry("050", 1, 0, 1, Color.White, Color.Black, false);
        AddEntry("BBC HD", 1, 1, 3, Color.White, Color.Black, false);
        AddEntry("Mary Poppins", 1, 4, 8, Color.Black, Color.White, true);
        AddEntry("Dustbin Baby -->", 1, 12, 4, Color.White, Color.LightGray, true);

        AddEntry("051", 2, 0, 1, Color.White, Color.Black, false);
        AddEntry("ITV1 HD", 2, 1, 3, Color.White, Color.Black, false);
        AddEntry("Rosemary and Thyme", 2, 4, 6, Color.White, Color.Gray, true);
        AddEntry("Agatha Christie's Poirot -->", 2, 10, 6, Color.White, Color.LightGray, true);

        AddEntry("052", 3, 0, 1, Color.White, Color.Black, false);
        AddEntry("Channel 4 HD", 3, 1, 3, Color.White, Color.Black, false);
        AddEntry("The Green Berets", 3, 4, 5, Color.White, Color.Gray, true);
        AddEntry("Coach Trip", 3, 9, 3, Color.White, Color.LightGray, true);
        AddEntry("Countdown -->", 3, 12, 4, Color.White, Color.LightGray, true);

        // ... etc ...
    }

    private void AddEntry(string text, int row, int col, int columnSpan, Color foreColor, Color backColor, bool border)
    {
        Label lbl = new Label();
        lbl.Text = text;
        lbl.AutoSize = false;
        lbl.AutoEllipsis = true;
        lbl.ForeColor = foreColor;
        lbl.BackColor = backColor;
        lbl.Dock = DockStyle.Fill;
        lbl.BorderStyle = border ? BorderStyle.FixedSingle : BorderStyle.None;
        lbl.TextAlign = ContentAlignment.MiddleLeft;
        grid.Controls.Add(lbl, col, row);
        grid.SetColumnSpan(lbl, columnSpan);
    }

}
