带分层分组变量的条形x轴标签

Question

在Excel中，数据的组织方式如下：

                                              Bare NP                   Singular-Marked NP               Plural-Marked NP
                                    BrP Speakers    AmE Speakers    BrP Speakers    AmE Speakers    BrP Speakers AmE Speakers
Plural Interpretation               0.005747126 0.006896552         0.194117647 0.124567474         0.872093023 0.985815603
Plural & Singular Interpretation    0.649425287 0.910344828         0.029411765 0.051903114         0.127906977 0.014184397
Singular Interpretation             0.344827586 0.082758621         0.776470588 0.823529412         0           0

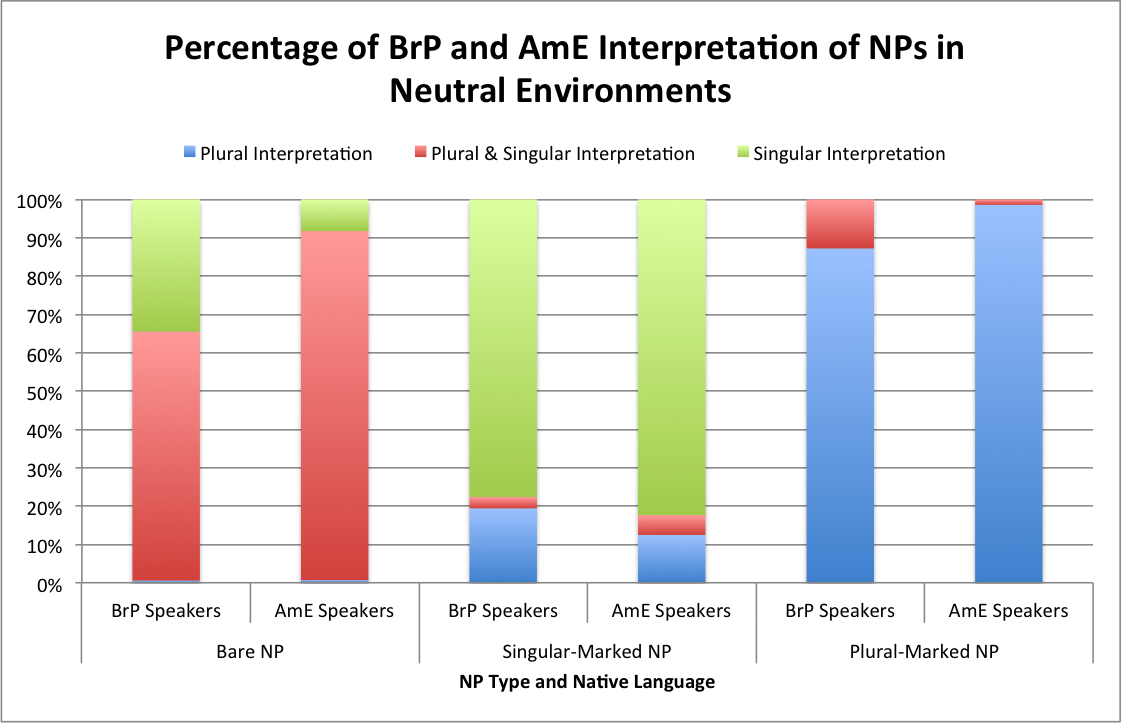

我可以制作一个堆叠的条形图，如下所示：

​

​

是否有一种简单的方法可以使用R将x轴划分为单独的条件(即“裸NP”、“奇异标记NP”和“复数标记NP")？

我现在能想到的就是：

pluralInterp <- c(0.005747126,0.006896552,0.194117647,0.124567474,0.872093023,0.985815603)

pluralAndSingInterp <- c(0.649425287,0.910344828,0.029411765,0.051903114,0.127906977,0.014184397)

singInterp <- c(0.344827586,0.082758621,0.776470588,0.823529412,0,0)

a  <- rbind(pluralInterp,pluralAndSingInterp,singInterp)

colnames(a) <- c("Bare NP ~ BrP Speakers",
                 "Bare NP ~ AmE Speakers",
                 "Singular-Marked NP ~ BrP Speakers",
                 "Singular-Marked NP ~ AmE Speakers",
                 "Plural-Marked NP ~ BrP Speakers",
                 "Plural-Marked NP ~ AmE Speakers"
                 )

barplot(a,
        col=c("blue","red","purple"),
        ylab="Frequency of Interpretation",
        xlab="Form of NP and Native Language",
        main="Frequency of BrP and AmE Interpretations of NPs in Neutral Environments"
        )

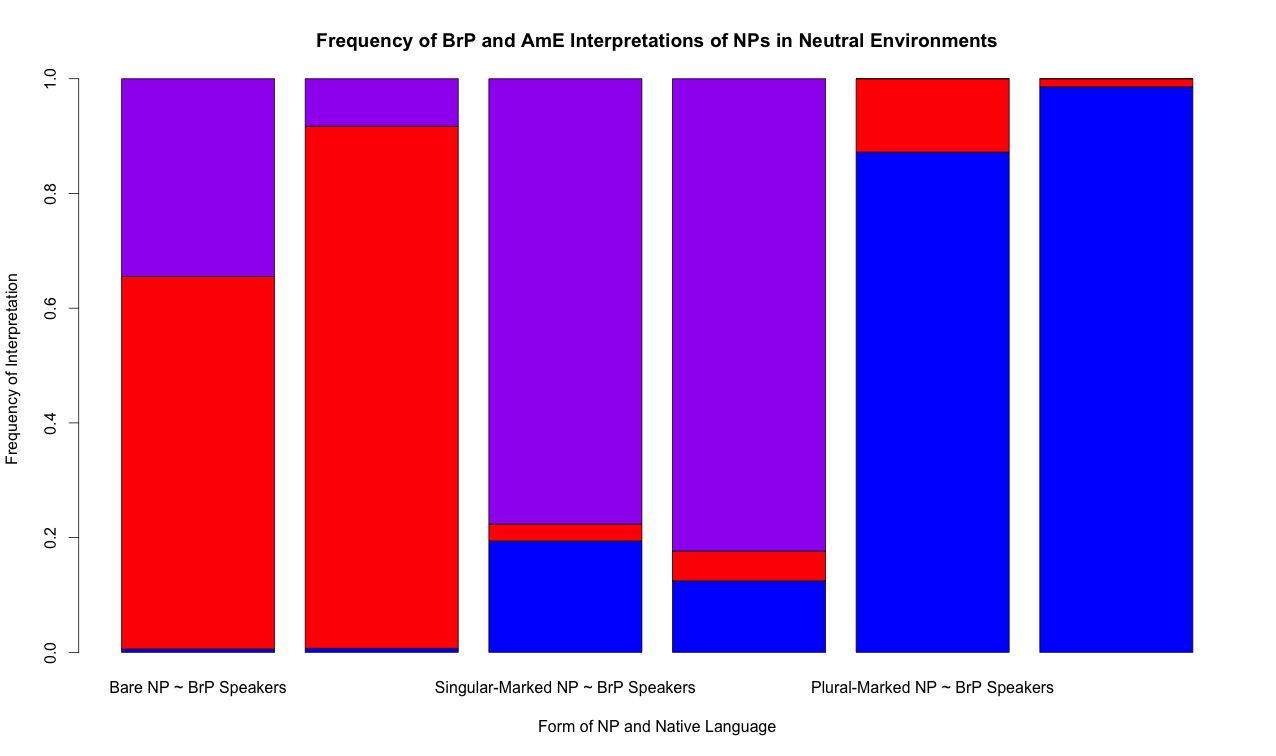

它生成以下图表：

​

​

Answer 1

手动调整一下页边距，打两次电话axis()就可以达到目的。保存一个像bp <- barplot(...)这样的条形图，保存每个条形图的中点，供以后参考。

oldpar <-par(mar=c(7,5.1,4.1,2.1))

bp <- barplot(a,
        col=c("blue","red","purple"),
        ylab="Frequency of Interpretation",
        xlab="",
        main="Frequency of BrP and AmE Interpretations \n of NPs in Neutral Environments",
        axisnames=FALSE
       )

然后，您可以使用存储在bp中的值正确地对齐事物。可以使用line=...参数将组和子组标签对齐到axis()。

avgpts <- tapply(bp,rep(1:3,each=2),mean)
grps <- c("Bare NP","Singular-Marked NP","Plural-Marked NP")
subgrps <- c("BrP","AmE")
axis(1,at=bp,labels=rep(subgrps,3), cex.axis=0.7)
axis(1,at=avgpts,labels=grps, cex.axis=0.7,line=1.5,lwd=0)

title(xlab="Form of NP and Native Language",line=4.5)

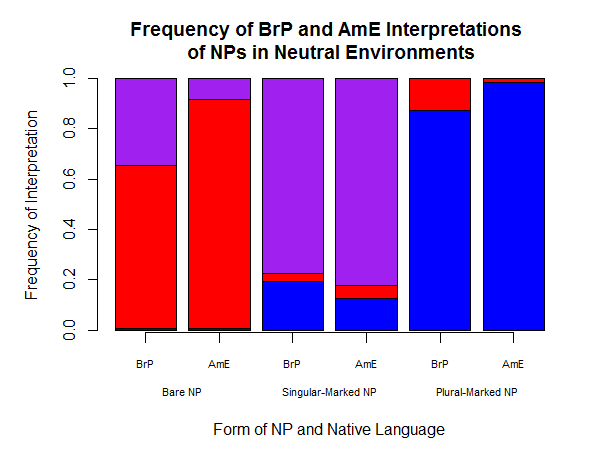

其结果是：

​

​
