带有sizer的wxpython布局

Question

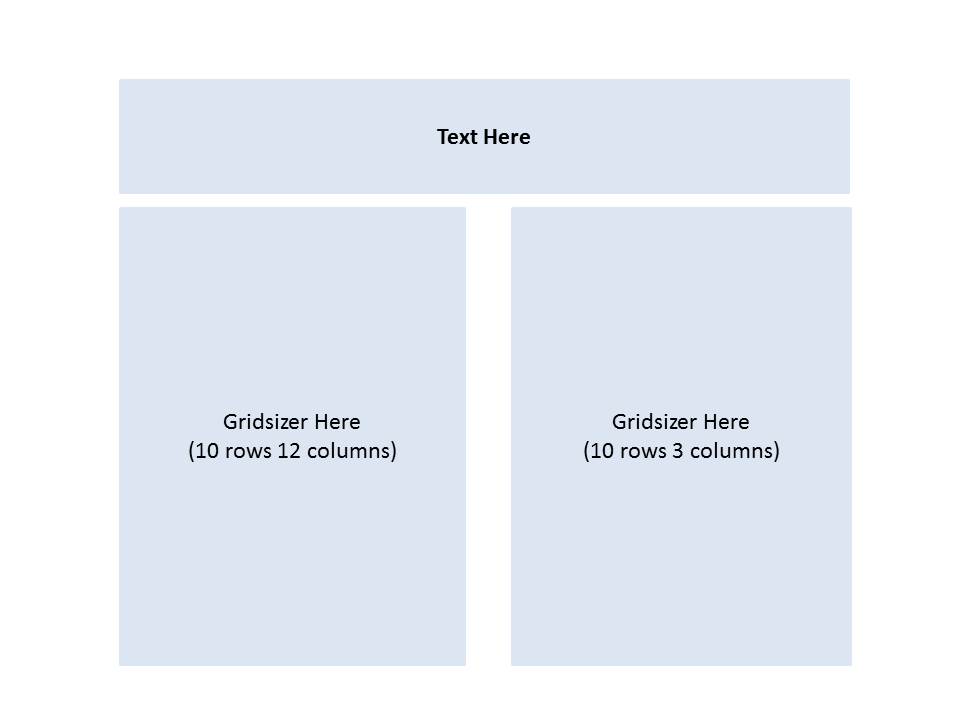

在wxpython中，我很难让我的sizer正常工作。我试图做一个简单的水平栏在顶部(在它的文本)和下面的两个垂直框(与栅格*左边的一个应该是2列！！*在每个内)。我想在图像中的一切伸展和适合我的面板以及(与能力添加填充到边和顶部/底部)。

​

我有两个主要的问题: 1。我不能把横条中的文字放在中间(左边)。2。我想把这两个垂直的方框间隔起来，并适当地与页面相匹配(同时希望网格也能更好地跨越)。

下面是我的代码(省略了一些部分)：

            self.LeagueInfoU = wx.Panel(self.LeagueInfo,-1, style=wx.BORDER_NONE)
            self.LeagueInfoL = wx.Panel(self.LeagueInfo,-1, style=wx.BORDER_NONE)
            self.LeagueInfoR = wx.Panel(self.LeagueInfo,-1, style=wx.BORDER_NONE)

            vbox  = wx.BoxSizer(wx.VERTICAL)

            hbox1 = wx.BoxSizer(wx.HORIZONTAL)
            hbox2 = wx.BoxSizer(wx.HORIZONTAL)

            vbox2a = wx.GridSizer(12,2,0,0)
            vbox3a = wx.GridSizer(10,3,0,0)
            hbox1a = wx.BoxSizer(wx.VERTICAL)

            vbox2 = wx.BoxSizer(wx.VERTICAL)
            vbox3 = wx.BoxSizer(wx.VERTICAL)


            hbox1.Add(self.LeagueInfoU, 1, wx.EXPAND | wx.ALL, 3)
            vbox2.Add(self.LeagueInfoL, 1, wx.EXPAND | wx.ALL, 3)
            vbox3.Add(self.LeagueInfoR, 1, wx.EXPAND | wx.ALL, 3)

            vbox2a.AddMany([this is all correct])
            self.LeagueInfoL.SetSizer(vbox2a)

            vbox3a.AddMany([this is all correct])
            self.LeagueInfoR.SetSizer(vbox3a)

            font = wx.Font(20, wx.DEFAULT, wx.NORMAL, wx.BOLD)
            self.Big_Header = wx.StaticText(self.LeagueInfoU, -1, 'Testing This')
            self.Big_Header.SetFont(font)

            hbox1a.Add(self.Big_Header, 0, wx.ALIGN_CENTER|wx.ALIGN_CENTER_VERTICAL)
            self.LeagueInfoU.SetSizer(hbox1a)

            hbox2.Add(vbox2, 0, wx.EXPAND)
            hbox2.Add(vbox3, 0, wx.EXPAND)

            vbox.Add(hbox1, 0, wx.EXPAND)
            vbox.Add(hbox2, 1, wx.EXPAND)
            self.LeagueInfo.SetSizer(vbox)

Answer 1

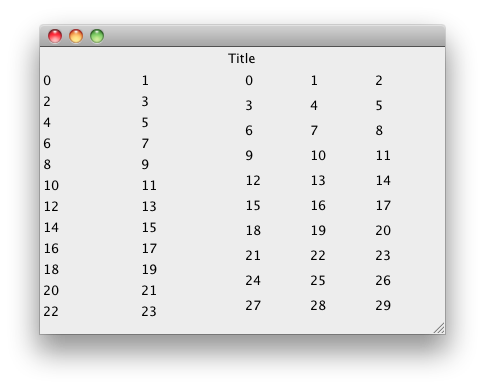

这就是你想要的吗？

​

​

import wx

class Frame(wx.Frame):
    def __init__(self, parent):
        wx.Frame.__init__(self, parent)

        self.panel = wx.Panel(self)

        main_sizer = wx.BoxSizer(wx.VERTICAL)

        # Title
        self.centred_text = wx.StaticText(self.panel, label="Title")
        main_sizer.Add(self.centred_text, 0, wx.ALIGN_CENTRE | wx.ALL, 3)

        # Grids
        content_sizer = wx.BoxSizer(wx.HORIZONTAL)
        grid_1 = wx.GridSizer(12, 2, 0, 0)
        grid_1.AddMany(wx.StaticText(self.panel, label=str(i)) for i in xrange(24))
        content_sizer.Add(grid_1, 1, wx.EXPAND | wx.ALL, 3)
        grid_2 = wx.GridSizer(10, 3, 0, 0)
        grid_2.AddMany(wx.StaticText(self.panel, label=str(i)) for i in xrange(30))
        content_sizer.Add(grid_2, 1, wx.EXPAND | wx.ALL, 3)

        main_sizer.Add(content_sizer, 1, wx.EXPAND)

        self.panel.SetSizer(main_sizer)

        self.Show()


if __name__ == "__main__":

    app = wx.App(False)
    Frame(None)
    app.MainLoop()

Answer 2

就像这样？？

import wx



class MyFrame(wx.Frame):
    def __init__(self):
        wx.Frame.__init__(self,None,-1,"Test Stretching!!")
        p1 = wx.Panel(self,-1,size=(500,100))
        p1.SetMinSize((500,100))
        p1.SetBackgroundColour(wx.GREEN)

        hsz = wx.BoxSizer(wx.HORIZONTAL)

        p2 = wx.Panel(self,-1,size=(200,400))
        p2.SetMinSize((200,400))
        p2.SetBackgroundColour(wx.RED)

        p3 = wx.Panel(self,-1,size=(300,400))
        p3.SetMinSize((300,400))
        p3.SetBackgroundColour(wx.BLUE)

        hsz.Add(p2,1,wx.EXPAND)
        hsz.Add(p3,1,wx.EXPAND)
        sz = wx.BoxSizer(wx.VERTICAL)
        sz.Add(p1,0,wx.EXPAND)
        sz.Add(hsz,1,wx.EXPAND)
        self.SetSizer(sz)
        self.Layout()
        self.Fit()

a = wx.App(redirect=False)
f = MyFrame()
f.Show()
a.MainLoop()
