geom_histogram颜色

Question

我有一个数据集，我想用geom_histogram (下面的数据)绘制ggplot。我想要得到一个渐变的配色方案，我有问题。

structure(list(UserID = c(39120L, 39536L, 39550L, 39627L, 39632L,
39709L, 39971L, 39988L, 39990L, 40062L, 40065L, 40065L, 40066L,
40142L, 40142L, 40143L, 40161L, 40193L, 40364L, 40437L, 40439L,
40440L, 40451L, 40453L, 40665L, 40665L, 40668L, 40751L, 40843L,
40843L, 40843L, 40846L, 40846L, 40847L, 40847L, 40850L, 40850L,
40884L, 40884L, 40884L, 40896L, 40900L, 40902L, 40903L, 40905L,
40963L, 40966L, 40966L, 40967L, 40967L, 40969L, 40971L, 40971L,
40985L, 40985L, 41010L, 41079L, 41080L, 41080L, 41081L, 41093L,
41108L, 41110L, 41111L, 41113L, 41114L, 41133L, 41137L, 41138L,
41140L, 41161L, 41162L, 41182L, 41186L, 41260L), sales = c(0.0119,
0.0032, 0.0091, 0.0098, 0.0086, 0.0101, 0.0107, 0.0111, 0.0085,
0.0178, 0.0069, 0.0055, 0.0133, 0.0112, 0.0084, 0.0141, 0.0159,
0.01, 0.0054, 0.0129, 0.011, 0.0116, 0.0099, 0.0134, 0.0046,
0.004, 0.0076, 0.005, 0.0027, 0.0037, 3e-04, 0.022, 0.012, 0.0082,
0.0108, 0.0092, 0.0101, 0.0016, 0.0082, 0.0035, 0.007, 0.0098,
0.0146, 0.0074, 0.005, 0.0152, 0.0046, 0.0032, 0.0028, 0, 0.0179,
0.0185, 0.0095, 0.0401, 0.0163, 0.0085, 0.0099, 0.0064, 0.0067,
0.0052, 0.0191, 0.0118, 0.0054, 0.0111, 0.0065, 0.0124, 0.0047,
0.0111, 0.0063, 0.0072, 0.0062, 0.0091, 0.0066, 0.0169, 0.0071
), salesfromtarget = c(0.214285714285714, -0.673469387755102,
-0.0714285714285714, 0, -0.122448979591837, 0.0306122448979592,
0.0918367346938777, 0.13265306122449, -0.13265306122449, 0.816326530612245,
-0.295918367346939, -0.438775510204082, 0.357142857142857, 0.142857142857143,
-0.142857142857143, 0.438775510204082, 0.622448979591837, 0.0204081632653062,
-0.448979591836735, 0.316326530612245, 0.122448979591837, 0.183673469387755,
0.010204081632653, 0.36734693877551, -0.530612244897959, -0.591836734693878,
-0.224489795918367, -0.489795918367347, -0.724489795918367, -0.622448979591837,
-0.969387755102041, 1.24489795918367, 0.224489795918367, -0.163265306122449,
0.102040816326531, -0.0612244897959184, 0.0306122448979592, -0.836734693877551,
-0.163265306122449, -0.642857142857143, -0.285714285714286, 0,
0.489795918367347, -0.244897959183673, -0.489795918367347, 0.551020408163265,
-0.530612244897959, -0.673469387755102, -0.714285714285714, -1,
0.826530612244898, 0.887755102040817, -0.0306122448979592, 3.09183673469388,
0.663265306122449, -0.13265306122449, 0.010204081632653, -0.346938775510204,
-0.316326530612245, -0.469387755102041, 0.948979591836735, 0.204081632653061,
-0.448979591836735, 0.13265306122449, -0.336734693877551, 0.26530612244898,
-0.520408163265306, 0.13265306122449, -0.357142857142857, -0.26530612244898,
-0.36734693877551, -0.0714285714285714, -0.326530612244898, 0.724489795918367,
-0.275510204081633)), .Names = c("UserID", "sales", "salesfromtarget"
), row.names = c(1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L, 9L, 10L, 11L,
12L, 13L, 15L, 16L, 18L, 19L, 20L, 21L, 22L, 23L, 24L, 25L, 26L,
28L, 29L, 31L, 32L, 35L, 36L, 37L, 38L, 39L, 41L, 42L, 44L, 45L,
46L, 47L, 48L, 49L, 50L, 51L, 52L, 53L, 54L, 56L, 57L, 58L, 59L,
60L, 61L, 62L, 63L, 64L, 65L, 67L, 69L, 70L, 72L, 77L, 78L, 79L,
80L, 81L, 82L, 83L, 84L, 85L, 86L, 87L, 88L, 89L, 90L, 93L), class = "data.frame")

使用这段代码，我试图使用scale_fill_brewer获得一个梯度方案(但它不一定是特定的，它只是一个不起作用的例子)。所有的酒吧都是灰色的，理想情况下，它们不会是灰色的。最好的情况下，我想使用一些类似于scale_fill_gradient(low = "green", high = "blue")的东西(同样，这对我不起作用)。我觉得我缺少了ggplot2的一些基本的东西。

require(ggplot2)
require(scales)
require(ggthemes)

ggplot(repex, aes(x = salesfromtarget)) +
geom_histogram(binwidth = .1, alpha = 0.5, colour = "white") +
scale_fill_brewer(palette = "Spectral") +
guides(fill = FALSE) +
theme_solarized() +
ggtitle("Standard Distribution of Sales") + xlab("Sales") + ylab("Frequency") +
theme(plot.title = element_text(size = 13, colour = "black", face = "bold", vjust = 1)) +
theme(axis.title.x = element_text(size = 12, colour = "black", vjust = -.005),
      axis.title.y = element_text(size = 12, colour = "black", vjust = 0.2),
      axis.text.x = element_text(angle = 45, hjust = 1)) +
scale_x_continuous(breaks = seq(-1.5, 1.5, by = .25),
                 limits = c(-1.5, 1.5), labels = percent)

Answer 1

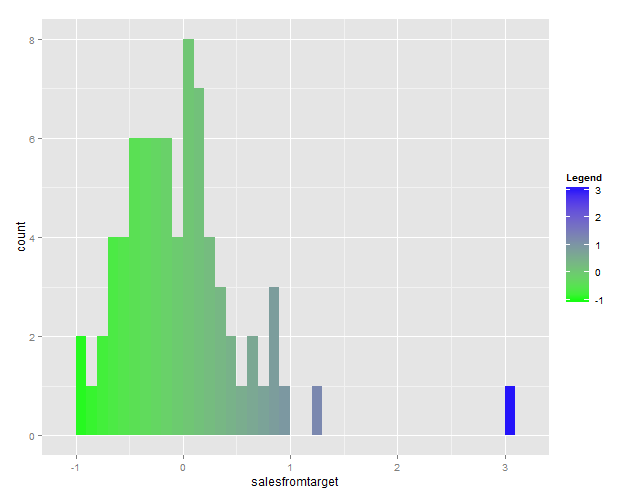

您需要在aes()部分中定义“填充”变量：

ggplot(repex, aes(x=salesfromtarget, fill=..x..))
    +geom_histogram(binwidth=.1)
    +scale_fill_gradient("Legend",low = "green", high = "blue")

​

​

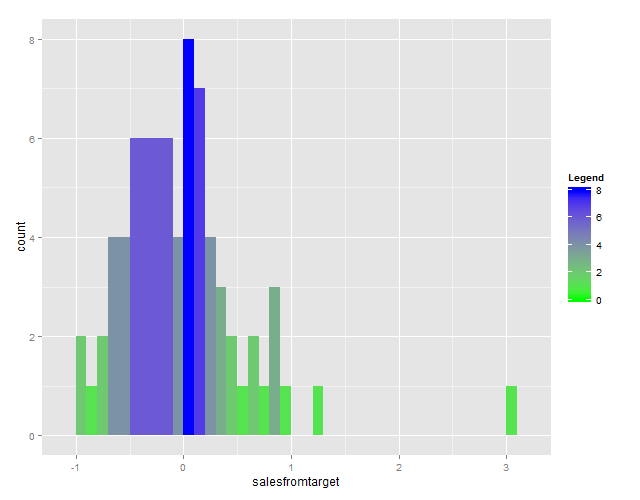

由于直方图条是每个x轴值的计数，如果要使用原始x值，则应该使用“..x.”。您可以使用“..count.”填充直方图计数：

ggplot(repex, aes(x=salesfromtarget, fill=..count..))
    +geom_histogram(binwidth=.1)
    +scale_fill_gradient("Legend",low = "green", high = "blue")

​

​
