Question

我正在尝试设置()设备来显示汉字，但没有成功。

我正在使用Macbook Pro山区狮子10.8.3与以下R sessionInfo()信息：

R version 3.0.0 (2013-04-03)
Platform: x86_64-apple-darwin10.8.0 (64-bit)

locale:
[1] en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
[1] tools_3.0.0

以下是我的主要代码

postscript("圖9-35plotmath.ps", horizontal = FALSE, height = 6)
plot(c(-pi, -pi/2, 0, pi/2, pi), 1:5, type = "n", xaxt = "n", main = expression(paste(plain(sin) * phi, "與", plain(cos) * phi)), ylab = expression("sin" * phi), xlab = expression(paste("Phase Angle", phi)))

axis(side = 1, at = c(-pi, -pi/2, 0, pi/2, pi), labels = expression(-pi, -pi/2, 0, pi/2, pi))

for(i in 1:5)
{
    text(-2.5, i, substitute(list(xi, eta) == group("(", list(x, y), ")"), list(x = i, y = i+1)))
}

text(-1.7, 5, expression("一階微分"== {f * minute}(x)), adj = 0)
text(-1.7, 4, expression("二階微分"== {f * second}(x)), adj = 0)
text(-1.7, 3, pos = 4, expression(hat(beta) == (X^t * X)^{-1} * X^t *y))
text(-1.7, 2, pos = 4, expression(bar(x) == sum(frac(x[i], n), i == 1, n)))
text(-1.7, 1.2, pos = 4, expression(paste(frac(1, sigma*sqrt(2*pi)), " ", plain(e)^{frac(-(x-mu)^2, 2*sigma^2)})), cex = 1.2)

text(0.5, 4.6, pos = 4, expression(prod(plain(P)(X == k), k = 1, n)))
text(0.5, 4, pos = 4, expression(integral(f(x)*dx, a,b)))
text(0.5, 3, pos = 4, expression(union(A[i], i  == 1, n)))
text(0.5, 2, pos = 4, expression(intersect(A[i], i  == 1, n)))
text(0.5, 1, pos = 4, expression(lim(f(x), x %->% 0)))

text(2, 4.5, pos = 4, expression(min(f(x), x > 0)))
text(1, 3.5, pos = 4, expression(Y == beta[0] + list(beta[1]*X[1], ..., beta[p-1]*X[p-1])))
text(1.5, 2.5, pos = 4, expression(S^2 == sqrt(frac(sum((X[i]=bar(x))^2), n-1))))
dev.off()

以上内容不起作用，生成的postscript文件给出了.为了所有的汉字。然后，我尝试了以下几点：

在postscript()中使用现有的GB1字体。它给了我一个.ps文件，它不能被Mac，Ghostscript和Photoshop打开。

postscript("圖9-35plotmath.ps", horizontal = FALSE, height = 6, fonts=c("GB1"))
plot(c(-pi, -pi/2, 0, pi/2, pi), 1:5, type = "n", xaxt = "n", family = "GB1", main = expression(paste(plain(sin) * phi, "與", plain(cos) * phi)), ylab = expression("sin" * phi), xlab = expression(paste("Phase Angle", phi)))

...............(omitted)
text(-1.7, 5, family = "GB1", expression("一階微分"== {f * minute}(x)), adj = 0)
text(-1.7, 4, family = "GB1", expression("二階微分"== {f * second}(x)), adj = 0)
..............(omitted)

我还尝试使用CIDFont()添加一些字体，但它仍然提供了一个根本无法打开的.ps文件。

song = CIDFont("SimSun", "GBK-EUC-H", "GBK", "")
postscriptFonts(song = song)
postscript("圖9-35plotmath.ps", horizontal = FALSE, height = 6, family="song")
plot(c(-pi, -pi/2, 0, pi/2, pi), 1:5, type = "n", xaxt = "n", family = "song", main = expression(paste(plain(sin) * phi, "與", plain(cos) * phi)), ylab = expression("sin" * phi), xlab = expression(paste("Phase Angle", phi)))

..............(omitted)

text(-1.7, 5, family = "song", expression("一階微分"== {f * minute}(x)), adj = 0)
text(-1.7, 4, family = "song", expression("二階微分"== {f * second}(x)), adj = 0)
.............(omitted)

这两种方法都没有警告，但是不能打开.ps文件。

我发现很难理解postscript()中的字体和家庭定义，在这种情况下par(SimSun=“”)让我完全没有问题，可以在pdf()和png()设备中显示和保存以下内容。

我需要制作一个高质量打印的后记文件。

再次感谢。

SS

Answer 1

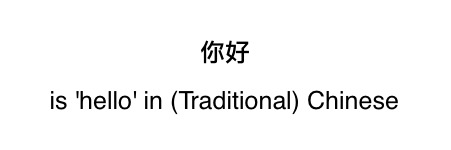

保罗·穆雷尔和布赖恩·里普利就是这样在他们的2006年R-新闻文章：中做到的

 pdf("chinese.pdf", width=3, height=1)
 grid.text("\u4F60\u597D", y=2/3,
            gp=gpar(fontfamily="CNS1"))
 grid.text("is 'hello' in (Traditional) Chinese",  y=1/3)
 dev.off()

​

​

为了记录在案，在Mac10.6.8上的R3.0.0中运行drammock提供的代码在MacGhostView中打开时会产生这样的结果：

​

​

编辑:您可以通过以下方式检查postscript设备可用的字体：

names(postscriptFonts())

Answer 2

cairo_ps()在Mac上为我工作，两者都带有基本图形：

cairo_ps(filename="foo.eps", family="LiSong Pro")
plot.new()
text(0.5, 0.5, "這是漢字")
dev.off()

..。在网格中：

library(grid)
cairo_ps(filename="foo.eps", family="LiSong Pro")
plot.new()
grid.text("這是漢字")
dev.off()
