GridView在屏幕上适配，但不适合HDPI和XHDPI

Question

网格视图图像不适合hdpi和xhdpi。它适合于mdpi模拟器和device.My图像大小在以下(它遵循3:4:6:8的比例)。

ldpi 366*225 mdpi 488*300 //适合于模拟器和设备屏幕hdpi 732*450 Xhdpi 976*600

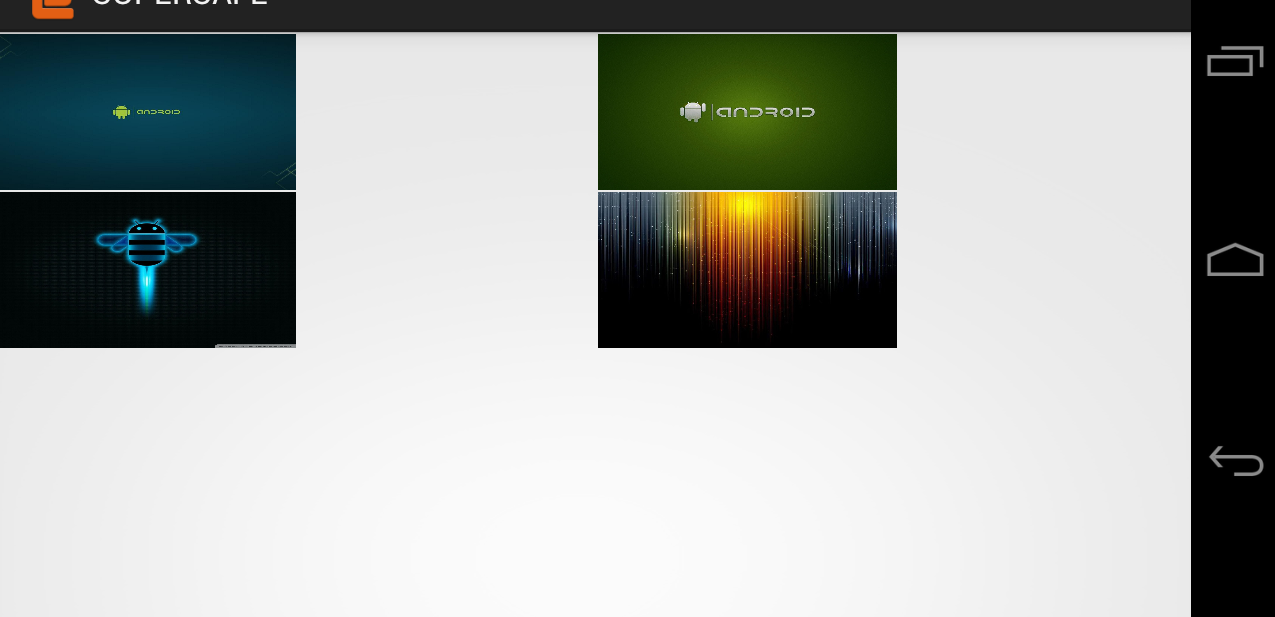

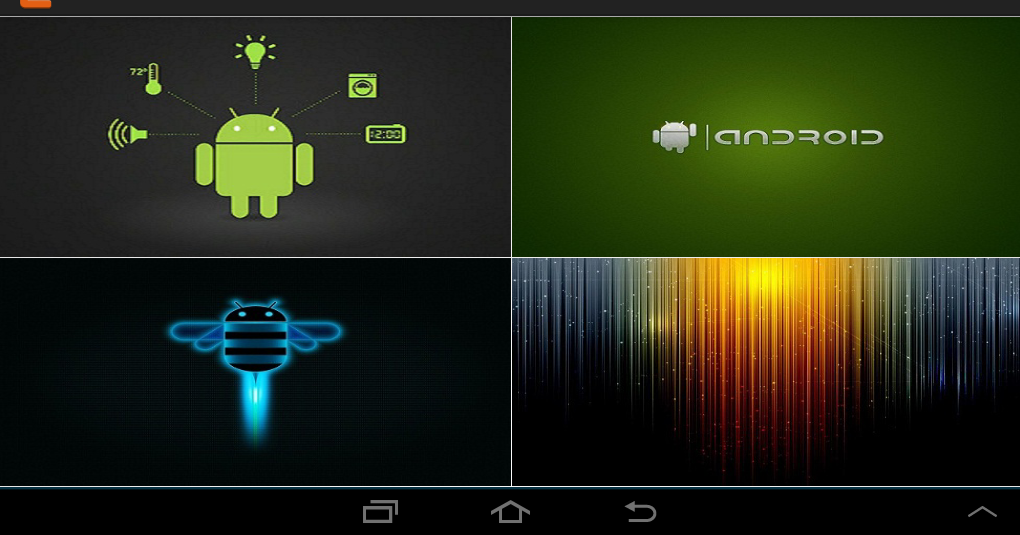

第一张图片(MDPI)在屏幕上合适，第二张图像(XHDPI和HDPI一样)不合适？

​

​

​

​

MenuActivity:

GridView gridView = (GridView) findViewById(R.id.gridview);

    gridView.setAdapter(new ImageAdapter(this));


    gridView.setOnTouchListener(new OnTouchListener(){
        @Override
        public boolean onTouch(View v, MotionEvent event) {
            if(event.getAction() == MotionEvent.ACTION_MOVE){
                return true;
            }
            return false;
        }
    });

    gridView.setScrollBarStyle(View.SCROLLBARS_INSIDE_OVERLAY);
    gridView.setVerticalScrollBarEnabled(false);

ImageAdapter.java:

public class ImageAdapter extends BaseAdapter {

    private Context mcontext;

    public ImageAdapter(Context c) {
        mcontext=c;
    }

    public int getCount() {
        return mThumbIds.length;
    }

    public Object getItem(int position) {
        return null;
    }

    public long getItemId(int position) {
        return 0;
    }

    public View getView(int position, View convertView, ViewGroup parent) {

        ImageView imageView ;

        if(convertView==null)
        {
            imageView = new ImageView(mcontext);
            //imageView.inflate(mcontext, R.layout.mainmenu_griditem,null);
            ImageView.inflate(mcontext, R.layout.mainmenu_griditem,null);

            WindowManager wm = (WindowManager) mcontext.getSystemService(Context.WINDOW_SERVICE);

            Display display = wm.getDefaultDisplay();
            DisplayMetrics outMetrics = new DisplayMetrics ();
            display.getMetrics(outMetrics);

            float density  = mcontext.getResources().getDisplayMetrics().density;

            Log.i("image","density->"+density);
            float dpHeight = outMetrics.heightPixels / density;
            Log.i("image","dpHeight->"+dpHeight);
            float dpWidth  = outMetrics.widthPixels / density;
            Log.i("image","dpWidth->"+dpWidth);

            int width=(int) (dpWidth/2);
            int height=(int) (dpHeight/2.3);

            Log.i("image","Image Width->"+width);
            Log.i("image","Image height->"+height);

            //int width=(int) (dpWidth);
            //int height=(int) (dpHeight);

            //imageView.setLayoutParams(new GridView.LayoutParams(width,height));


            imageView.setLayoutParams(new GridView.LayoutParams(width,height));





            //imageView.setLayoutParams(new GridView.LayoutParams(parent.getWidth()/2,parent.getHeight()/2));


            //imageView.setLayoutParams(new GridView.LayoutParams(imageView.getWidth(),imageView.getHeight()));

            //imageView.setBackgroundColor(000000);
            //imageView.setLayoutParams(new GridView.LayoutParams(400,200));
            //imageView.setLayoutParams(new GridView.LayoutParams());
            imageView.setScaleType(ImageView.ScaleType.FIT_XY);
            //imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
            //imageView.setPadding(40,40,40,40);
        }
        else
        {
            imageView=(ImageView)convertView;
        }


        imageView.setImageResource(mThumbIds[position]);
        return imageView;
    }


    // references to our images
    private Integer[] mThumbIds = {
            R.drawable.mainmenu1, R.drawable.mainmenu2,
            R.drawable.mainmenu3, R.drawable.mainmenu4
    };
}

我试了很多，但没有帮助。

mainmenugriditem.xml:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <ImageView android:id="@+id/mm_grid_image"
        android:layout_width="match_parent"
        android:layout_height="match_parent"

       />
    <TextView android:id="@+id/mm_grid_text"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:labelFor="@id/mm_grid_image"/>

</RelativeLayout>

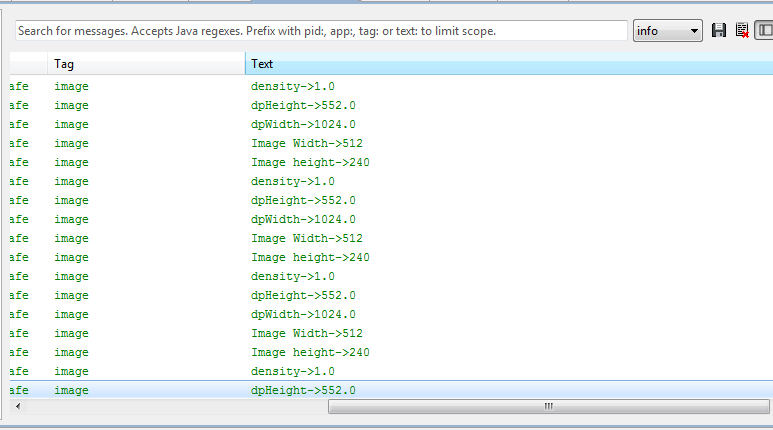

mdpi的Logcat输出：(模拟器-7“WSVGA-tablet-1024*600:mdpi)

​

​

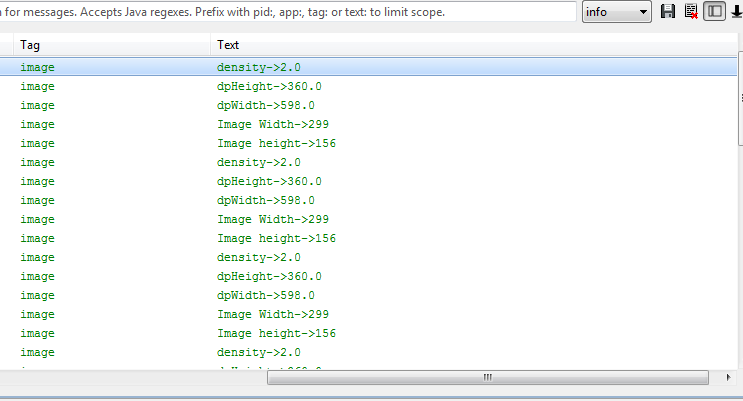

日志输出XHDPI：(模拟器-GalaxyNexus-4.65“-720*1280:xhdpi)

​

​

Answer 1

我为MDPI解析设计了位图(因为MDPI中有1 px=1 dp )。然后使用calculator/转换为其他解析桶

修改以下代码：

更改如下：

                Log.i("image","density->"+density);
                float dpHeight = outMetrics.heightPixels / density;
                Log.i("image","dpHeight->"+dpHeight);
                float dpWidth  = outMetrics.widthPixels / density;
                Log.i("image","dpWidth->"+dpWidth);

TO :

            float dpHeight = outMetrics.heightPixels;
            float dpWidth  = outMetrics.widthPixels;

Answer 2

嗨，您是否为不同的屏幕大小创建了分隔文件夹，如果不是这样创建的话

布局-小型

布局-大型

布局-xlarge

然后将布局XML文件复制到这些文件夹中，并检查Xhdpi调色板窗口中的预览，默认屏幕大小为10“，以便调整布局中的Grid视图。
