使用MPU6050加速度计/陀螺仪模块

Question

我正在用MPU6050模块测试我的阿迪诺·梅加。我发现杰夫·罗伯格为此写了一个图书馆。我试着用他提供的这个例子。但是Arduino IDE在试图验证草图时会出现大量错误。

我已经安装了Jeffs库。(下图显示库内容)

​

​

这是我正在犯的错误：

In file included from C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:42,
                 from sketch_dec08a.cpp:50:
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050.h:792: warning: only initialized variables can be placed into program memory area
In file included from sketch_dec08a.cpp:50:
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:89: warning: only initialized variables can be placed into program memory area
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:89: error: conflicting declaration 'const prog_uchar dmpMemory [1929]'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050.h:792: error: 'dmpMemory' has a previous declaration as 'prog_uchar dmpMemory [1929]'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:229: warning: only initialized variables can be placed into program memory area
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:271: warning: only initialized variables can be placed into program memory area
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:271: error: conflicting declaration 'const prog_uchar dmpUpdates [47]'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050.h:931: error: 'dmpUpdates' has a previous declaration as 'uint8_t dmpUpdates [29][9]'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:281: error: no 'uint8_t MPU6050::dmpInitialize()' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:506: error: no 'bool MPU6050::dmpPacketAvailable()' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:533: error: no 'uint8_t MPU6050::dmpGetAccel(int32_t*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:541: error: no 'uint8_t MPU6050::dmpGetAccel(int16_t*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:549: error: no 'uint8_t MPU6050::dmpGetAccel(VectorInt16*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:557: error: no 'uint8_t MPU6050::dmpGetQuaternion(int32_t*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:566: error: no 'uint8_t MPU6050::dmpGetQuaternion(int16_t*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:575: error: no 'uint8_t MPU6050::dmpGetQuaternion(Quaternion*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:590: error: no 'uint8_t MPU6050::dmpGetGyro(int32_t*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:598: error: no 'uint8_t MPU6050::dmpGetGyro(int16_t*, const uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:608: error: no 'uint8_t MPU6050::dmpGetLinearAccel(VectorInt16*, VectorInt16*, VectorFloat*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:616: error: no 'uint8_t MPU6050::dmpGetLinearAccelInWorld(VectorInt16*, VectorInt16*, Quaternion*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:628: error: no 'uint8_t MPU6050::dmpGetGravity(VectorFloat*, Quaternion*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:639: error: no 'uint8_t MPU6050::dmpGetEuler(float*, Quaternion*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:645: error: no 'uint8_t MPU6050::dmpGetYawPitchRoll(float*, Quaternion*, VectorFloat*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:658: error: no 'uint8_t MPU6050::dmpProcessFIFOPacket(const unsigned char*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:668: error: no 'uint8_t MPU6050::dmpReadAndProcessFIFOPacket(uint8_t, uint8_t*)' member function declared in class 'MPU6050'
C:\Users\LordXaX\Documents\Arduino\libraries\MPU6050/MPU6050_6Axis_MotionApps20.h:693: error: no 'uint16_t MPU6050::dmpGetFIFOPacketSize()' member function declared in class 'MPU6050'
sketch_dec08a.cpp: In function 'void setup()':
sketch_dec08a.cpp:177: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:181: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:182: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:182: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:185: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:191: warning: only initialized variables can be placed into program memory area
sketch_dec08a:187: error: 'class MPU6050' has no member named 'dmpInitialize'
sketch_dec08a.cpp:197: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:201: warning: only initialized variables can be placed into program memory area
sketch_dec08a:198: error: 'class MPU6050' has no member named 'getIntStatus'
sketch_dec08a.cpp:206: warning: only initialized variables can be placed into program memory area
sketch_dec08a:205: error: 'class MPU6050' has no member named 'dmpGetFIFOPacketSize'
sketch_dec08a.cpp:216: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp:218: warning: only initialized variables can be placed into program memory area
sketch_dec08a.cpp: In function 'void loop()':
sketch_dec08a:246: error: 'class MPU6050' has no member named 'getIntStatus'
sketch_dec08a.cpp:260: warning: only initialized variables can be placed into program memory area
sketch_dec08a:263: error: 'class MPU6050' has no member named 'getFIFOBytes'

我该如何克服这一切？

我一直在努力用这个装置来获得加速度/陀螺仪的值。但还是没有成功。

编辑

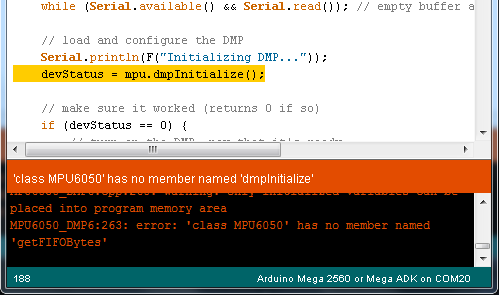

这就是我在试图编译(验证)时得到的结果。

​

​

Answer 1

杰夫提供的MPU6050_DMP6示例为我工作。从编译错误来看，您似乎包含了MPU6050.h，而不是MPU6050_6Axis_MotionApps20.h。确保你包括了正确的。

如果查看图书馆代码，您会注意到，.dmp_____方法不是在MPU6050.cpp文件中实现的，而是在MPU6050_6Axis_MotionApps20.h文件中实现的。如果这不能解决这个问题，那么发布您的代码。

Answer 2

尝试将jeffs、i2c、.cpp和.h文件放在与mpu6050库文件相同的文件夹中，我发现这对我起了作用，很抱歉，如果这稍微晚了一点，但希望会有所帮助:P

Answer 3

我也有同样的问题，结果我包括MPU6050.h和MPU6050_6Axis_MotionApps20.h。我注释掉了MPU6050.h，它现在编译得很好。似乎前者压倒了后者。
