Java 3彩色梯度

Question

我有一个JPanel，我想在里面画一个渐变。我有下面的代码，但那只画了2色梯度。我想加一个第三，但不知道怎么做。我想要的是面板的左上角是白色的，右上角是红色的，下角都是黑色的。我要做什么才能做到这一点，就像这样：

​

​

package pocketshop.util;

import java.awt.Color;
import java.awt.GradientPaint;
import java.awt.Graphics;
import java.awt.Graphics2D;
import javax.swing.JPanel;

public class ColorPicker extends JPanel{

    public ColorPicker(){
        repaint();
    }

    @Override
    public void paintComponent(Graphics g){
        super.paintComponent(g);
        Graphics2D g2d = (Graphics2D)g;
        int w = getWidth();
        int h = getHeight();

        GradientPaint gp = new GradientPaint(
                0, 0, Color.white,
                0, h, Color.black);

        g2d.setPaint(gp);
        g2d.fillRect(0, 0, w, h);
    }
}

编辑:可能的解决方案

我想出了两个梯度--一个是水平的，一个是垂直的，如下所示：

    public void paintComponent(Graphics g){
        super.paintComponent(g);
        Graphics2D g2d = (Graphics2D)g;
        int w = getWidth();
        int h = getHeight();

        // Vertical
        GradientPaint gp = new GradientPaint(
                0, 0, new Color(0,0,0,0),
                0, h, Color.black);

        // Horizontal
        GradientPaint gp2 = new GradientPaint(
                0, 0, Color.white,
                w, 0, Color.red, true);

        g2d.setPaint(gp2);
        g2d.fillRect(0, 0, w, h);
        g2d.setPaint(gp);
        g2d.fillRect(0, 0, w, h);
    }

Answer 1

像这样吗？

​

​

import java.awt.*;
import java.awt.image.BufferedImage;
import java.io.*;
import javax.imageio.ImageIO;
import javax.swing.*;

public class ThreeWayGradient {

    public static void main(String[] args) {
        final BufferedImage image = new BufferedImage(
                200, 200, BufferedImage.TYPE_INT_RGB);
        Runnable r = new Runnable() {
            @Override
            public void run() {
                Graphics2D g = image.createGraphics();
                GradientPaint primary = new GradientPaint(
                        0f, 0f, Color.WHITE, 200f, 0f, Color.ORANGE);
                GradientPaint shade = new GradientPaint(
                        0f, 0f, new Color(0, 0, 0, 0),
                        0f, 200f, new Color(0, 0, 0, 255));
                g.setPaint(primary);
                g.fillRect(0, 0, 200, 200);
                g.setPaint(shade);
                g.fillRect(0, 0, 200, 200);

                JLabel l = new JLabel(new ImageIcon(image));
                JOptionPane.showMessageDialog(null, l);
                File f = new File(System.getProperty("user.home"),
                        "ThreeWayGradient.png");
                try {
                    ImageIO.write(image, "png", f);
                } catch (IOException ex) {
                    ex.printStackTrace();
                }
            }
        };
        SwingUtilities.invokeLater(r);
    }
}

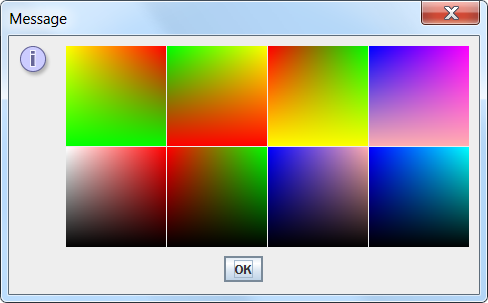

把它变成工厂的方法

..because，它更漂亮。

​

​

import java.awt.*;
import java.awt.image.BufferedImage;
import javax.swing.*;

public class ThreeWayGradient {

    public static BufferedImage getThreeWayGradient(
            int size,
            Color primaryLeft,
            Color primaryRight,
            Color shadeColor) {
        BufferedImage image = new BufferedImage(
                size, size, BufferedImage.TYPE_INT_RGB);

        Graphics2D g = image.createGraphics();
        GradientPaint primary = new GradientPaint(
                0f, 0f, primaryLeft, size, 0f, primaryRight);
        int rC = shadeColor.getRed();
        int gC = shadeColor.getGreen();
        int bC = shadeColor.getBlue();
        GradientPaint shade = new GradientPaint(
                0f, 0f, new Color(rC, gC, bC, 0),
                0f, size, shadeColor);
        g.setPaint(primary);
        g.fillRect(0, 0, size, size);
        g.setPaint(shade);
        g.fillRect(0, 0, size, size);

        g.dispose();
        return image;
    }

    /**
     * Presumed to have a layout that shows multiple components.
     */
    public static void addGradient(
            JPanel p, int s, Color pL, Color pR, Color sh) {

        JLabel l = new JLabel(new ImageIcon(getThreeWayGradient(s, pL, pR, sh)));
        p.add(l);
    }

    public static void main(String[] args) {
        Runnable r = new Runnable() {

            @Override
            public void run() {
                JPanel gui = new JPanel(new GridLayout(2,4,1,1));
                addGradient(gui,100,Color.YELLOW,Color.RED,Color.GREEN);
                addGradient(gui,100,Color.GREEN,Color.YELLOW,Color.RED);
                addGradient(gui,100,Color.RED,Color.GREEN,Color.YELLOW);
                addGradient(gui,100,Color.BLUE,Color.MAGENTA,Color.PINK);
                addGradient(gui,100,Color.WHITE,Color.RED,Color.BLACK);
                addGradient(gui,100,Color.RED,Color.GREEN,Color.BLACK);
                addGradient(gui,100,Color.BLUE,Color.PINK,Color.BLACK);
                addGradient(gui,100,Color.BLUE,Color.CYAN,Color.BLACK);
                JOptionPane.showMessageDialog(null, gui);
            }
        };
        SwingUtilities.invokeLater(r);
    }
}

Answer 2

看看LinearGradientPaint，它允许您指定n个颜色数和它们的权重。

更新1

在需求“小”变化的情况下，任何一个LinearGradientPaint在GradientPant上是否会对性能产生任何重大影响，都是值得商榷的。

我强烈建议您查看一下谐波码。这家伙写了一些很有趣的文章，还有一些关于渐变的。;)

更新2

我知道我在双线性颜色插值之前见过类似的东西。
