MATLAB:滤波含噪EKG信号

Question

用matlab从心电图信号中去除噪声的最佳滤波器是什么？

Answer 1

如果您可以访问信号处理工具箱，那么请检查Savitzky-Golay滤波器，即函数sgolay。这里有一个附带的演示，只需运行sgolaydemo。

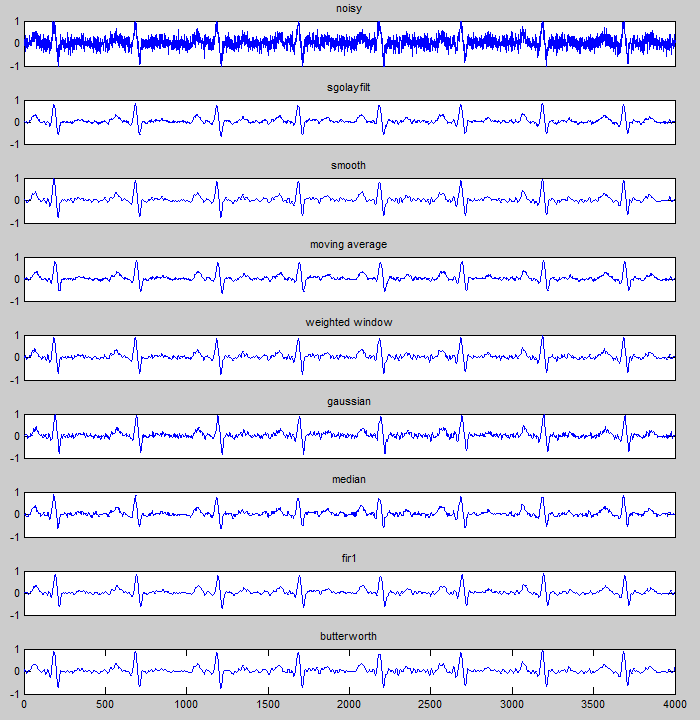

下面是一个示例，说明您可以将滤波和去噪应用于信号的各种方法。注意，其中一些函数需要有特定的工具箱：

% load ecg: simulate noisy ECG
Fs=500;
x = repmat(ecg(Fs), 1, 8);
x = x + randn(1,length(x)).*0.18;

% plot noisy signal
figure
subplot(911), plot(x), set(gca, 'YLim', [-1 1], 'xtick',[])
title('noisy')

% sgolay filter
frame = 15;
degree = 0;
y = sgolayfilt(x, degree, frame);
subplot(912), plot(y), set(gca, 'YLim', [-1 1], 'xtick',[])
title('sgolayfilt')

% smooth
window = 30;
%y = smooth(x, window, 'moving');
%y = smooth(x, window/length(x), 'sgolay', 2);
y = smooth(x, window/length(x), 'rloess');
subplot(913), plot(y), set(gca, 'YLim', [-1 1], 'xtick',[])
title('smooth')

% moving average filter
window = 15;
h = ones(window,1)/window;
y = filter(h, 1, x);
subplot(914), plot(y), set(gca, 'YLim', [-1 1], 'xtick',[])
title('moving average')

% moving weighted window
window = 7;
h = gausswin(2*window+1)./window;
y = zeros(size(x));
for i=1:length(x)
    for j=-window:window;
        if j>-i && j<(length(x)-i+1)
            %y(i) = y(i) + x(i+j) * (1-(j/window)^2)/window;
            y(i) = y(i) + x(i+j) * h(j+window+1);
        end
    end
end
subplot(915), plot( y ), set(gca, 'YLim', [-1 1], 'xtick',[])
title('weighted window')

% gaussian
window = 7;
h = normpdf( -window:window, 0, fix((2*window+1)/6) );
y = filter(h, 1, x);
subplot(916), plot( y ), set(gca, 'YLim', [-1 1], 'xtick',[])
title('gaussian')

% median filter
window = 15;
y = medfilt1(x, window);
subplot(917), plot(y), set(gca, 'YLim', [-1 1], 'xtick',[])
title('median')

% filter
order = 15;
h = fir1(order, 0.1, rectwin(order+1));
y = filter(h, 1, x);
subplot(918), plot( y ), set(gca, 'YLim', [-1 1], 'xtick',[])
title('fir1')

% lowpass Butterworth filter
fNorm = 25 / (Fs/2);               % normalized cutoff frequency
[b,a] = butter(10, fNorm, 'low');  % 10th order filter
y = filtfilt(b, a, x);
subplot(919), plot(y), set(gca, 'YLim', [-1 1])
title('butterworth')

​

​

Answer 2

您可能需要查看的两个筛选器设计工具/演示：

• FDATool在信号处理工具箱中(如果您可以访问它)。
• 模拟滤波器设计工具箱从詹姆斯·斯奎尔带来的MathWorks文件交换。似乎对工具箱中包含的EKG数据进行了装配模拟。

这些应该让您有机会尝试不同的滤波器和滤波器参数，看看它们如何处理EKG/ECG数据。
