在R中创建一个可编辑的局部效果图，该函数具有gratia：：plot ()函数，该函数也具有橄榄球图

Question

我的问题主要是通过以下帖子回答的：Cannot update/edit ggplot2 object exported from a package (gratia) in R。当我提到mydraw.gam函数时，它来自于文章中的代码。我想要做的是将mydraw.gam函数与一个看起来类似惠悦：：draw()函数的橄榄球一起使用。

这是我的数据：

dput(LMB.stack)
structure(list(X1 = c(0.0541887294548451, 0.0721473880136936,
0.0175421164050594, 0.0215182766921787, 0.0440735967747106, 0.046669040060852,
0.0526230550013067, 0.112833597945919, 0.063812034754301, 0.0940158338572872,
0.0506721208894938, 0.0127474420783362, 0.0657879523145501, 0.0541887294548451,
0.0721473880136936, 0.0175421164050594, 0.0215182766921787, 0.0440735967747106,
0.046669040060852, 0.0526230550013067, 0.112833597945919, 0.063812034754301,
0.0940158338572872, 0.0506721208894938, 0.0127474420783362, 0.0382272328188603,
0.0541887294548451, 0.0721473880136936, 0.0175421164050594, 0.0215182766921787,
0.0440735967747106, 0.046669040060852, 0.0526230550013067, 0.112833597945919,
0.063812034754301, 0.0940158338572872, 0.0506721208894938, 0.0127474420783362,
0.0657879523145501, 0.0382272328188603, 0.0541887294548451, 0.0721473880136936,
0.0175421164050594, 0.0215182766921787, 0.0440735967747106, 0.046669040060852,
0.0526230550013067, 0.0056727211129064, 0.063812034754301, 0.0940158338572872,
0.106570293080958, 0.116604915677637, 0.0422424508991219, 0.109071218434758,
0.0666150693773212, 0.108073813949563, 0.0394885672397296, 0.0688845434754768,
0.0530021292114909, 0.106570293080958, 0.116604915677637, 0.0422424508991219,
0.109071218434758, 0.0666150693773212, 0.108073813949563, 0.0411444155997384,
0.0394885672397296, 0.0688845434754768, 0.0530021292114909, 0.106570293080958,
0.116604915677637, 0.0422424508991219, 0.109071218434758, 0.0666150693773212,
0.108073813949563, 0.0411444155997384, 0.0394885672397296, 0.0688845434754768,
0.0530021292114909, 0.0578017962016202, 0.106570293080958, 0.116604915677637,
0.0422424508991219, 0.109071218434758, 0.0666150693773212, 0.174633119183298,
0.0645268299068541, 0.0709485215243274, 0.0682173756351461, 0.0643514854635756,
0.014808611175444, 0.163637352944664, 0.0599393459014399, 0.134349635442672,
0.214544784680364, 0.0460287439577173, 0.0692001626120574, 0.0682173756351461,
0.0643514854635756, 0.014808611175444), X2 = c(0.64, 0.47, 0.598,
0.52, 0.41, 1.38, 0.53, 0.73, 0.367, 0.58, 0.75, 0.38, 0.227,
0.39, 0.36, 0.35, 0.41, 0.84, 0.53, 0.55, 0.33, 0.33, 0.356,
0.58, 0.33, 0.52, 0.43, 0.53, 0.45, 0.37, 0.54, 0.98, 0.789,
0.44, 0.23, 0.21, 0.67144, 0.37, 0.38, 0.18, 0.24, 0.36, 0.37,
0.16, 0.58, 0.44, 0.41, 0.16, 0.13, 0.55, 0.99, 2.31, 1.264,
1.005, 1.345, 1.24, 1.665, 1.545, 0.799, 0.736, 1.237, 0.776,
0.742, 1.0259, 0.66, 1.17, 0.864, 1.191, 0.631, 0.745, 0.866,
0.917, 1.105, 1.04, 0.517, 1.236, 1.066, 1.35, 0.947, 0.74, 0.62,
1.572, 0.56, 1.189, 0.645, 0.9, 0.74, 0.568, 1.14, 1.159, 1.325,
1.217, 1.37, 1.147, 1.89, 1.19, 1.3, 0.73, 0.693, 1.06)), row.names = c(NA,
100L), class = "data.frame")

这就是我的gam看起来的样子(使用mgcv)：

LMB.gam<-gam(X2~s(X1), data = LMB.stack)

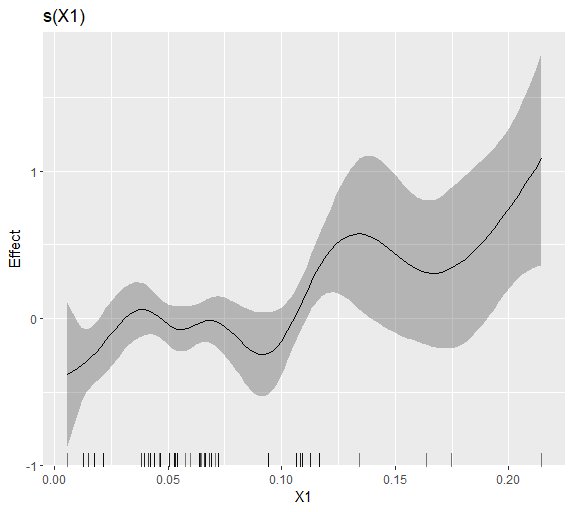

当我在包looks中使用draw(LMB.gam)命令时，部分效果图如下所示：

​

​

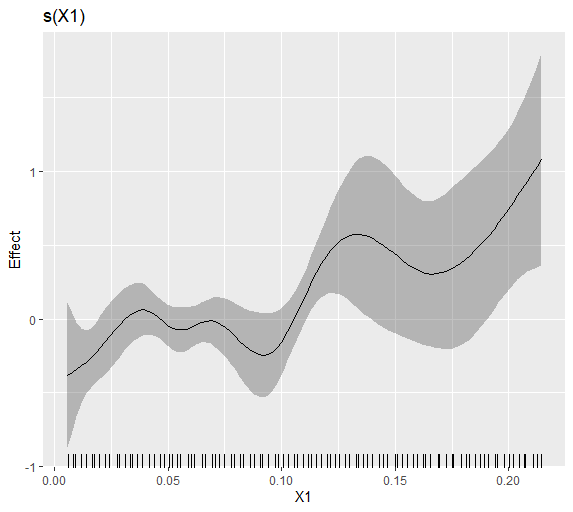

当我使用mydraw.gam命令(参见前一篇文章)时，尝试添加地毯图(请参阅下面的代码)，我的绘图如下所示：

p<-mydraw.gam(LMB.gam)
p[[1]] +  geom_rug(position = "jitter",sides="b")

​

​

我需要一些帮助，弄清楚如何正确地添加地毯图到编辑满足：：绘制图形部分效果绘图，对应于实际数据。

谢谢!

Answer 1

我只需要使用smooth_estimates()和它的draw()方法从模型中画出一个平滑的图。然后可以使用标准的ggplot2功能向其添加..。

# using your data in `df`
m <- gam(X2 ~ s(X1), data = df)
sm <- smooth_estimates(m, smooth = "s(X1)")

draw(sm) +
  labs(title = "My title", y = "foo") +
  geom_rug(data = df,
           mapping = aes(x = X1),
           sides = "b",
           inherit.aes = FALSE)

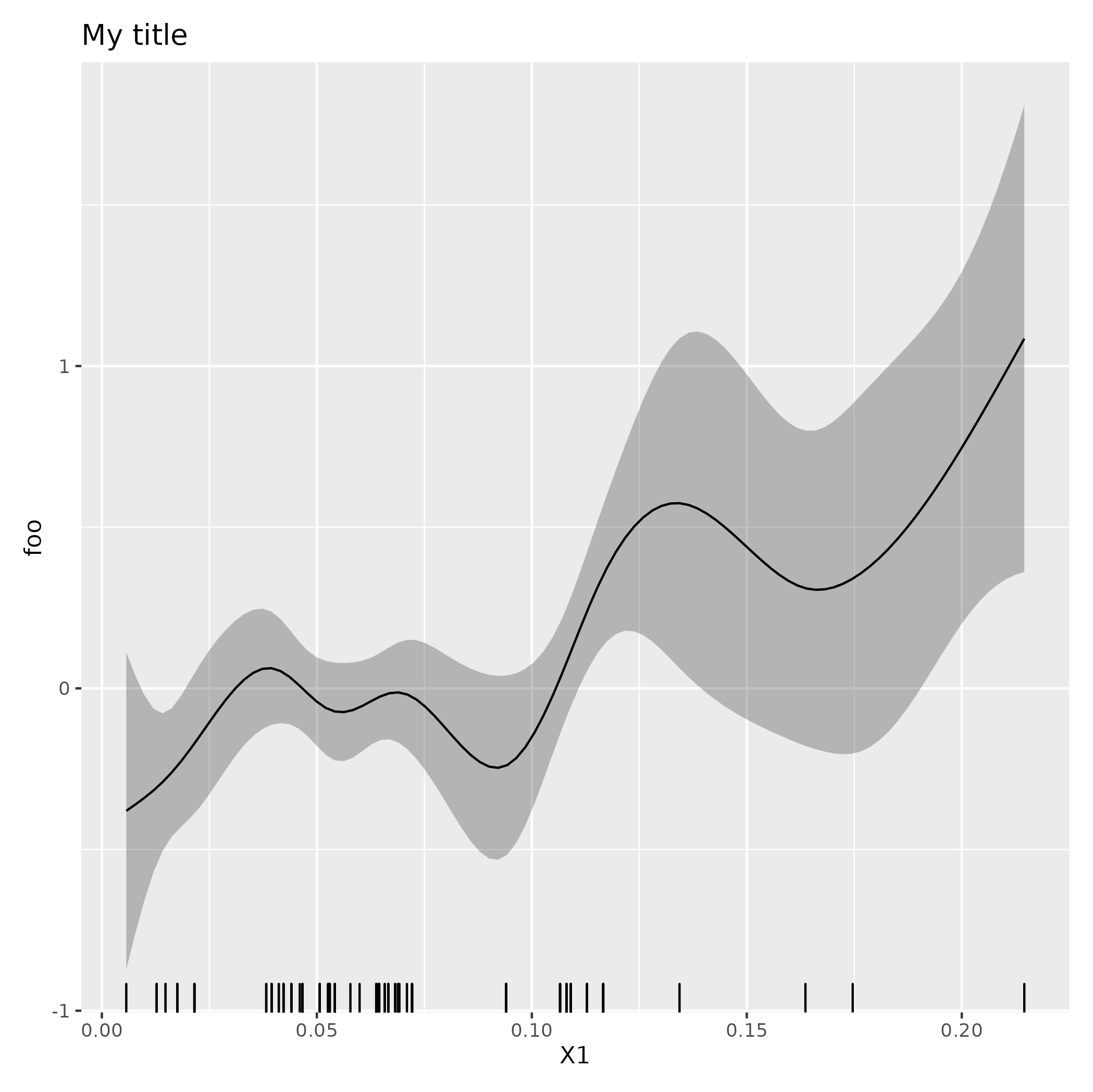

产生

​

​
