具有独立服务器的Laravel

Question

我试图用多台服务器实现Laravel。

我有一个App服务器和一个队列工作服务器正在运行。我试图从队列工作服务器广播我的通知，但是

光照\广播\广播异常:推送错误：。在/home/forge/my-app/vendor/laravel/framework/src/Illuminate/Broadcasting/Broadcasters/PusherBroadcaster.php:128中

在App中，在Network中，我可以确认它连接到websocket。我使用了亚历克斯·布马职位并安装了反向代理。如果我在App中广播，它就能工作

server {
    listen 6002 ssl http2;
    listen [::]:6002 ssl http2;
    server_name example.com;
    index.php

    location / {
        proxy_pass             http://127.0.0.1:6001;
        proxy_read_timeout     60;
        proxy_connect_timeout  60;
        proxy_redirect         off;

        # Allow the use of websockets
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
    }
}

App &队列工作器位于专用网络中，可以相互连接。但是，当我尝试从队列工作服务器广播时，它无法工作。

我很难理解如何让它发挥作用。

• 我是否也必须在队列工作器上运行php artisan websockets:serve？如果是这样的话，我需要给--host={private-ip}标志吗？
• 在我的broadcasting.php中，我为队列工作者的env添加了App的私有ip作为PUSHER_ENDPOINT_HOST。这是正确的吗？

'pusher' => [
      'driver' => 'pusher',
      'key' => env('PUSHER_APP_KEY'),
      'secret' => env('PUSHER_APP_SECRET'),
      'app_id' => env('PUSHER_APP_ID'),
      'options' => [
         'cluster' => env('PUSHER_APP_CLUSTER'),
         'encrypted' => in_array(config('app.env'), ['production', 'staging']),
         'host' => env('PUSHER_ENDPOINT_HOST', '127.0.0.1'),
         'port' => 6001,
         'scheme' => 'http'
      ],
],

更新:正如@KamleshPaul建议的那样，我做了一些修改。下面是我所有的代码。

我在应用服务器和工人服务器上都有这些信任。我正在这两个平台上运行php artisan websockets:serve，App成功地连接到套接字。但是，队列工作人员不发送通知。

两个php artisan websockets:serve都显示：“在端口6001上启动WebSocket服务器.”

但它似乎不起作用。(顺便说一句，我使用的是Laravel，允许的端口如下：

• 应用程序: 6001,6002,433，22
• 工人: 6001,6002，22

.env

PUSHER_APP_ID=aaa
PUSHER_APP_KEY=bbb
PUSHER_APP_SECRET=ccc
PUSHER_APP_CLUSTER=mt1
PUSHER_HOST=socket.my_domain.com
PUSHER_PORT=433
PUSHER_SCHEME=https

VITE_PUSHER_APP_KEY=${PUSHER_APP_KEY}
VITE_PUSHER_APP_CLUSTER=${PUSHER_APP_CLUSTER}
VITE_PUSHER_HOST=${PUSHER_HOST}
VITE_PUSHER_SCHEME={PUSHER_SCHEME}
VITE_PUSHER_PORT={PUSHER_PORT}

echo.js

window.Echo = new Echo({
      broadcaster: 'pusher',
      key: import.meta.env.VITE_PUSHER_APP_KEY,
      cluster: import.meta.env.VITE_PUSHER_APP_CLUSTER,
      wsHost: import.meta.env.VITE_PUSHER_HOST,
      wsPort: import.meta.env.VITE_PUSHER_PORT || 443,
      forceTLS: true,
      disableStats: true,
      scheme: import.meta.env.VITE_PUSHER_SCHEME,
      enabledTransports: ["ws", "wss"],
}

broadcasting.php

'pusher' => [
    'driver' => 'pusher',
    'key' => env('PUSHER_APP_KEY'),
    'secret' => env('PUSHER_APP_SECRET'),
    'app_id' => env('PUSHER_APP_ID'),
    'options' => [
        'cluster' => env('PUSHER_APP_CLUSTER'),
        'encrypted' => true,
        'host' => env('PUSHER_HOST'),
        'port' => env('PUSHER_PORT'),
        'scheme' => env('PUSHER_SCHEME')
    ],
],

socket.my_domain.com的nginx

# FORGE CONFIG (DO NOT REMOVE!)
include forge-conf/socket.my_domain.com/before/*;

server {
    listen 443 ssl http2;
    listen [::]:443 ssl http2;
    server_name socket.my_domain.com;
    server_tokens off;
    root /home/forge/socket.my_domain.com/public;

    # FORGE SSL (DO NOT REMOVE!)
    ssl_certificate /etc/nginx/ssl/socket.my_domain.com/1262458/server.crt;
    ssl_certificate_key /etc/nginx/ssl/socket.my_domain.com/1262458/server.key;

    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384;
    ssl_prefer_server_ciphers off;
    ssl_dhparam /etc/nginx/dhparams.pem;

    add_header X-Frame-Options "SAMEORIGIN";
    add_header X-XSS-Protection "1; mode=block";
    add_header X-Content-Type-Options "nosniff";

    index index.html index.htm index.php;

    charset utf-8;

    # FORGE CONFIG (DO NOT REMOVE!)
    include forge-conf/socket.my_domain.com/server/*;

    location / {
        proxy_pass             http://127.0.0.1:6001;
        proxy_read_timeout     60;
        proxy_connect_timeout  60;
        proxy_redirect         off;

        # Allow the use of websockets
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
    }

    location = /favicon.ico { access_log off; log_not_found off; }
    location = /robots.txt  { access_log off; log_not_found off; }

    access_log off;
    error_log  /var/log/nginx/socket.my_domain.com-error.log error;

    error_page 404 /index.php;

    location ~ \.php$ {
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        fastcgi_pass unix:/var/run/php/php8.0-fpm.sock;
        fastcgi_index index.php;
        include fastcgi_params;
    }

    location ~ /\.(?!well-known).* {
        deny all;
    }
}

# FORGE CONFIG (DO NOT REMOVE!)
include forge-conf/socket.my_domain.com/after/*;

Answer 1

根据laravel websockets文档

创建子域socket.yourapp.tld，然后创建nginx，如下所示

server {
  listen        443 ssl;
  listen        [::]:443 ssl;
  server_name   socket.yourapp.tld;

  # Start the SSL configurations
  ssl                  on;
  ssl_certificate      /etc/letsencrypt/live/socket.yourapp.tld/fullchain.pem;
  ssl_certificate_key  /etc/letsencrypt/live/socket.yourapp.tld/privkey.pem;

  location / {
    proxy_pass             http://127.0.0.1:6001;
    proxy_read_timeout     60;
    proxy_connect_timeout  60;
    proxy_redirect         off;

    # Allow the use of websockets
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection 'upgrade';
    proxy_set_header Host $host;
    proxy_cache_bypass $http_upgrade;
  }
}

那么在broadcasting.php中，您需要更改这些

'host' => socket.yourapp.tld,
'port' => 433,
'scheme' => 'https'

javascript也是如此。

export default new Echo({
  broadcaster: "pusher",
  key: "key",
  wsHost: process.env.REACT_APP_WS_HOST,
  wsPort: process.env.REACT_APP_WS_PORT || 443,
  forceTLS: process.env.REACT_APP_WS_PORT === 433,
  disableStats: true,
  enabledTransports: ["ws", "wss"],
  authorizer: (channel, options) => {
    return {
      authorize: (socketId, callback) => {
        axios
          .post(
            `${process.env.REACT_APP_MARKETPLACE_URL}broadcasting/auth`,
            {
              socket_id: socketId,
              channel_name: channel.name,
            },
            {
              headers: {
                Authorization: `Bearer ${token}`,
              },
            }
          )
          .then((response) => {
            callback(false, response.data);
          })
          .catch((error) => {
            callback(true, error);
          });
      },
    };
  },

参考链接https://beyondco.de/docs/laravel-websockets/basic-usage/ssl#usage-with-a-reverse-proxy-like-nginx

Answer 2

我终于想出来了。下面这些设置适用于我。希望它能为您节省一些时间:)

我决定在像在文档中描述这样的子域方法上使用反向代理。

对于子域的nginx，唯一不同于默认Laravel配置的是location / {}。只要复制你的Laravel应用程序的nginx配置，更改server_name并替换location / {}，就可以了。

window.Echo = new Echo({
     broadcaster: 'pusher',
     key: import.meta.env.VITE_PUSHER_APP_KEY,
     cluster: import.meta.env.VITE_PUSHER_APP_CLUSTER,
     wsHost: import.meta.env.VITE_PUSHER_HOST,
     wsPort: import.meta.env.VITE_PUSHER_PORT || 443,
     forceTLS: true,
     disableStats: true,
     scheme: import.meta.env.VITE_PUSHER_SCHEME,
     enabledTransports: ["ws", "wss"],
});

// broadcasting.php

'pusher' => [
    'driver' => 'pusher',
    'key' => env('PUSHER_APP_KEY'),
    'secret' => env('PUSHER_APP_SECRET'),
    'app_id' => env('PUSHER_APP_ID'),
    'options' => [
        'cluster' => env('PUSHER_APP_CLUSTER'),
        'encrypted' => true,
        'host' => env('PUSHER_HOST'),
        'port' => env('PUSHER_PORT'),
        'scheme' => env('PUSHER_SCHEME'),
    ],
],

// websockets.php

'apps' => [
    [
        'id' => env('PUSHER_APP_ID'),
        'name' => env('APP_NAME'),
        'key' => env('PUSHER_APP_KEY'),
        'secret' => env('PUSHER_APP_SECRET'),
        'host' => env('PUSHER_HOST'),
//        'capacity' => null,
        'enable_client_messages' => false,
        'enable_statistics' => false,
    ],
],

// .env file

PUSHER_APP_ID=HIDDEN_ID
PUSHER_APP_KEY=HIDDEN_KEY
PUSHER_APP_SECRET=HIDDEN_SECRET
PUSHER_APP_CLUSTER=mt1
PUSHER_HOST=socket.example.com;
PUSHER_PORT=6001
PUSHER_SCHEME=http

VITE_PUSHER_APP_KEY=${PUSHER_APP_KEY}
VITE_PUSHER_APP_CLUSTER=${PUSHER_APP_CLUSTER}
VITE_PUSHER_HOST=${PUSHER_HOST}
VITE_PUSHER_SCHEME=https
VITE_PUSHER_PORT=433

• 确保在这两种情况下都运行php artisan websockets:serve：在我的案例中- App & Worker服务器。
• 确保您的应用服务器上允许端口6001。

在我的例子中，如果我将ssh写入服务器并编写php artisan websockets:serve，它就不会像在本地那样显示即将出现的消息或连接，所以请注意。

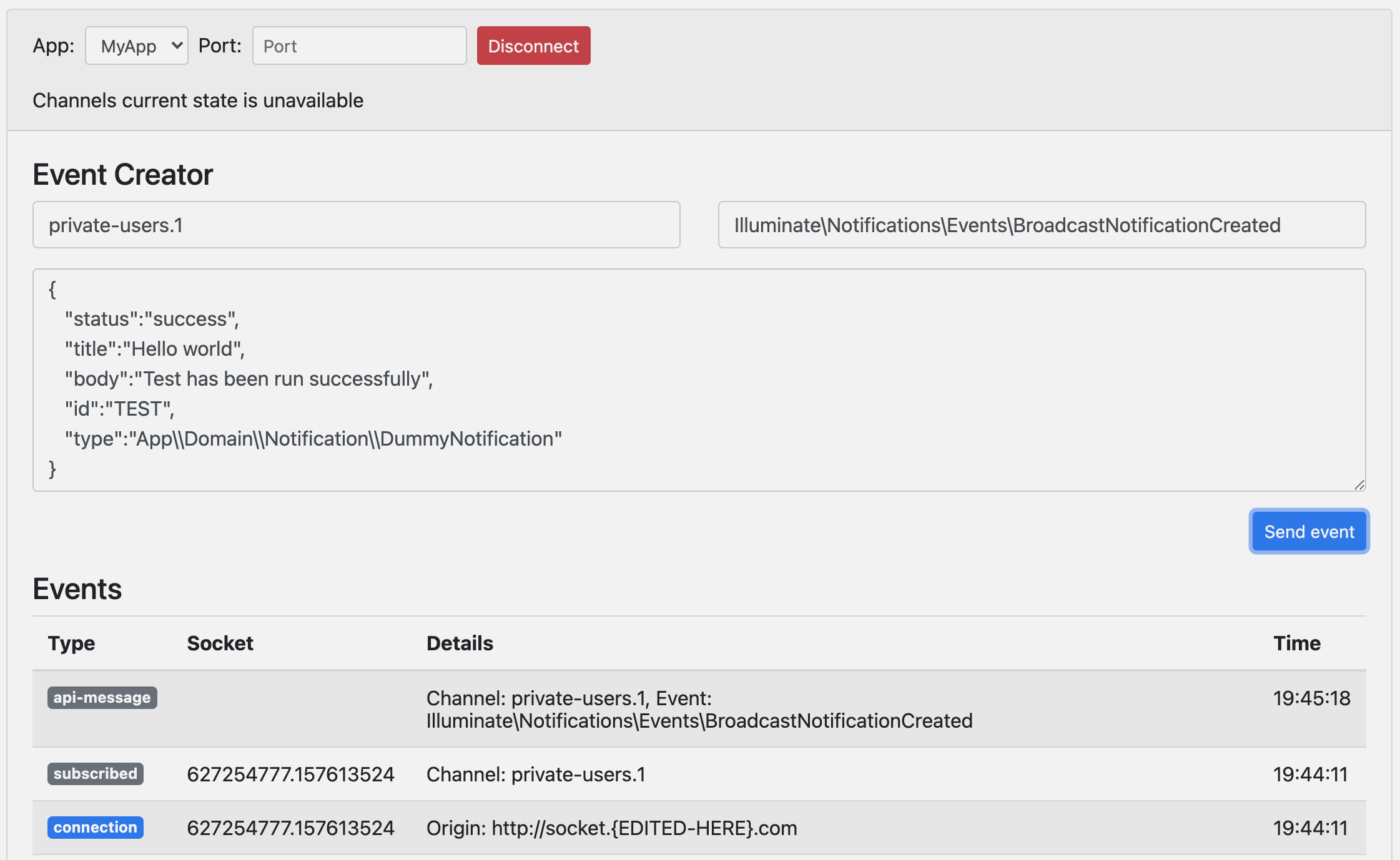

• 在App中，对于连接Laravel仪表板，只需使用空端口：

​

​

一些资源：

• 使用Laravel启动并运行 + Forge上的Laravel Websockets
• https://blog.codecourse.com/laravel-websockets-on-forge/
